A10.1018

Like Favorites

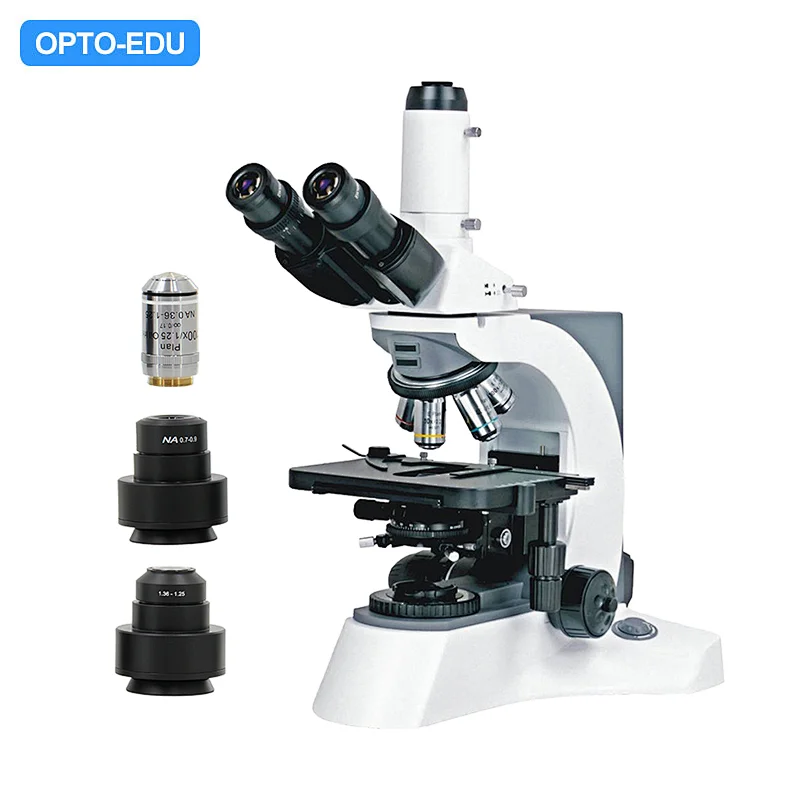

Professional Dark Field Microscope


  • Infinity Plan Optical System WIth Objective 4x10x40x100x
  • Infiniy Plan Dark Field Objective 100X With Iris Diaphram
  • Dry Dark Field Condenser N.A.0.7~0.9 Work With 40x Objective
  • Immersion Dark Field Condenser N.A.1.25~1.36 Work With 100x Objective
  • 12V100W Kohler Illumination, Asperical Collector, Halogen Lamp
Quantity:







A10.1018 Dark Field Laboratory Biological Microscope
Optical SystemInfinity Plan Optical System
HeadSeidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable
EyepieceExtra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
NosepieceBackward Quintuple Nosepiece, With Slide Slot
ObjectiveInfinity Plan Achromatic Objective 4x,10x,40x,100x
FocusingCoaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm
Working StageDouble Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm
CondenserSwing Out Condenser N.A.0.9/0.25
IlluminationHalogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable
FilterGreen, Blue
Dark Field Dark Field Condenser, N.A. 0.7~0.9, Dry,
Use With 40x Or Lower Magnification Objective
A5D.1010-D
AdapterTrinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm
Optional Accessories
HeadSeidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mmA53.1003-7
Upgrade to Tilting Binocular Head 5°~35°A53.1005-3
Upgrade to Tilting Trinocular Head 5°~35°A53.1005-4
EyepieceExtra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mmA51.1003-1020
Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mmA51.1003-2012
Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mmA51.1003-1516
ObjectiveInfinity Plan Achromatic Objective 20xA52.1006-20
Infinity Plan Achromatic Objective 60xA52.1006-60
NosepieceSextuple NosepieceA54.1001-6
Dark Field Dark Field Condenser, N.A. 1.25~1.36, Immersion,
Use With 100x Objective
A5D.1010-I
Dark Field Objective, Infinity Plan 100x(Oil)A5D.1030-3
Dark Field Objective, Infinity Plan 100x(Oil), With Iris DiaphragmA5D.1030-4
IlluminationUpgrade To Halogen Lamp 24V50W, For Better Dark ViewA56.1018-50W
Upgrade To Halogen Lamp 24V100W, For Better Dark ViewA56.1018-100W
Adapter0.45x C-MountA55.1002-45

Pictures
Model No. A10.1018
Function
BF+DF
Features
Infinity
Optical System
Infinity Plan
Standard Magnification
40x-1000x
Optional Magnification
40x-2000x
Head Type
Seidentopf Trinocular
Head Inclination
30°
Head Rotation
Head Rotate 360°
Head Interpupillary
48~75mm
Head Diopter
Left Tube Adjustable
Head Light Path
Switch E100:P0/E0:P100
Eyepiece Features
Wide Field
High Eyepoint
Eyepiece Diameter
30.0mm
Eyepiece
EW10x/22mm, 2pcs
Nosepiece Holes
5 Holes
Nosepiece Features
Backward
With Polarzing Slot
Objective Type
Infinity Plan
Objective
Infinity Plan Achromatic Objective 4x,10x,40x,100x
Working Stage Type
Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Working Stage Size
185x142mm
Working Stage Moving
55x75mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Focus
Focusing Range
24mm
Focusing Scale
0.001mm
Condenser Type
Swing-Out
Condenser N.A.
0.9/0.25
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Center Adjustable
Light Source Feature
Brightness Adjustable
Kohler Illumination
Aspheric Collector
Halogen 30W
Light Source Type
Halogen
Transmit Light
Halogen 6V30W External Illumination
Power Supply Type
AC 90V-240V Wide Voltage
Video Adapter
Digital Eyepice 23.2mm
Dark Field
Dry Dark Field Condenser N.A.0.7~0.9 Work With 40x Objective
