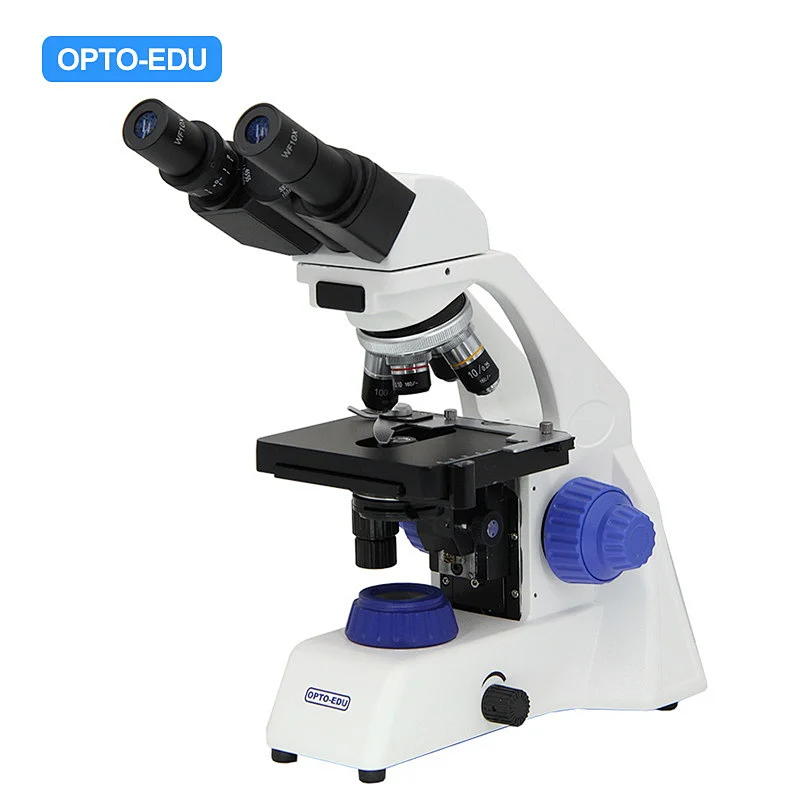

Student Biological Microscope


  • Binocular Head With Left Eyepiece Tube Diopter Adjustable
  • Achromatic/Plan Objective On Quarduple With Slot For Polarzier
  • Colorful Handle For Easy Carring Optional
  • 1W LED Light Source Brightness Adjustable
  • Low Voltage Power Supply By External 5V Adapter, Or USB Power Bank
Specification:
Quantity:




A11.0216 Biological Microscope
HeadA11.0216-B Binocular Head, Inclination 30˚, Rotatable 360° , Left Eyepiece Tube Diopter Adjustable
A11.0216-T Trinocular Head, Inclination 30˚, Rotatable 360° , Left Eyepiece Tube Diopter Adjustable
Objective
(Standard)
Achromatic 4x/0.10
Achromatic 10x/0.25
Achromatic 40x/0.65(Spring)
Achromatic 100x/1.25(Spring, Oil)
Objective
(Optional)
Plan Achromatic 4x/0.10
Plan Achromatic 10x/0.25
Plan Achromatic 40x/0.65(Spring)
Plan Achromatic 100x/1.25(Spring, Oil)
Focus SystemCoaxial Coarse/Fine Focus System With Up Stop, Minimum Division Of Fine Focusing: 2μm
NosepieceQuadruple(Backward Ball Bearing Inner Locating)
StageDouble Layer Mechanical (Size:125mmX115mm, Move Range: 70mmX30mm)
Abbe CondenserN.A.1.25, Rack & Pinion Adjustable
FilterFrosted Filter
CollectorFor LED Lamp
Light Source1W LED With Brightness Control, Optional Rechargeable Battery, External 5V Power Adapter Or USB Power Bank

Pictures
Model No. A11.0216
Function
BF BF
Features
USB Charging & Power Port USB Charging & Power Port
New Product Year
2019 2019
Optical System
Achromatic Achromatic
Standard Magnification
40x-1000x 40x-1000x
Head Type
Seidentopf Binocular Seidentopf Binocular
Head Inclination
30° 30°
Head Rotation
Eyetube Rotate 360° Eyetube Rotate 360°
Head Interpupillary
55~75mm 55~75mm
Head Diopter
Right Tube Adjustable Right Tube Adjustable
Eyepiece Features
Wide Field
Diopter Adjustable
Wide Field
Diopter Adjustable
Eyepiece Diameter
23.2mm 23.2mm
Eyepiece
WF10x/18mm, 2 pcs WF10x/18mm, 2 pcs
Nosepiece Holes
4 Holes 4 Holes
Nosepiece Features
Backward
With Polarzing Slot
Backward
With Polarzing Slot
Objective Type
Achromatic Achromatic
Objective
Achromatic Objective:

4x/0.10

10x/0.25

40x/0.65(Spring)

100x/1.25(Spring, Oil)
Achromatic Objective:

4x/0.10

10x/0.25

40x/0.65(Spring)

100x/1.25(Spring, Oil)
Working Stage Type
Double Layers Mechanical Double Layers Mechanical
Working Stage Size
125x115mm 125x115mm
Working Stage Moving
70x30mm 70x30mm
Focusing Features
Safety Stop Screw Safety Stop Screw
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine
Focusing Scale
0.002mm 0.002mm
Condenser Type
Abbe + Iris Diaphragm Abbe + Iris Diaphragm
Condenser N.A.
1.25 1.25
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable Brightness Adjustable
Light Source Type
LED LED
Transmit Light
1W LED 1W LED
Power Supply Type
External AC/DC Adapter
Low Voltage USB Power Supply
External AC/DC Adapter
Low Voltage USB Power Supply
Power Supply
Low Voltage Power Supply By External 5V Adapter, Or USB Power Bank Low Voltage Power Supply By External 5V Adapter, Or USB Power Bank
Function Upgradeable
Polarizing Polarizing
