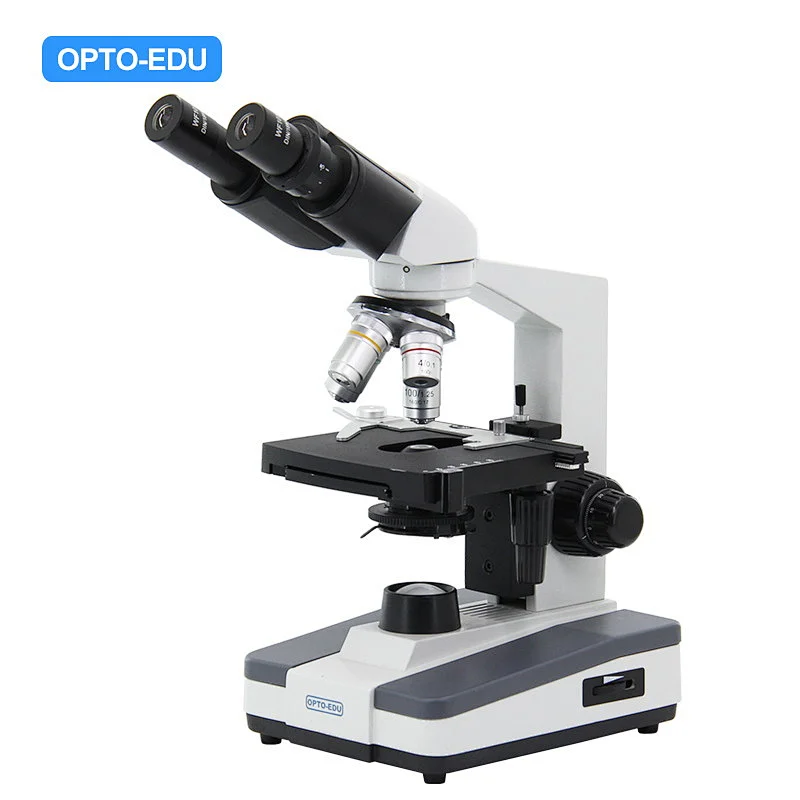

Biological Microscope, Seidentopf Binocular


  • Total Magnification 40x-1000x, Up To 40x-2500x With Optional Eyepieces
  • Monocular, Dual View, Binocular, Trinocular Heads Available For Photo Video Capture
  • Achromatic Objective 4x, 10x, 40x, 100x On 4 Holes Nosepiece
  • Double Layer Mechanical Stage 125x130mm, Moving Range 30x60mm
  • Light Source 6V20W Halogen Lamp, or LED 1W Optional
Quantity:






A11.1313 Biological MicroscopeMSVBT
HeadMonocular Head, 45° Inclined, 360° Rotatable
Dual Observation Head, 45°+45° Inclined
Dual Observation Head, 30°+90° Inclined
Seidentopf  Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 55-75mm
Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 55-75mm
EyepieceWF10x/18mm
ObjectiveAchromatic 4x
Achromatic 10x
Achromatic 40x(S)
Achromatic 100x(S,Oil)
NosepieceQuadruple Revolving Nosepiece
StageDouble Layers Mechanical Stage 125x130mm/60x30mm
CondenserAbbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32
FocusingCoarse & Fine Focusing Knob, Range 20mm, Scale 0.01mm
Light SourceHalogen Lamp 6V/20W
Optional Accessories
Light SourceLED Lamp 1W
EyepieceWF15xA51.1303-15
WF16xA51.1303-16
WF20xA51.1303-20
WF25xA51.1303-25
Pictures
Model No. A11.1313-B
Function
BF
Optical System
Achromatic
Standard Magnification
40x-1000x
Optional Magnification
40x-2500x
Head Type
Seidentopf Binocular
Head Inclination
30°
Head Rotation
Head Rotate 360°
Head Interpupillary
55~75mm
Head Diopter
Right Tube Adjustable
Eyepiece Features
Wide Field
Eyepiece Diameter
23.2mm
Eyepiece
WF10x/18mm, 2 pcs
Nosepiece Holes
4 Holes
Nosepiece Features
Outward
Objective Type
Achromatic
Objective
Achromatic 4x10x40x100x
Working Stage Type
Double Layers Mechanical
Working Stage Size
125x130mm
Working Stage Moving
30x60mm
Focusing Features
Safety Stop Screw
Focusing Type
Coaxial Coarse & Fine
Focusing Range
20mm
Focusing Scale
0.01mm
Condenser Type
Abbe + Iris Diaphragm
Condenser N.A.
1.25
Condenser Features
Sprial Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable
Light Source Type
Halogen
Transmit Light
6V20W Halogen
Power Supply Type
AC 110V/220V Optional
