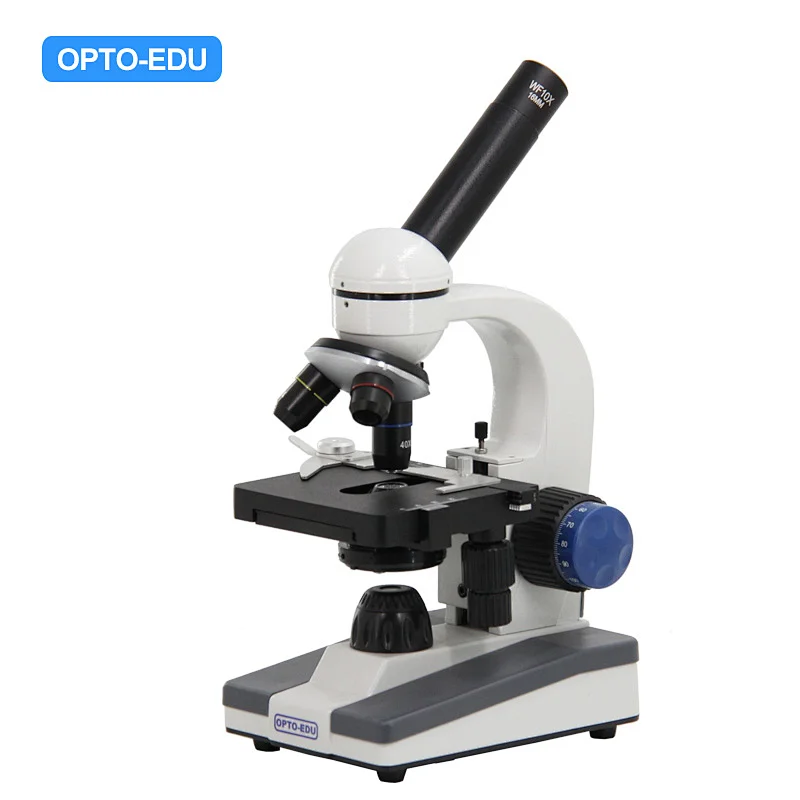

Monocular Student Biological Microscope

  • Monoular Head Inclined 45° Rotatable 360°
  • Eyepiece WF10x/18mm, Achromatic Objective 4x,10x,40x Spring
  • Double Layers Mechanical Stage With Iris Diaphragm Condenser
  • Coaxial Coarse & Fine Focusing Knob,
  • LED Light Powered By External AC/DC Adaptor,Or By 3xAA Batteries (
Quantity:









A11.1324 Student Microscope
HeadMonocular Head, 45° Inclined, 360° Rotatable
EyepieceWF10x
ObjectiveAchromatic 4x,10x,40x(Spring)
NosepieceTriple Revolving Nosepiece
StageDouble Layers Mechanical Stage 90x90mm, Moving Range 30x60mm
CondenserAbbe Condenser N.A.0.65 With Iris Diaphragm
FocusingCoaxial Coarse & Fine Focusing Adjustment, With Safty Stop
Light SourceLED Light, Brightness Adjustable
Power SupplyBy External AC/DC Adaptor, Or By 3xAA Batteries(Not Included)
Size16x11x31cm, Net Weight 1.9Kg

Pictures
Model No. A11.1324
Function
BF
Optical System
Achromatic
Standard Magnification
40x-400x
Head Type
Monocular
Head Inclination
45°
Head Rotation
Head Rotate 360°
Eyepiece Features
Wide Field
Eyepiece Diameter
23.2mm
Eyepiece
WF10x, 1 pc
Nosepiece Holes
3 Holes
Nosepiece Features
Backward
Objective Type
Achromatic
Objective
Achromatic 4x,10x,40x(Spring)
Working Stage Type
Double Layers Mechanical
Working Stage Size
90x90mm
Working Stage Moving
30x60mm
Focusing Features
Safety Stop Screw
Focusing Type
Coaxial Coarse & Fine
Condenser Type
Abbe + Iris Diaphragm
Condenser N.A.
0.65
Condenser Features
With Filter Holder
Light Source Feature
Brightness Adjustable
Light Source Type
LED
Transmit Light
LED
Power Supply Type
Cordless Battery
AC 100V-240V Wide Voltage
External AC/DC Adapter
Power Supply
By External AC/DC Adaptor, Or By 3xAA Batteries(Not Included)
