A11.1551 Biological Microscope | |||
Model | A11.1550-M | A11.1550-B | A11.1550-T |
Optical System | Finity Optical System, Achromatic | ||
Head | Monocular Viewing Head | Seidentopf Binocular Head | Seidentopf Trinocular Head |
Inclined at 30º, 360º Rotatable | Inclined at 30º, 360º Rotatable | Inclined at 30º, 360º Rotatable | |
Eyepiece | Wide Field Eyepiece WF10X/18mm | ||
Objective | Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | ||
Nosepiece | Quadruple Nosepiece | ||
Condenser | Abbe Condenser N.A. 1.25 With Diaphragm, Filter | ||
Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 36mm With Tension Adjustment | ||
Stage | Double Layer Mechanical Stage 142X132mm, Moving Range 75X50mm | ||
Illumination | 6V/20W Halogm Lamp,Brightness Adjustable | ||
Adapter | N/A | N/A | Eyepiece Tube Adapter |
A11.1551 Biological Microscope Optional Accessories | |||
Eyepiece | Wide Field Eyepiece WF16X/13mm | A51.1503 | |
Wide Field Eyepiece WF20X/11mm | A51.1503 | ||
Objective | Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil) | A52.1510 | |
Nosepiece | Quintuple Nosepiece | A54.1502-5A | |
CCD Adapter | 1.0x C-Mount | A55.1550-10 | |
0.5x C-Mount | A55.1550-05 | ||
Illumination | 3W LED Brightness Adjustable, Rechargeable, Without Batteries | A56.1503 |

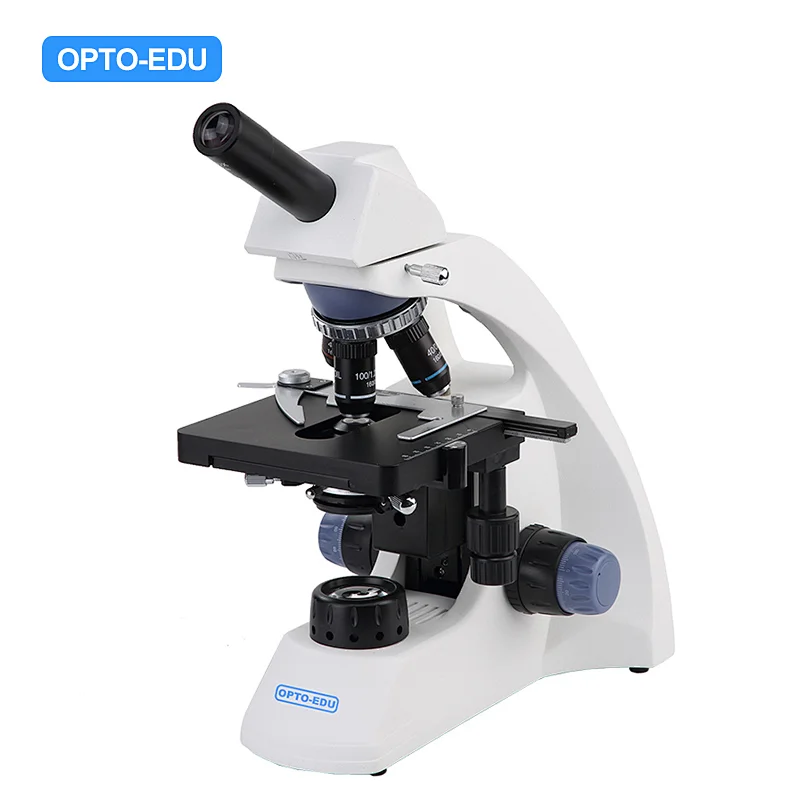

A11.1551-M
Like FavoritesStudent Biological Microscope
- Monocular, Binocular, Trinocular And Teaching Head Available For Choose
- Quadruple Nosepiece With Precise Click Stop
- Intergrated Double Layer Mechanical Stage, Size 142x132mm, Moving Range 75x50mm
- Abbe Condenser N.A.1.25,High Brightness 3W LED, Brightness Adjustable
- Finity Optical System, Achromatic Lens
Pictures | ||||
---|---|---|---|---|
Model No. | A11.1551-M | |||
Download
|
https://websitebucket.oss-accelerate.aliyuncs.com/2469193113797632/2020/10/Sj4BhHQCQ4.pdf | |||
Applications
|
Blood Analysis Clinic Laboratory Student School |
|||
Function
|
Bright Field | |||
New Product Year
|
2016 | |||
Optical System
|
Achromatic | |||
Standard Magnification
|
40x-1000x | |||
Optional Magnification
|
40x-2000x | |||
Head Type
|
Monocular | |||
Head Inclination
|
30° | |||
Head Rotation
|
360° | |||
Head Interpupillary
|
54~75mm | |||
Eyepiece Features
|
Wide Field | |||
Eyepiece Diameter
|
23.2mm | |||
Working Distance
|
格式:1.0,或1.0~2.0 | |||
Eyepiece
|
WF10x/18mm | |||
Nosepiece Holes
|
4 Holes | |||
Nosepiece Features
|
Backward | |||
Objective Type
|
Achromatic | |||
Objective
|
Achromatic 4x, 10x, 40x(S), 100x(O,S) | |||
Working Stage Type
|
Double Layers Mechanical | |||
Working Stage Size
|
132*142mm | |||
Working Stage Moving
|
75*50mm | |||
Focusing Features
|
Tension Adjustable Safety Stop |
|||
Focusing Type
|
Coaxial Coarse & Fine Focus | |||
Focusing Range
|
36mm | |||
Focusing Scale
|
0.002mm | |||
Condenser Type
|
Abbe + Iris Diaphragm | |||
Condenser N.A.
|
1.25 | |||
Condenser Features
|
Rack & Pinion Up/Down With Filter Holder Center Adjustable |
|||
Light Source Feature
|
Brightness Adjustable | |||
Light Source Type
|
Halogen Brightness Adjustable |
|||
Transmit Light
|
Halogen 6V/20W, Brightness Adjustable
Upgrade To LED Available |
|||
Power Supply Type
|
AC 100V-240V Wide Voltage Power Cord Detachable |
