Heating Stage Biological Microscope
Heating Stage Biological Microscope
Heating Stage Biological Microscope

A11.5101

Like Favorites

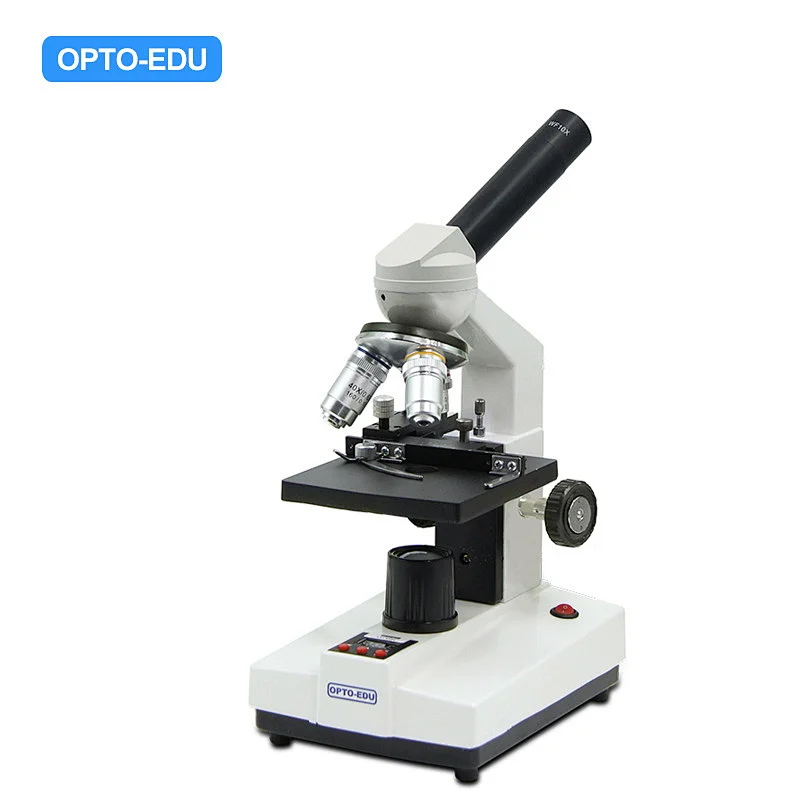

Heating Stage Biological Microscope


  • Total Magnification 40x-640x, Eyepiece H10x, H16x, Objective 4x,10x,40x
  • Tempurature Control & Display LED On Base
  • Heated Stage 37℃-38℃, Size 110mmx120mm, Moving 60mmx30mm
  • LED Light Source Power By DC 12V, Brightness Adjustable
  • Aluminum Case To Pack All Accesories For Easy Carring
Specification:
Quantity:






A11.5101 Heating Stage Biological Microscope
Magnification40x-640x
EyepieceH10x, H16x
HeadMonocular, 45°Including  360°Rotable
NosepieceTriple
ObjectiveAchroamtic 4x, 10x, 40x(s)
FocusingCoarse Distance: 20mm
StageHeated Stage 37-38, Size 110mmx120mm, Moving 60mmx30mm
CondenserRotating Diaphragm, Ф3.2Ф4Ф5Ф8Ф15
Light SourceLED, 12V, Brightness Adjustable
PackingAluminium Box + Strong Master Carton
Pictures
Model No. A11.5101
Function
BF BF
Optical System
Key Feature, 只写最重要的几条特征, 展示在对比界面 Key Feature, 只写最重要的几条特征, 展示在对比界面
Standard Magnification
10x 10x
Optional Magnification
100x 100x
Head Light Path
100x 100x
Eyepiece Diameter
23.2mm 23.2mm
Eyepiece
H10x,H16x H10x,H16x
Nosepiece Holes
3 Holes 3 Holes
Nosepiece Features
Outward Outward
Objective Type
Achromatic Achromatic
Objective
Achroamtic 4x10x40x Achroamtic 4x10x40x
Working Stage Feature
Heating Stage Heating Stage
Working Stage Size
110*120mm 110*120mm
Focusing Type
Coarse Focus Only Coarse Focus Only
Focusing Range
20mm 20mm
Condenser Type
Single Lens + Disc Diaphragm Single Lens + Disc Diaphragm
Condenser N.A.
0.65 0.65
Light Source Type
LED LED
Transmit Light
LED LED
Power Supply Type
AC 110V-240V Wide Voltage
Power Cord Detachable
AC 110V-240V Wide Voltage
Power Cord Detachable
