Laboratory Microscope

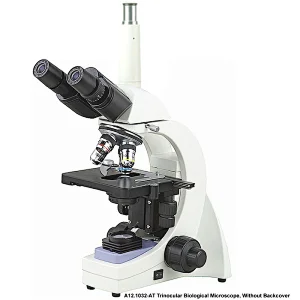

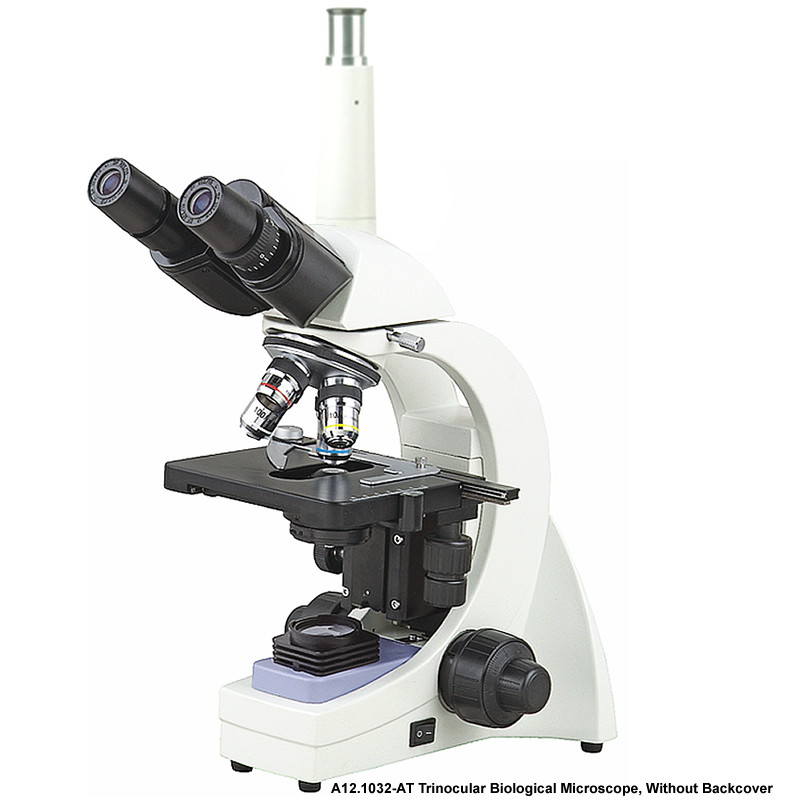

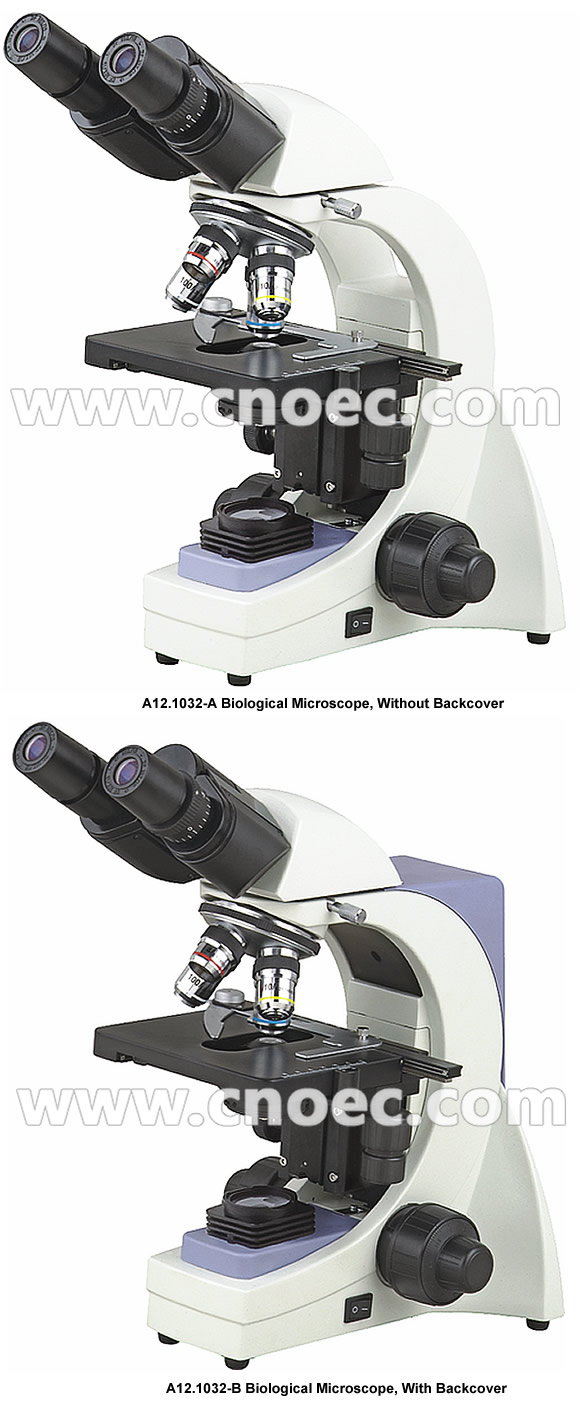

A12.1032 Laboratory Biological Microscope
Head	Seidentopf Binocular Head, 30° Inclined, Interpupillary 55~75mm
Eyepiece	WF10x/18mm
Nosepiece	Outward Quadruple Nosepiece
Objective	Achromatic Objective 4x,10x,40x,100x
Working Stage	Double Layer Mechanical Stage, 140140mm, Moving Range 5075mm
Condenser	Abbe Condenser N.A.1.25
Focusing	Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Stroke, Fine Stroke 0.2mm Per Rotation, Fine Division 0.002mm, Focusing Range 20mm
Filter	Green
Illumination	S-LED, Brightness Adjustable
A12.1032 Laboratory Biological Microscope Optional Accessories

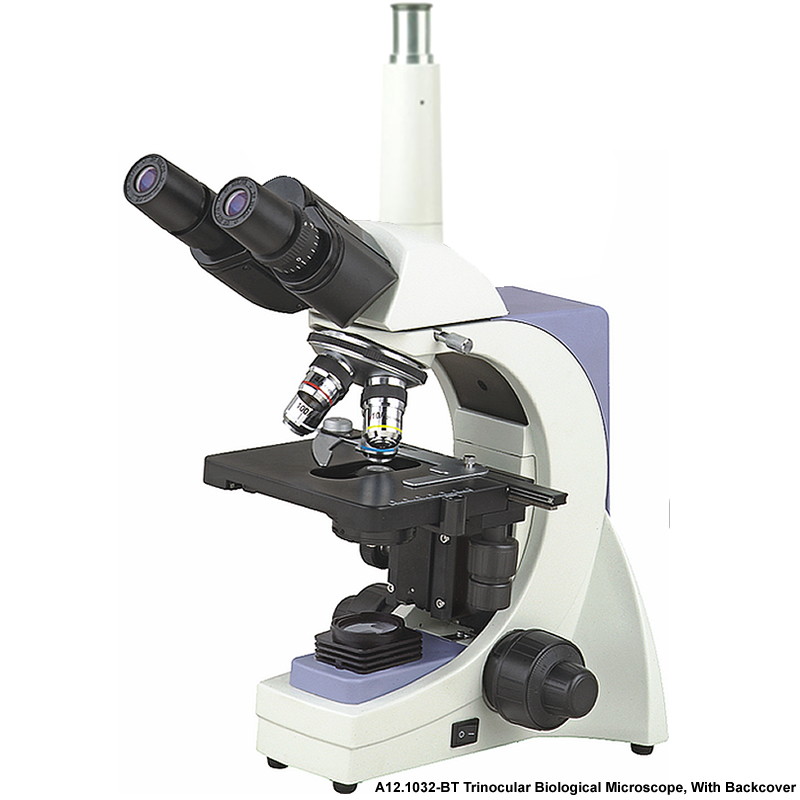

Head	Upgrade to Scidentopf Trinocular Head, 30° Inclined, Interpupillary 55~75mm	A53.1051
Eyepiece	P16x/11mm	A51.1002-16
Objective	Plan Achromatic Objective 4x	A52.1003-4
	Plan Achromatic Objective 10x	A52.1003-10
	Plan Achromatic Objective 40x	A52.1003-40
	Plan Achromatic Objective 100x	A52.1003-100
Adapter	Photo Adapter	A55.1001
	C-Mount 1.0x	A55.1002-10
	C-Mount 0.5x	A55.1002-05
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	A5D.1006-D
Dark Field	Dark Field Condenser, N.A. 1.25~1.36, Immersion	A5D.1006-I
Phase Contrast	Simple Achromatic Phase Contrast Set --Simple Phase Contrast Condenser --Achromatic Phase Condenser 10x, 40x,100x, --Centering Telescope 10x --Green Filter	A5C.1001-D
	Sliding Achromatic Phase Contrast Set --Sliding Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,40x --Centering Telescope 10x --Green Filter	A5C.1002-C3
	Turret Achromatic Phase Contrast Set --Turret Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,20x,40x,100x --Centering Telescope 10x --Green Filter	A5C.1004-B3
Flourescent	EPI-Fluorescent Kit Power Box V ertical Illumination, Fluorescent Filter B/G, Fluorescent objective 4x, 10x, 40x(s), 100x(s,oil)	A5F.1001
Polarizing	Simple Polarziing Set	A5P.1001
