Laboratory Biological Microscope, Trinocular, Info LCD
Laboratory Biological Microscope, Trinocular, Info LCD
Laboratory Biological Microscope, Trinocular, Info LCD

A12.1062-T

Like Favorites

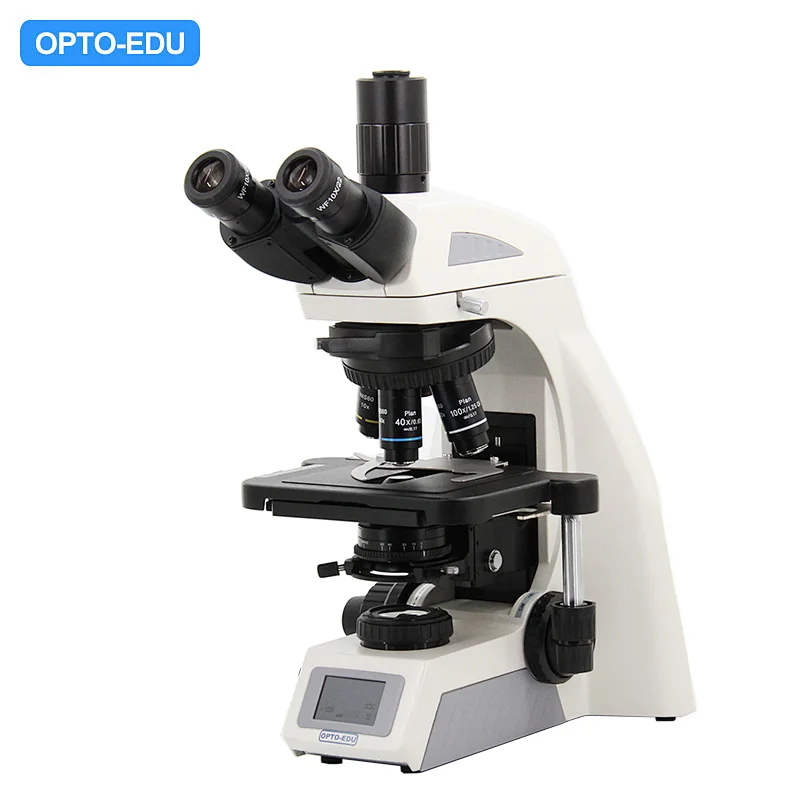

Laboratory Biological Microscope, Trinocular, Info LCD


  • Brand New Design 2019 High Level Laboratory Research Microscope
  • Coding Quintuple Nosepiece LCD Screen Base With Brightness Memory Function
  • Large Rackless Safty Working Stage 230x150mm, Moving Range 78x54mm
  • Infinity Plan NIS60 Objective 4x10x40x100x, Water 100x Immersion Available
  • Upgradeable To Dark Field, Polarizing, Phase Contrast & Fluorescent Function
Quantity:

NIS Infinity Optical System

Nis Infinity Plan Objectives Can Provide High Contrast And Very Flat Image

Up To Fn 22. With Fn 22 Wide Field Eyepieces, The System Always Brings You Sharp,

Excellent Resolution And High Signal To Noise Ratio Imaging.



Case For A12.1061, A12.1062, A16.1062, More Details & Pictures

Coded Nosepiece (Available In A12.1062 Series)

It Can Memorize The Illumination Brightness When Using Each Objective.

When Different Objectives Are Converted To Each Other,

The Light Intensity Is Automatically Adjusted To Reduce Visual Fatigue And Improve Work Efficiency.

22mm Wide Field Of View

The A12.1062 Microscope Achieves The Wide Field Of 22mm View With 10x Eyepieces

For A More Comprehensive Observation Content And Faster Sample Observation.

The Eyepiece Adopts A Flat Field Distortion-free Design To Prevent The Edge Of The Field From Being Imaginary And Stray Light.

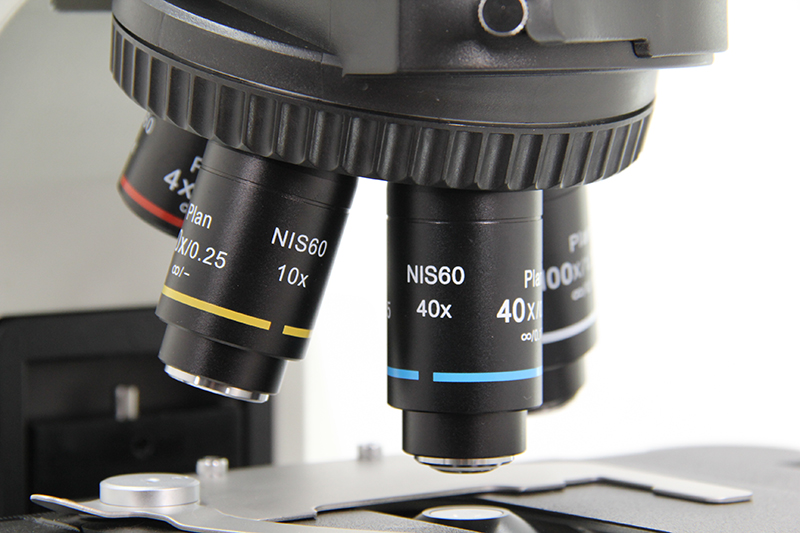

Plan Objective

By Using Infinity Plan Objectives, Flat Image With Higher Imaging Reduction Degree Over

The Entire Field Of View Could Be Achieved.

40x LWD Objective

The Working Distance Of 40x Objective Can Be Up To 1.5mm, Avoiding The Erosion From

Residual Immersion Oil And Water When Converted From 100x To 40x Objective.

100x Water-immersion Objective

Ordinary 100x Oil-immersion Objective Needs To Use Cedar Oil As The Observation Medium.

After Use, It Needs To Be Cleaned With Ether Alcohol Or Xylene, Which Is Easy To Cause Air Pollution And Improper Cleaning.

The Water - Immersion Objective Uses Water As A Medium To Solve The Above Problems Perfectly, Reducing The Damage To The Body And Environmental Pollution.

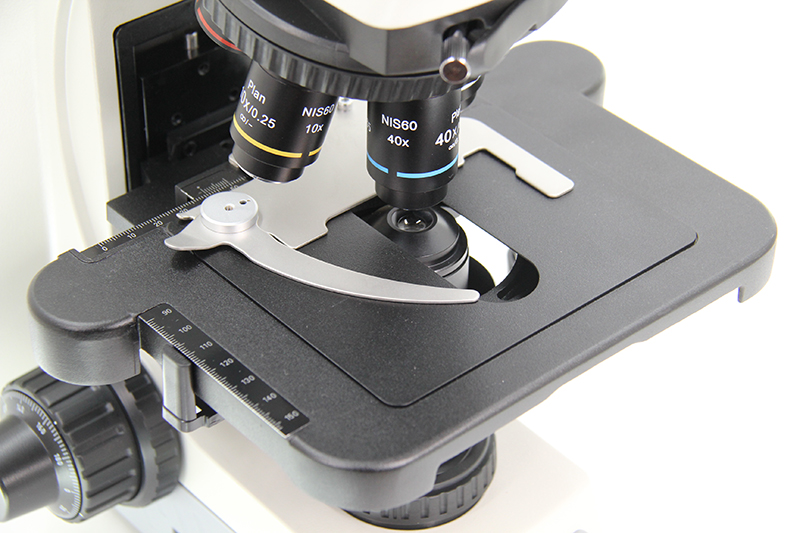

Working Stage

Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform

Ergonomic Design

In Daily Scientific Research Teaching And Pathological Diagnosis, Working In Front Of The Microscope For A Long Time Has Become The Norm, And The Consequent Use Fatigue Often Leads To Physical Discomfort, Thereby Reducing Work Efficiency And Effectiveness.
This A12.1062 Microscope Uses An Ergonomic Design, High Eye-point, Low-hand Focus Mechanism, Low-hand Stage And Other Ergonomic Designs To Ensure The User Can Perform Microscope Operation In The Most Comfortable Situation. . The Focus Knob, Illumination Control Knob And Stage Handle Are All In Close Proximity. The User Can Put Both Hands On The Table While Working, And Can Operate A12.1062 With Minimal Movement.

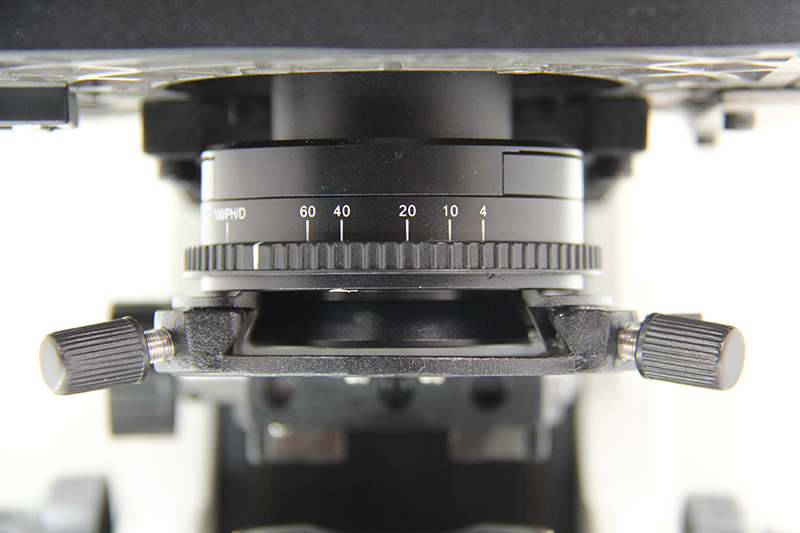

Multifunctional Universal Condenser

A12.1062 Offers Universal Condensers For Bright Field, Dark Field And Phase Contrast.

The Observation Methods Could Be Quickly Switched By Switching The Slider.

The Phase Contrast And Bright Field Slider Is Universal For 4x- 100x Objectives Also,

Simple And Fast To Use. The N.A. Value Index On The Aperture Diaphragm Of The Condenser Is

Easily Set To Get Exact Size Of Diaphragm To Correspond With The Different Objectives.

External Rechargeable Battery

A USB Charging Port Is Reserved On The Body, Which Can Be Used As A Microscope Power Source.

This Microscope Can Also Be Used Outside And During Power Outages To Get Rid Of The Microscope's Dependence On The Power Outlet.

A31.1062 Digital Microscope, WIFI & USB

Built-in Camera 5.0M, USB 2.0 or WIFI Output, Supporting Android, IOS, Windows Operating System,

Wired And Wifi Modes The Image Under The Microscope Can Be Output To

The External Device In Real Time, And There Is No Data Line Connection, And The Operator Can Move More Freely.

A12.1061, A12.1602 Laboratory Microscope
A16.1062 LED Fluorescent Microscope
A12.1061A12.1062A16.1062Cata. No.
-B-T-B-T-B-T
Optical SystemNIS Infinite Optical System
Observation MethodBright Field
Dark Field
Polarizing
Phase Contrast--
Epi-Fluorscence--
HeadSeidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm   A53.1061-B
Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50    A53.1061-T
Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0A53.1061-TS
Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mmA53.1061-BS
Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time
Upgrade to A31.1062-5.0M
----A53.1061-5.0M
Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet.
Upgrade to A31.1062-5.0W
----A53.1061-5.0W
EyepieceEW10x/22mm, Diopter Adjustable, Dia.30mmA51.1029-1022
EW15x/16mm, Diopter Adjustable, Dia.30mmA51.1029-1516
EW20x/12mm, Diopter Adjustable, Dia.30mmA51.1029-2012
NosepieceQuintuple Nosepiece, Dovetail Interface----
Coded Quintuple Nosepiece, Dovetail Interface--
NIS45
Infinity Plan
Objective
4x/0.10, W.D.20.6mm ----A52.1045-4
10x/0.25, W.D.17.9mm ----A52.1045-10
20x/0.40, W.D.6.40mm ----A52.1045-20
40x/0.60, W.D.1.50mm ----A52.1045-40
60x/0.80, W.D.0.30mm----A52.1045-60
100x/1.25(Oil), W.D.0.16mm----A52.1045-100
100x/1.10(Water), W.D.0.16mm----A52.1045-100W
NIS60
Infinity Plan
Objective
4x/0.10, W.D.30.0mm --A52.1060-4
10x/0.25, W.D.10.2mm --A52.1060-10
20x/0.40, W.D.4.8mm --A52.1060-20
40x/0.65, W.D.1.5mm --A52.1060-40
60x/0.80, W.D.0.30mm--A52.1060-60
100x/1.25(Oil), W.D.0.3mm--A52.1060-100
100x/1.10(Water), W.D.0.2mm- A52.1060-100W
NIS60
Infinity Plan
Phase Contrast
Objective
10x/0.25, W.D.10.2mm --A5C.1060-10
20x/0.40, W.D.12.0mm --A5C.1060-20
40x/0.65, W.D.0.7mm --A5C.1060-40
100x/1.25(Oil), W.D.0.2mm --A5C.1060-100
FocusingCoaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm
Working StageDouble Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm----
Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform--
CondenserInserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide.
Illumination1W S-LED Critical Illumination----
3W S-LED Kohler Illumination--
Green Filter
Dark FieldDark Field SlideA5D.1062
PolarizingSimple Polarizing SetA5P.1008
Phase ContrastPhase Slider For 10x-40xA5C.1062-S1040
Phase Slider For 100xA5C.1062-S100
Epi-Fluorescence Attachment3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield,
B, G Filters
A5F.1062
Filter UA5F.1062-U
Filter VA5F.1062-V
Photo Adapter1.0x C-MountA55.1062-1.0
0.5x C-MountA55.1062-0.5
Power SupplyAC 100-240V,50/60Hz
USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely
LCD ScreenLCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On.--
Dimensions220(W)x290(D)x472(H) mm
Note:""In Table Is Standard Outfits,""Is Optional Accessories"-"Is Unavailable

Pictures
Model No. A12.1062-T
Function
Bright Field
Features
Infinity
Coding Nosepiece
Information LCD
ECO (Auto Power Off)
New Product Year
2019
Optical System
Infinity Plan
Standard Magnification
40x-1000x
Optional Magnification
40x-2000x
Head Type
Seidentopf Trinocular
Head Inclination
30°
Head Rotation
Fixed
Head Interpupillary
47~78mm
Head Light Path
Fixed E50:P50
Eyepiece Features
Super Wide Field >22mm
Diopter Adjustable
Eyepiece Diameter
30.0mm
Eyepiece
EW10x/22mm, 2pcs
Nosepiece Holes
5 Holes
Nosepiece Features
Backward
With Polarzing Slot
Coded
Objective Type
Infinity Plan
Objective Features
100x Water Immersion
Objective
NIS60 Infinity Plan Objective
4x/0.10, W.D.30.0mm
10x/0.25, W.D.10.2mm
40x/0.65, W.D.1.5mm
100x/1.25(Oil), W.D.0.3mm
Working Stage Type
Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Safety Rackless Round Edge
Ceramic Coated Surface
Working Stage Size
230x150mm
Working Stage Moving
Moving Range 78x54mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Focusing Range
28mm
Focusing Scale
0.002mm
Condenser Type
Abbe + Iris Diaphragm
Condenser N.A.
1.25
Condenser Features
Rack & Pinion Up/Down
Center Adjustable
Slot For Dark Field Slide
Slot For Phase Contrast Slide
Condenser Specification
Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide.
Light Source Feature
Brightness Adjustable
Kohler Illumination
LED 3W
Brightness Auto Adjust
Light Source Type
LED
Transmit Light
3W S-LED Kohler Illumination
Power Supply Type
AC 100V-240V Wide Voltage
Power Cord Detachable
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Fluorescent
