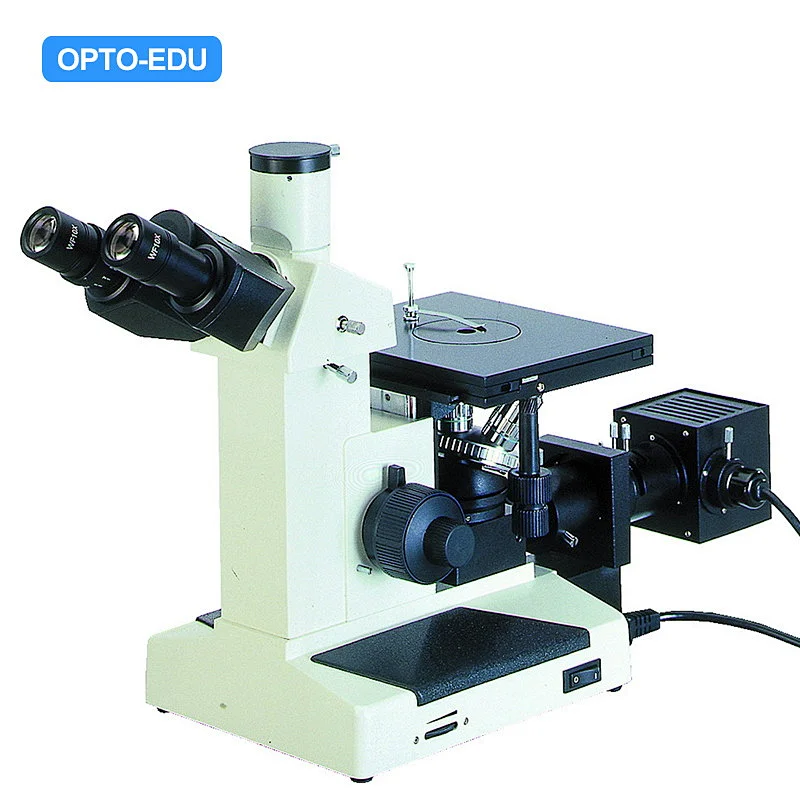

Metallurgical Microscope
Metallurgical Microscope
Metallurgical Microscope

A13.0201

Like Favorites

Metallurgical Microscope


Quantity:



 A13.0201-A1A13.0201-A2A13.0201-B1A13.0201-B2
HeadBinocularTrinocularBinocularTrinocular
EyepieceWF10x/18mm
ObjectiveLWD Plan (No Cover Glass) PL 10x/0.25Achromatic (No Cover Glass) 10x/0.25
LWD Plan (No Cover Glass) PLL20x/0.40Achromatic (No Cover Glass) 20x/0.40
LWD Plan (No Cover Glass) PLL40x/0.60S-Plan Achromatic (No Cover Glass) SP40x/0.65
LWD Plan (No Cover Glass) PLL100x/1.25 (S,O)Achromatic (No Cover Glass) 100x/1.25 (S,O)
FilterFrosted Filter
Blue Filter
Green Filter
Yellow Filter
FocusingCoaxial Coarse & Fine Focus, Tension Adjustable, With Up Stop, Fine Focusing Scale 0.002mm
NosepieceQuadruple, Ball Bearing Inner Locating
Working StageDouble Layer Mechanical, Size 180x150mm, Moving Range 15x15mm,
With Built-in Round Plate On Working Stage Rotatable For Polarzing View
Light Source6V20W Halogen Kohler Illumination, Brightness Adjustable, With Field Diaphragm, Aperture Diaphragm
Optional AccessoriesCata. No.
EyepieceWF16x/11mmA51.0203-16A
Divding 10x, 0.1mm/DivA51.0205-10
ObjectivePlan Long Working Distance (No Cover Glass) PL5x/0.12A5M.0234-05
Plan Long Working Distance (No Cover Glass) PLL60x/0.75(Spring)A5M.0234-60
Plan Long Working Distance (No Cover Glass) PLL100x/0.85(Spring)A5M.0234-100A
Achromatic (No Cover Glass) 60x/0.85A5M.0232-60
NosepieceQuintuple, Ball Bearing Inner LocatingA54.0203-1
Simple PolarizingPolarizer Slide, 90° AdjustableA5P.0210-02
Analyzer SlideA5P.0211-02
CCD Adapter0.4xA55.0202-01
0.5xA55.0202-04
1.0xA55.0202-02
0.5x With Dividing 0.1mm/DivA55.0202-03
Photo Adapter2.5x/4x Change Over Photograph Attachment With 10x Photo EypieceA55.0201-01
4x Focusing Photograph AttachmentA55.0201-02
MD AdapterA55.0201-03
PK AdapterA55.0201-04
Digital Camera Adapter For Canon EF ditigal SLR Camera AdapterA55.0204-02
