A13.0210 Inverted Metallurgical Microscope, Transmit & Reflect, BD, DIC, Polarizing | A13.0210 | -BD | -DIC | -BDDIC | Cata. No. | |
Head | Binocular Head, Inclination 45°, Interpupillary Distance 53~75mm | ● | ● | ● | ● | |
Eyepiece | WF10x/22mm, | ●● | ●● | ●● | ●● | A51.0202-1022 |
Divding WF10x/22mm, 0.1mm/Div | ○ | ○ | ○ | ○ | A51.0205-G10B | |
Nosepiece | Quintuple, Ball Bearing Inner Locating | ● | ● | ● | ● | |
LWD Infinity Bright Field Plan Objective (No Cover Glass) | PLL2.5x/0.07mm, W.D.13mm | ○ | ||||
PLL5x/0.12mm, W.D.26.1mm | ○ | A5M.0235-5 | ||||
PLL10x/0.25mm, W.D.20.2mm | ● | A5M.0235-10A | ||||
PLL20x/0.40mm, W.D.8.8mm | ● | A5M.0235-20 | ||||
PLL40x/0.60mm, W.D.3.98mm, Spring | ○ | A5M.0235-40 | ||||
PLL50x/0.70mm, W.D.3.68mm, Spring | ● | ● | A5M.0235-50 | |||
PLL60x/0.70mm, W.D.3.18mm, Spring | ○ | A5M.0235-60A | ||||
PLL80x/0.80mm, W.D.1.25mm, Spring | ○ | A5M.0235-80 | ||||
PLL100x/0.85mm, W.D.0.4mm, Spring | ● | A5M.0235-100 | ||||
LWD Infinity Bright/Dark Field Plan Objective (No Cover Glass) | BD PLL5x/0.12mm, W.D.9.7mm | ● | A5M.0237-5 | |||
BD PLL10x/0.25mm, W.D.9.3mm | ● | A5M.0237-10 | ||||
BD PLL20x/0.40mm, W.D.7.2mm | ● | A5M.0237-20 | ||||
BD PLL40x/0.60mm, W.D.3.0mm, Spring | ○ | A5M.0237-40 | ||||
BD PLL50x/0.70mm, W.D.2.5mm, Spring | ● | ● | A5M.0237-50 | |||
BD PLL60x/0.75mm, W.D.1.9mm, Spring | ○ | A5M.0237-60 | ||||
BD PLL80x/0.80mm, W.D.0.8mm, Spring | ○ | A5M.0237-80 | ||||
BD PLL100x/0.85mm, W.D.0.22mm, Spring | ○ | A5M.0237-100 | ||||
BD PLL100x/0.85mm, W.D.0.40mm, Spring | ○ | A5M.0237-100A | ||||
LWD Infinity DIC Plan Objective (No Cover Glass) | LMPlan 5x/0.12mm, W.D.15.0mm | ● | A5M.0238-5D | |||
LMPlan 10x/0.3mm, W.D.10.5mm | ● | A5M.0238-10B | ||||
LMPlan 20x/0.40mm, W.D.4.5mm | ● | A5M.0238-20A | ||||
LWD Infinity DIC Bright/Dark Field PlanObjective | BD LMPlan 5x/0.12mm, W.D.7.9mm | ● | A5M.0239-5A | |||
BD LMPlan 10x/0.3mm, W.D.6.03mm | ● | A5M.0239-10A | ||||
BD LMPlan 20x/0.40mm, W.D.1.4mm | ● | A5M.0239-20A | ||||
DIC Observation | 5x/10x/20x DIC Push-Pull Group Slide | ● | ● | |||
Working Stage | Double Layer Mechanical Stage, Size 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Less Than Dia.20mm | ● | ● | ● | ● | |
Focusing | Coaxial Coarse & Fine Focu, With Tension Adjustment And Up Stop, Fine Focusing Minimum Division 2um | ● | ● | ● | ● | |
Reflect Illumination | 6V30W Halogen Lamp, Brightness Adjustable | ● | ||||
12V50W Halogen Lamp, Brightness Adjustable | ● | ● | ● | |||
Epi Illumination Intergrate Field Diaphragm, Aperture Diaphragm, Filter Switching Device For Yellow, Blue, Green Filter & Ground Glass | ● | ● | ● | ● | ||
Polarizing | Push-Pull Type Polarizer | ● | ● | ● | ● | |
Built-in Analyzer And Swithching Freely | ● | ● | ● | ● | ||
Adapter | 0.4x C-Mount | ○ | ○ | ○ | ○ | A55.0202-1 |
1.0x C-Mount | ○ | ○ | ○ | ○ | A55.0202-2 | |
0.5x C-Mount With Dividing 0.1mm/Div | ○ | ○ | ○ | ○ | A55.0202-3 | |
0.5x C-Mount | ○ | ○ | ○ | ○ | A55.0202-4 | |
Digital SLR Camera Adapter for Canon EF | ○ | ○ | ○ | ○ | A55.0204-1 | |
Remark: '●' Means Standard Outfit, '○' Means Optional |

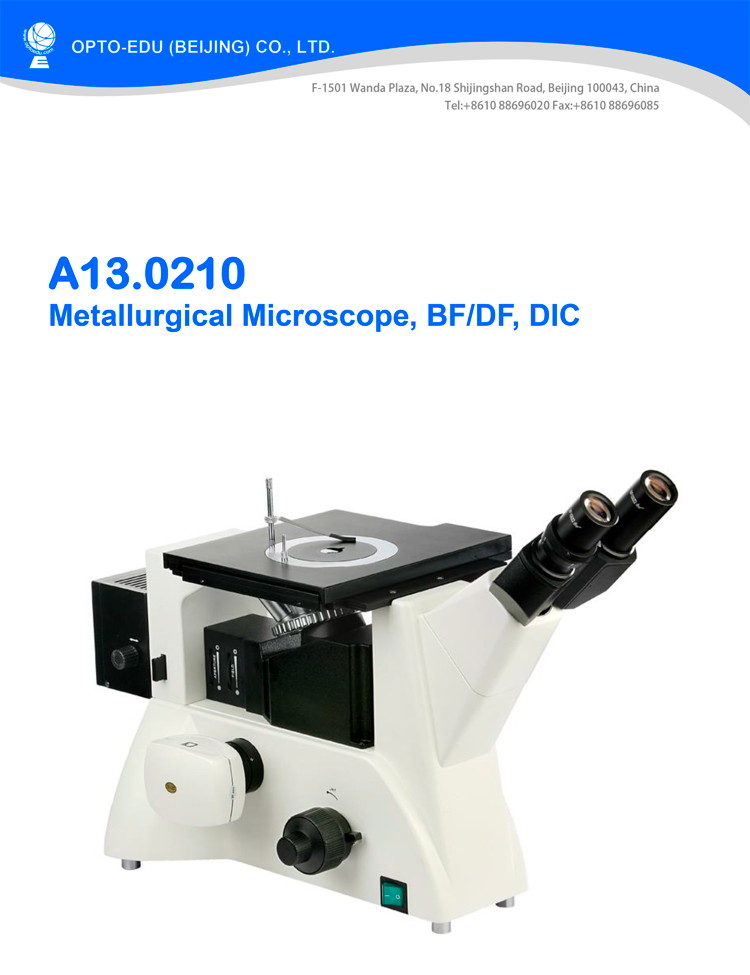

A13.0210
Like FavoritesMetallurgical Microscope, BF/DF, DIC

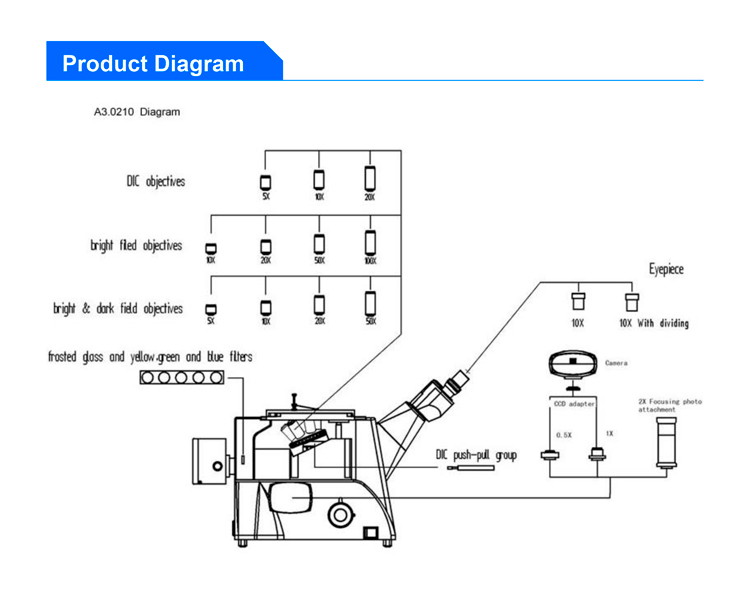

- Modularization Function Design For BF/DF, DIC, Polarizing View For Metallurgical Lab
- LWD Infinity BD Plan Objective (No Cover Glass) For DIC
- DIC Push-Pull Group Slide For 5x/10x/20x Objective Available
- Epi Illumination Intergrate Field Diaphragm, Aperture Diaphragm, Filters Switching Device For Y,B,G And Ground Glass Filters
- Transmit & Reflect Halogen Light Source For Metallurigcal Observe
Specification:

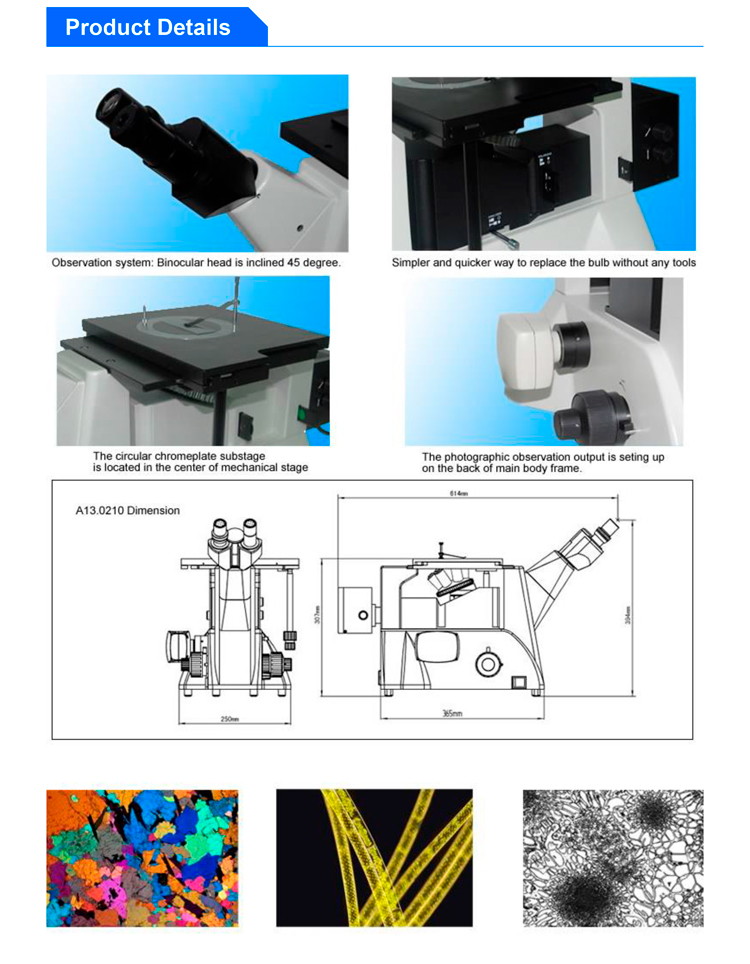

Pictures
|
||||
---|---|---|---|---|
Model No. | A13.0210 | A13.0210-BDDIC | A13.0210-DIC | A13.0210-BD |
Other Specification
|
—— | DIC Slide For 5x10x20x | DIC Slide For 5x10x20x | —— |
Polarizing
|
Push-Pull Type Polarizer
Built-in Analyzer And Swithching Freely |
Push-Pull Type Polarizer
Built-in Analyzer And Swithching Freely |
Push-Pull Type Polarizer
Built-in Analyzer And Swithching Freely |
Push-Pull Type Polarizer
Built-in Analyzer And Swithching Freely |
Power Supply Type
|
AC 110V/220V | AC 110V/220V | AC 110V/220V | AC 110V/220V |
Transmit Light
|
6V30W Halogen Lamp , Brightness Adjustable | 12V50W Halogen Lamp , Brightness Adjustable | 12V50W Halogen Lamp , Brightness Adjustable | 12V50W Halogen Lamp , Brightness Adjustable |
Light Source Type
|
Halogen | Halogen | Halogen | Halogen |
Light Source Features
|
Halogen 30W | Halogen 50W | Halogen 50W | Halogen 50W |
Focusing Scale
|
0.002mm | 0.002mm | 0.002mm | 0.002mm |
Focusing Type
|
Coaxial Coarse & Fine | Coaxial Coarse & Fine | Coaxial Coarse & Fine | Coaxial Coarse & Fine |
Focusing Features
|
Tension Adjustable Safety Stop Lock Ring |
Tension Adjustable Safety Stop Lock Ring |
Tension Adjustable Safety Stop Lock Ring |
Tension Adjustable Safety Stop Lock Ring |
Working Stage
|
Double Layer Mechanical Stage, Size 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Less Than Dia.20mm | Double Layer Mechanical Stage, Size 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Less Than Dia.20mm | Double Layer Mechanical Stage, Size 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Less Than Dia.20mm | Double Layer Mechanical Stage, Size 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Less Than Dia.20mm |
Working Stage Moving
|
30x30mm | 30x30mm | 30x30mm | 30x30mm |
Working Stage Size
|
242x200mm | 242x200mm | 242x200mm | 242x200mm |
Working Stage Type
|
2 Layers Mechanical | 2 Layers Mechanical | 2 Layers Mechanical | 2 Layers Mechanical |
Working Stage Features
|
Size ≥140x180mm | Size ≥140x180mm | Size ≥140x180mm | Size ≥140x180mm |
Objective
|
LWD Infinity Plan 10x20x50x100x, | LWD Infinity Plan BF/DF DIC 5x10x20x, BD50x | LWD Infinity Plan DIC 5x10x20x, Plan 50x, | LWD Infinity Plan BF/DF 5x10x20x50x, |
Objective Type
|
Infinity Plan |
Infinity Plan Dark Field |
Infinity Plan |
Infinity Plan Dark Field |
Objective Features
|
LWD Covreless |
DIC LWD BF+DF Covreless |
DIC LWD Covreless |
LWD BF+DF Covreless |
Nosepiece Holes
|
5 Holes | 5 Holes | 5 Holes | 5 Holes |
Eyepiece
|
WF10x/22mm 2pcs | WF10x/22mm 2pcs | WF10x/22mm 2pcs | WF10x/22mm 2pcs |
Eyepiece Diameter
|
23.2mm | 23.2mm | 23.2mm | 23.2mm |
Head Light Path
|
E100:P0/E0:P100 | E100:P0/E0:P100 | E100:P0/E0:P100 | E100:P0/E0:P100 |
Head Diopter
|
Left Tube Adjustable | Left Tube Adjustable | Left Tube Adjustable | Left Tube Adjustable |
Head Interpupillary
|
53~75mm | 53~75mm | 53~75mm | 53~75mm |
Head Rotation
|
Eyetube Rotate 360° | Eyetube Rotate 360° | Eyetube Rotate 360° | Eyetube Rotate 360° |
Head Inclination
|
45° | 45° | 45° | 45° |
Head Type
|
Seidentopf Binocular | Seidentopf Binocular | Seidentopf Binocular | Seidentopf Binocular |
Standard Magnification
|
100x-1000x | 50x-500x | 50x-500x | 50x-500x |
Optical System
|
Infinity Plan | Infinity Plan | Infinity Plan | Infinity Plan |
Features
|
Infinity DIC |
Infinity DIC |
Infinity DIC |
Infinity DIC |
Standard Function
|
BF+PL | BF+DF+PL+DIC | BF+DIC | BF+DF+PL |
Nosepiece Features
|
—— | With DIC Slot | With DIC Slot | —— |
