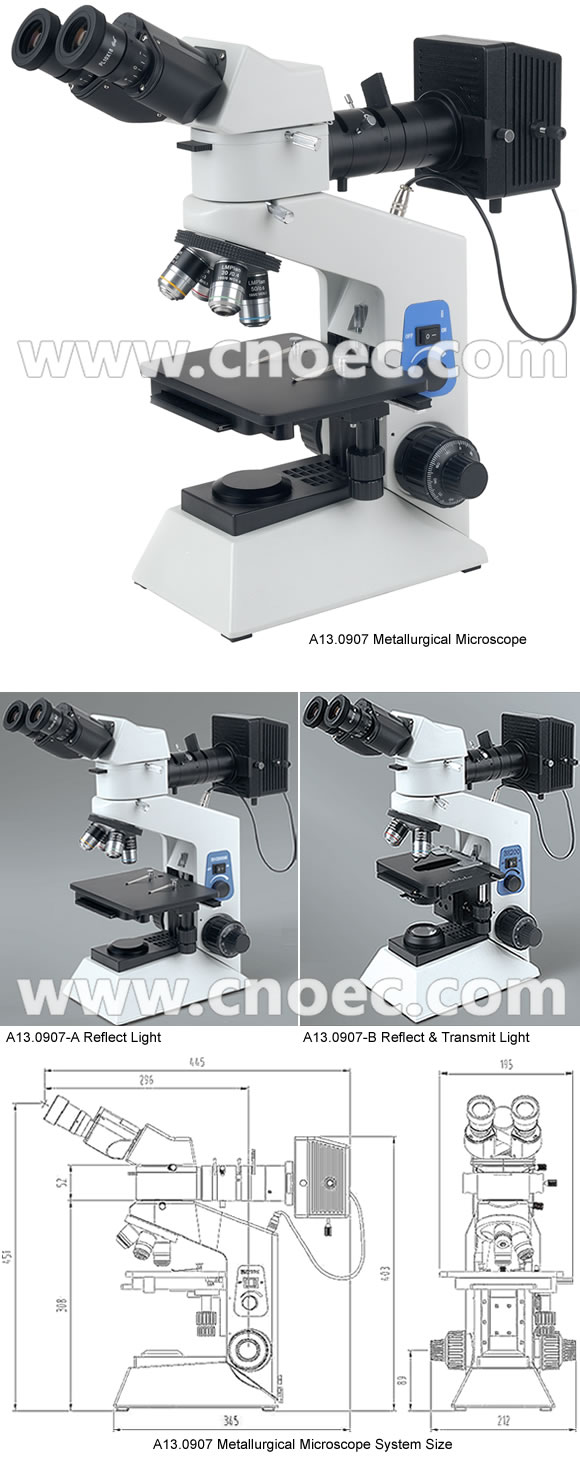

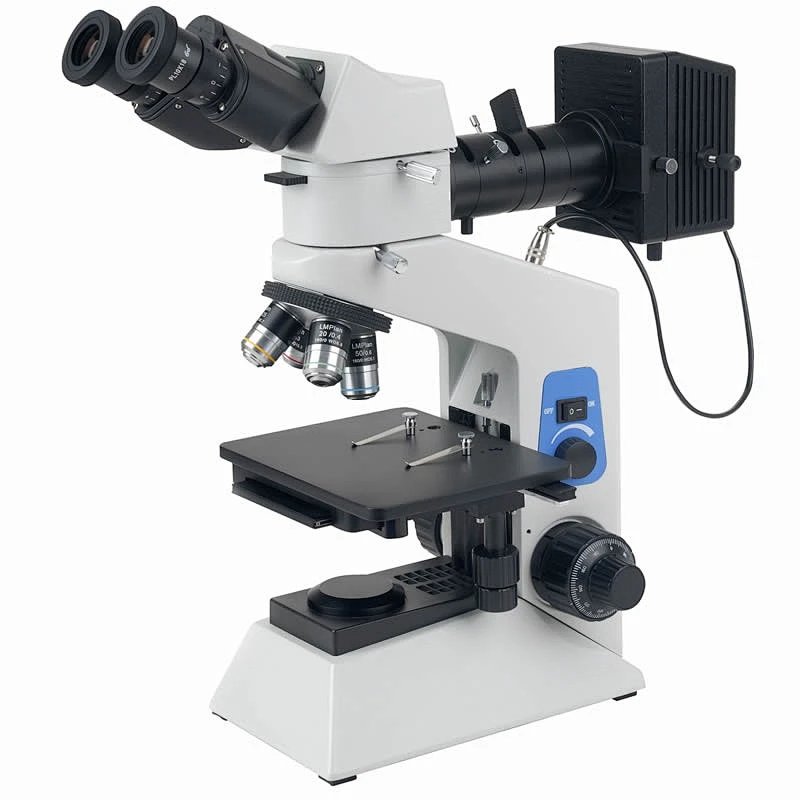

A13.0907 Metallurgical Microscope | A | AT | B | BT | |
|---|---|---|---|---|---|
Head | Compensation Free Binocular Head, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable | o | o | ||
| Compensation Free Trinocular Head, 45° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable | o | o | |||
Eyepiece | High Eyepoint Plan PL10x/18mm, | ||||
| Objective | Long Working Distance Plan Metallurgical Achromatic | LMPL5X/0.15 | |||
| LMPL10X/0.3 | |||||
| Long Working Distance Plan Metallurgical Achromatic, Semi-APO | LMPL50X/0.6 | ||||
| Nosepiece | Quarduple Nosepiece | ||||
| Stage | Double Working Stage, Size 140*132mm, Moving Range 50*76mm, Moving Precision 0.1mm | ||||
| Metal Plate 180*145mm for Large Object | o | o | |||
| Metal Plate 90*50mm | o | o | |||
| Focusing | Low Position Coaxial Coarse & Fine Focusing, Fine Focusing Precision 0.002mm, with Tension Adjustment and Up-limited Safty Stop | ||||
| Condenser | Abbe Condenser N.A.1.25, with Iris Diaphragm, with Filter Holder | o | o | ||
| Filter | Green Filter, Dia.45mm | ||||
Illumination | Reflect Illumination, with View Field Diaphragm, with Iris Diaphragm, Center Adjustable, 6V30W Halogen, Brightness Control | ||||
| Transmit Illumination, 6V30W Halogen, | o | o | |||
| Power | 90-240V Wide Range Power Supply | ||||
A13.0907 Metallurgical Microscope Optional Accessories | |||||
| Eyepiece | Wide Field Eyepiece WF15x/13mm | A51.0902-1513 | |||
| Wide Field Eyepiece WF20x/10mm | A51.0902-2010 | ||||
| Wide Field Eyepiece WF15x/13mm with Retical | A51.0905-1513R | ||||
| Wide Field Eyepiece WF20x/10mm with Retical | A51.0905-2010R | ||||
| High Eyepoint Plan PL10x/18mm, with Cross PL10x18 | A51.0905-1018R | ||||
| Objective | Long Working Distance Plan Metallurgical AchromaticLMPL20X/0.4 | A5M.0934-20 | |||
| Long Working Distance Plan Metallurgical Achromatic,Semi-APO LMPL100X/0.8 | A5M.0934-100 | ||||
| Filter | Green,Dia.45mm | A56.0935-XJZB | |||
| Yellow, Dia.45mm | A56.0935-XJZY | ||||
| Netural,Dia.45mm | A56.0935-XJZF | ||||
| Adapter | 1.0x C-Mount | A55.0925-10 | |||
| 0.5x C-Mount, for 1/2"CCD | A55.0925-50 | ||||
| 0.35x C-Mount, for 1/3"CCD | A55.0925-35 | ||||
| Digital Camera Adapter with Photo Eyepiece | A55.0910 | ||||
| Photo Adapter with 3.2x Photo Eyepiece, PK or MD Mount | A55.0901-4 | ||||
