A13.0912-A

Like Favorites

Inverted Metallurgical Microscope, BF/DF, DIC, PL, ECO


  • Infinity Color Corrrected Optical System
  • One-piece Construction,With Filter Slot & Polarizing Slot
  • Bright & Dark Filed, With BD Shifter
  • BD Quintuple Nosepiece With DIC Slot
  • Polarizer & 360° Analyzer
Quantity:

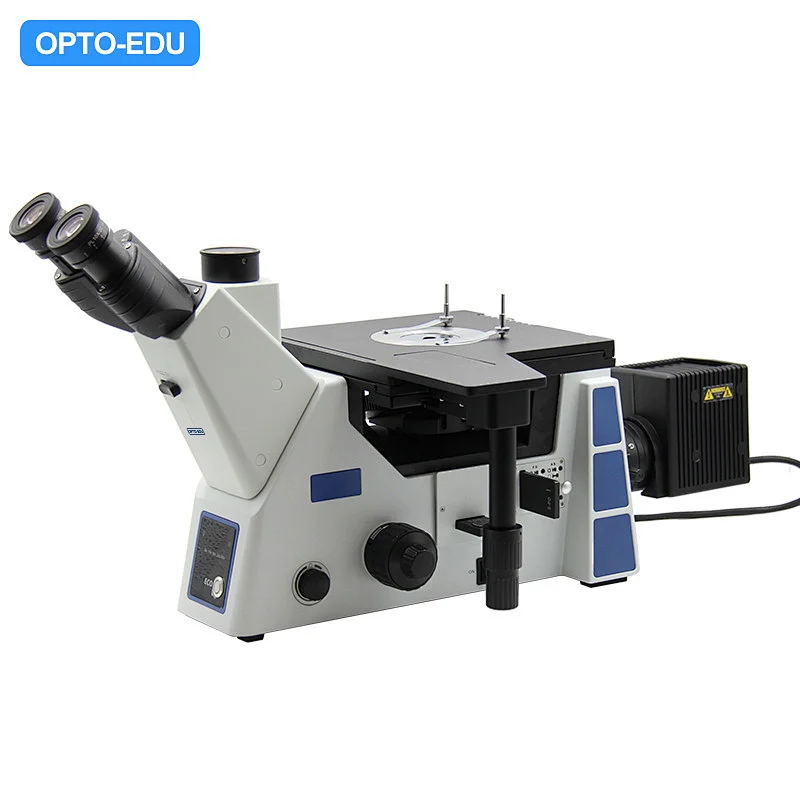

A13.0912-A Inverted Metallurgical Microscope
Optical SystemInfinity Color Corrrected Optical System
FrameOne-piece Construction,With Filter Slot & Polarizing Slot
HeadTrinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, 360° Rotatable, IPD 50-75mm
EyepiecePlan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point
FieldBright & Dark Filed, With BD Shifter
ObjectiveInfinity LWD BD Plan Achromatic Metallurgical Objective DIC-5x/0.15 WD11mm
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-10x/0.3 WD9.5mm
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-20x/0.45 WD3.4mm
Infinity LWD BD Plan Achromatic Metallurgical Objective 50x/0.55 WD7.5mm
Focus SystemCoaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm
NosepieceBD Quintuple Nosepiece With DIC Slot
StageRight Hand Controls, Low Positioned, Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail
Metal Specimen Holder (Dia. 25)
Light SourceReflected Halogen Lamp, 12V100W
Light Indicator
Brightness Adjustable
ECO Infared Induction System (Auto on/off)
External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output
PolarzationPolarizer & 360° Analyzer
OtherPower cord
Optional Accessories
EyepiecePlan WF15X/16mm, Diopter Adjustable, High Eye-pointA51.0904-1516T
ObjectiveInfinity LWD BD Plan Achromatic Metallurgical ObjectiveA5M.0943-100
Adapter0.35x C-MountA55.0934-35
0.5x C-MountA55.0934-05
0.65x C-MountA55.0934-65
1x C-MountA55.0934-1
DICDIC SliderA5M.0952-2

Pictures
Model No. A13.0912-A
Function
BF+DF+PL+DIC
Features
Infinity
Inverted
BF/DF
DIC
Simul Focal
Coaxial Illumination
Motorized Control
Optical System
Infinity Plan
Standard Magnification
50x-500x
Optional Magnification
50x-750x
Head Type
Seidentopf Trinocular
Head Inclination
0-35° Tiltable
Head Rotation
Head 360°
Head Diopter
Right Tube Adjustable
Head Specification
Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, 360° Rotatable, IPD 50-75mm,
Eyepiece Features
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm
Working Distance
格式:1.0,或1.0~2.0
Eyepiece
Plan WF10x/22mm, 2 pcs
Nosepiece Holes
5 Holes
Nosepiece Features
With Polarzing Slot
Objective Type
Infinity Plan
BD (Bright & Dark Field)
DIC
Objective
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC
5x/0.15 WD11mm
10x/0.3 WD9.5mm
20x/0.45 WD3.4mm
50x/0.55 WD7.5mm
100x/0.8 WD2.1mm(Optional)
Working Stage Type
Triple Layers Mechanical
Working Stage Feature
Large Size >140x140mm
Safety Rackless Round Edge
Working Stage Size
240x250mm
Working Stage Moving
Moving Range 50x50mm
Working Stage Spec.
Bothway Linear Guide Rail
Metal Specimen Holder (Dia. 25)
Focusing Features
Tension Adjustable
Focusing Range
9mm
Focusing Knob
Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm
Light Source Feature
Brightness Adjustable
Halogen 30W
Light Source Type
Halogen
Reflect Light
Light Indicator
ECO Infared Induction System (Auto on/off)
Power Supply Type
AC 100V-240V Wide Voltage
External AC/DC Adapter
Power Supply
ECO Infared Induction System (Auto on/off)
External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output
Dark Field
Bright & Dark Filed, With BD Shifte
Polarizing
Polarizer & 360° Analyzer
