A13.2607

Like Favorites

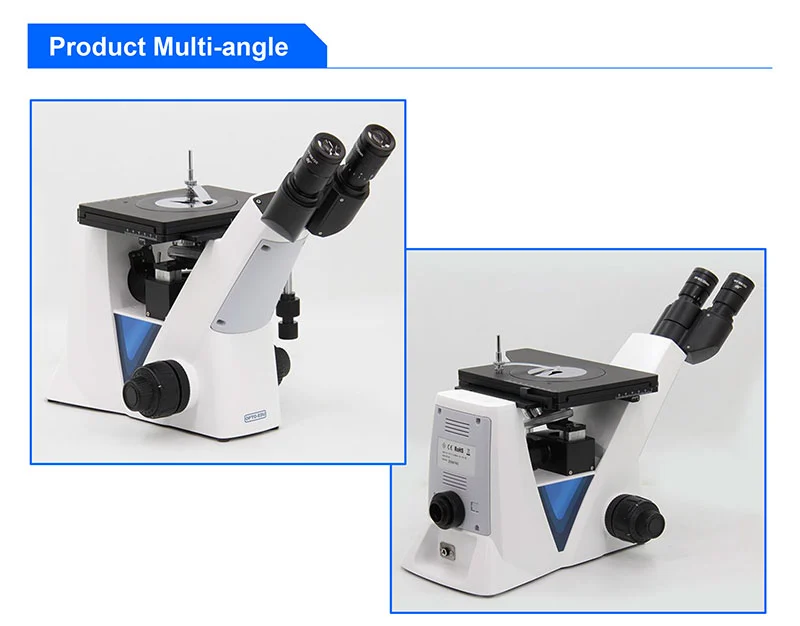

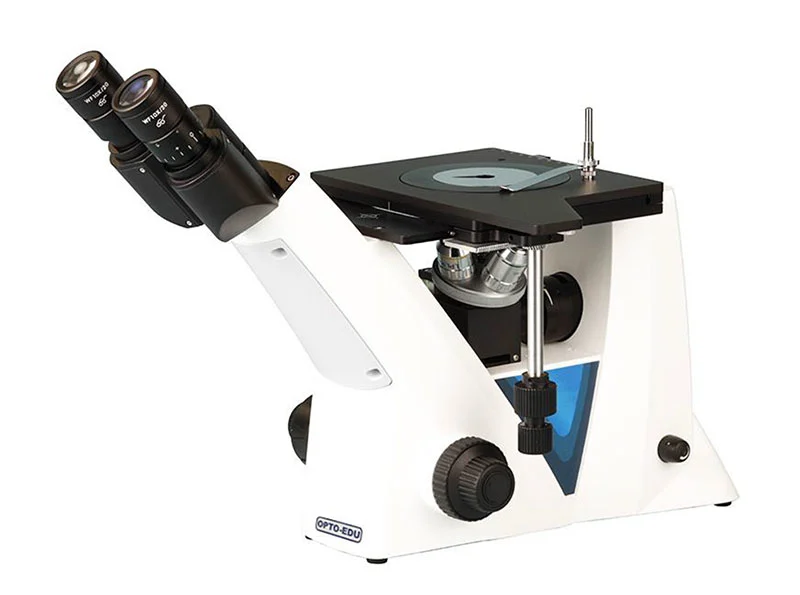

Invered Metallurgical Microscope, BF,PL


  • Professional Metallurgical Microscope For Bright Field, Polarizing Observation
  • Seidentopf Trinocular Head, Light Split E70:P30 No Need Switch
  • Metallurgical LWD Infinity Plan BF (Bright Field) Objectives
  • Large Working Stage Size 180x155mm, Moving Range 75×40mm, Scale 0.1mm
  • High Brightness Reflect Light 5W Warm LED Powered By 5V USB Port
Quantity:



Super Wide Field Eyepiece

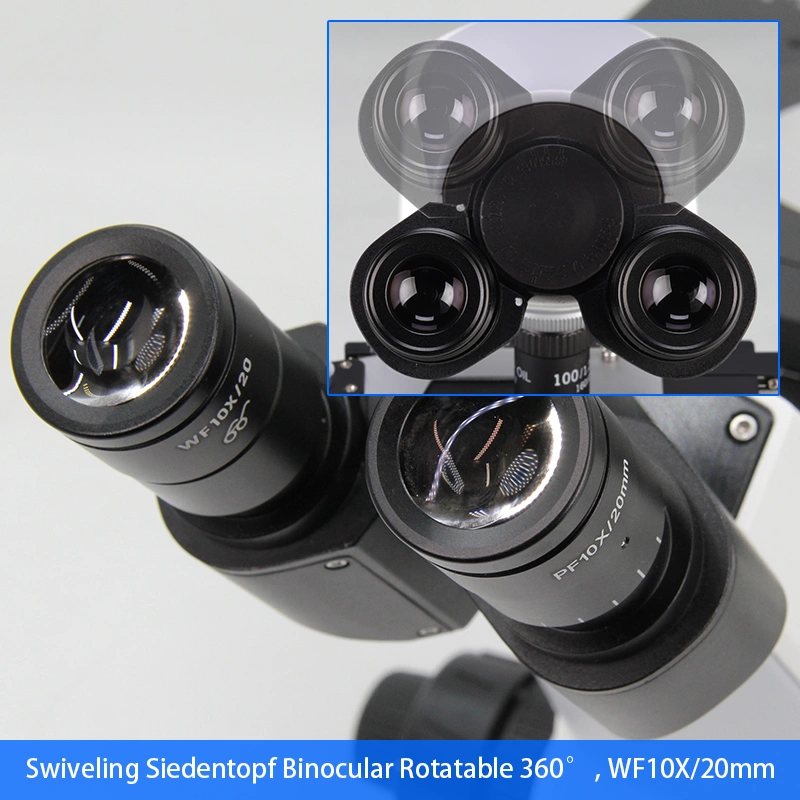

Swiveling Siedentopf Rotatable 360°, Inclined 45°, IPD: 48-75mm,
Light distribution: 70:30(70% For Eyepiece, And 30% For Camera Tube), WF10X/20mm

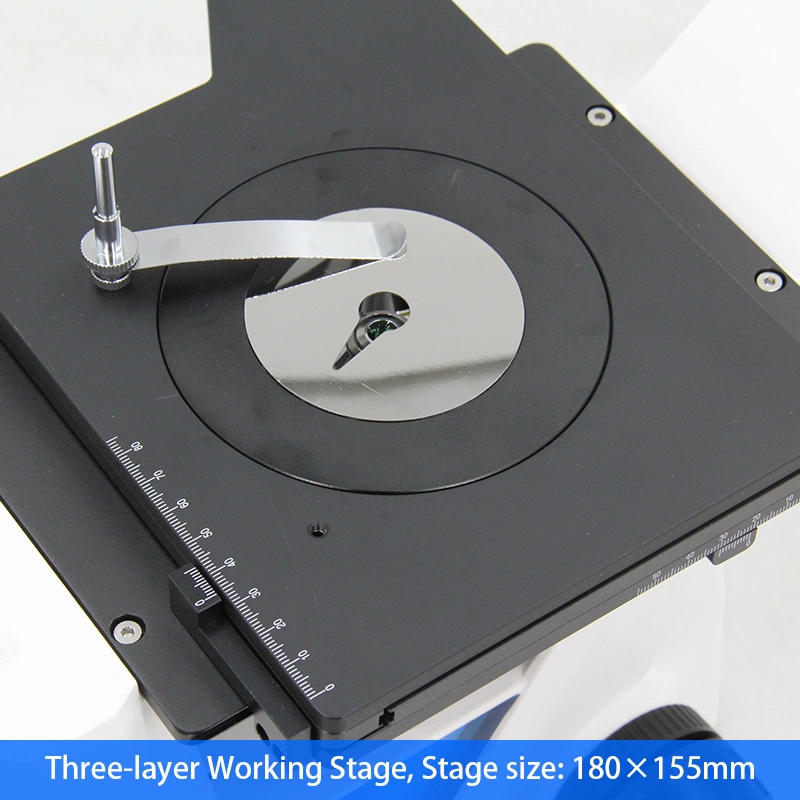

Mechanical Stage
Three-layer Working Stage, Stage size: 180×155mm

Nosepiece & Objectives
Quadruple

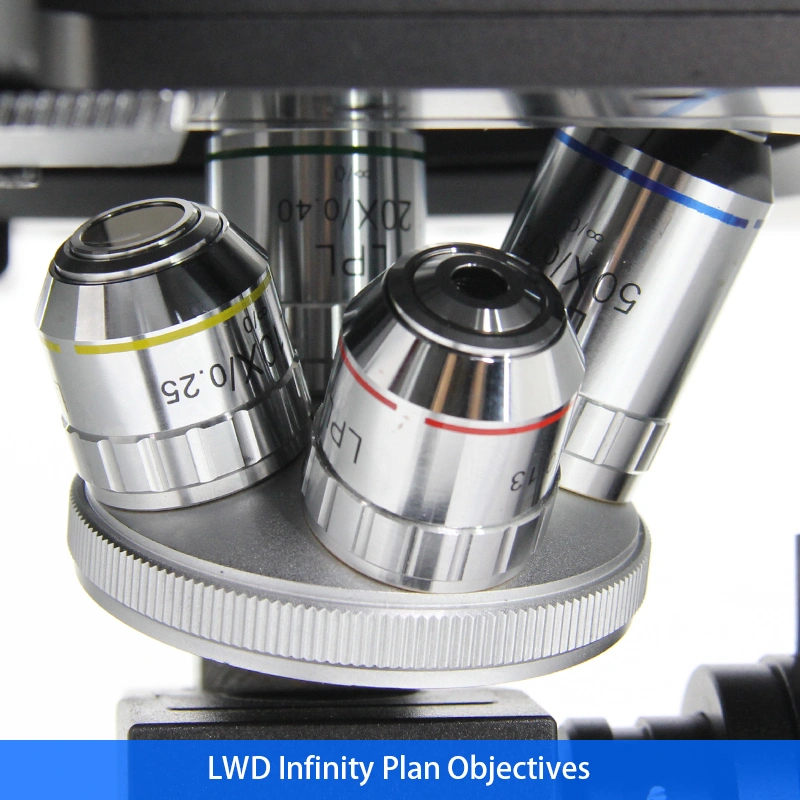

LWD Infinity Plan Objectives

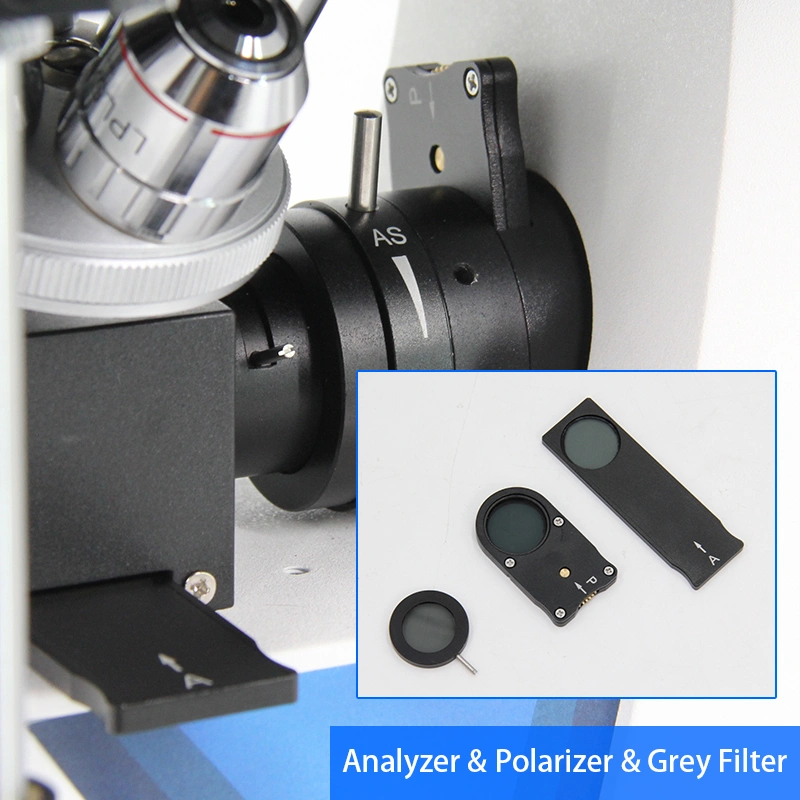

Polarizing
Analyzer & Polarizer & Grey Filter



5W LED Warm Lamp

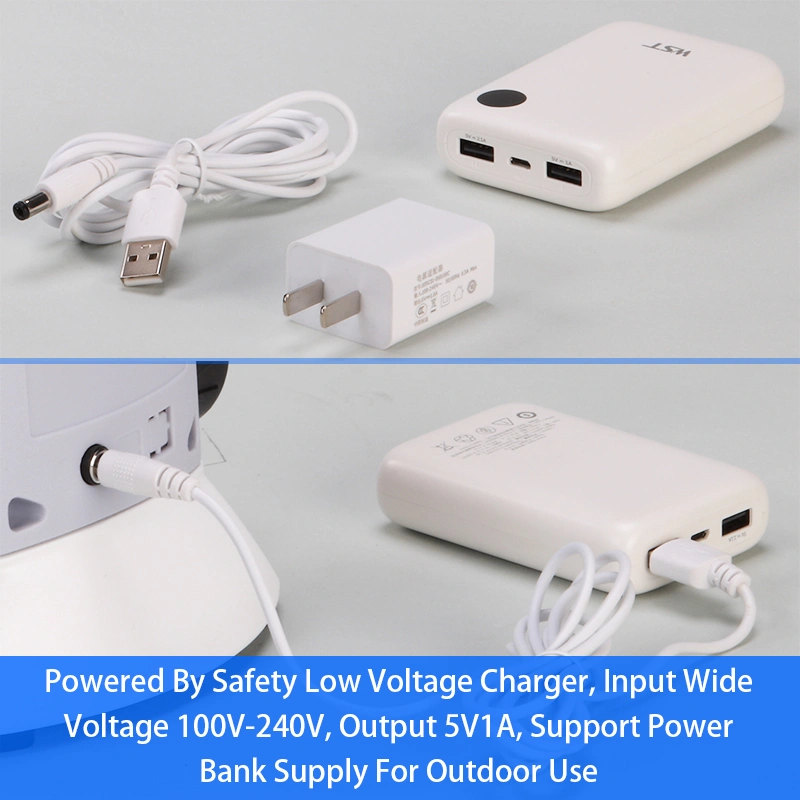

Powered By Safety Low Voltage Charger

Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

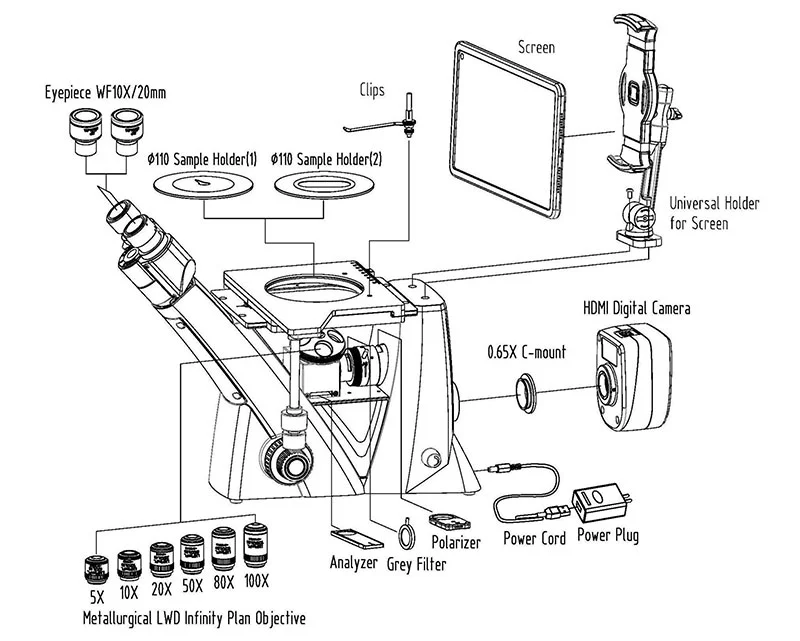

ItemsA13.2607 Inverted Metallurgical Microscope
HeadSwiveling Siedentopf, Inclined 45°, IPD: 48-75mm,Light distribution:
70:3070% For Eyepiece, And 30% For Camera Tube
EyepieceWF10X/20mm, High Eyepoint
WF10X/20mm, High Eyepoint, Adjustable Focus, Reticule 0.1mm
LWD Infinity
Plan Objectives
LPL 5×0.13, W.D=16.04mm
LPL 10×0.25, W.D.= 18.48mm
LPL 20×0.40, W.D.= 8.35mm
LPL 50×0.70, W.D.= 1.95mm
LPL 80×0.80, W.D.= 0.85mm
LMPlan FL 100×0.85(Dry), W.D.= 3.00mm
NosepieceQuadruple
Mechanical StageThree-layer Working Stage, Stage size: 180×155mm, Moving Range:75×40mm, Scale: 0.1mm, Round Slide Sizeφ110mm

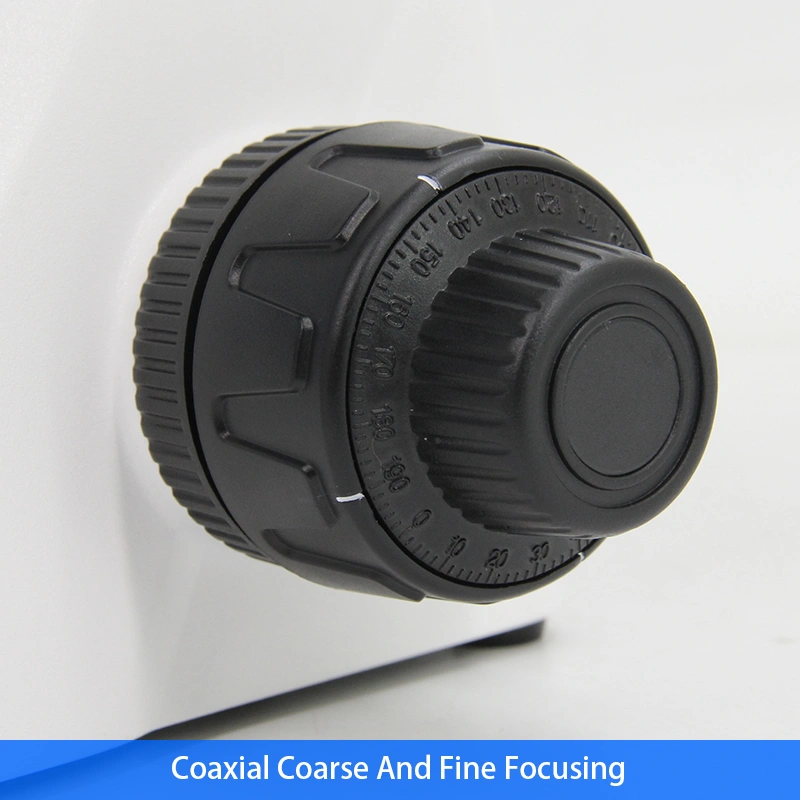

FocusingCoaxial Coarse And Fine, Coarse Stroke: 10mm, Fine Stroke PerRrotation: 0.2mm, Fine Division 2 μm.
Polarizing UnitPolarizer, Analyzer
llumination5W LED Warm Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
FilterGrey

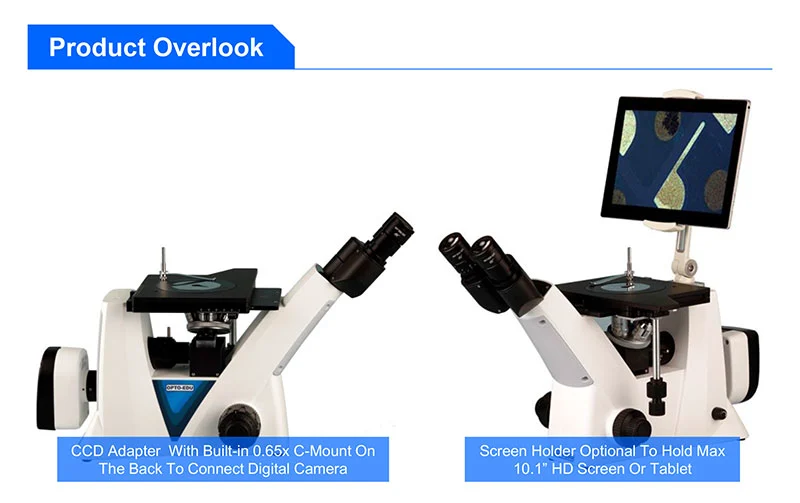

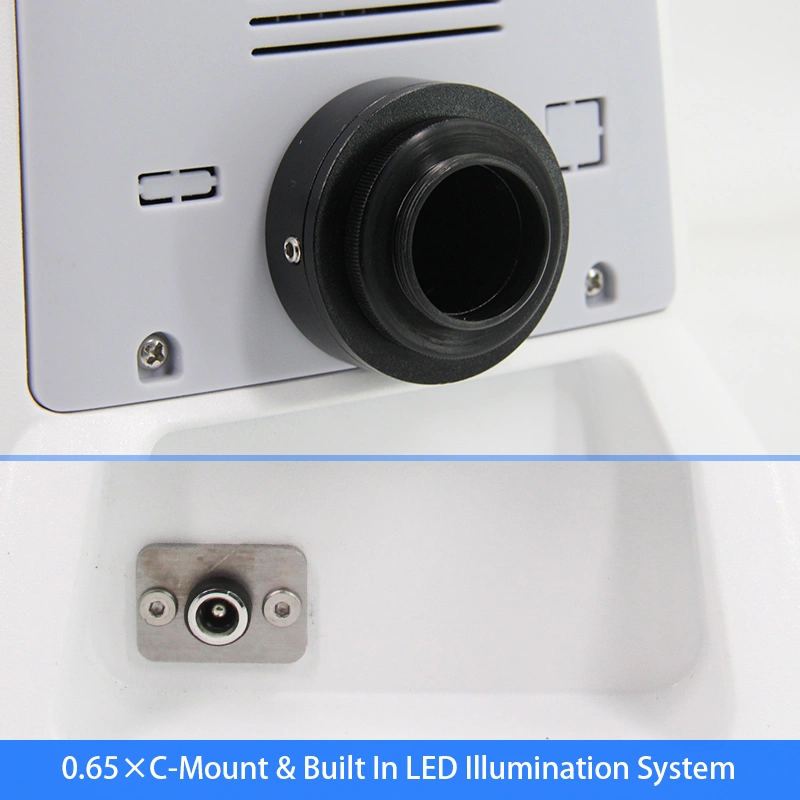

C-mount0.65×C-Mount, Built-in
HolderUniversal Holder for HD Screen
HDMI CameraWith Measurement Function
HD Screen10.1” HD LCD

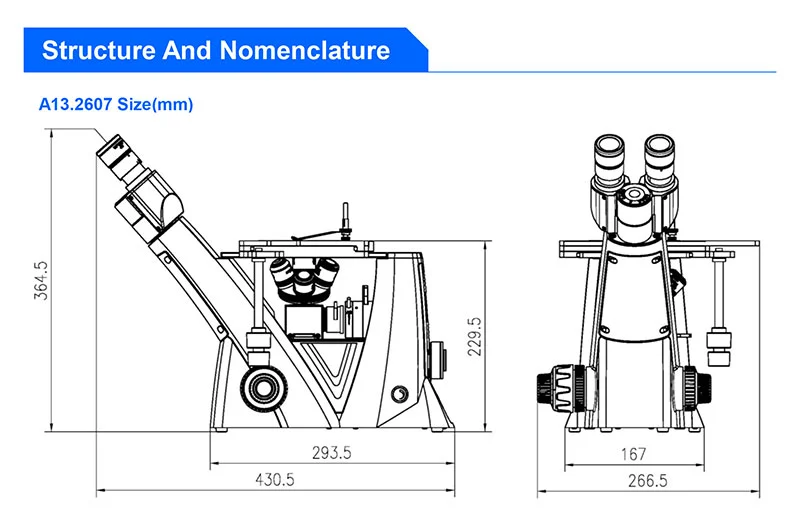

Packing Size: 500mm×425mm×305mm Gross Weight:9.0 kgs Net Weight: 7.0 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories.


Pictures
Model No. A13.2607
Function
BF
Features
Infinity
Inverted
New Product Year
2020
Optical System
Infinity Plan
Standard Magnification
50x-500x
Optional Magnification
50x-1000x
Head Type
Seidentopf Binocular
Head Inclination
30°
Head Rotation
Fixed
Head Interpupillary
48~76mm
Head Diopter
Both Tube Adjustable
Head Light Path
Fixed E70:P30
Head Specification
70% For Eyepiece, And 30% For Camera Tube
Eyepiece Features
Wide Field
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm
Eyepiece
WF 10x/22mm, 1 pc.
WF 10x/22mm, with Micrometer X-0.1mm*180 Div / Y-Single Line, 1 pc.
Nosepiece Holes
5 Holes
Objective Type
Infinity Plan
Long Working Distance
Objective Features
LWD (Long Working Distance)
Objective
Metallurgical LWD Infinity Plan BF:
LPL 5x/0.13, W.D.=16.04mm
LPL 10x/0.25, W.D.=18.48mm
LPL 20x/0.40, W.D.=8.35mm
LPL 50x/0.70, W.D.=1.95mm
Working Stage Type
Fixed Plain Stage
Working Stage Feature
Large Size >140x140mm
Working Stage Size
210x180mm,
Round plate size Dia. 110mm
Working Stage Moving
50x50mm
Focusing Features
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Focus
Focusing Range
10mm
Focusing Scale
0.002mm
Light Source Feature
Brightness Adjustable
LED 5W
Light Source Type
LED
Reflect Light
5W LED
Power Supply Type
DC 5V-12V Low Voltage
Video Adapter
C-Mount 0.65x
Polarizing
Analyzer+Polarizer set
Other Specification
Blue filter, Dia. 34mm
