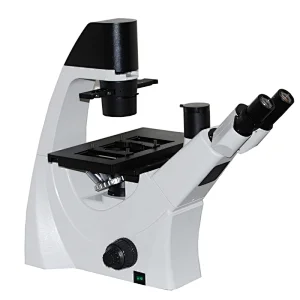

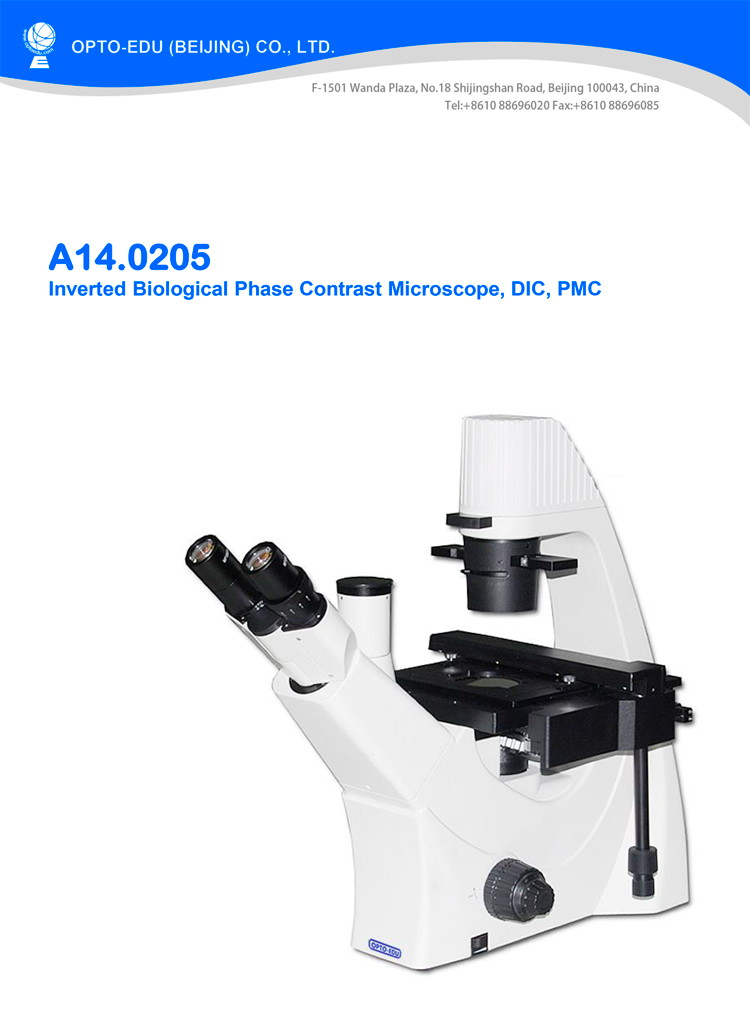

Inverted Biological Phase Contrast Microscope, DIC, PMC

  • Inverted Biological Phase Contrast Microscope, Upgradeable To DIC, PMC
  • WF10x/22 Eyepiece, Bright Field LWD Infinity Plan 10x20x40x,
  • Large Working Stage 224x205mm, Moving Stage 112x77mm
  • LWD Condenser W.D.70mm With Phase Contrast Slide
  • LWD Infinity Plan Phase Contrast Objective, Hoffman Objective, DIC Objective
Quantity:

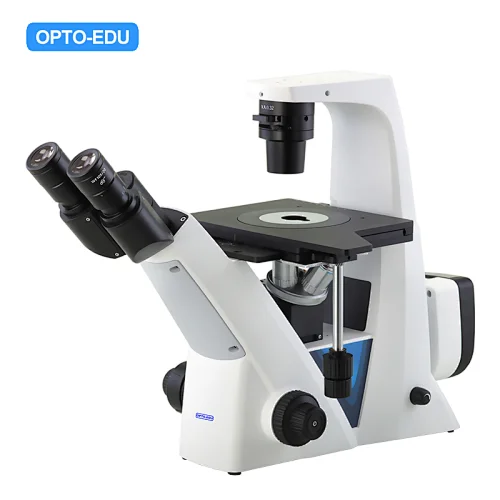

A14.0205 Series Inverted Phase Contrast MicroscopeA14.0205-PMC-DIC
A14.0205 Series Inverted Phase Contrast Microscope, is newly designed multi-functional microscope which combined Positive Phase Contrast, Polarizing Modulation Contract (PMC) (Upgrade from Hoffman Modulation ContractHMC), Differential Interference Contrast (DIC), and adopts infinity optical system, provides excellent optical function. The ultra long working distance condenser is suitable for tissue observation in high culture dish. The illumination system used 9W LED to supply high brightness light with well considered heat spreading and safety. The main body was designed with morden looking and man-machine engineering.

A14.0205 is applicable to scientific research instituation, colleges, university, medical and health, inspection and quarantine agency, agricultural, animal husbandry and dairy industry.
SystemTotal Magnification 100x-400x
Infinity Optical System, Mechanical Tube Length , Conjugate Distance

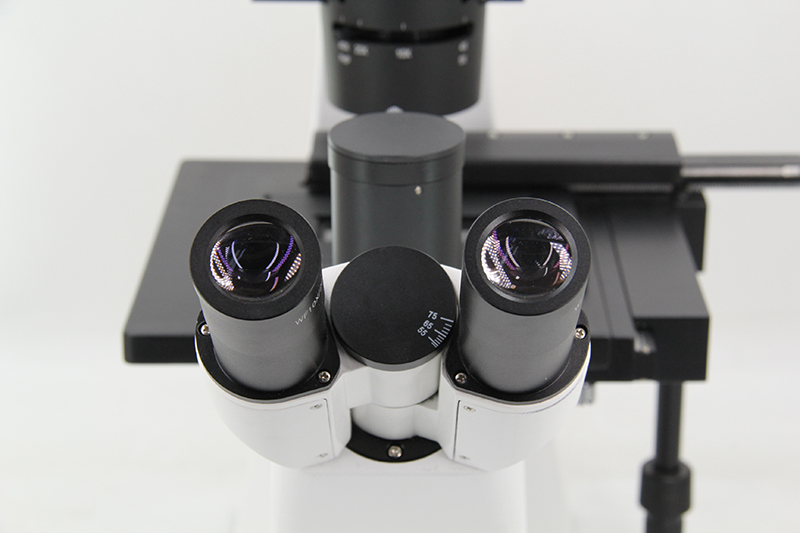

HeadTrinocular Head, 45° Inclined, 360° Rotatable,Interpupillary Distance 55~75mm, Light Split Switch E80:P20/E100:P0
EyepieceWF10x/22mm, Eyepiece Tube Dia. 30mm, Parfocal Distance 10mm
Centering Telescope Eyepiece 10x
NosepieceQuarduple

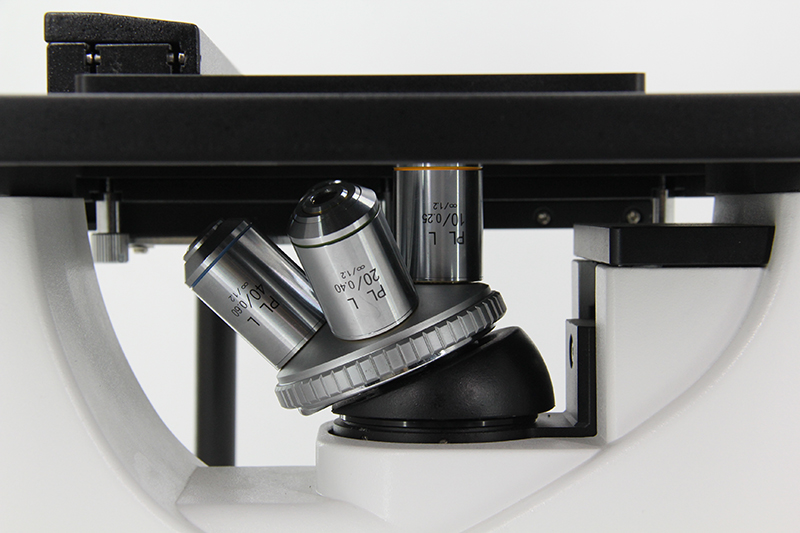

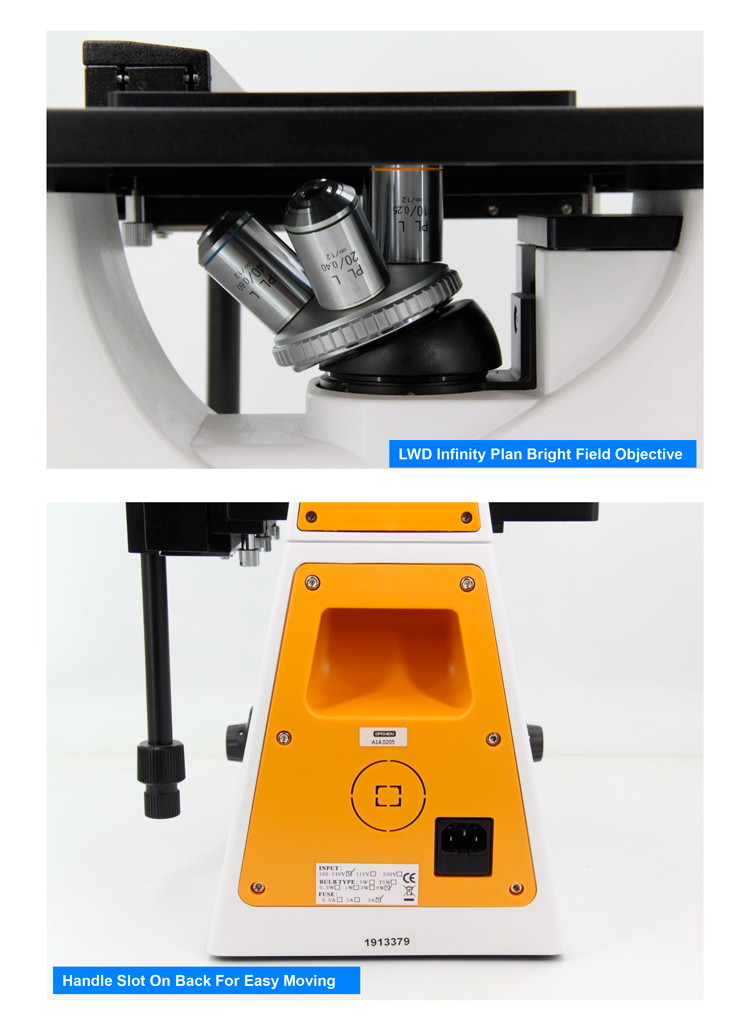

ObjectiveLWD Infinity Plan Bright Field Objective
10x/0.25, W.D.4.27, Cover Glass 1.2mm
20x/0.40, W.D.8.0, Cover Glass 1.2mm
40x/0.60, W.D.3.5, Cover Glass 1.2mm

LWD Infinity Plan Positive Phase Contrast Objective
PHP2 10x/0.25, W.D.4.27mm, Cover Glass 1.2mm

LWD Infinity Plan Bright Field Objective
10x/0.25, W.D.4.27, Cover Glass 1.2mm
20x/0.40, W.D.8.0, Cover Glass 1.2mm
40x/0.60, W.D.3.5, Cover Glass 1.2mm

LWD Infinity Plan Polarizing Modulation Contract (PMC) Objective
20x/0.4, Cover Glass 1.2mm

LWD Infinity Plan Bright Field Objective
40x/0.60, W.D.3.5, Cover Glass 1.2mm
LWD Infinity Plan Differential Interference Contrast (DIC) Objective
5x/0.12, Cover Glass 1.2mm
10x/0.25, Cover Glass 1.2mm
20x/0.30, Cover Glass 1.2mm

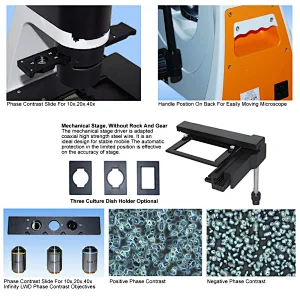

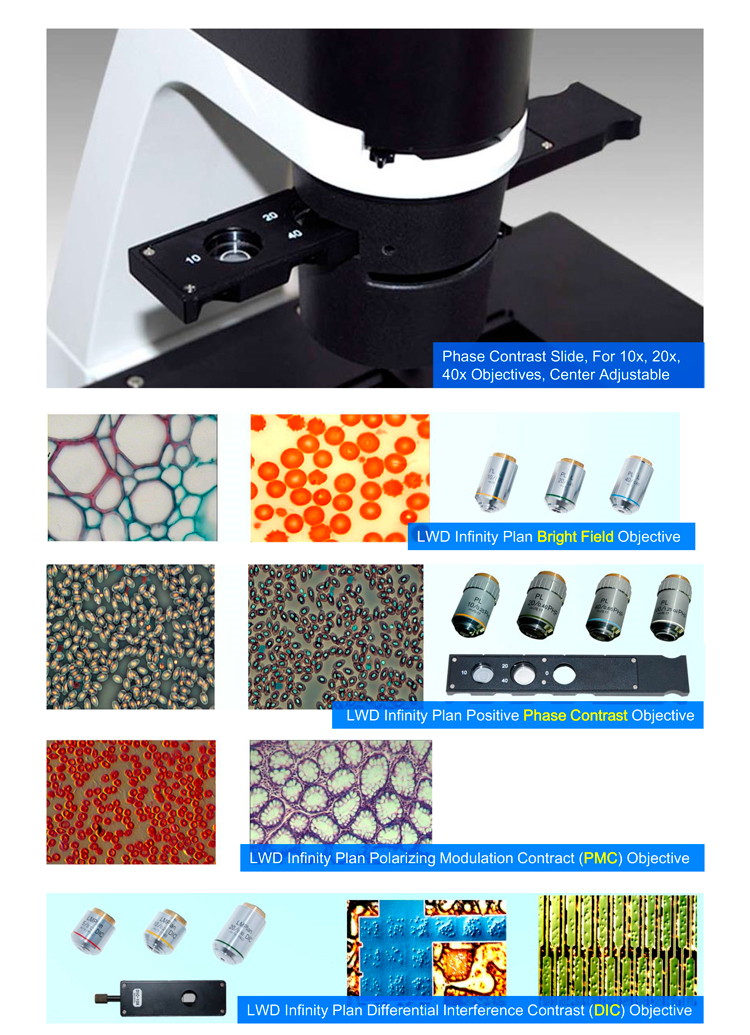

Phase ContrastPhase Contrast Slide, For 10x,20x,40x Objectives, Center Adjustable
Polarizing Modulation Contract (PMC) Slide, Slit Center Adjustable
Differential Interference Contrast (DIC) Slide, Interference Light Adjustable
FocusCoaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm, Focusing Range 11mm

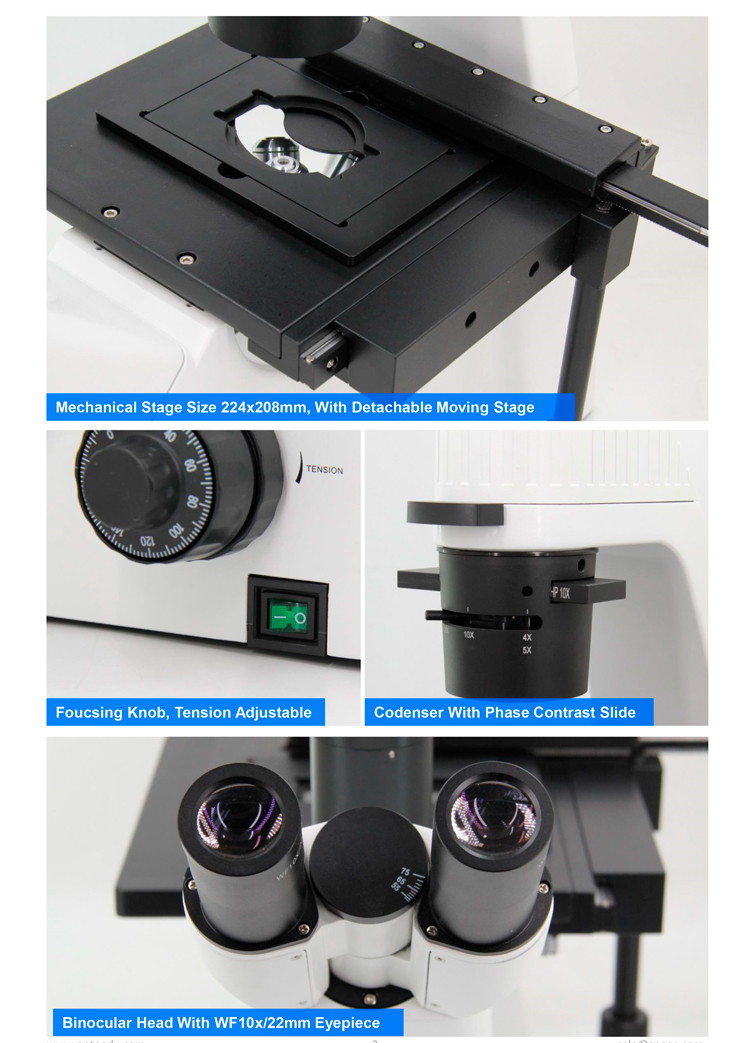

Working StageMechanical Stage Size 224x208mm, With Detachable Moving Stage, Moving Range 112x79mm,
Culture Dish Holder 86x129.5mm, For Circular Culture Dish Dia.87.5mm
Culture Dish Holder 34x77.5mm, For Circular Culture Dish Dia.68.5mm
Culture Dish Holder57x82mm
Moving Specimen Holder
Fixed Stage Board

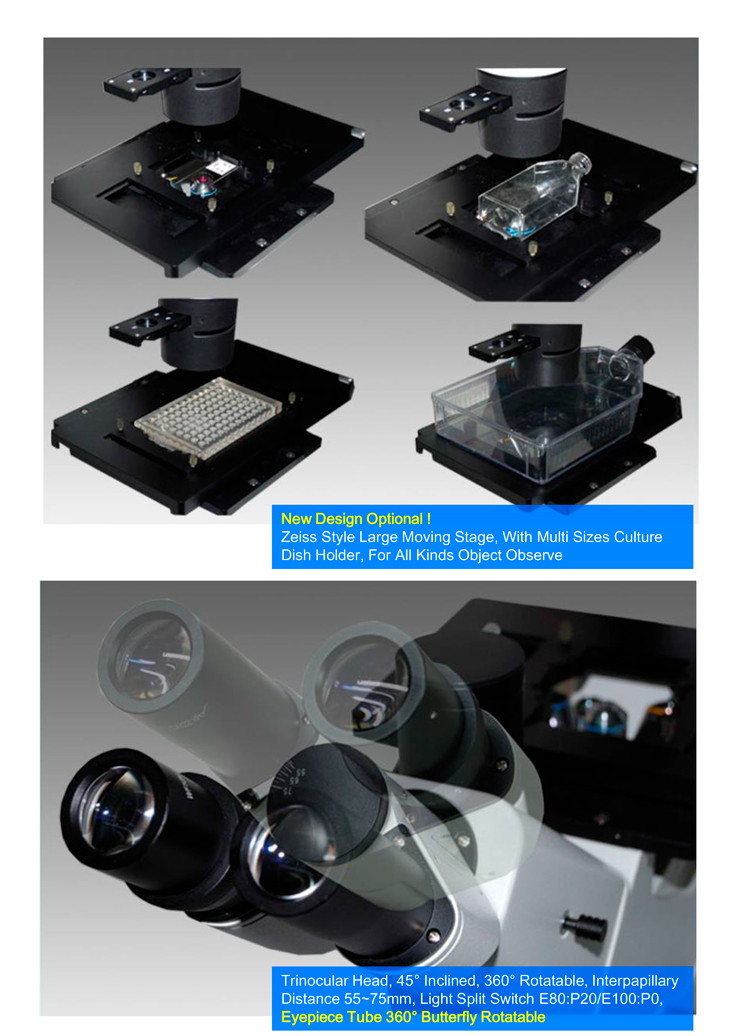

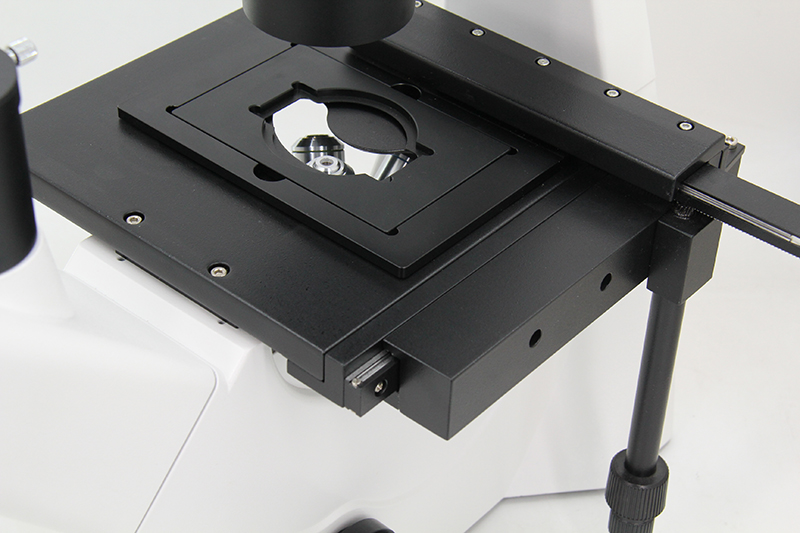

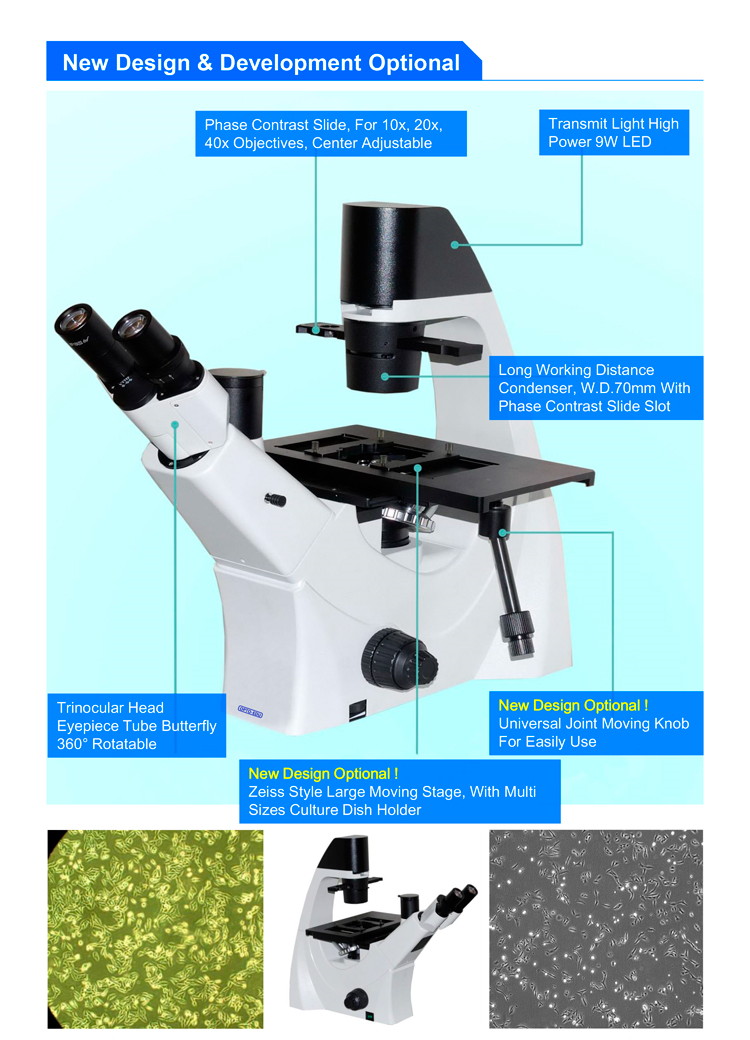

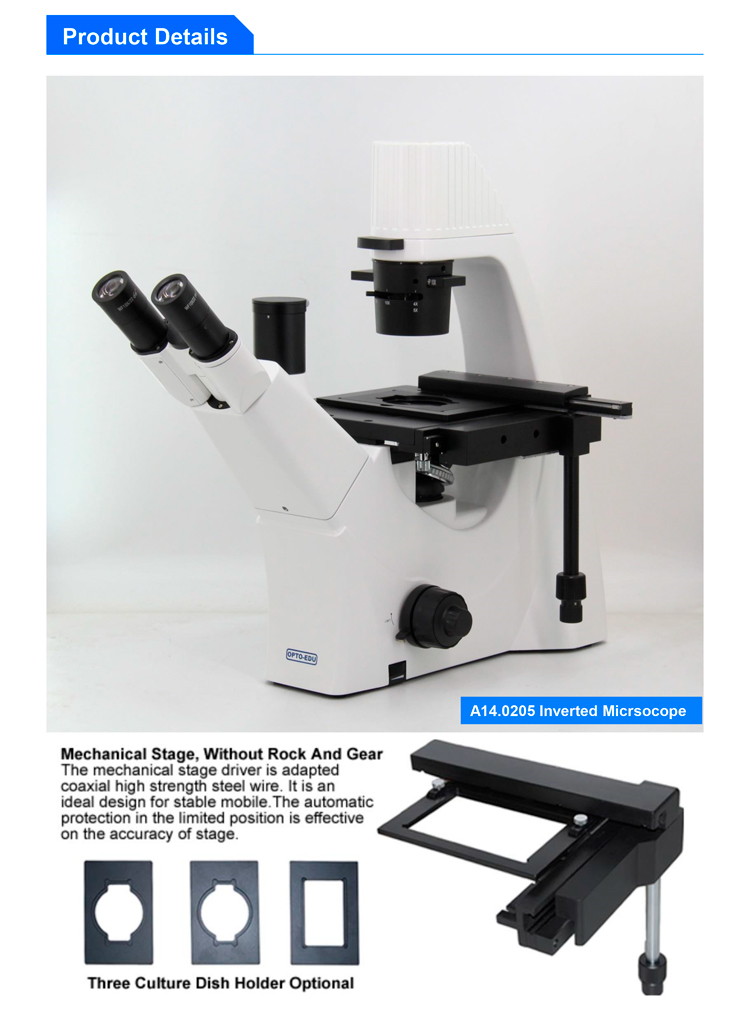

Zeiss Style Large Moving Stage, With Multi Sizes Culture Dish Holder, With Universal Joint Moving Knob For Easily Use

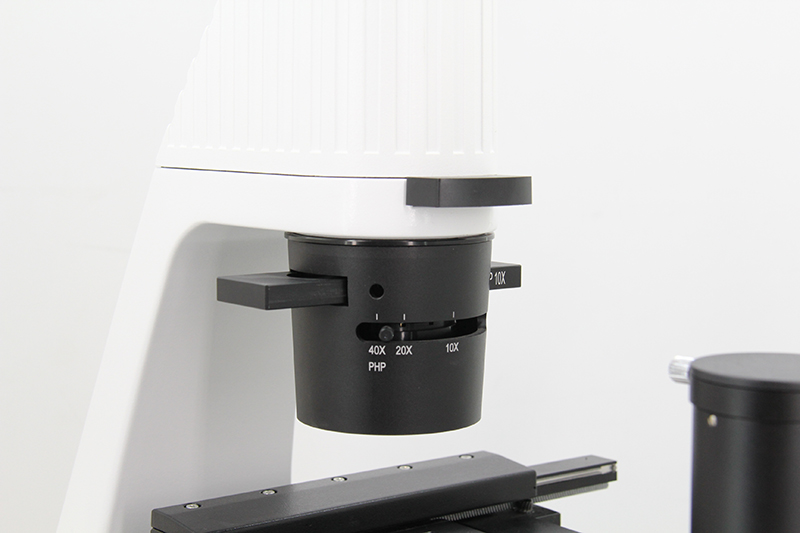

CondenserLong Working Distance Condenser, W.D. 70mm, With Phase Contrast Slide Slot
FilterBlue Filter, Frosted Glass
Light sourceTransmit Light High Power 9W LED, Brightness Adjustable, For Phase Contrast Observation And Ultra-Long Working Distance View In Cultrue Dish






Pictures
Model No. A14.0205 A14.0205-PMC
Other Specification
Blue Filter, Frosted Glass Blue Filter, Frosted Glass
Phase Contrast
Phase Contrast Slide, For 10x,20x,40x Objectives, Center Adjustable

Centering Telescope Eyepiece 10x
PMC (Polarizing Modulation Contract) Slide, For 10x,20x,40x Objective

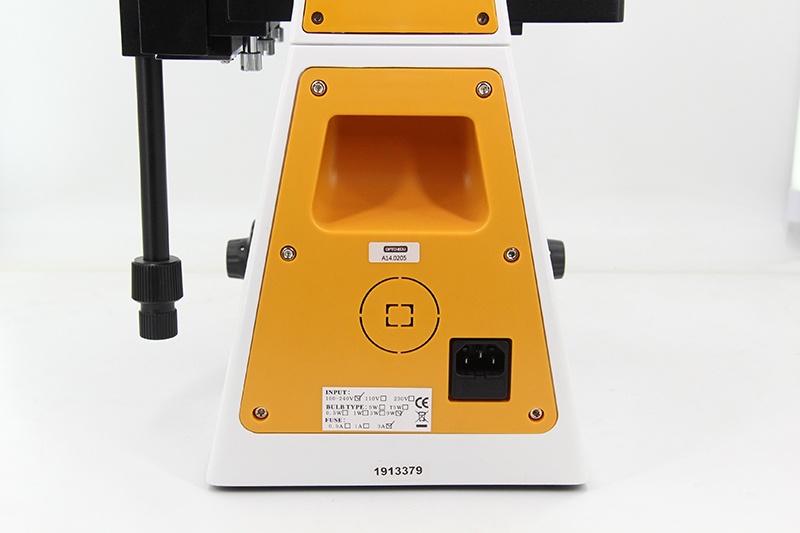

Power Supply Type
AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage
Transmit Light
High Light 9W LED, Brightness Adjustable High Light 9W LED, Brightness Adjustable
Light Source Type
LED LED
Light Source Features
LED 9W
Transmit Light
LED 9W
Transmit Light
Condenser
Long Working Distance Condenser, W.D. 70mm, With Phase Contrast Slide Slot Long Working Distance Condenser, W.D. 70mm, With Phase Contrast Slide Slot
Condenser Type
LWD/ELWD LWD/ELWD
Condenser Features
With Slot For Phase Contrast Slide With Slot For Phase Contrast Slide
Focusing Scale
0.002mm 0.002mm
Focusing Range
11mm 11mm
Focusing Type
Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus
Focusing Features
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Working Stage
Culture Dish Holder

86x129.5mm, For Circular Culture Dish Dia.87.5mm

34x77.5mm, For Circular Culture Dish Dia.68.5mm

57x82mm
Culture Dish Holder

86x129.5mm, For Circular Culture Dish Dia.87.5mm

34x77.5mm, For Circular Culture Dish Dia.68.5mm

57x82mm
Working Stage Moving
122x77mm 122x77mm
Working Stage Size
224x205mm 224x205mm
Working Stage Type
Attachable Mechanical Stage Attachable Mechanical Stage
Working Stage Features
Knob Universal Direction Knob Universal Direction
Objective
LWD Infinity Plan Bright Field Objective

10x/0.25, W.D.4.27, Cover Glass 1.2mm

20x/0.40, W.D.8.0, Cover Glass 1.2mm

40x/0.60, W.D.3.5, Cover Glass 1.2mm

LWD Infinity Plan Positive
LWD Infinity Plan Bright Field Objective

10x/0.25, W.D.4.27, Cover Glass 1.2mm

20x/0.40, W.D.8.0, Cover Glass 1.2mm

40x/0.60, W.D.3.5, Cover Glass 1.2mm

LWD Infinity Plan Polarizin
Objective Type
Infinity Plan
Phase Contrast
Infinity Plan
Phase Contrast
Nosepiece Holes
5 Holes 5 Holes
Eyepiece
WF10x/22mm, 2 pcs WF10x/22mm, 2 pcs
Eyepiece Diameter
30.0mm 30.0mm
Head Diopter
Left Tube Adjustable Left Tube Adjustable
Head Interpupillary
55~75mm 55~75mm
Head Rotation
Eyetube Rotate 360° Eyetube Rotate 360°
Head Inclination
45° 45°
Head Type
Seidentopf Trinocular Seidentopf Trinocular
Standard Magnification
100x-400x 100x-400x
Optical System
Infinity Plan Infinity Plan
Features
Infinity Infinity
Standard Function
BF+PH BF+PH
