Inverted Biological Microscope, BF+PH, ECO
Inverted Biological Microscope, BF+PH, ECO
Inverted Biological Microscope, BF+PH, ECO

A14.0912

Like Favorites

Inverted Biological Microscope, BF+PH, ECO

  • Professional Inverted Microscope Infinity Color Corrected Optical System With BF+PH View
  • Infinity LWD Plan Achromatic Objective 4x/10x/40x & Phase Contrast 20x
  • Phase Contrast Slide 4x10x+20x40x + Centering Telescope
  • Transmit 5W LED Light Source With LWD Condenser N.A.0.3, W.D.72mm
  • Intelligent Front Panel With Light Indicator, ECO Auto On/Off Function Switch
Quantity:


OPTO-EDU A14.0912, A16.0912, A13.0912 Series Inverted Microscope, is research level lab inverted microscope, combined Bright Field, Dark Field, Phase Contrast, Fluorescent, DIC, Semi-APO optical system, designed for laboratory biological research, or industry metallurgical & geography research.  It has front view information screen which can show brightness, objective & fluorescent filters condition without checking inside of the microscope, make your work in dark room easier.

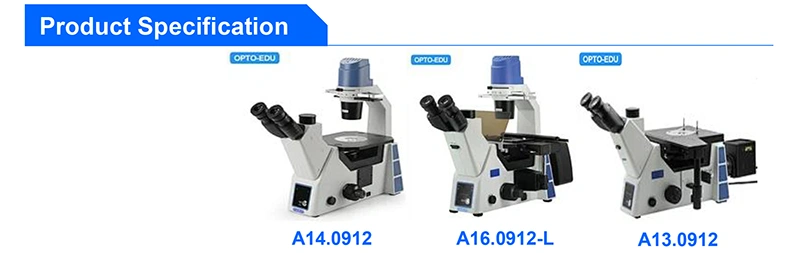

This series has 3 models :
A14.0912 Biological Inverted Microscope, With BF, PH View

A16.0912 Fluorescent Inverted Microscope, With BF, PH, FL View
A13.0913 Metallurgical Inverted Microscope, With BF, DF, PL, DIC View
A13.0912 Metallurgical
Inverted Microscope:
Inverted Metallurgical Microscope Reflect Halogen 12V100W
Infinity Plan LWD BF/DF DIC 5x10x20x Semi-APO FL50x,100x
Quintuple Nosepiece With DIC Slot, DIC Slider Optional
3 Layers Mechanical Stage 240x250mm/ Moving 50x50mm
Polarizer & 360°Analyzer, Brightness Indicator & ECO Function
A14.0912 Biological
Inverted Microscope:
Infinity Color Corrected Optical System + Positive Phase Contrast
Plan WF10x/22mm, Diopter Adjustable, High Eye-point
Infinity LWD Plan Achromatic Objective 4x/10x/40x & Phase Contrast 20x
Phase Contrast Filter & Centering Telescope
5W LED With Light Indicator, With ECO Auto On/Off Function

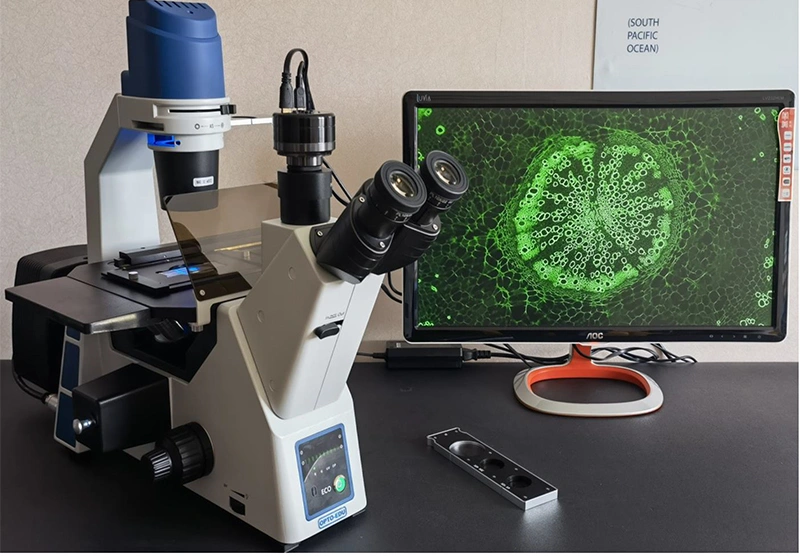

A16.0912-L Fluorescent Inverted Microscope:
Inverted Fluorescent Microscope BF+PH+FL Semi-APO Optical System
LWD Infinity Plan Fluorescent 4x10x, LWD Infinity Plan Semi-APO 20x40x
Working Stage 215x250mm, Attachable Stage Moving Range 120x78mm
LWD Condenser N.A.0.3, W.D.78mm, Phase Contrast Slide
Reflect Fluorescent LED 3 Bands, Fluorescent Filter B,G,U,UVAvailable





A14.0912 Biological, A16.0912-L Fluorescent, A13.0912 Metallurgical
Series Inverted Microscope
A14.0912
Biological
A16.0912-L
Fluorescent
A13.0912
Metallurgical
Cata. No.
Observation MethodBright Field
Phase Contrast-
Fluorescent--
Dark Field ( With BF/DF Shifter)--
Polarizing--
DIC--

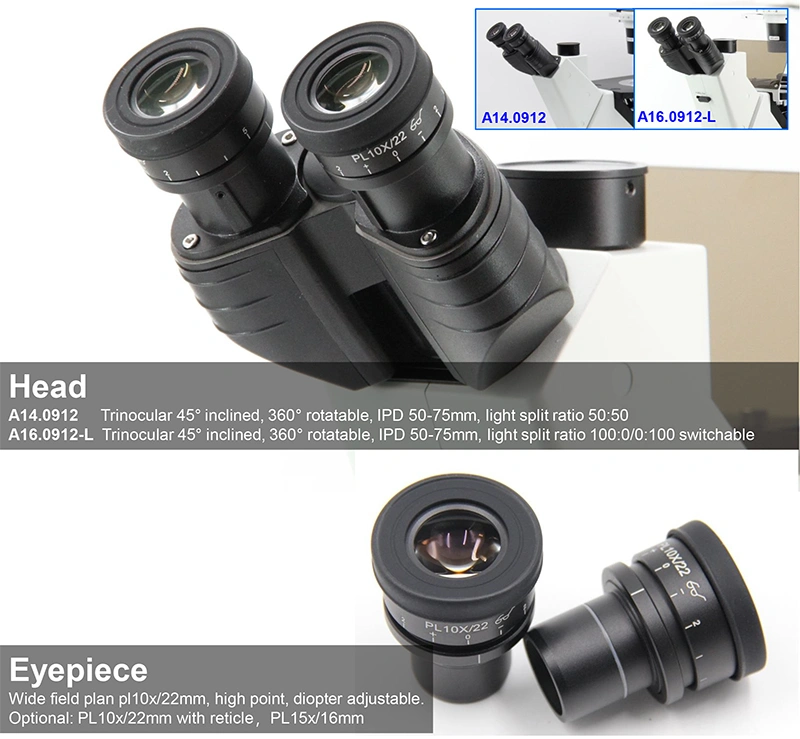

HeadTrinocular Head, 45° Inclined, 360° Rotatable, IPD 50-75mm,
Light Split Ratio 50:50
--
Trinocular Head, 45° Inclined, 360° Rotatable, IPD 50-75mm,
Light Split Ratio 100:0/0:100 Switchable
-
EyepieceWide Field Plan PL10x/22mm, High Point, Diopter AdjustableA51.0904-1022T
Wide Field Plan PL10x/22mm, High Point, Diopter Adjustable With ReticleA51.0904-1022R
Wide Field Plan PL15x/16mm, High Point, Diopter AdjustableA51.0904-1516T
NosepieceQuintuple
Coded BD Quintuple With DIC Slot, Show Objective On Front Panel--

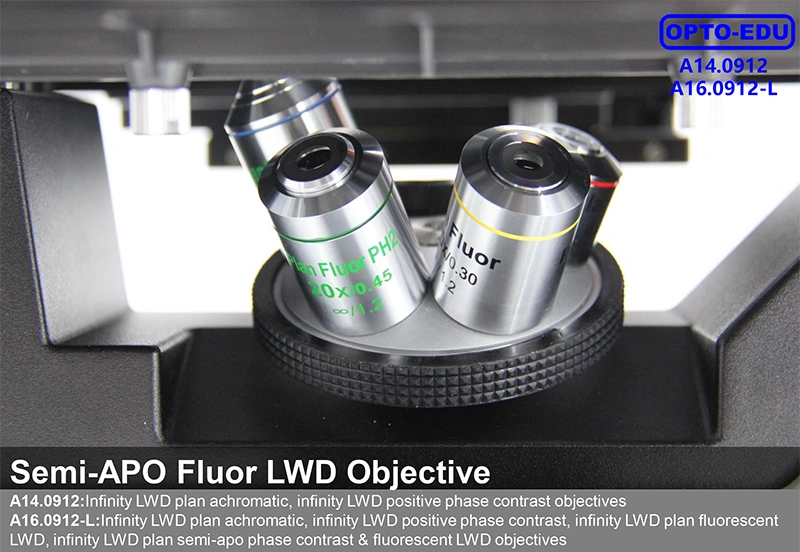

ObjectiveInfinity LWD Plan Achromatic 4x/0.10, W.D.22mm, Cover Glass 1.2mm-A5M.0935-4
Infinity LWD Plan Achromatic 10x/0.25, W.D.7.94mm, Cover Glass 1.2mm-A5M.0935-10
Infinity LWD Plan Achromatic 20x/0.50, W.D.7.66mm, Cover Glass 1.2mm-A5M.0935-20
Infinity LWD Plan Achromatic 40x/0.60, W.D.3.71mm, Cover Glass 1.2mm-A5M.0935-40
Infinity LWD Plan Achromatic 60x/0.70, W.D.2.50mm, Cover Glass 1.2mm-A5M.0935-60
Infinity LWD Positive Phase Contrast 4x/0.13 WD=10.75mm-A5C.0938-4
Infinity LWD Positive Phase Contrast 10x/0.25 WD=7.45mm-A5C.0938-10
Infinity LWD Positive Phase Contrast 20x/0.40 WD=6.92mm-A5C.0938-20
Infinity LWD Positive Phase Contrast 40x/0.65 WD=2.74mm-A5C.0938-40
Infinity LWD Plan Fluorescent LWDPL4x/0.13, W.D.18.52mm--A5F.0932-4
Infinity LWD Plan Fluorescent LWDPL10x/0.3, W.D.7.11mm--A5F.0932-10
Infinity LWD Plan Fluorescent LWDPL20x/0.45, W.D.5.91mm--A5F.0932-20
Infinity LWD Plan Fluorescent LWDPL40x/0.65, W.D.1.61mm--A5F.0932-40
Infinity LWD Plan Fluorescent LWDPL60X/0.75, W.D.1.04mm--A5F.0932-60
Infinity LWD Plan Semi-APO Phase Contrast & Fluorescent
LWDPL20x/0.45 W.D.5.91mm
--A5F.0933-20
Infinity LWD Plan Semi-APO Phase Contrast & Fluorescent
LWDPL40x/0.65 W.D.1.61mm
--A5F.0933-40
Infinity LWD BD DIC Plan Metallurgical DIC-5x/0.15 W.D.11mm--A5M.0939-5
Infinity LWD BD DIC Plan Metallurgical DIC-10x/0.3 W.D.9.5mm--A5M.0939-10
Infinity LWD BD DIC Plan Metallurgical DIC-20x/0.45 W.D.3.4mm--A5M.0939-20
Infinity LWD BD Semi-APO Plan Metallurgical FL50x/0.55 W.D.7.5mm--A5M.0940-50
Infinity LWD BD Semi-APOPlan Metallurgical FL100x/0.8 W.D.2.1mm--A5M.0940-100
FocusingCoaxial Coarse & Fine Focusing, With Tension Adjustment Ring, Coarse Focusing Range 9mm, Up 6.5mm + Down 2.5mm, Fine Focusing Precision 0.002mm
Working StageThree-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail, Right Hand Controls, Low Position--

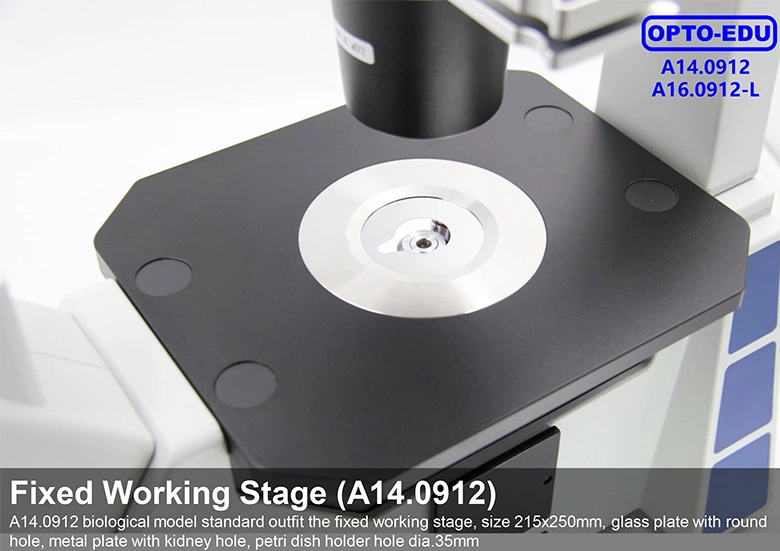

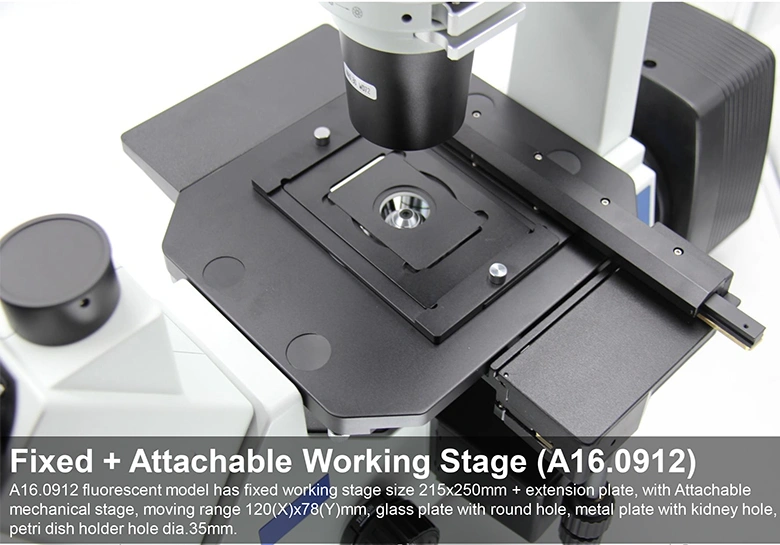

Fixed Working Stage, Size 215x250mm-

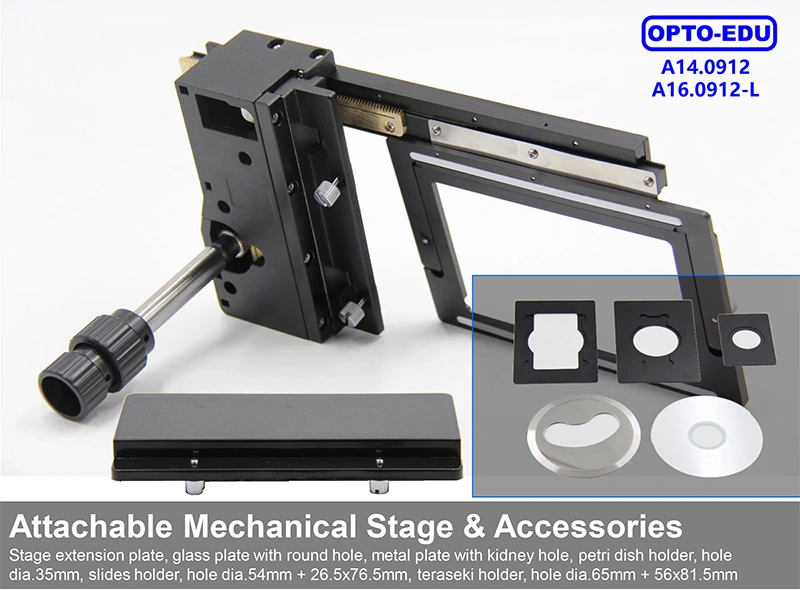

Attachable Mechanical Stage, Moving Range 120(X)x78(Y)mm-A54.0945-02
Stage Extension Plate-A54.0945-E1
Glass Plate With Round Hole-A54.0945-GP
Metal Round Plate, Hole Dia.25mm--A54.0945-M1
Metal Round Plate, Hole Dia.12mm--A54.0945-M2
Metal Plate With Kidney Hole-A54.0945-M3
Petri Dish Holder, Hole Dia.35mm -A54.0945-H1
Slides Holder, Hole Dia.54mm + 26.5x76.5mm-A54.0945-H2
Teraseki Holder, Hole Dia.65mm + 56x81.5mm-A54.0945-H3
CondenserLWD Condenser N.A. 0.30, W.D. 72mm, Dismountable, With Phase Contrast Slot-
Phase ContrastCentre-Adjustable Phase Contrast Slide Plate, For 4x10+20x40x Objectives-
Centering Telescop Dia.30mm-
PolarzingPolarizer & 360° Analyzer--
DICDIC Slider--A5M.0955
Transmit Light Source5W LED Illumination, Intensity Adjustable-
LBD Color Temperature Change Filter Dia.45mm-
IF550 Green Interference Filter Dia.45mm-
Reflect Light12V100W Halogen Light Source, Brightness Adjustable--

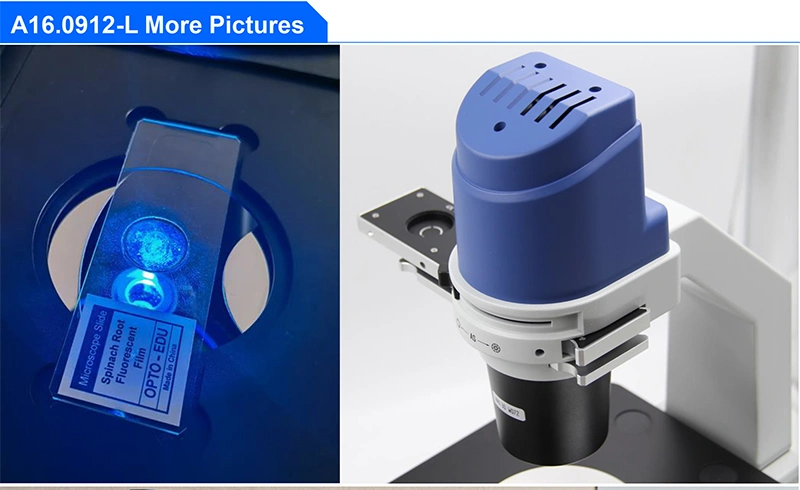

Reflect Fluorescent Light SourceLED Fluorescent Lamp House, 4 Bands LED Switching By Servo Motor, Built-in LEDs For Fluorescent Filter 385nm, 470nm, 560nm. --

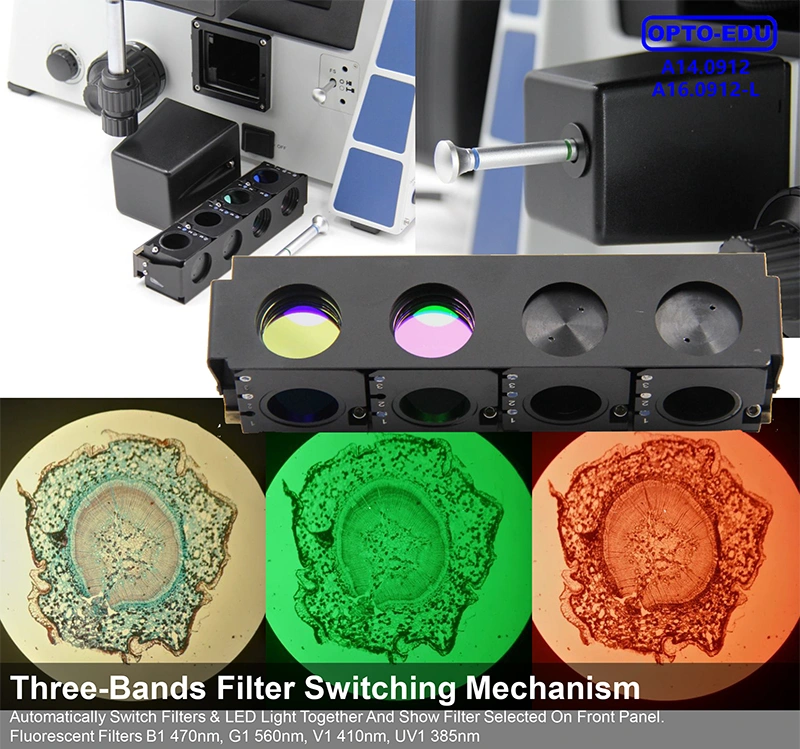

3 Bands Fluorescent Filter Switching Mechanism, Automatically Switch Filters & LED Light Together And Show Fluorescent Filter On Front Panel--
Fluorescent Filter B1 470nm--A5F.0924-B1
Fluorescent Filter G1 560nm--A5F.0924-G1
Fluorescent Filter V1 410nm--A5F.0924-V1
Fluorescent Filter UV1 385nm--A5F.0924-UV1
Main BodyReflect and Transmit Frame Body-
Reflect Frame Body--

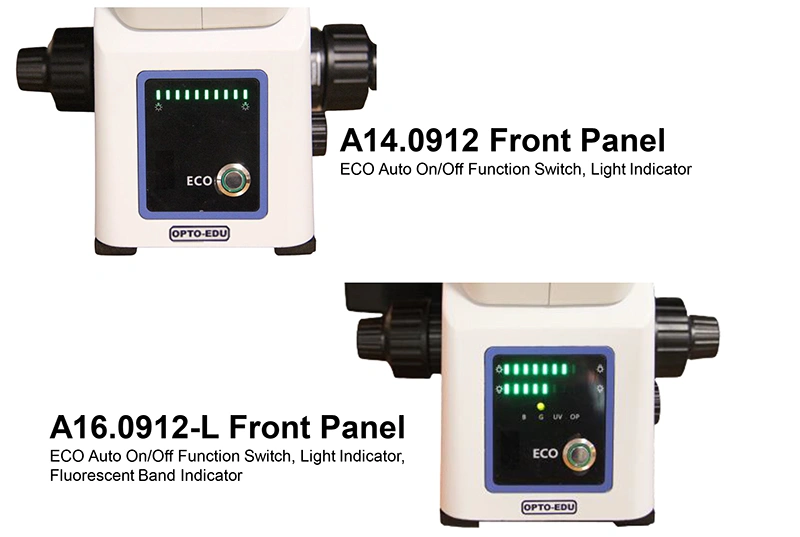

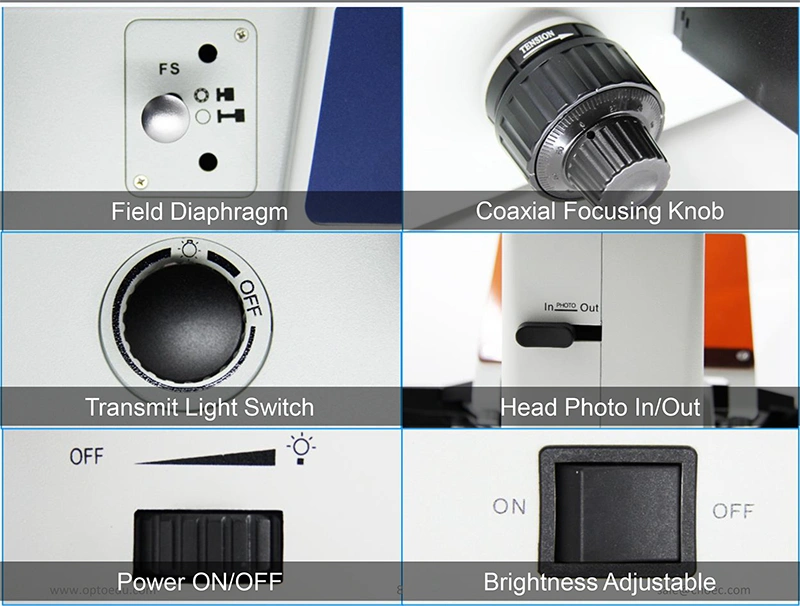

Front PanelECO Auto On/Off Function Switch
Light Indicator
Fluorescent Band Indicator--
Objective Indicator, Work With Coded Nosepiece--
Power SupplyExternal Wide Voltage Transformer, Input 100-240V

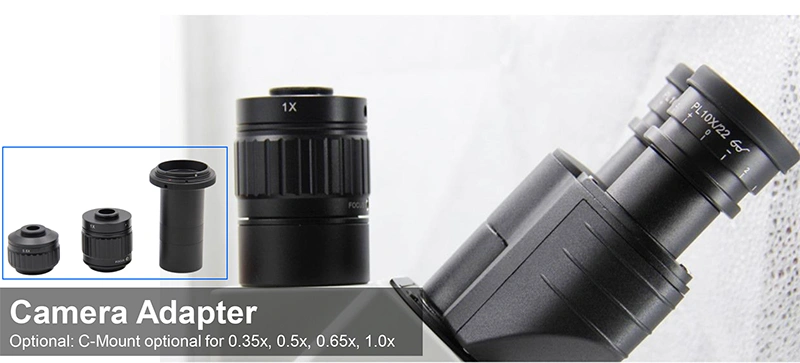

Camera AdapterC-Mount 0.35xA55.0934-35
C-Mount 0.65xA55.0934-65
C-Mount 0.5xA55.0934-05
C-Mount 1.0xA55.0934-10

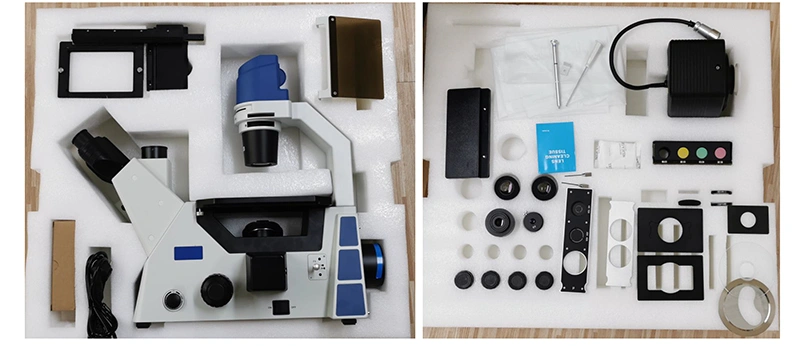

PackingFoam+Carton, 1pc/Carton, 68*67*47cm, G.W.21Kgs--
Foam+Carton, 1pc/Carton, 74*67*57cm, G.W.24Kgs--
 Foam+Carton, 1pc/Carton, 49*51*73cm, G.W.22Kgs--
Note:""In Table Is Standard Outfits,""Is Optional Accessories"-"Is Unavailable



























Pictures
Model No. A14.0912
New Product Year
2022
Standard Function
BF+PH
Features
Infinity
ECO(Auto Power Off)
Optical System
Infinity Plan
Standard Magnification
40x-400x
Head Type
Seidentopf Trinocular
Head Inclination
45°
Head Rotation
Eyetube Rotate 360°
Head Interpupillary
50~75mm
Head Light Path
E50:P50
Eyepiece Features
Diopter Adjustable
Eyepiece Diameter
30.0mm
Eyepiece
Optional: Wide Field Plan PL10x/22mm, High Point, Diopter Adjustable With Reticle, Wide Field Plan P
Nosepiece Holes
5 Holes
Objective Features
LWD
Objective Type
Achromatic
Infinity Plan
Phase Contrast
Objective
Infinity LWD Plan Achromatic Objective 4x,10x,40x

Infinity LWD Positive Phase Contrast Objective 20x
Working Stage Features
Size ≥140x180mm
Working Stage Type
Fixed Plain Stage
Working Stage Size
215x250mm
Working Stage Moving
120*78mm
Working Stage
Dia.35 Petri Dish Holder, Metal Plate And Glass Plate
Focusing Features
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Focusing Range
9mm
Focusing Scale
0.002mm
Focusing Knob
Up 6.5mm + Down 2.5mm
Condenser Features
Slot For PH Slide
Condenser Type
Phase Contrast
LWD/ELWD
Condenser N.A.
0.3
Condenser
LWD N.A. 0.30, W.D. 72mm, Dismountable, With Phase Contrast Slot
Light Source Features
LED 5W
Light Indicator
ECO
Light Source Type
LED
Transmit Light
5W LED Illumination, Intensity Adjustable, LBD Color Temperature Change Filter Dia.45mm, IF550 Green
Power Supply Type
AC 110V-240V
Power Supply
External Wide Voltage Transformer, Input 100-240V
Phase Contrast
Centre-Adjustable Phase Contrast Slide Plate, For 4x10+20x40x Objectives, Centering Telescope Dia.30mm
Other Specification
LBD Color Temperature Change Filter Dia.45mm

IF550 Contrast Green Filter Dia.45mm
