A14.2702

Like Favorites

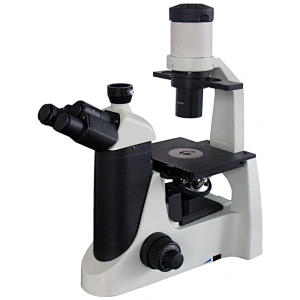

Inverted Microscope


  • UCIS infinity independent achromatic optical system
  • One-piece construction from arm to base
  • Plan WF10x/20mm, high eyepoint up to 21mm,Centering telescope,
  • Quintuple, reversed type with positive click stops
  • Abbe condenser N.A. 0.30 with iris diaphragm, with phase contrast slider, long work distance 72mm
Quantity:



ItemsA14.2702 Inverted Microscope
Optical SystemUcis Infinity Independent Achromatic Optical System
FrameOne-Piece Construction From Arm To Base
HeadSeidentopf Trinocular Head, 30° Inclined, Interpupilary Distance 52-75Mm, Diopter Adjustable
EyepiecePlan WF10x/20mm, High Eyepoint Up To 21mm,
Centering AttachmentCentering Telescope
ObjectiveInfinity LWD Plan Achromatic Objective 10x
Infinity LWD Plan Achromatic Objective 20x
Infinity LWD Plan Achromatic Objective 40x
Infinity LWD Plan Positive Phase Contrast Objective 20x
Focus SystemCoaxial Coarse And Fine Focus Mechanism With Markings, Fine Focus Sensitivity 1mm, Coarse Range 14mm
NosepieceQuintuple, Reversed Type With Positive Click Stops
StageLow Position, Mechanical Stage, Size 180X150mm, Moving Range 80X50mm.
Drop Specimen Holder Dia.110mm
Specimen Holder Dia. 54mm
Light SourceAbbe Condenser N.A. 0.30 With Iris Diaphragm, With Phase Contrast Slider, Long Work Distance 72mm
6V30W Halogen Lamp House
Electrical Parts For 6V30W Halogen Lamp
6V30W Halogen Bulb(Osram)
250V/3.15A Φ5x20 Fuse
Power Supply 110-240V 50/60Hz
Blue Filter (Φ34)
Green Filter (Φ34)
Yellow Filter (Φ34)
Phase ContrastPhase Contrast Slider (For 10X/20X/40X Phase Contrast And Brightfield Observation)
Adapter1.0x C-Mount
OtherAllen Screw Driver 2mm
Dust Cover
Power Cord
Optional AccessoriesItem No.
HeadSeidentopf Binocular Head, 30° Inclined, Interpupillary Distance 52-75mm, Diopter AdjustableA53.2702-3
Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 52-75mm, Diopter Adjustable (For FOV 22mm)A53.2702-2B
Seidentopf Trinocular Head, 30° Inclined, Interpupillary Distance 52-75mm, Diopter Adjustable (For FOV 22mm)A53.2704-2A
EyepieceWF10x/18mm, Plan, Reticule Eyepiece, High Eyepoint Up To 21mm Diopter AdjustableA51.2703-10
Eyepiece 16x/13mm, PlanA51.2701-1613A
WF10x/22mm,Plan, High EyepointA51.2701-10C
WF10X/20mm, Reticule Eyepiece, High Eye-point, Diopter AdjustableA51.2703-10A
ObjectiveInfinity LWD Plan Achromatic Objective 4xA5M.2730-4C
IInfinity LWD Plan Achromatic Objective 60xA5M.2730-60B
Infinity LWD plan phase-contrast Objective 10x (positive)A5C.2735-10PB
Infinity LWD plan phase-contrast Objective 40x (positive)+sliderA5C.2735-40PB
Infinity LWD Plan Phase-Contrast Objective 10x (Negative)A5C.2735-10NB
Infinity LWD Plan Phase-Contrast Objective 20x (Negative)A5C.2735-20NB
Infinity LWD Plan Phase-Contrast Objective 40x (Negative)+sliderA5C.2735-40NB
StageFixed Stage, Size 240x180mmA54.2707-4
 Fluorescence Attachment100W Mercury Lamp HouseA5F.2712
100W Power Supply UnitA5F.2713
100W Mercury LampA5F.2716-H
100W Mercury Lamp (Osram)A5F.2716-I
Excitation Filter BA5F.2711-CAB
Excitation Filter GA5F.2711-CAG
Excitation Filter UVA5F.2711-CAUV
Excitation Filter VA5F.2711-CAV
Adapter1.0x C-MountA55.2701-10
0.5x C-MountA55.2701-05
0.25x C-Mount (suitable for 1/3"CCD)A55.2701-25
Digital Camera Adapter, (Need To Know Camera Model Number)A55.2702-2

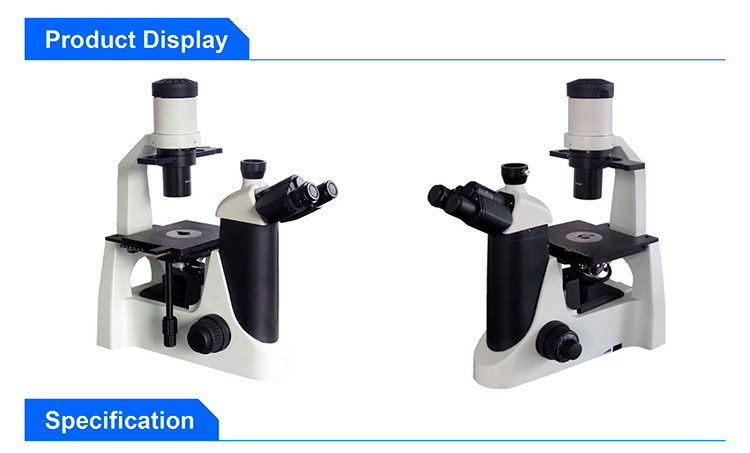

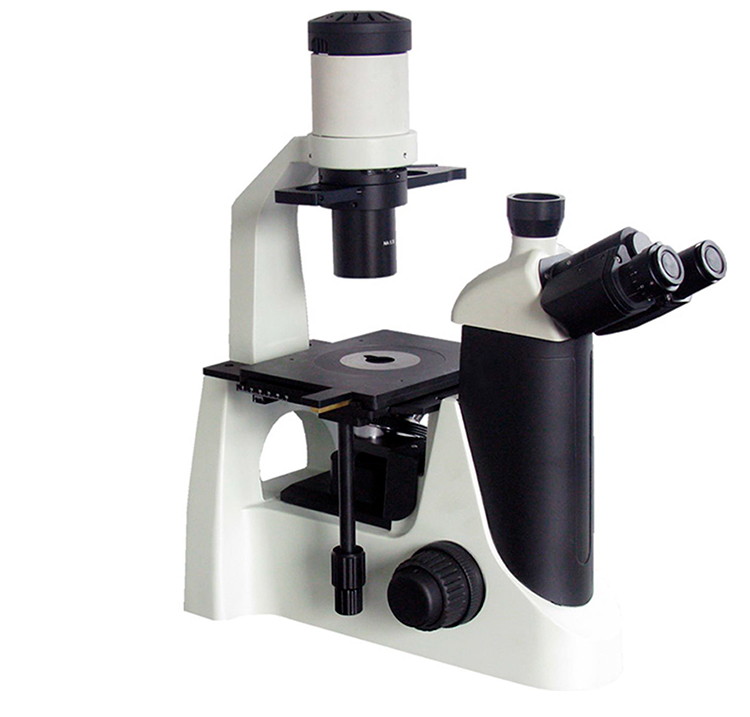

Pictures
Model No. A14.2702
Function
BF+PH
Features
Infinity
Inverted
Optical System
Infinity Plan
Standard Magnification
100x-400x
Optional Magnification
100x-640x
Head Type
Seidentopf Trinocular
Head Inclination
30°
Head Rotation
Head 360°
Head Interpupillary
52~75mm
Head Diopter
Left Adjustable
Head Light Path
Fixed E80:P20(E50:50/E100:0可选)
Head Specification
Trinocular
Eyepiece Features
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Eyepiece
WF10x/20mm, 2 pcs
High Eyepoint Up To 21mm
Nosepiece Holes
5 Holes
Objective Type
Infinity Plan
Phase Contrast
Objective Features
LWD (Long Working Distance)
Objective
Infinity LWD plan achromatic
10x
20x
40x
Infinity LWD plan phase contrast
20×
Working Stage Type
Fixed+Attachable Mechanical
Working Stage Feature
Large Size >140x140mm
Ergonomic Low Position Stage Knob
Working Stage Size
180x150mm
Working Stage Moving
80x50mm
Focusing Features
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Focus
Focusing Range
80x50mm
Focusing Scale
14mm
Focusing Knob
0.01mm
Condenser Type
Abbe + Iris Diaphragm
LWD/ELWD
Condenser N.A.
0.3
Condenser Features
Slot For Phase Contrast Slide
Light Source Feature
Brightness Adjustable
Light Source Type
Halogen
Transmit Light
6V/30W
Power Supply Type
AC 110V/220V Optional
Phase Contrast
10x/20x/40x
Function Upgradeable
Phase Contrast
Fluorescent
Metallurgical
