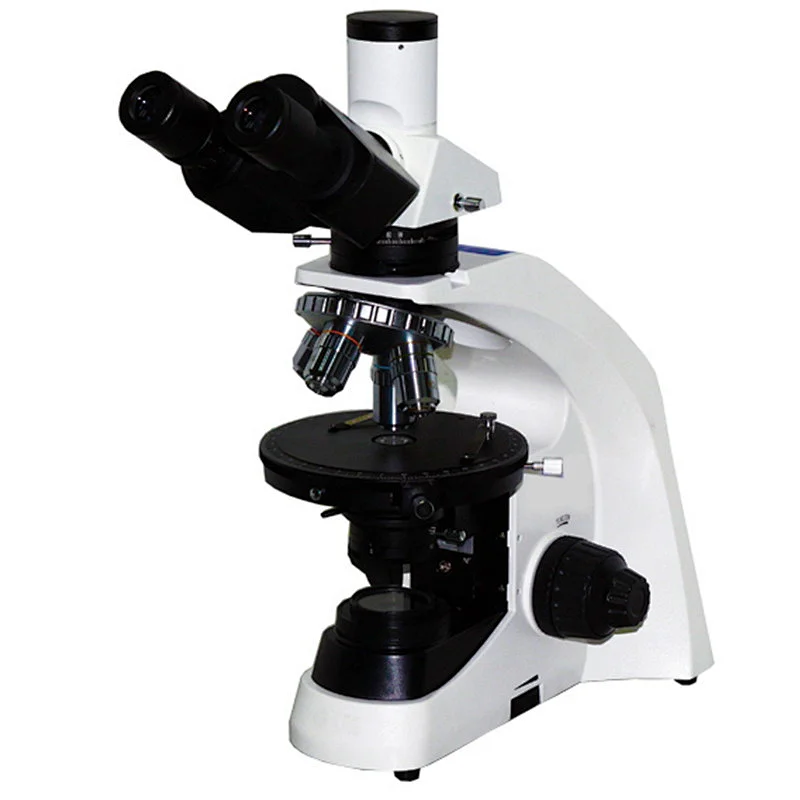

Polarizing Microscope, Transmit Light
Polarizing Microscope, Transmit Light
Polarizing Microscope, Transmit Light

A15.0206

Like Favorites

Polarizing Microscope, Transmit Light

Quantity:


A15.0206
Model
B
T
Head

Binocular Head

Trinocular Head

EyepieceWide Field WF10X(Field Number:Φ20mm)
Dividing Eyepiece(Field Number:Φ20mm)    0.10mm/Div

Objective

Strain-free plan achromatic objective

PL 5X/0.12  Work Distance:18.3 mm
PL10X/0.25 Work Distance:5.0 mm
PL 40X/0.65(Spring) Work Distance:0.66 mm
PL 60X/0.80(Spring) Work Distance:0.45 mm
PolarizerUnder Condenser, 360°Rotatable, Have 0°, 90°,180°,270° Scale
Collector

For LED illumination

Light SourceLED 1W, Brightness Adjustable
Abbe Condenser

N.A. 1.25 Rack & Pinion Adjustable

Focus System2μm. Coaxial Coarse/Fine Focus, With Tension Adjustable And Up Stop Minimum Division Of Fine Focusing: 2μm.
NosepieceQuadruple (The Center Of Objective Is Adjustable )
StageDouble Layer Mechanical Round Stage Dia. 150mm
Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked
