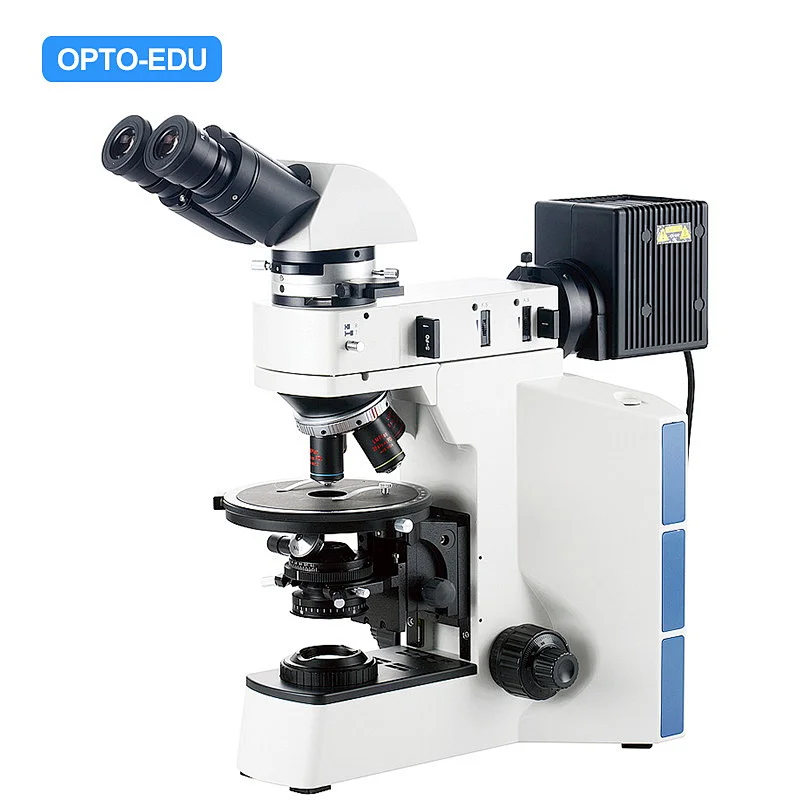

Polarizing Microscope, Reflect Light


  • Infinity Color Corrected Optical System
  • Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device
  • Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′
  • Reflected Light, 12V/50W Halogen Lamp House, Imported Bulb, Center presetting,
  • Transmitted Light, 12V/50W Halogen Lamp House, Imported Bulb, Center Presetting,
Quantity:





A15.0908 Polarizing MicroscopeTRRT
Optical SystemInfinity Color Corrected Optical System
HeadCompensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.
EyepieceHigh Eye-point Wide Field Plan Eyepiece PL10x22mm
ObjectiveInfinity Plan Destressing Objectives 4x, 10x, 40x, 60x
LWD Infinity Plan Destressing Objectives 5x, 10x, 20x, 50x
Nosepiece4 Holes Revolving Nosepiece, Inward, Center Adjustable
Intermediate TubeWith Removable Internal Bertrand Lens, Analyzer And Compensators. Bertrand Lens With Rotating Switch, Focusing Recyclable, Center Adjustable
AnalyzerPluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device
CompensatorGyps 1λ Φ18mm, Optical Path Difference 551nm;
Mical 1/4λ (Φ18mm, Optical Path Difference 147.3nm);
Quartz Wedge ( I-IV )
FocusingCoaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range 25mm; Fine Precision 0.002mm
StageCircular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′
CondenserSwing-out Achromatic Condenser N.A.0.9, With 360° Rotatable Polarizer, Four Adjustable Scale: 0/90/180/270
Light SourceReflected Light, 12V/50W Halogen Lamp House, Imported Bulb, Center presetting, Reflected Illuminator With LBD Filter And Pluggable Polarizer, Field Diaphragm And Aperture Diaphragm Adjustable
Transmitted Light, 12V/50W Halogen Lamp House, Imported Bulb, Center Presetting, With Iris Diaphragm, Filter For Transmitted Light Yellow, Neutral, IF550, LBD
PowerWide Range Voltage 100~240V AC 50/60Hz
A15.0908 Polarizing Microscope Optional Accessories
EyepieceHigh Eye-point PL10x/22mm with Micrometer, Diopter AdjustableA51.0905-1022R
High Eye-point PL15x/16mmA51.0903-1516
Working StageAttachable Mechanical Moving Stage For Circular Stage, Moving Range: 30mm*40mm; High Precision Micrometer, 0.01mm IncrementA54.0946
CCD Adapter1x C-Mount, Focus AdjustableA55.0926-10
0.50x, For 1/2” C-Mount, Focus AdjustableA55.0926-50
0.67x, For 2/3” C-Mount, Focus AdjustableA55.0926-67
Pictures
Model No. A15.0908-R A15.0908-T
Features
Infinity Infinity
Optical System
Plan Plan
Standard Magnification
40x-600x 40x-600x
Optional Magnification
75X-750X 60x-900x
Head Type
Seidentopf Binocular Seidentopf Binocular
Head Inclination
30°+90° 30°+90°
Head Rotation
Head 360° Head 360°
Head Light Path
Switch E100:P0/E20:P80/E0:P100 Switch E100:P0/E20:P80/E0:P100
Head Specification
Compensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable. Compensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.
Eyepiece Features
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Eyepiece Diameter
23.2mm 23.2mm
Working Distance
格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0
Eyepiece
High Eye-point Wide Field Plan Eyepiece PL10x22mm High Eye-point Wide Field Plan Eyepiece PL10x22mm
Nosepiece Holes
4 Holes 4 Holes
Nosepiece Features
With DIC Slot With DIC Slot
Objective Type
Plan Plan
Objective Features
LWD (Long Working Distance) LWD (Long Working Distance)
Objective
Infinity Plan Destressing Objectives 4x, 10x, 40x, 60x Infinity Plan Destressing Objectives 4x, 10x, 40x, 60x
Working Stage Type
Round Stage Round Stage
Working Stage Size
Dia.160mm Dia.160mm
Working Stage Spec.
Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′ Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′
Focusing Features
Safety Stop Screw Safety Stop Screw
Focusing Range
25 25
Focusing Scale
0.002 0.002
Focusing Knob
Coaxial Focus System With Upper Limited And Tension Adjustment
Coarse Range 25mm
Fine Precision 0.002mm
Coaxial Focus System With Upper Limited And Tension Adjustment
Coarse Range 25mm
Fine Precision 0.002mm
Condenser Type
Swing-Out Swing-Out
Condenser N.A.
1.25 1.25
Condenser Features
Slot For Phase Contrast Slide Slot For Phase Contrast Slide
Condenser Specification
Swing-out Achromatic Condenser N.A.0.9, With 360° Rotatable Polarizer, Four Adjustable Scale: 0/90/180/270 Swing-out Achromatic Condenser N.A.0.9, With 360° Rotatable Polarizer, Four Adjustable Scale: 0/90/180/270
Light Source Type
Halogen Halogen
Transmit Light
—— Transmitted Light,
12V/50W Halogen Lamp House, Imported Bulb, Center Presetting, With Iris Diaphra
Reflect Light
Reflected Light,
12V/50W Halogen Lamp House, Imported Bulb, Center presetting, Reflected Illuminato
——
Power Supply Type
AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage
Power Supply
Wide Range Voltage 100~240V AC 50/60Hz Wide Range Voltage 100~240V AC 50/60Hz
Polarizing
Intermediate Tube With Removable Internal Bertrand Lens, Analyzer And Compensators. Bertrand Lens With Rotating Switch, Focusing Recyclable, Center Adjustable Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device Compensator
Gyps 1λ( Φ18mm, Optical Path Difference 551nm)

Mical 1/4λ (Φ18mm, Optical Path Difference 147.3nm)

Quartz Wedge ( I-IV )
Intermediate Tube With Removable Internal Bertrand Lens, Analyzer And Compensators. Bertrand Lens With Rotating Switch, Focusing Recyclable, Center Adjustable Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device Compensator
Gyps 1λ( Φ18mm, Optical Path Difference 551nm)

Mical 1/4λ (Φ18mm, Optical Path Difference 147.3nm)

Quartz Wedge ( I-IV )
Polarzing Features
