A15.1302-A

Like Favorites

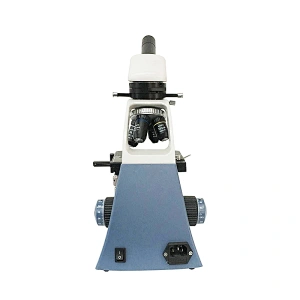

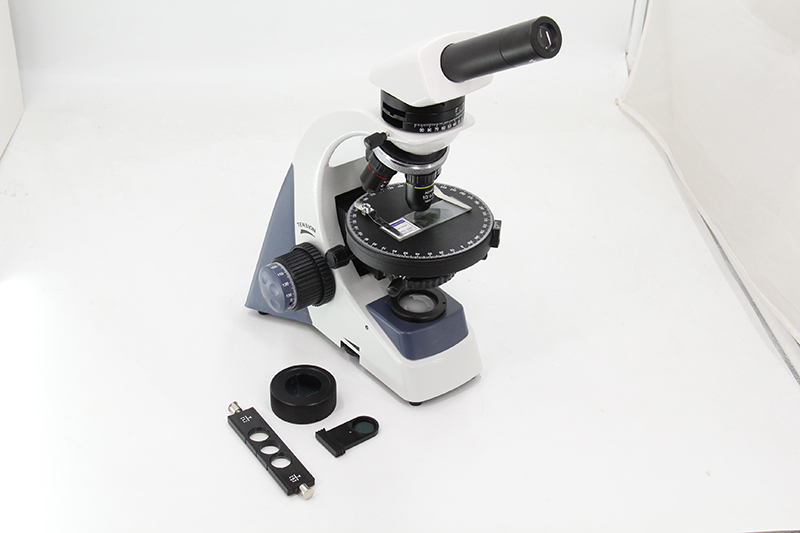

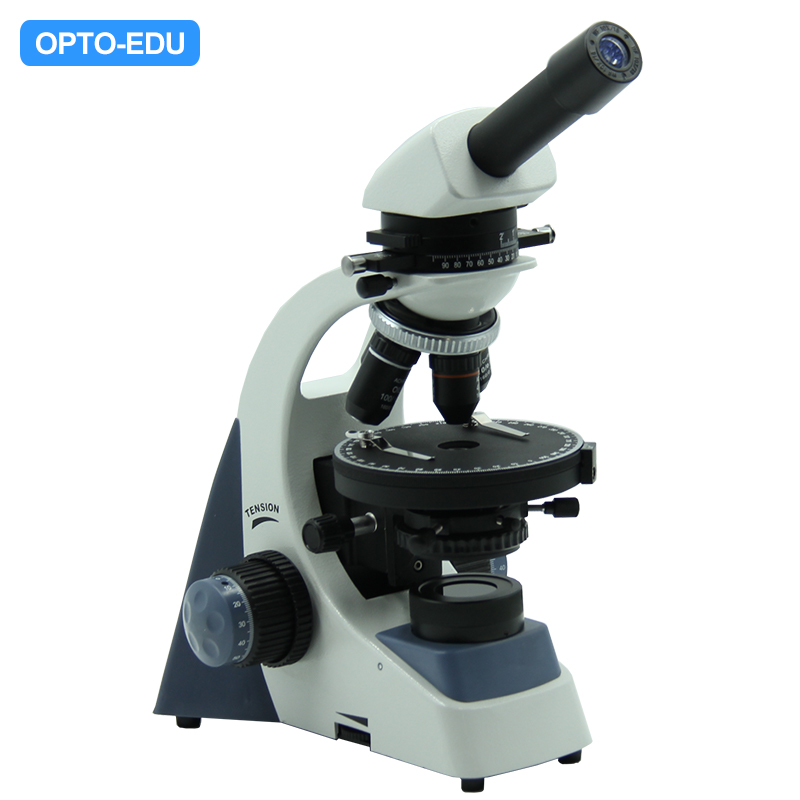

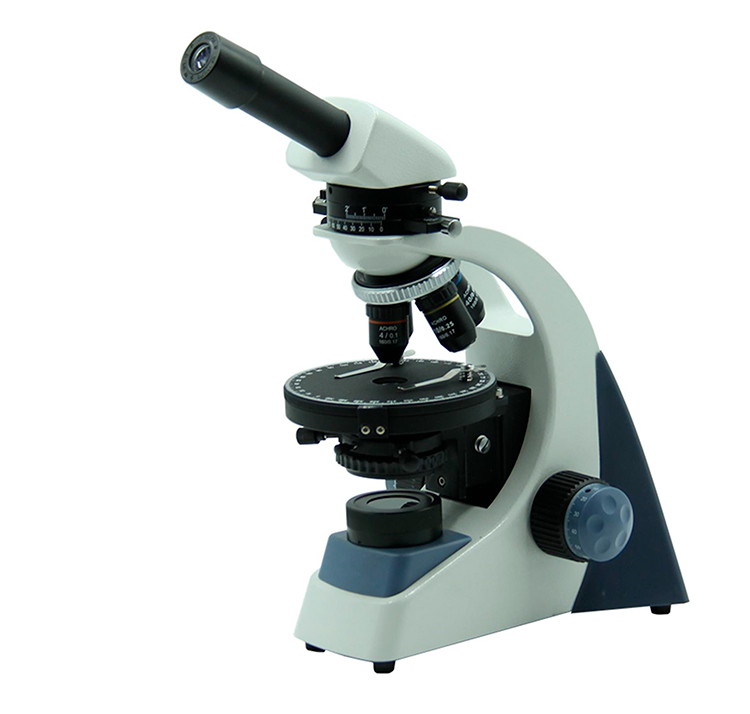

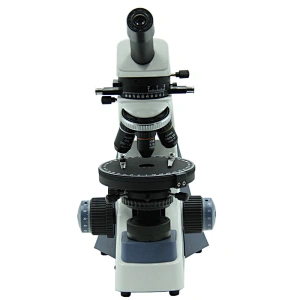

Polarizing Microscope, Monocular

Economical Polarizing Microscope With Full Polarizing Function

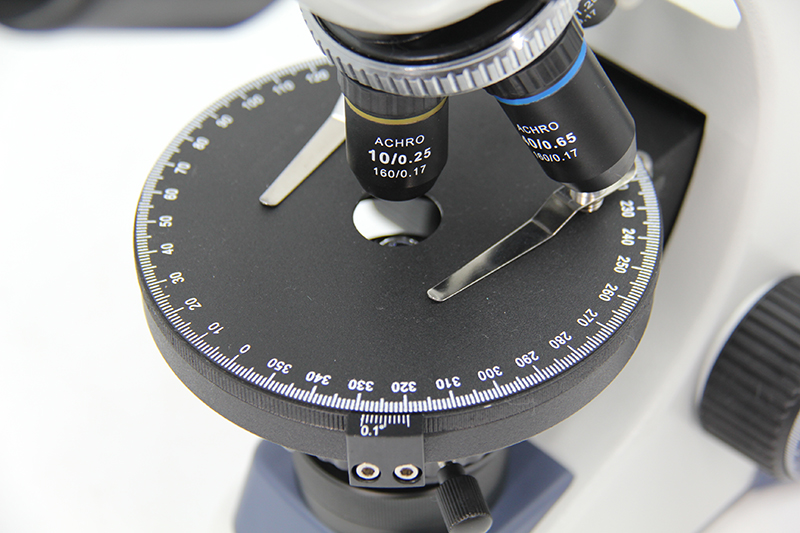

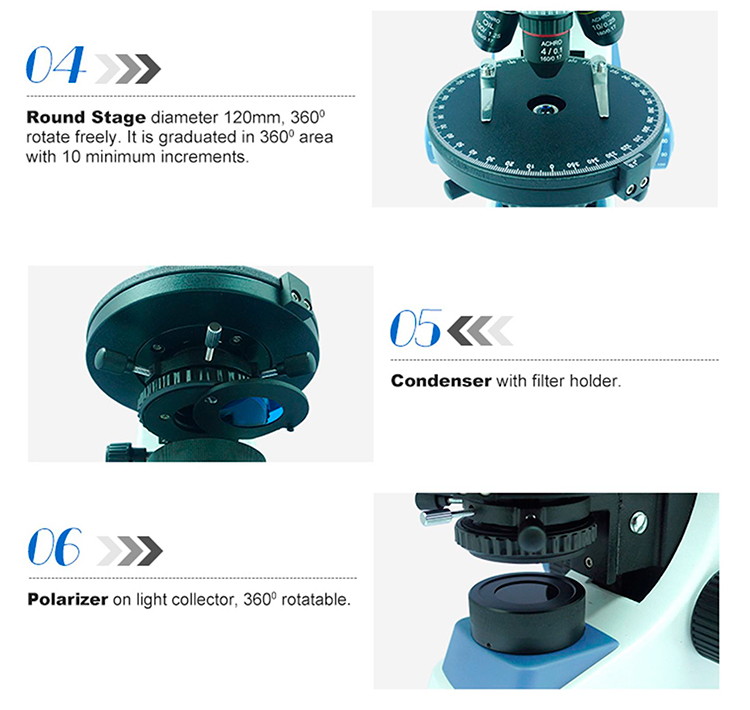

Round Stage Dia.120mm 360° Rotatable Minimum 6' Scale
Polarizer On Light Collector 360° Rotatable

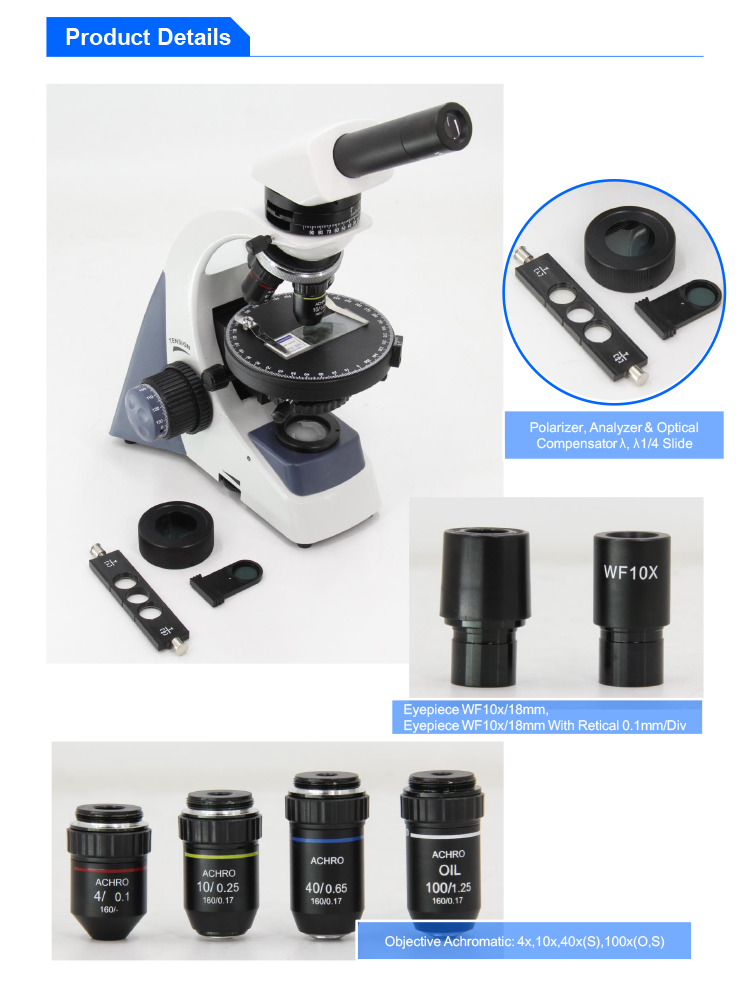

Analyzer Medium Unit With Optical Compensator λ Slip (First Class Red), 1/4λ Slip
Transmit Light 1W LED Brightness Adjustable

Specification:

A15.1302-A

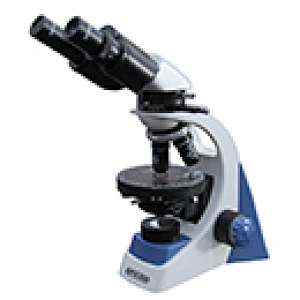

A15.1302-B

A15.1302-C

Items	A15.1302-A	A15.1302-B	A15.1302-C

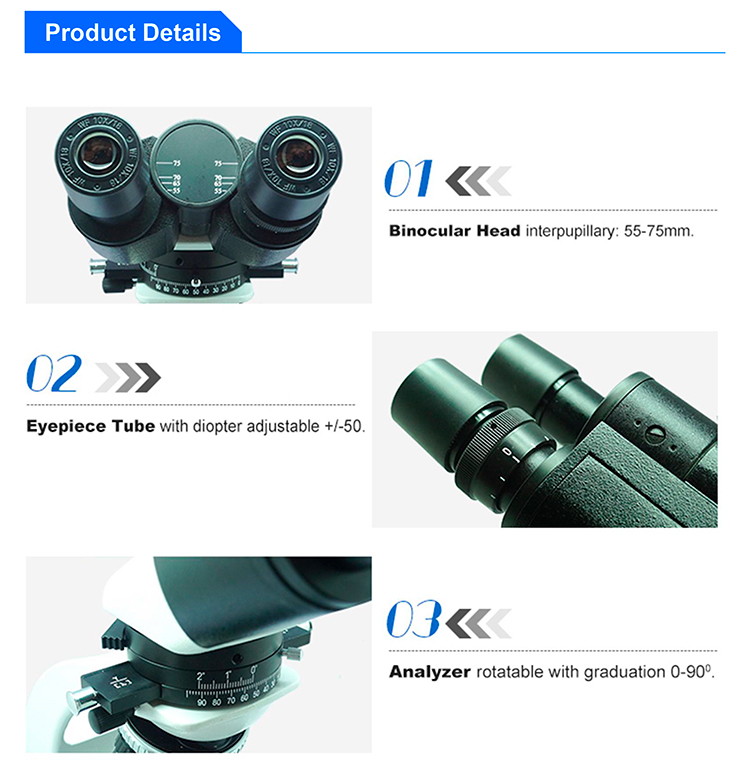

Head	Monocular Head, 30° Inclined	Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm	Trinocular Head, 30° Inclined, Interpupillary Distance 55~75mm
Eyepiece	WF10x/18mm, With Retical 0.1mm/Div	WF10x/18mm, High Eyepoint, 1pc WF10x/18mm, With Retical 0.1mm/Div, 1pc	WF10x/18mm, High Eyepoint, 1pc WF10x/18mm, With Retical 0.1mm/Div, 1pc
Nosepiece	Backward, Quadruple Nosepiece

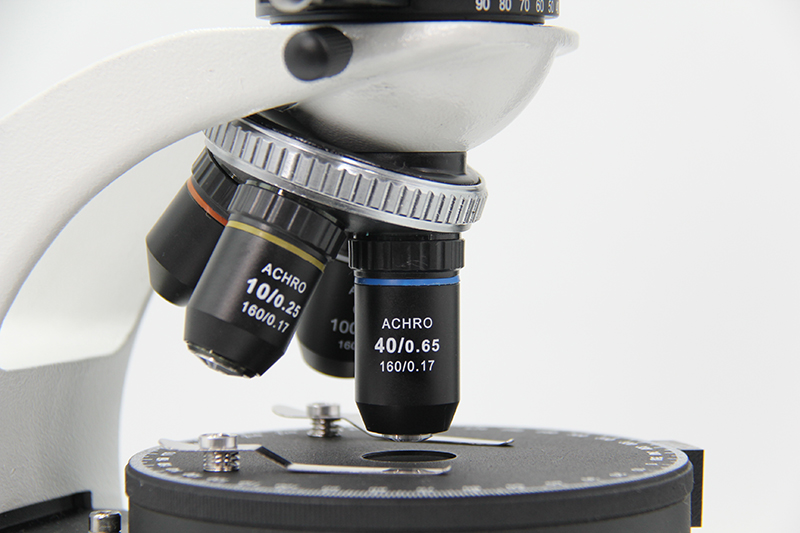

Objective	Achromatic 4x,10x,40x(S),100x(O,S), 45mm DIN
Working Stage	Round Stage Dia 120mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable
Condenser	Abbe N.A.1.25, With Dia 2~30mm Iris Diaphragm, With Filter Dia.32mm

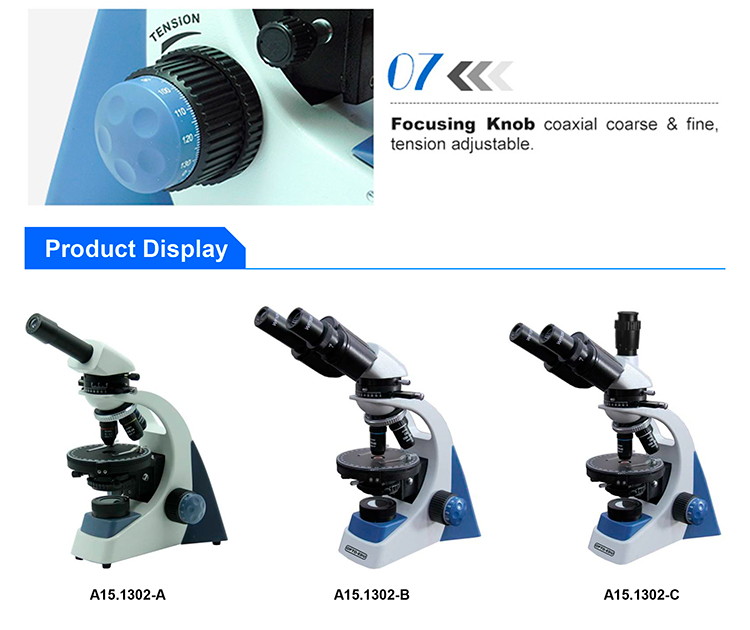

Focusing	Coarse & Fine Focusing Knob, Range 14mm, Minimum Division Of Fine Focusing 0.01mm
Light	Build-in LED, 3.5V/1W, Brightness Adjustable.
Polarizing	Polarizer: On Light Collector, 360º Rotatable

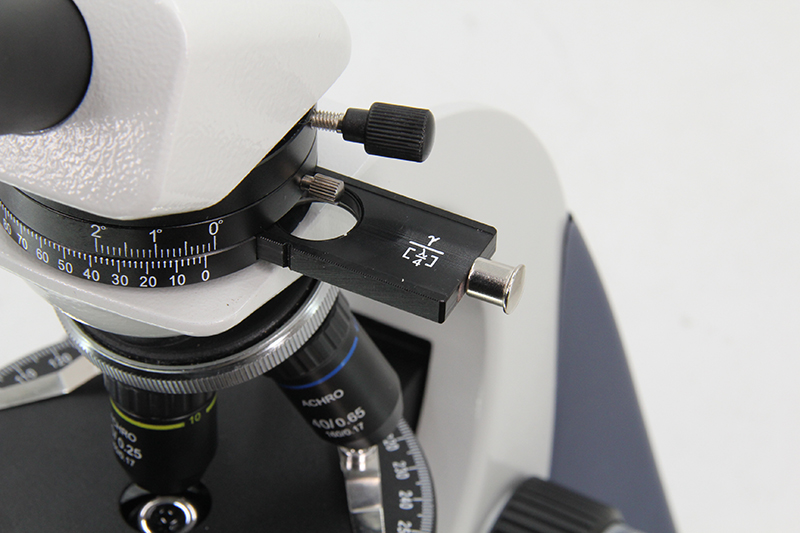

	Analyzer: Rotatable With Graduation 0~90º, Can Be Slided Out of Optical Path
	Optical Compensator :
	-- λ Slip (First Class Red)
	--1/4λ Slip

Pictures Hide Same Show Difference
Model No.	A15.1302-A	A15.1302-B	A15.1302-C
Polarizing	Polarizer: On Light Collector, 360º Rotatable Analyzer: Rotatable With Graduation 0~90º, Can Be Slided Out of Optical Path	Polarizer: On Light Collector, 360º Rotatable Analyzer: Rotatable With Graduation 0~90º, Can Be Slided Out of Optical Path	Polarizer: On Light Collector, 360º Rotatable Analyzer: Rotatable With Graduation 0~90º, Can Be Slided Out of Optical Path
Power Supply Type	AC 110V-240V	AC 110V-240V	AC 110V-240V
Transmit Light	Build-in LED, 3.5V/1W, Brightness Adjustable.	Build-in LED, 3.5V/1W, Brightness Adjustable.	Build-in LED, 3.5V/1W, Brightness Adjustable.
Light Source Type	LED	LED	LED
Condenser	With Dia 2~30mm Iris Diaphragm, With Filter Dia.32mm	With Dia 2~30mm Iris Diaphragm, With Filter Dia.32mm	With Dia 2~30mm Iris Diaphragm, With Filter Dia.32mm
Condenser N.A.	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe
Condenser Features	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm
Focusing Scale	0.01mm	0.01mm	0.01mm
Focusing Range	14.0mm	14.0mm	14.0mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Working Stage	Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable	Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable	Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable
Working Stage Moving	360° Rotatable	360° Rotatable	360° Rotatable
Working Stage Size	Dia. 120mm	Dia. 120mm	Dia. 120mm
Working Stage Type	Round Stage	Round Stage	Round Stage
Objective	Achromatic 4x,10x,40x,100x	Achromatic 4x,10x,40x,100x	Achromatic 4x,10x,40x,100x
Objective Type	Achromatic	Achromatic	Achromatic
Nosepiece Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward
Eyepiece	WF10x/18mm Retical, 1 pc	WF10x/18mm, High Eyepoint, 1pc WF10x/18mm, With Retical 0.1mm/Div, 1pc	WF10x/18mm, High Eyepoint, 1pc WF10x/18mm, With Retical 0.1mm/Div, 1pc
Eyepiece Diameter	23.2mm	23.2mm	23.2mm
Head Specification	——	Eyepiece Tube with diopter adjustable +/-50	Eyepiece Tube with diopter adjustable +/-50
Head Rotation	Head Rotate 360°	——	——
Head Inclination	30°	30°	30°
Head Type	Monocular	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	40x-1000x	40x-1000x
Optical System	Achromatic	Achromatic	Achromatic
Standard Function	BF+PL	BF+PL	BF+PL
New Product Year	2011	2011	2011
Head Diopter	——	Right Tube Adjustable	Right Tube Adjustable
Head Interpupillary	——	55~75mm	55~75mm
