A15.2603-B

Like Favorites

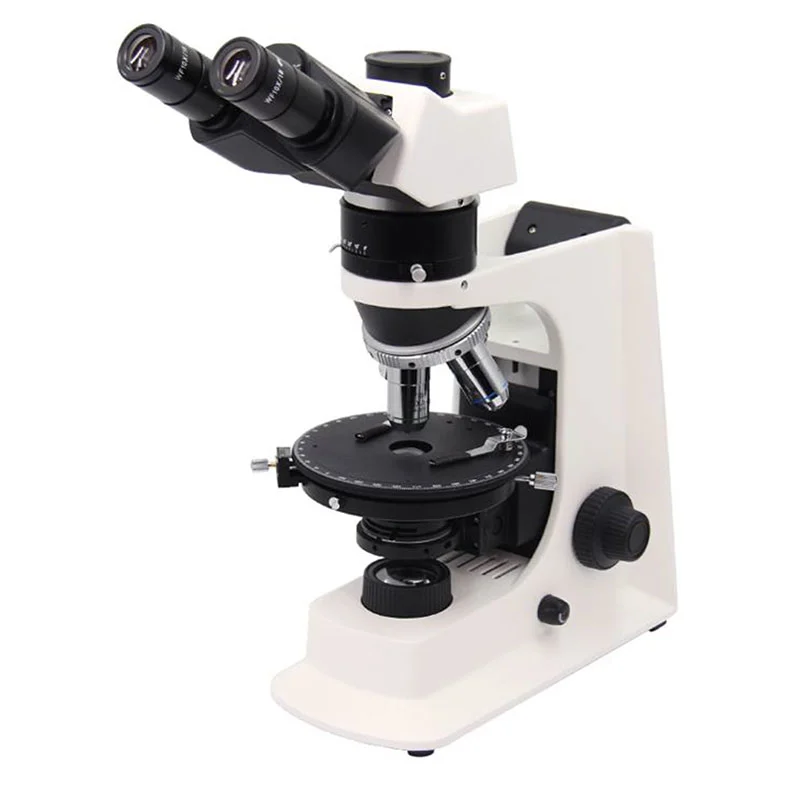

Polarizing Microscope, Transmit, Trinocular


  • Transmit 5W LED Illumination + Center Adjustable Quadruple Nosepiece

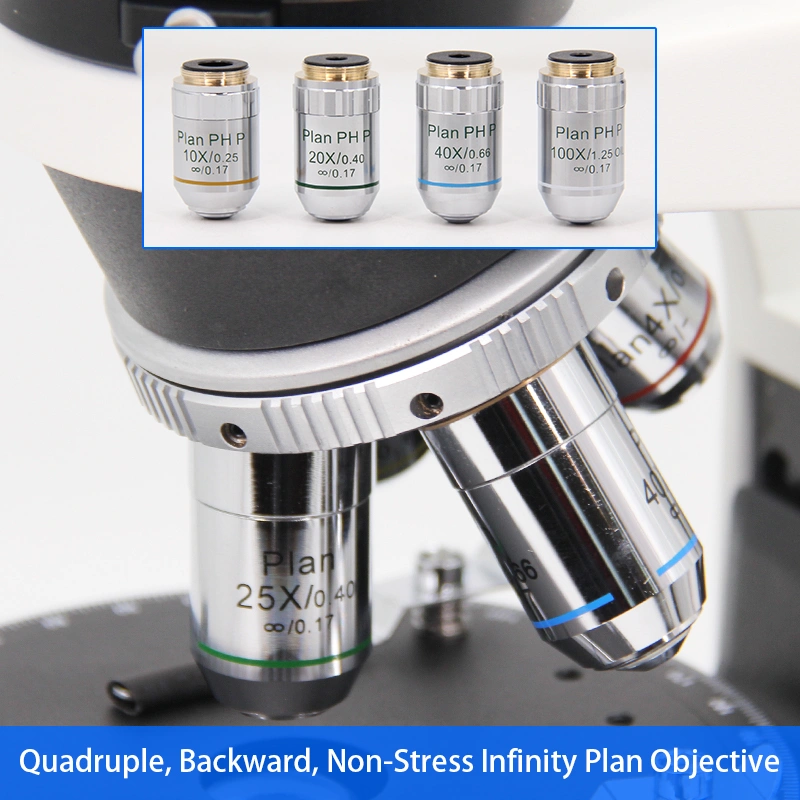

  • Non-Stress Infinity Plan Objective 4x,10x,20x,40x,60x,100x Optional
  • Non-Stress Abbe N.A.1.25 Condenser, Center Adjustable With Polarizer Lens In Bottom
  • Round Stage Diameter Dia.142mm, Can Be Locked And Center Adjustable
  • Professional Analyzer Media Unit With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge.
Quantity:

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height;
The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

Polarizing Unit

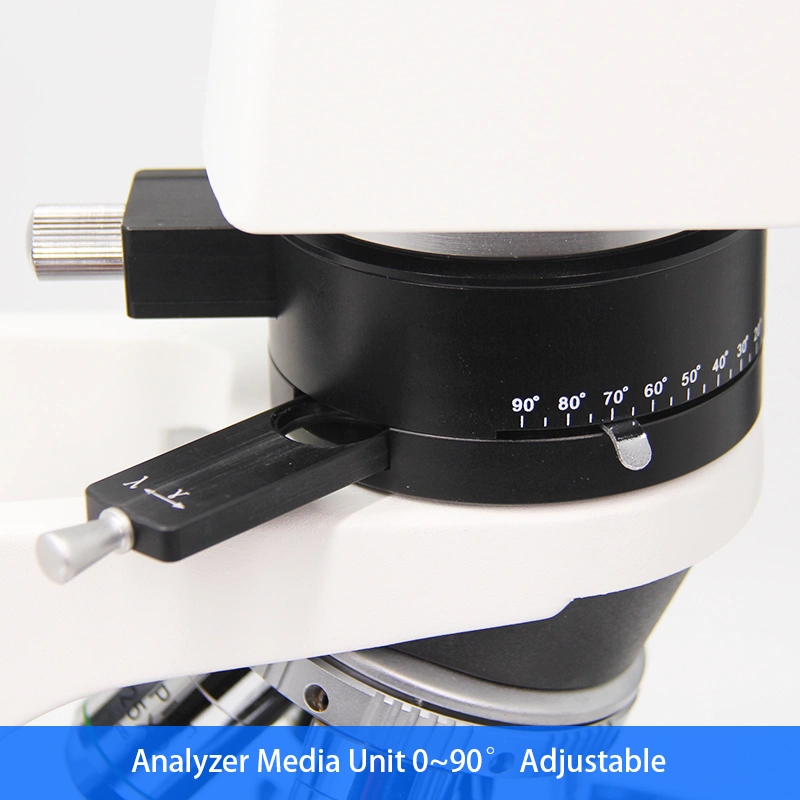

Analyzer Media Unit 0~90° Adjustable, Between Head And Body
With Compensator Slide, Quartz Wedge Slide, Polarizer Lens

Quadruple, Backward
4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan

Double Slide Holder  Working Stage
Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm


Condenser & Light Source
Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
3W-LED Illumination Systems



ItemsA15.2603 Transmit Polarizing Microscope Specification ABCata. No.
HeadSeidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mmA53.2621-B
Seidentopf Trinocular  Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, , Light Split Fixed P20:E80A53.2621-T
EyepieceWF10x/20mm, High Eyepoint,A51.2602-1018
WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter AdjustableA51.2605-1018D
NosepieceQuadruple, BackwardA54.2610-N08
Non-Stress Infinity Plan ObjectivePLAN 4x/0.10, W.D.=12.1mmA5P.2630-4
PLAN 10x/0.25,W.D.=4.64mmA5P.2630-10
PLAN 20x/0.40(S),W.D.=2.41mmA5P.2630-20
PLAN 40x/0.66(S),W.D.=0.65mmA5P.2630-40
PLAN 60x/0.80(S),W.D.=0.33mmA5P.2630-60
PLAN 100x/1.25(S,Oil),W.D.=0.12mmA5P.2630-100

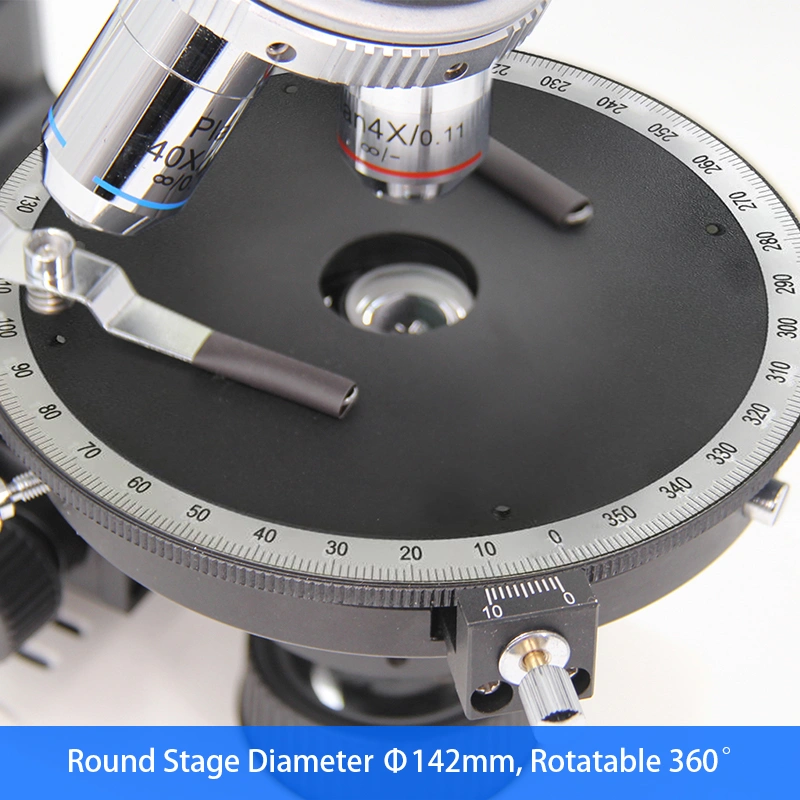

Working StageRound Stage Diameter Φ142mm, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked, Center AdjustableA54.2602-S03
Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mmA5P.2616
Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective LensA5P.2616-LK

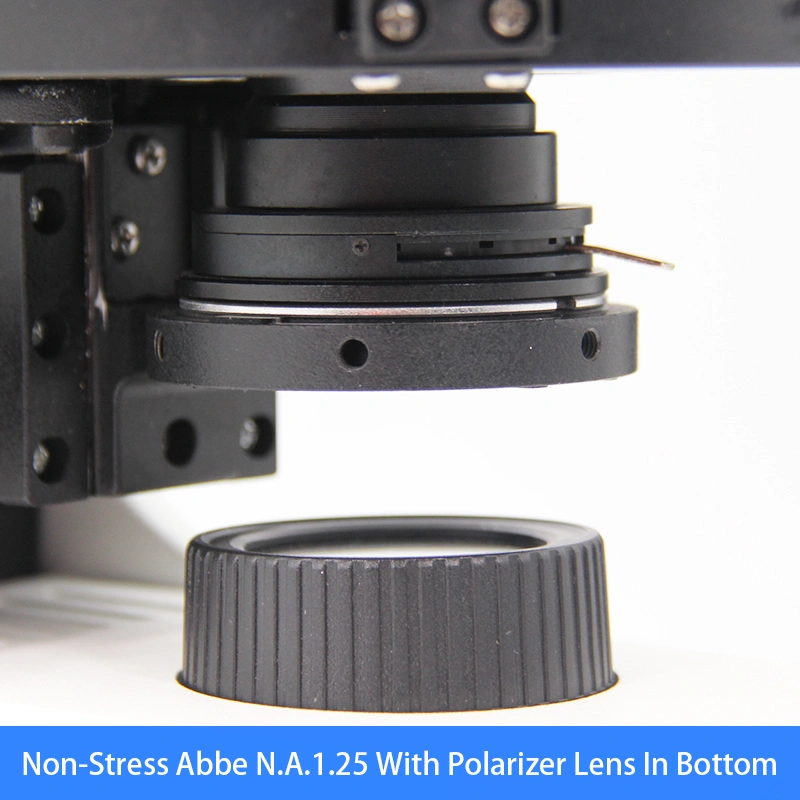

CondenserNon-Stress Abbe N.A.1.25, Iris Diaphragm, Center Adjustable With Polarizer Lens In BottomA56.2614-P6
Polarizing UnitAnalyzer Media Unit 0~90° Adjustable, Between Head And Body,
With Built-in Betrand Lens, Removeable Out of Optical Path For Single Polarizing Observe
A5P.2621-S
Compensator Slide, 3 Holes, With λ Slip (First Class Red) + 1/4λ Slip.A5P.2613-22a
Quartz Wedge Slide (I-IV Class)A5P.2615-17
Polarizer Lens, Bulit-in Bottom Part Of Condenser, Removeable Out of Optical PathA5P.2610-S
Transmit Illumination5W LED Lamp
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2651-5W
6V/30W Halogen LampA56.2613-6V30W
FilterDia.45mm, Blue (Built in)A56.2616-45B
Dia.45mm, GreenA56.2616-45G
Dia.45mm, YellowA56.2616-45A
Dia.45mm, NeutralA56.2616-45N

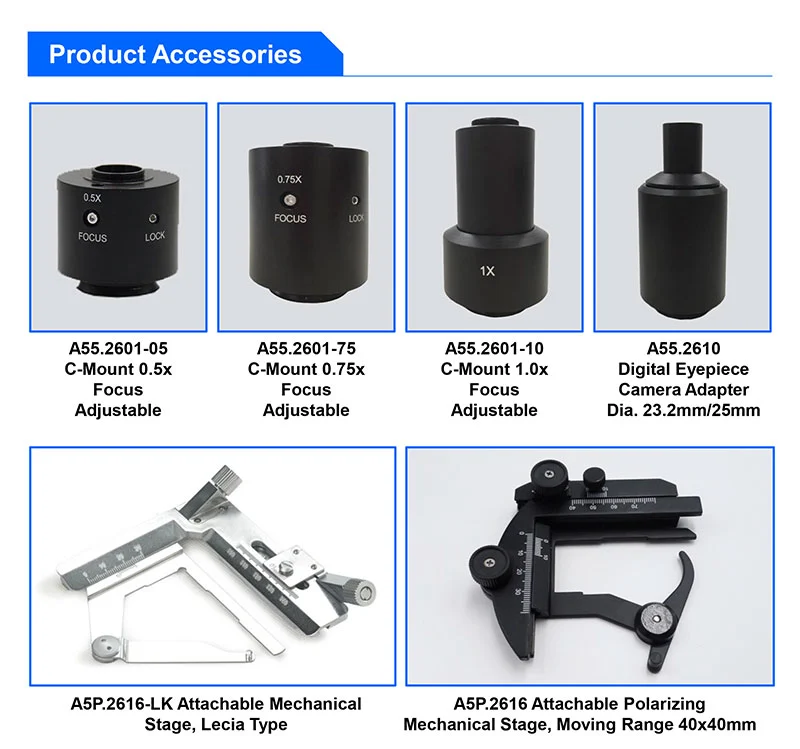

AdapterC-Mount 0.5x, Focus AdjustableA55.2601-05
C-Mount 0.75x, Focus AdjustableA55.2601-75
C-Mount1.0x, Focus AdjustableA55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mmA55.2610
PackageCarton Size 570×275×450mm, 1 Unit/Ctn
WeightGross Weight: 8.6 kgs, Net Weight: 7.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

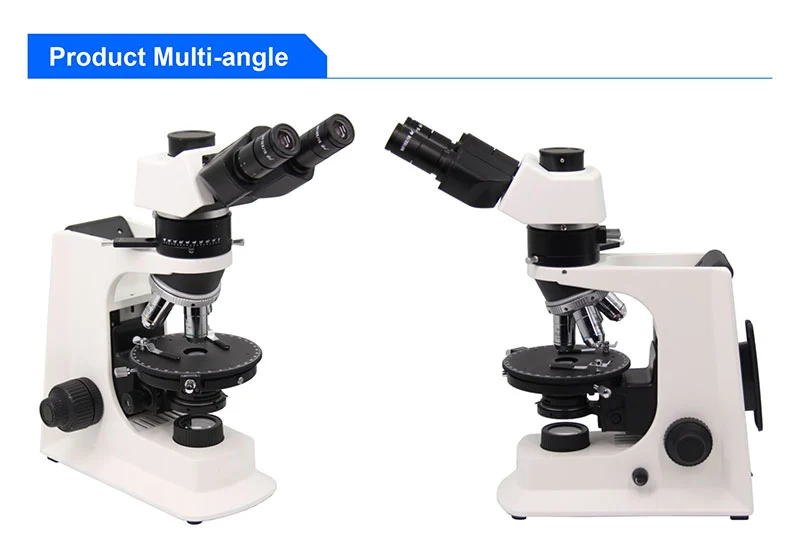

Pictures
Model No. A15.2603-B A15.2603-A
Function
BF+PL BF+PL
Features
Infinity Infinity
Optical System
Infinity Plan Infinity Plan
Standard Magnification
40x-400x 40x-400x
Optional Magnification
40x-1000x 40x-1000x
Head Type
Seidentopf Trinocular Seidentopf Binocular
Head Inclination
30° 30°
Head Rotation
Head Rotate 360°
Eyetube Rotate 360°
Head Rotate 360°
Eyetube Rotate 360°
Head Interpupillary
48~75mm 48~75mm
Head Diopter
Left Adjustable Left Adjustable
Head Light Path
Fixed E80:P20 ——
Eyepiece Features
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
23.2mm 23.2mm
Eyepiece
WF10x/20mm, 1 pc.
WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, 1 pc.
WF10x/20mm, 1 pc.
WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, 1 pc.
Nosepiece Holes
4 Holes 4 Holes
Nosepiece Features
Backward Backward
Objective Type
Infinity Plan Infinity Plan
Objective Features
Strain-Free Strain-Free
Objective
Non-Stress Infinity Plan:
PLAN 4x/0.10, W.D.=12.1mm
PLAN 10x/0.25, W.D.=4.64mm
PLAN 20x/0.40, W.D.=2.41mm
PLAN 40x/0.66, W.D.=0.65mm
Non-Stress Infinity Plan:
PLAN 4x/0.10, W.D.=12.1mm
PLAN 10x/0.25, W.D.=4.64mm
PLAN 20x/0.40, W.D.=2.41mm
PLAN 40x/0.66, W.D.=0.65mm
Working Stage Type
Round Stage Round Stage
Working Stage Size
Dia. 142mm, DIvision 1', Vernier Division 6' Dia. 142mm, DIvision 1', Vernier Division 6'
Working Stage Moving
Rotatable 360° Rotatable 360°
Focusing Features
Tension Adjustable Tension Adjustable
Focusing Type

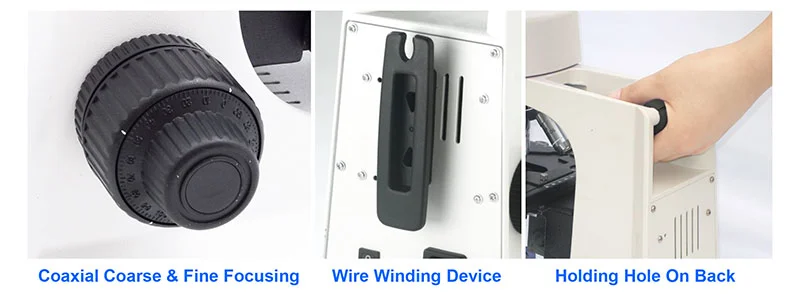

Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus
Condenser Type
Swing-Out Swing-Out
Condenser N.A.
1.25 1.25
Condenser Features
Rack & Pinion Up/Down
With Iris Diaphragm
Rack & Pinion Up/Down
With Iris Diaphragm
Light Source Feature
Brightness Adjustable
Transmit Light
Brightness Adjustable
Transmit Light
Light Source Type
LED LED
Transmit Light
5W LED 5W LED
Power Supply Type
AC 100V-240V Wide Voltage
External AC/DC Adapter
Low Voltage USB Power Supply
AC 100V-240V Wide Voltage
External AC/DC Adapter
Low Voltage USB Power Supply
Polarizing
Analyzer media unit 0~90° adjustable, with removable betrand lens built-in,
Compensator Slide, 3 Holes, With λ Slip (First Class Red) + 1/4λ Slip,
Quartz Wedge Slide (I-IV Class),
Polarizer Lens, Bulit-in Bottom Part Of Condenser
Analyzer media unit 0~90° adjustable, with removable betrand lens built-in,
Compensator Slide, 3 Holes, With λ Slip (First Class Red) + 1/4λ Slip,
Quartz Wedge Slide (I-IV Class),
Polarizer Lens, Bulit-in Bottom Part Of Condenser
Polarzing Features
Strain-free Objective Strain-free Objective
Other Specification
Blue built-in filter, Dia. 45mm Blue built-in filter, Dia. 45mm
