A16.0901

Like Favorites

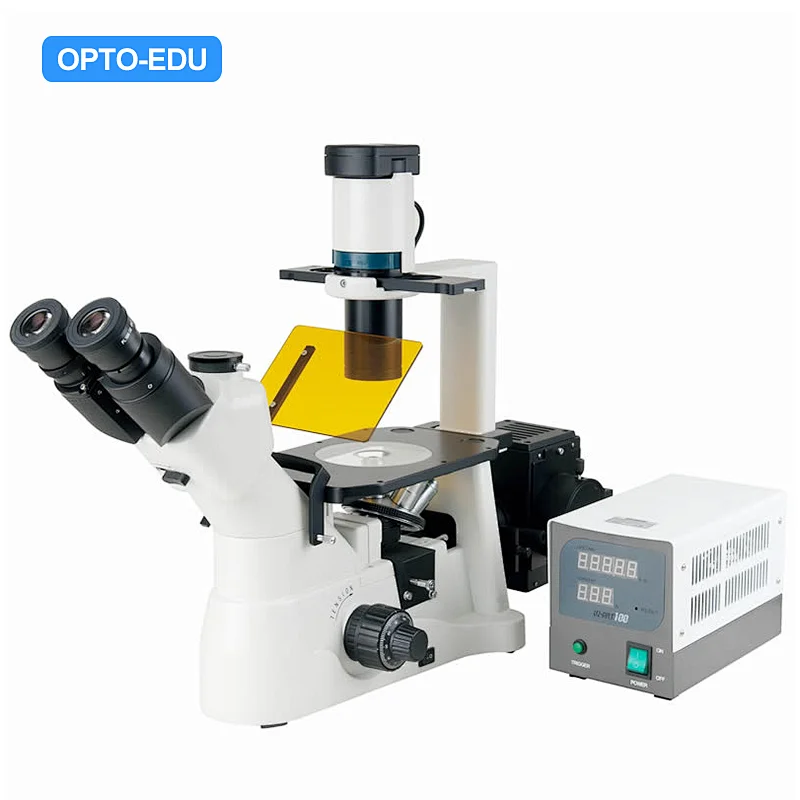

Inverted Flourescence Microscope, Critical Illumination, Semi-APO, Phase Contrast, B,G

  • Trinocular Head , Gemel Viewing Head, 45 Degree Inclined, Interpupilary Distance 54-75mm, Spliting Ratio 100:0 or 0:100
  • LWD Infinity Plan Semi-Apochrmatic Objectives Optional
  • LWD N.A.0.3 Kohler Condenser, With Phase Contrast Slide Slot, Long W.D.72mm
  • Reflect Flurescent Kohler Illumination Mercury 100W Lamp
  • Transmit Critical Illumination, With Iris Aperture, Halogen 6V30W
Quantity:






 A16.0901A16.0901-CCD
Optical SystemInfinity Color Corrected Optical System
HeadTrinocular Head , Gemel Viewing Head, 45 Degree Inclined, Interpupilary Distance 54-75mm, Spliting Ratio 100:0 or 0:100
EyepiecePL10x/22mm, High Eyepoint, Wide Field
NosepieceRevolving Quintuple Nosepiece

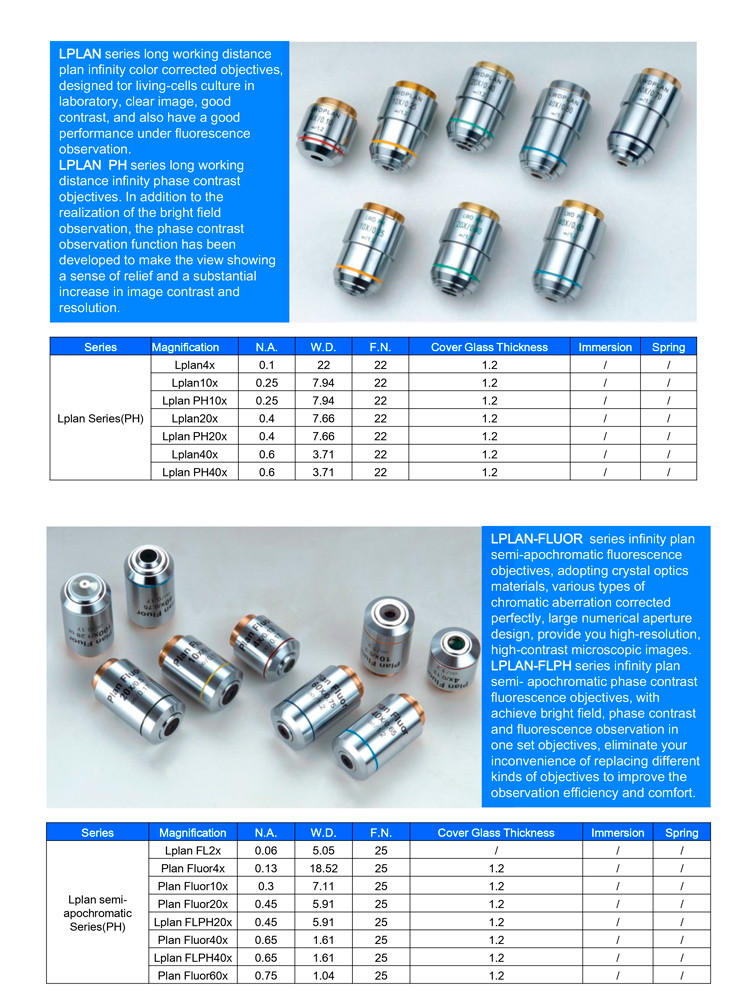

ObjectiveLWD Infinity Plan Achromatic ObjectivesLWD Infinity Plan Fluorescent Objectives
LWDPL10X/0.25, W.D.=7.94mmLWDPLF4X/0.13, W.D.=18.52mm
LWDPL20X/0.40, W.D.=7.66mmLWDPLF10X/0.30, W.D.=7.11mm
LWDPL40X/0.60, W.D.=3.71mm
LWD Infinity Plan Semi-ApochrmaticObjectives
 LWDPLFPH20X/0.45, W.D.=5.91mm
 LWDPLFPH40X/0.65, W.D.=1.61mm
LWD Infinity Plan Phase Contrast Objectives
LWDPH20X/0.40, W.D.=7.66mm .LWDPH10X/0.25, W.D.=7.94mm
Working StageFixed Stage Size 250*160mm, Slider ClipsFixed Stage Size: 250*160mm, Slider Clips
/Extension Plate and Coaxial Moveable Stage, Moving Range120*78mm
--Glass Plate--Glass Plate
--Metal Plate--Metal Plate with Kidney Slot
--Petri Dish Holder, Dia.35mm--Petri Dish Holder, Dia.35mm
/--Slide Holder, Dia.54mm,26.5x76.4mm
/--Teraseki Holder, Dia.65mm,56x81.5mm
FocusingCoaxial Coarse & Fine Focusing System, Coarse Adjustment Range 9mm, Fine Adjustment Precision 0.002mm,with Tension Adjustment, with Safty Stop
CondenserLWD N.A.0.3 Kohler Illumination Condenser, With Phase Contrast Slide Slot, Long Working Distance 72mm. The Whole Set Can Be Rotated Down
Phase ContrastPhase Contrast Plug-board for 10x-40x, Center Adjustable
Centering Telescope Dia. 30mm
FilterDia.45mm Green Interference Filter
Dia.45mm Color Temperature Change Filter
Attenuation Plate, Transmission 25%
Reflected Fluorescence illumination SystemWith Iris Field Diaphragm, Centering Adjustable
--U-LH100HG Mercury Lamp House, Filament Center and Focal Distance Adjustable, with Mirror, Mirror Center and Focal Distance Adjustable
--U1-RFLT100 Digital Power Control Box, Wide Voltage Range 90-240V AC
--Imported OSRAM 100W DC Mercury Bulb
Centered Objective For Mecury Bulb

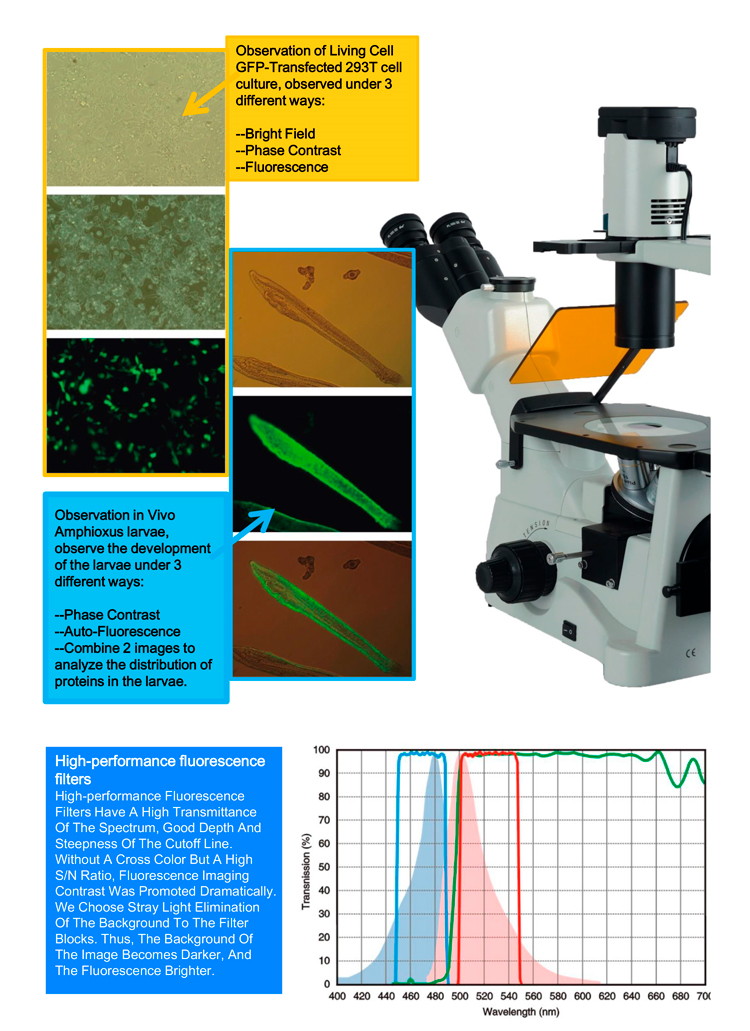

Band-pass Fluorescent Filter B, GBand-pass Fluorescent Filter B, G, UV
30ND25 Attenuation Plate
CCD Adapter0.67x CCD Adapter, for 2/3"CCD Camera

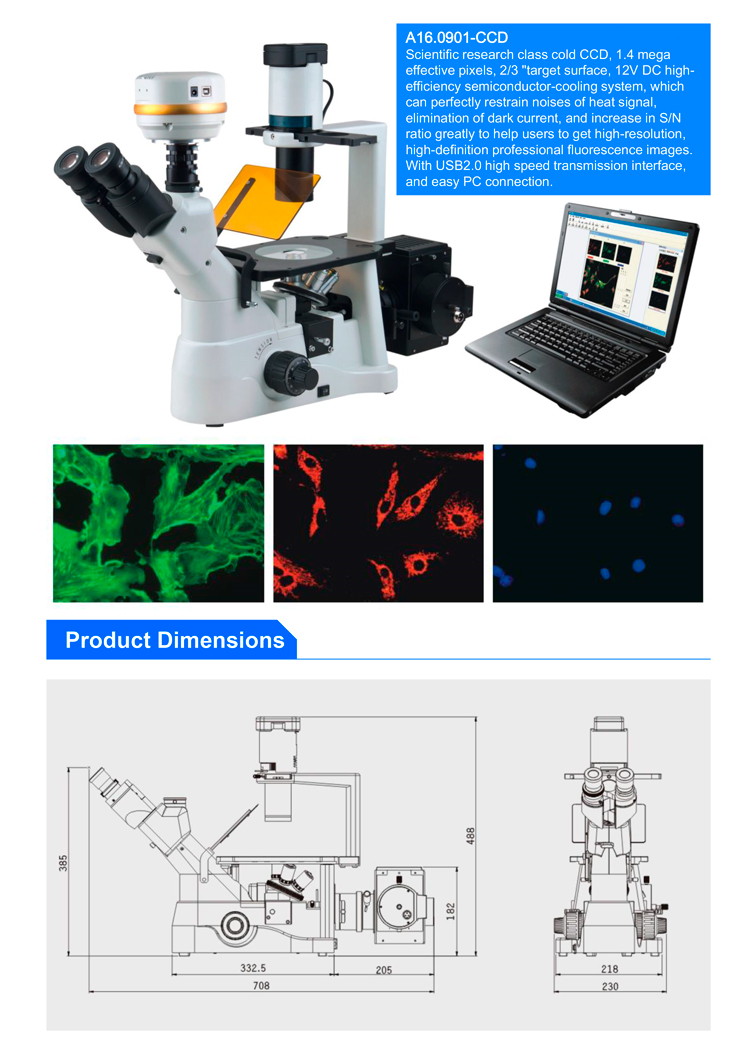

CCD Camera/1.4M, 2/3"CCD, USB 2.0 Scientific Research Class Cold CCD Digital Camera

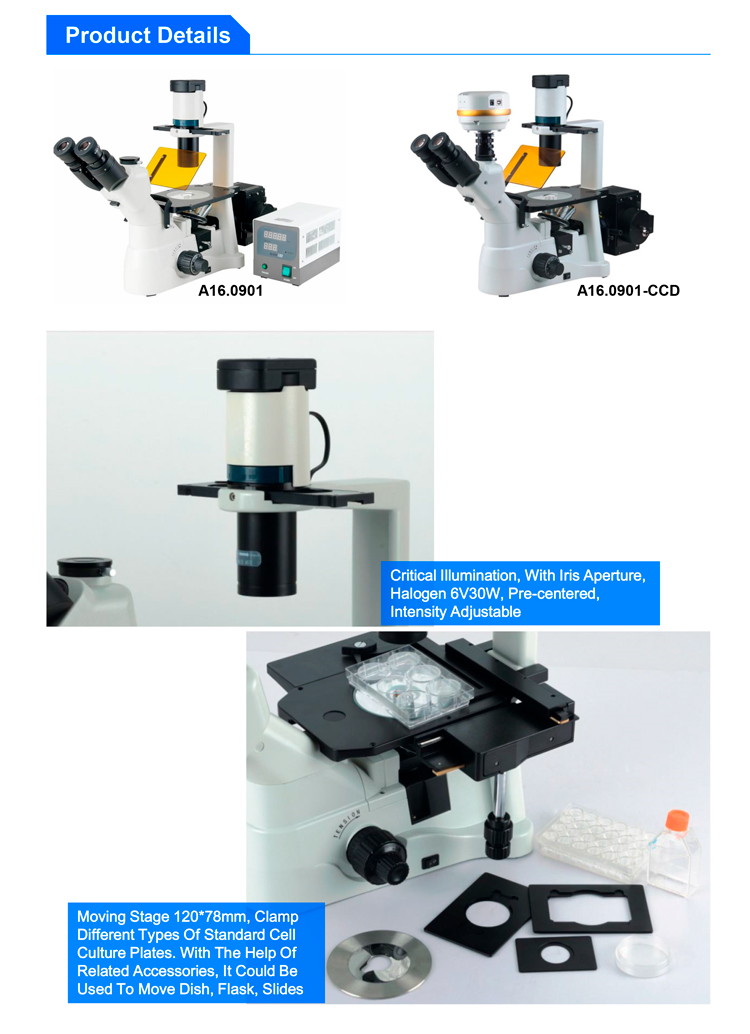

LightCritical Illumination, With Iris Aperture, Halogen 6V30W, Pre-centered, Intensity Adjustable
PowerWide Voltage 90-240V
Pictures
Model No. A16.0901 A16.0901-CCD
Features
Infinity Infinity
Optical System
Plan Plan
Standard Magnification
40x-400x ——
Head Type
Seidentopf Trinocular Seidentopf Trinocular
Eyepiece Features
Super WF ≥23mm Super WF ≥23mm
Eyepiece Diameter
30.0mm 30.0mm
Eyepiece
PL10x/22mm, 2pcs PL10x/22mm, 2pcs
Nosepiece Holes
5 Holes 5 Holes
Objective Features
Covreless Covreless
Objective Type
Infinity Plan
Phase Contrast
Infinity Plan
Phase Contrast
Fluorescent
Objective
LWD Infinity Plan Achromatic

LWDPL10X/0.25, W.D.=7.94mm

LWDPL20X/0.40, W.D.=7.66mm

LWDPL40X/0.60, W.D.=3.71mm



LWD Infinity Plan Phase Contrast

LWDPH20X/0.40, W.D.=7.66
LWD Infinity Plan Fluorescent

LWDPLF4X/0.13, W.D.=18.52mm
LWDPLF10X/0.30, W.D.=7.11mm

LWD Infinity Plan Semi-Apochrmatic

LWDPLFPH20X/0.45, W.D.=5.91mm

LWDPLFPH40X/0.65, W.D.=1.61mm
Working Stage Features
Size ≥140x140mm Size ≥140x140mm
Working Stage Type
Fixed Plain Stage Fixed + Attachable
Working Stage Size
250*160mm 250*160mm
Working Stage Moving
—— 120*78mm
Working Stage
--Glass Plate

--Metal Plate with Kidney Slot

--Petri Dish Holder, Dia.35mm
--Glass Plate

--Metal Plate with Kidney Slot

--Petri Dish Holder, Dia.35mm

--Slide Holder, Dia.54mm,26.5x76.4mm

--Teraseki Holder, Dia.65mm,56x81.5mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Range
9mm 9mm
Focusing Scale
0.002mm 0.002mm
Condenser Features
Rack & Pinionↆ↑
Slot For DF Slide
Rack & Pinionↆ↑
Slot For DF Slide
Condenser Type
LWD/ELWD LWD/ELWD
Condenser N.A.
0.3 0.3
Condenser
Kohler Illumination Condenser, With Phase Contrast Slide Slot, Long Working Distance 72mm. The Whole Set Can Be Rotated Down Kohler Illumination Condenser, With Phase Contrast Slide Slot, Long Working Distance 72mm. The Whole Set Can Be Rotated Down
Light Source Features
Kohler
LED 9W
Kohler
LED 9W
Light Source Type
Halogen
Flourescent
Halogen
Flourescent
Transmit Light
6V30W Halogen 6V30W Halogen
Reflect Light
Mercury 100W Fluorescent Illumination Mercury 100W Fluorescent Illumination
Phase Contrast
Phase Contrast Plug-board for 10x-40x, Center Adjustable

Centering Telescope Dia. 30mm
Phase Contrast Plug-board for 10x-40x, Center Adjustable

Centering Telescope Dia. 30mm
Fluorescent Band
3 Bands ——
Fluorescene
--Reflected Kohler Illumination Mercury 100W
--Fluorescent Filter B,G
--Reflected Kohler Illumination Mercury 100W
--Fluorescent Filter B,G,UV
