A16.0907-L

Like Favorites

LED Fluorescence Microscope


  • Built-in All-in-One Fluorescent Media Unit 5W LED With 1 or 2 Filters
  • Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25
  • Kohler N.A.1.25, With Socket for Phase Contrast and Dark Field Slides, Center Fixed
  • B1 LED Fluorescent Intermediate Modular Wavelength 470nm
  • Fluorescent Filter Band B4 Speically Used For Tuberculosis Inspection Optional
Quantity:

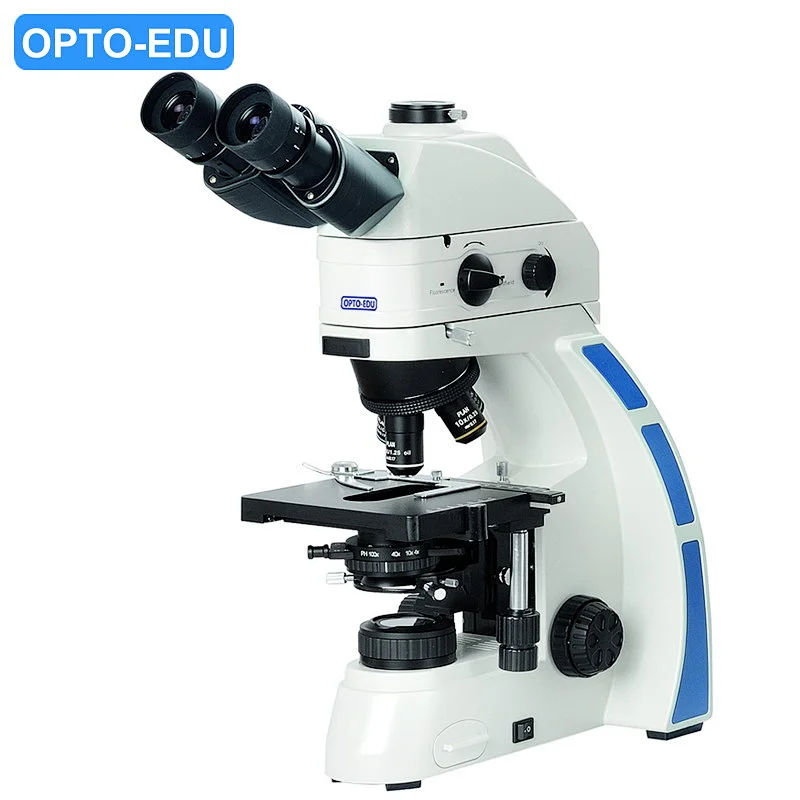

A16.0907-L LED Fluorescence Microscope
Optical SystemInfinity Chromatic Aberration Correction System
HeadTrinocular, Light Split 8:2, 30° Inclined, 360° Rotatable, Interpupillary Distance 50~75mm
EyepiecePL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Nosepiece5 Holes Backward Nosepiece
ObjectiveInfinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25
FocusingLow Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Working Stage Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm
CondenserKohler N.A.1.25, With Socket for Phase Contrast and Dark Field Slides, Center Fixed
FilterBlue, Dia.45
Light Source3W LED, Intensity Adjustable, Center Fixed
LED FluorescentB1LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 470nm, Fluorescent Filter Band B1
Power90~240V Wide Range Power Supply
A16.0907-L LED Fluorescence Microscope Optional Accessories
HeadBinocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance Range 50~75mmA53.0907-B30R
EyepiecePL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 DegreeA51.0904-1022T
NosepieceBackward QuintupleA54.0930-BS5
Infinity Plan Achromatic Objective 2x/0.06, WD=5.03mm (Field Complement Is Needed)A52.0906-2
4x/0.10, WD=11.9mmA52.0906-4
10x/0.25, WD=12.1mmA52.0906-10
20x/0.40, WD=1.5mmA52.0906-20
40x/0.65, WD=0.36mmA52.0906-40
60x/0.85, WD=0.30mmA52.0906-60
100x/1.25, WD=0.18mmA52.0906-100
FluorescentG1LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 560nm, Fluorescent Filter Band G1A5F.0912-G1
UV1 LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 365nm, Fluorescent Filter Band UV1A5F.0912-UV1
B4 Tuberculosis Special LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 455nm, Fluorescent Filter Band B4 Speically Used For Tuberculosis Inspection A5F.0912-B4
AdapterC-Mount 0.35x, Focus Adjustable, For 1/3 CCDA55.0925-35
C-Mount 0.5x, Focus Adjustable, For 1/2 CCDA55.0925-05
C-Mount 0.65x, Focus Adjustable, For 2/3 CCDA55.0925-65
C-Mount 1.0x, Focus AdjustableA55.0925-10
Photo Adapter with PK or MD mount, with 3.2x Photo EyepieceA55.0901-1
Professional Photo C Mount, With Photo EyepieceA55.0910
Battery BoxA56.0913 Rechargeable Battery Box
--Specially Designed For A16.0907-BL LED Fluorescence Microscope
--Output DC6V, Large Capacity 5000mA, Rechargable,
--Size 26*16*11cm
A56.0913
Pictures
Model No. A16.0907-L
Function
BF+FL+PH
Features
Infinity
Optical System
Infinity Plan
Standard Magnification
100x-1000x
Head Type
Seidentopf Trinocular
Head Inclination
30°+90°
Head Rotation
Head Rotate 360°
Head Light Path
Switch E100:P0/E20:P80/E0:P100
Eyepiece Features
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
23.2mm
Eyepiece
PL10x/20mm, Diopter Adjustable 2 pcs
Nosepiece Holes
4 Holes
Nosepiece Features
Center Adjustable
Objective Type
Infinity Plan
Objective
Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25
Working Stage Type
Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Working Stage Size
150*140mm
Working Stage Moving
76*50mm
Working Stage Spec.
Precision 0.1mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Range
25mm
Focusing Scale
0.002mm
Condenser Type
Abbe + Iris Diaphragm
Condenser N.A.
1.20
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Center Adjustable
Slot For Dark Field Slide
Condenser Specification
Center Fixed
Light Source Feature
Brightness Adjustable
Kohler Illumination
Light Source Type
LED
Transmit Light
3W LED, Intensity Adjustable, Center Fixed
Reflect Light
LED Epi-Fluorescent Illumination
Power Supply Type
AC 90V-240V Wide Voltage
Dark Field
Dark Field Slide
Fluorescene
LED Fluorescent Moudle:

Brightness Adjust Knob

Bright Field/Fluorescent Switch Knob

LED Wave Length 470

Fluorescent Filter Band B1
Fluorescent Band
B
