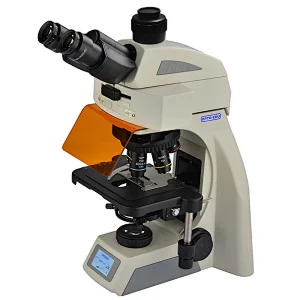

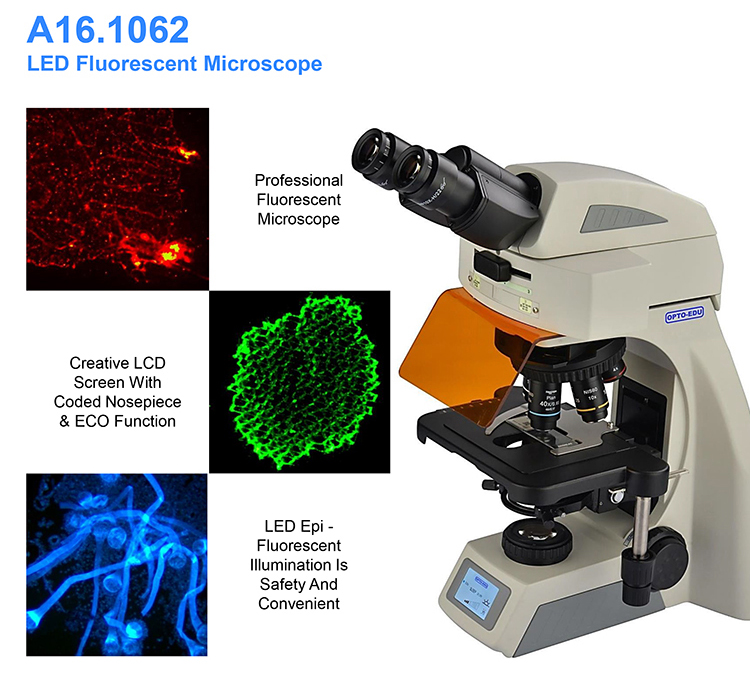

OPTO-EDU A16.1062-T LED Fluorescent Microscope, Trinocular, B,G

LED Fluorescent Microscope, Trinocular, B,G

Brand New Design 2019 For High Level Laboratory Research!

Coding Quintuple Nosepiece LCD Screen Base With Brightness Memory Function

Large Rackless Safty Working Stage 230x150mm, Moving Range 78x54mm

Infinity Plan NIS60 Objective 4x10x40x100x, Water 100x Immersion Available

3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, B,G Filters

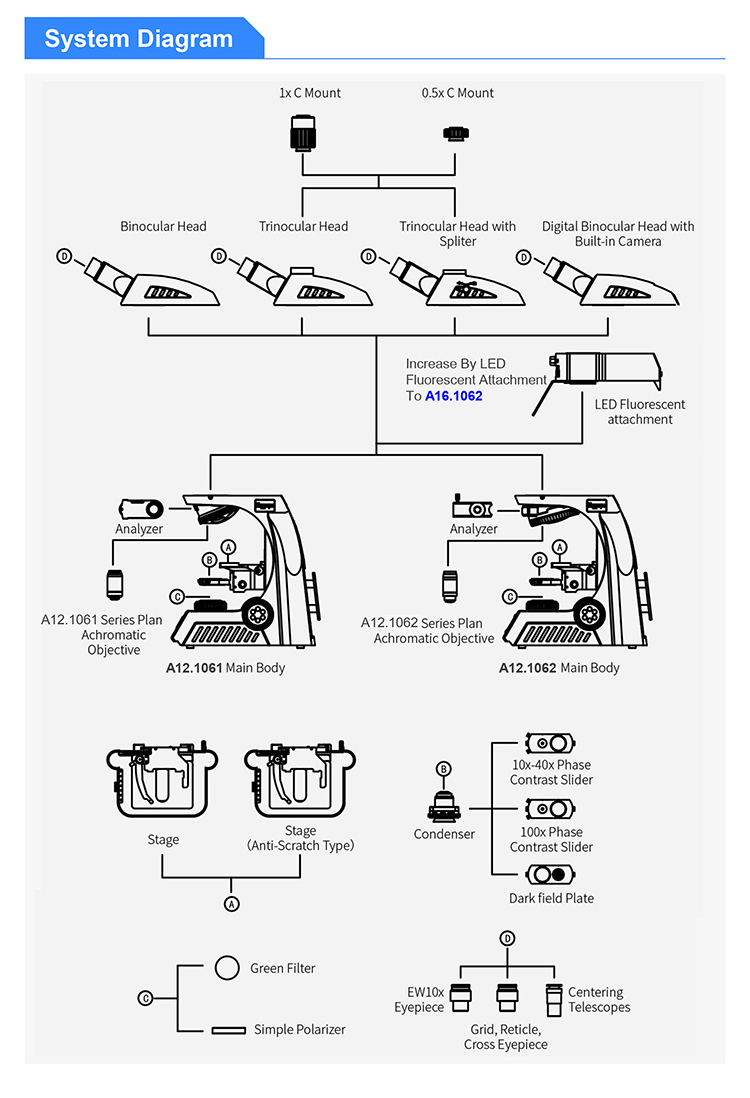

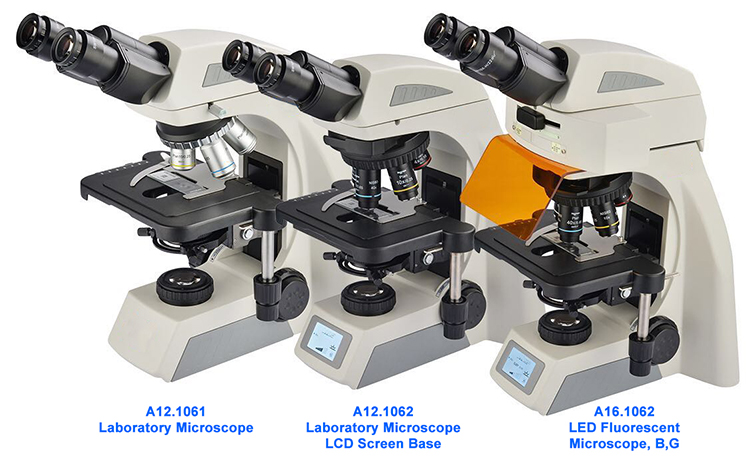

A12.1061, A12.1602 Laboratory Microscope A16.1062 LED Fluorescent Microscope		A12.1061		A12.1062		A16.1062		Cata. No.
		-B	-T	-B	-T	-B	-T	Cata. No.
Optical System	NIS Infinite Optical System	●	●	●	●	●	●
Observation Method	Bright Field	●	●	●	●	●	●
	Dark Field	○	○	○	○	○	○
	Polarizing	○	○	○	○	○	○
	Phase Contrast	-	-	○	○	○	○
	Epi-Fluorscence	-	-	○	○	●	●
Head	Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm	●		●		●		A53.1061-B
	Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50		●		●		●	A53.1061-T
	Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0	○	○	○	○	○	○	A53.1061-TS
	Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm	○	○	○	○	○	○	A53.1061-BS

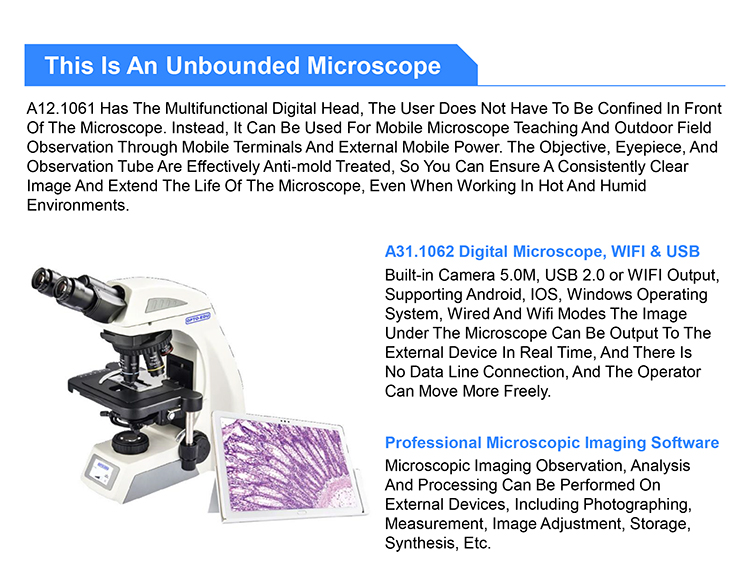

	Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time Upgrade to A31.1062-5.0M	-	-	○	○	-	-	A53.1061-5.0M

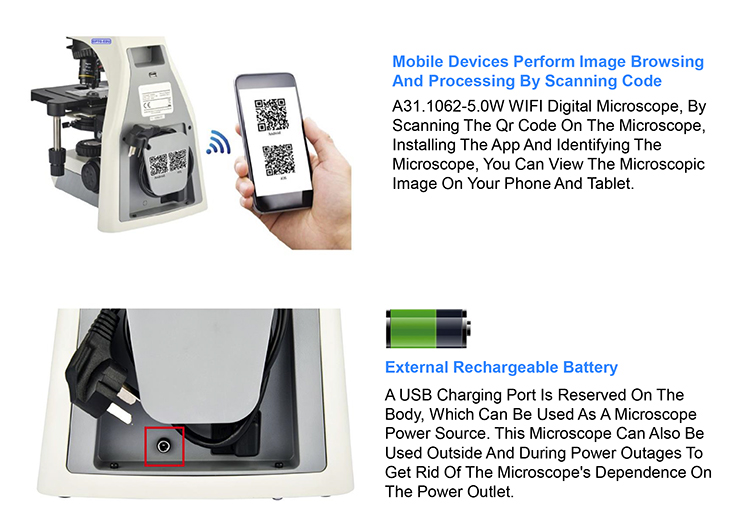

	Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. Upgrade to A31.1062-5.0W	-	-	○	○	-	-	A53.1061-5.0W
Eyepiece	EW10x/22mm, Diopter Adjustable, Dia.30mm	●	●	●	●	●	●	A51.1029-1022
	EW15x/16mm, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1029-1516
	EW20x/12mm, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1029-2012
Nosepiece	Quintuple Nosepiece, Dovetail Interface	●	●	-	-	-	-

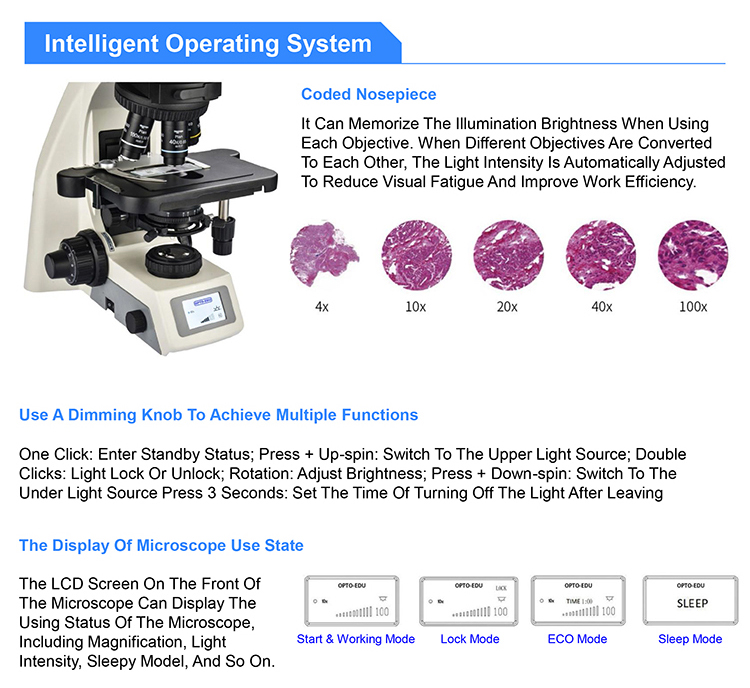

Nosepiece	Coded Quintuple Nosepiece, Dovetail Interface	-	-	●	●	●	●
NIS45 Infinity Plan Objective	4x/0.10, W.D.20.6mm	●	●	-	-	-	-	A52.1045-4
	10x/0.25, W.D.17.9mm	●	●	-	-	-	-	A52.1045-10
	20x/0.40, W.D.6.40mm	○	○	-	-	-	-	A52.1045-20
	40x/0.60, W.D.1.50mm	●	●	-	-	-	-	A52.1045-40
	60x/0.80, W.D.0.30mm	○	○	-	-	-	-	A52.1045-60
	100x/1.25(Oil), W.D.0.16mm	●	●	-	-	-	-	A52.1045-100
	100x/1.10(Water), W.D.0.16mm	○	○	-	-	-	-	A52.1045-100W

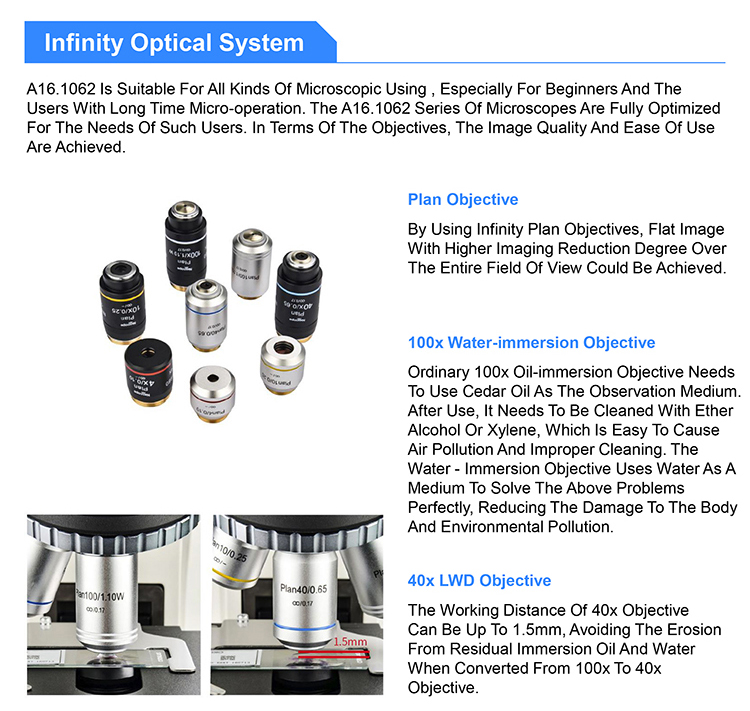

NIS60 Infinity Plan Objective	4x/0.10, W.D.30.0mm	-	-	●	●	●	●	A52.1060-4
	10x/0.25, W.D.10.2mm	-	-	●	●	●	●	A52.1060-10
	20x/0.40, W.D.4.8mm	-	-	○	○	○	○	A52.1060-20
	40x/0.65, W.D.1.5mm	-	-	●	●	●	●	A52.1060-40
	60x/0.80, W.D.0.30mm	-	-	○	○	○	○	A52.1060-60
	100x/1.25(Oil), W.D.0.3mm	-	-	●	●	●	●	A52.1060-100
	100x/1.10(Water), W.D.0.2mm	-		○	○	○	○	A52.1060-100W
NIS60 Infinity Plan Phase Contrast Objective	10x/0.25, W.D.10.2mm	-	-	○	○	○	○	A5C.1060-10
	20x/0.40, W.D.12.0mm	-	-	○	○	○	○	A5C.1060-20
	40x/0.65, W.D.0.7mm	-	-	○	○	○	○	A5C.1060-40
	100x/1.25(Oil), W.D.0.2mm	-	-	○	○	○	○	A5C.1060-100
Focusing	Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm	●	●	●	●	●	●
Working Stage	Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm	●	●	-	-	-	-
Working Stage	Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform	-	-	●	●	●	●

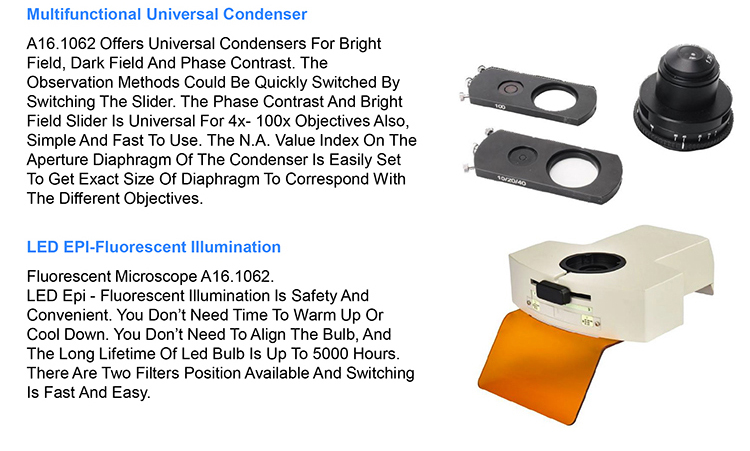

Condenser	Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide.	●	●	●	●	●	●
Illumination	1W S-LED Critical Illumination	●	●	-	-	-	-
	3W S-LED Kohler Illumination	-	-	●	●	●	●
	Green Filter	●	●	●	●	●	●
Dark Field	Dark Field Slide	○	○	○	○	○	○	A5D.1062
Polarizing	Simple Polarizing Set	○	○	○	○	○	○	A5P.1008
Phase Contrast	Phase Slider For 10x-40x	○	○	○	○	○	○	A5C.1062-S1040
Phase Contrast	Phase Slider For 100x	○	○	○	○	○	○	A5C.1062-S100
Epi-Fluorescence Attachment	3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, B, G Filters	○	○	○	○	●	●	A5F.1062
	Filter U	○	○	○	○	○	○	A5F.1062-U
	Filter V	○	○	○	○	○	○	A5F.1062-V
Photo Adapter	1.0x C-Mount	○	○	○	○	○	○	A55.1062-1.0
Photo Adapter	0.5x C-Mount	○	○	○	○	○	○	A55.1062-0.5
Power Supply	AC 100-240V,50/60Hz	●	●	●	●	●	●
Power Supply	USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely	●	●	●	●	●	●
LCD Screen	LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On.	-	-	●	●	●	●

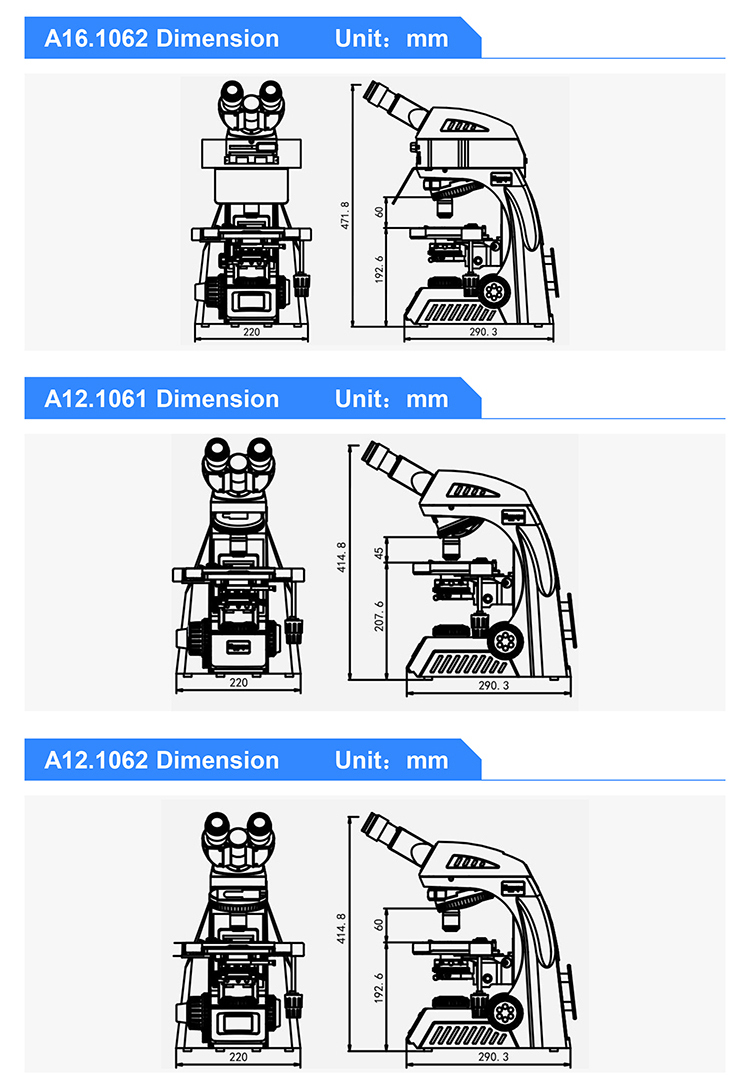

Dimensions	220(W)x290(D)x472(H) mm	●	●	●	●	●	●
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable

Pictures Hide Same Show Difference
Model No.	A16.1062-T	A16.1062-B
Fluorescene	3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, B, G Filters	3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, B, G Filters
Fluorescent Band	3 Bands	——
Video Adapter	C-Mount 0.3x	——
Reflect Light	3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination	3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination
Transmit Light	3W S-LED Kohler Illumination	3W S-LED Kohler Illumination
Light Source Type	LED	LED
Light Source Features	Transmit & Reflect Kohler	Transmit & Reflect Brightness Adjustable Kohler Illumination
Condenser	Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide.	Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide.
Condenser N.A.	1.25	1.25
Condenser Features	Slot For PH Slide Slot For DF Slide Center Adjustable Rack & Pinionↆ↑	Center Adjustable Slot For Dark Field Slide Rack & Pinion Up/Down Slot For Phase Contrast Slide
Focusing Scale	0.002mm	0.002mm
Focusing Range	28mm	28mm
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage Moving	Moving Range 54x78mm	Moving Range 54x78mm
Working Stage Size	230*150mm	230*150mm
Working Stage Type	2 Layers Mechanical	Double Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm Ceramic Surface Rackless Safety Edge	Double Slide Holder
Objective	NIS60 Infinity Plan Objective 4x/0.10, W.D.30.0mm 10x/0.25, W.D.10.2mm 40x/0.65, W.D.1.5mm 100x/1.25(Oil), W.D.0.3mm	NIS60 Infinity Plan Objective 4x/0.10, W.D.30.0mm 10x/0.25, W.D.10.2mm 40x/0.65, W.D.1.5mm 100x/1.25(Oil), W.D.0.3mm
Objective Type	Infinity Plan	Infinity Plan
Objective Features	100x Water	100x Water Parfocal 60mm
Nosepiece Holes	5 Holes	5 Holes
Nosepiece Features	Inward Coded	Coded
Eyepiece	EW10x/22mm, 2pcs	EW10x/22mm, 2pcs
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E50:P50	——
Head Rotation	Fixed	Fixed
Head Type	Seidentopf Trinocular	Seidentopf Binocular
Standard Magnification	——	40x-1000x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity	Infinity
New Product Year	2019	2019
Power Supply Type	——	AC 100V-240V Wide Voltage
Condenser Type	——	Abbe Condenser
Focusing Type	——	Coaxial Coarse & Fine Focus
Head Interpupillary	——	47-78mm
Head Inclination	——	30°
Upgrade Function	——	BF+PH+DF+PL+FL
Standard Function	——	BF+FL
