Multi-Viewing Microscope, 5 Position, XSZ-510
Multi-Viewing Microscope, 5 Position, XSZ-510
Multi-Viewing Microscope, 5 Position, XSZ-510

A17.1013-C

Like Favorites

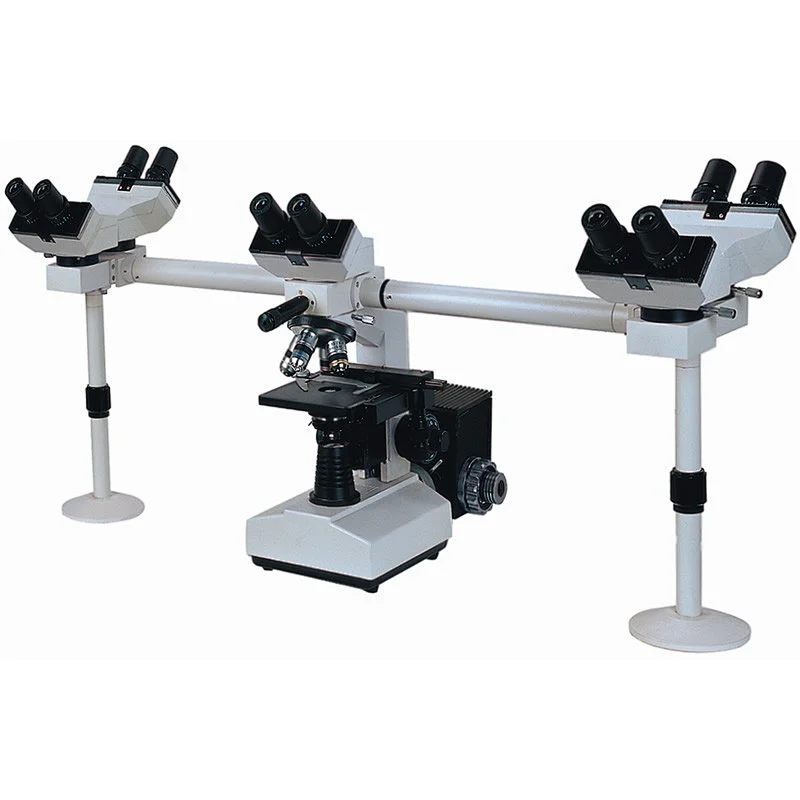

Multi-Viewing Microscope, 5 Position, XSZ-510

Quantity:

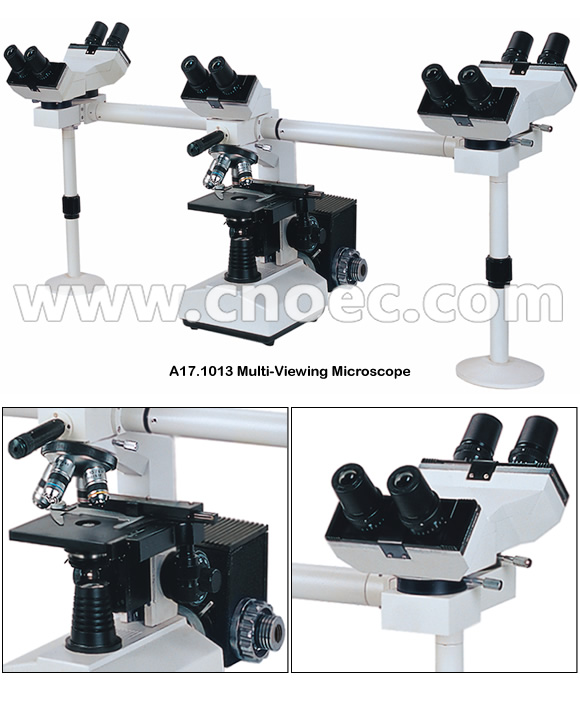

A17.1013-C Multi-Viewing Microscope, 5 Position
Head
5 pcs Sliding Binocular Head, 30°Inclined, Interpupilary Distance 55-75mm
Eyepiece

WF10X, 10 pcs

Objective
Achromatic 4x, 10x, 40x(s), 100x(s, oil)
Nosepiece
Quadruple Revolving Nosepiece
Stage
Double Layer Mechanical Stage 140mm x 140mm, Travel Range 75x50mm

Condenser

Abbe N.A.=1.25 with Iris Diaphragm & Filter
Focusing
Coaxial Coarse & Fine Focusing Knobs, Fine division 0.002mm, Coase Stroke 37.7mm Per Rotation, Ffine Stroke 0.2mm Per Rotation, Moving Range 28mm
Light Source
Base with Built-in Halogen Lamp 24V/100W , with Continue Intensity Control, 110V/220V
Indicator
Demo. Indicator with Illuminator of 6V/3W
