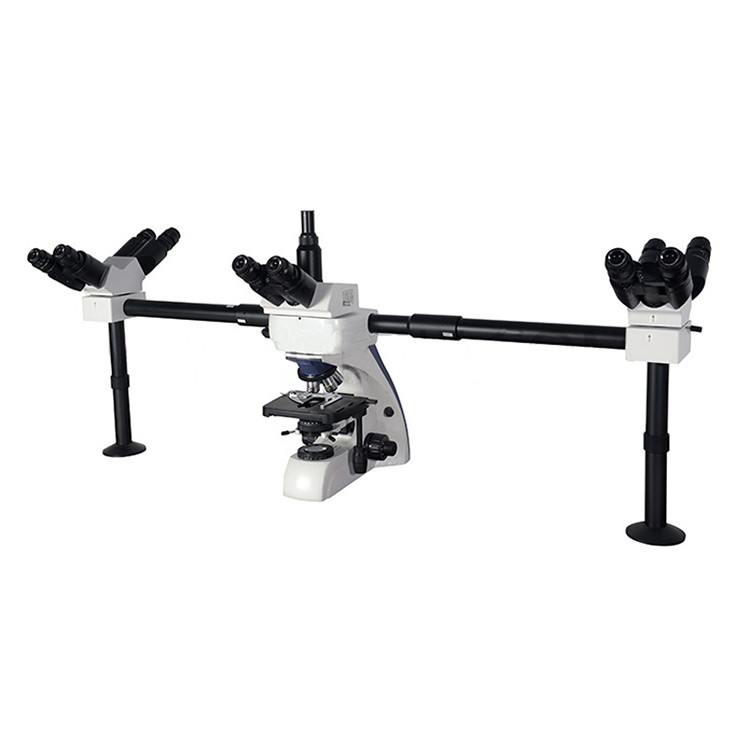

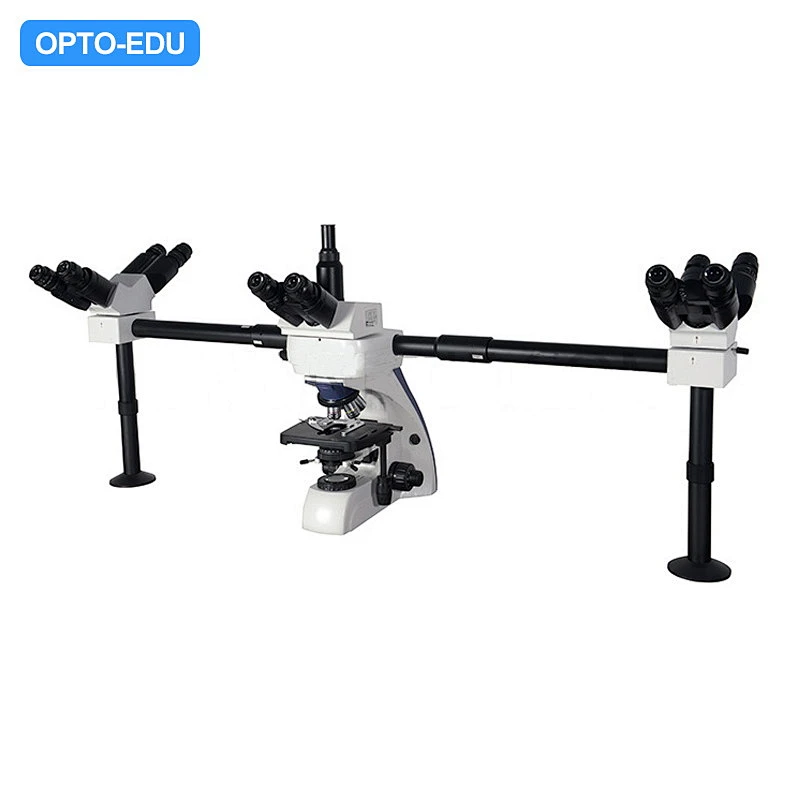

Multi-Viewing Microscope, 5 People
Multi-Viewing Microscope, 5 People

A17.1111

Like Favorites

Multi-Viewing Microscope, 5 People

Quantity:


A17.1111 Multi-Viewing Microscope, 5 People
Optical SystemInfinity Optical System
Head1 pc Trinocular Head, 4 pcs Binocular Head, Inclined 45°, Interpupilary Distance 50-70mm
EyepieceWF10x/22mm
Objective

Infinity Plan Objective 4x/0.10

Infinity Plan Objective 10x/0.25

Infinity Plan Objective 40x/0.65

Infinity Plan Objective 100x/1.25, Oil

Nosepiece

Quarduple

Focus System

Low Positioned, Coaxial Coarse & Fine Focusing System, Fine Focusing Reading 0.002mμm

Stage

Double Layer Mechanical Stage Stage 180*160mm, Moving Range 80*50mm, Double Slide Holder

Condenser

Abbe Condenser N.A.1.25

Light SourceKohler Illumination, 12V100W Halogen Lamp, With Field Diaphragm, Iris DIaphragm, Contrinue Brightness Adjustable
CurisorLED Cursor Pointer
PowerAC 85~230V
