The Key To Micro World!
Digital  Comparison Microscope
Digital  Comparison Microscope

A18.1808-C

Like Favorites

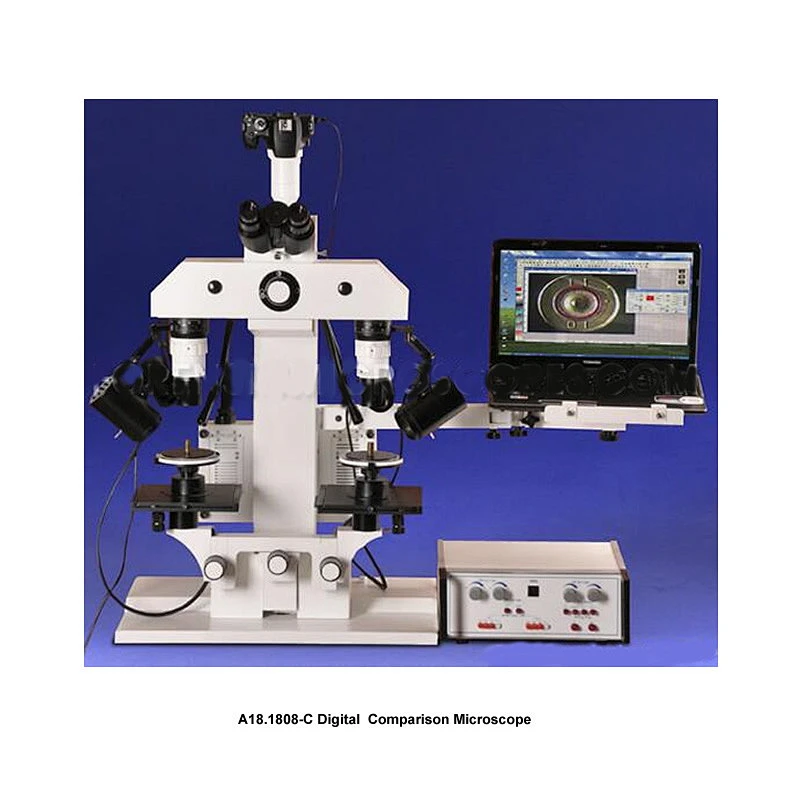

Digital Comparison Microscope

Quantity:


A18.1808-Customized Comparison Microscope Specification
Magnification2.7x~255x
Eyepiece
WF10X/22mm
WF20X/14mm
Objective

Zoom objective 0.7~4.9x, zoom ratio 1:7

Auxiliary lens 0.3x

Auxiliary lens 2.0x

Separation LineSeparation line adjusting system, can adjust separation line easily
Magnification Correcting SystemMagnification Correcting Lens 1 pair, to manually adjust 2 optical systems magnification to be exactly same for comparison
Bullet Holder

Manual Bullet Holder set to hold all sizes bullets, shell cartridge and etc.

Motorized Bullet Holder (3-speed)

Working Stage

Tiltable big working stage, X-Y manual movement

Motorized focusing system, Z axel manual/motorized movement

+Adjustable Arm for holding laptop

Light Source

High intensity 150W fiber optic cold illumination system with rigid fiber optic cables. Includes focused collector lens on tips for quick adjustment of light spot

LED Multiband cold light source with blue, green, red, and white colors. Colors are pushbutton selected on control panel.

5W LED Cold light illuminator with manually inserted red and green color filters

Coaxial light lens

Polarizing lens

Red/Green Filter

Adapter

SLR Camera Adapter

CCD Adapter 0.5x, 1.0x

Control Box

Combined external control box

Control box panel with centralized control of microscope components. Controls fiber optic light on/off and illumination intensity, controls LED multiband cold light on/off and selection of four colors, controls on/off of LED ring lights, controls 3-speed motorized bullet holder, controls up/down movement of motorized stage focusing

SoftwareProfessional forensic image analysis software Crime Image
CCDBuilt-in digital CCD built-in, 3.0M, video/USB output
