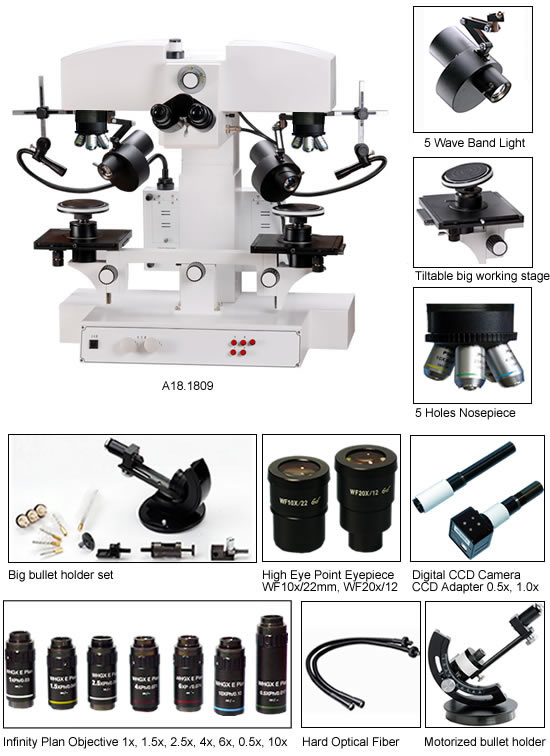

A18.1809 Comparision Microscope Specification | Magnification | 5x~200x | Head | Binocular head, Pupil Distance Adjustable 60~75mm,0~30° oblique adjustable | | Eyepiece | WF10X/22mm | WF20X/12mm | Objective | Plan objective 1x,1.5x,2x,4x,6x, Auxilary objective 0.5x,10x | Nosepiece | 5 Holes nosepiece | | Working Distance | Objective 0.5x W.D.=140-180mm
Objective 10x W.D. =49mm
All other Objectives, W.D.=100mm | Seperation Line | Seperation line adjusting system, can adjust seperation line easily | Bullet Holder | Big bullet holder set | Working Stage | Tiltable big working stage, with transmit light hole on bottom
Size 180x210mm, moving range X 50mm, Y 50mm, Z 55mm | Light Source | 5 Wave Band Light Source (red,yellow,blue,green,white) | | 150W cold light source, hard optical fiber | | CCD Camera &Adapter | CCD Adapter 0.5x, 1.0x | | Digital CCD Camera 1.3M, USB output | Power | 220V AC input, 24V & 4.5~7.5V DC output, meet the international security standard |
|
