Forensic Comparison Microscope

  • Step Zoom Lens Optical Magnification Up To 3.2x~192x
  • Left/Right, Split, Overlapping Image For Forensic Comparison View
  • Halogen 50W, LED 5W, Polarizing, Coaxial, UV Light Source
  • Separation Line Adjust & Magnification Correcting System
  • Square & Round Working Stage Joint Moving Up/Down
Quantity:

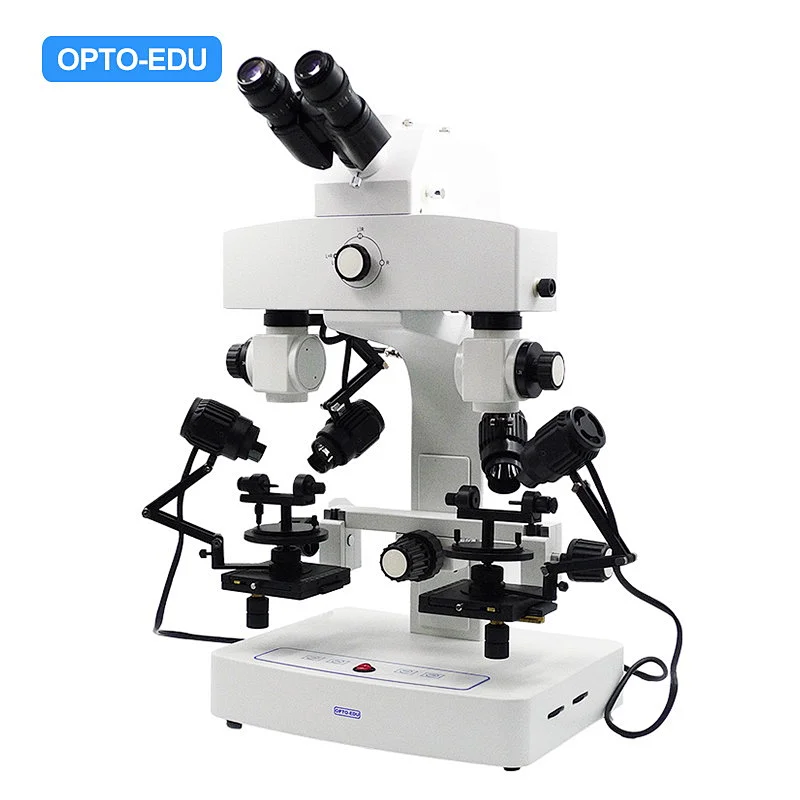

Forensic Comparison Microscope

A18.1825 comparison microscope forensic ballistics, newly developed in 2013, is suitable to be used for forensic science education  & school, to give an idea and training to the students what is a comparison microscope forensic ballistics and learn how to use it. It is simple but including full comparison   system function, and with steady quality at very competitive price!


  ★ Total Magnification 3.8x~230x
★ Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint
★ 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
  ★ Auxiliary Lens 0.4x and 2.0x Included
  ★ Full left/right, split-image or overlapping image comparision
  ★ Magnification Correcting System, with Correcting Lens
  ★ Separation Line Adjusting System, with Special Designed Metal Adjust Driver
  ★ 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
  ★ 5W LED Cold Light, High Brightness, Brightness Adjustable
  ★ Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
  ★ All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
  ★ Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
★ 80~240V Wide Range Voltage













A18.1825 Digital Forensic Comparison Microscope Specification
Magnification3.8x~230x
HeadBinocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
EyepieceWF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Objective5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
Auxiliary Lens 0.4x, 2.0x
Working Distance101mm
View FieldDia. 2.3~62mm
Magnification CorrectingMagnification Correction System, With Correcting Lens
Separation Line AdjustingSeparation Line Adjust System In Back, With Special Designed Adjust Driver
Working StageSquare Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Light Source12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable2pcs
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface2pcs
Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights2pcs
Ultraviolet Light Lens2pcs
Filters: Red, Blue, Yellow, Green2pcs Each Color
Adapter0.5x CCD Adapter For Digital Camera,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
Power80~240V Wide Range Voltage
Bullet HolderStandard Bullet Holder 2 Sets
DimensionInstrument Size 37*30*63cm

Optional Accessories
Light Source150W Cold Light Source, With Optical Fiber & Light CollectorA56.1821
Bullet HolderMotorized Bullet Holder 1 SetA54.1813
LCD Pad Digital Camera9.7'' LCD Pad Digital Camera, Android System,See A18.1825-LCD A59.3520
Pictures
Model No. A18.1825
Features
Infinity
Touch Control LCD
Optical System
Infinity Plan
Head Type
Seidentopf Trinocular
Head Specification
Dual Photo/Video Port
Eyepiece Diameter
30.0mm
Eyepiece
WF10x/22mm, 2 pcs

WF20x/12mm, 2 pcs
Objective
5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x, Auxiliary Lens 0.4x, 2.0x, 2 Sets
Working Stage Size
Square 90x90mm, Round Dia.90mm
Working Stage Moving
54x54x54mm
Working Stage
Square Manual Working Stage 90*90mm

Round Titable Working Stage Dia. 90mm
Focusing Range
60mm
Light Source Features
Coaxial
LED 10W
Light Source Type
Halogen
LED
Reflect Light
12V50W Halogen, 2 pcs

5W LED Cold Light, 2 pcs

Coaxial Light Lens, 2 pcs

Polarizing L
Power Supply Type
AC 110V-240V
Video Adapter
C-Mount 2.0x Focus Adj.
Polarizing
Polarizing Light Lens, 2 pcs
Working Distance
101mm
Other Specification
Dual Optical Bridge For Comparison

Standard Bullet Holder 2 Sets
