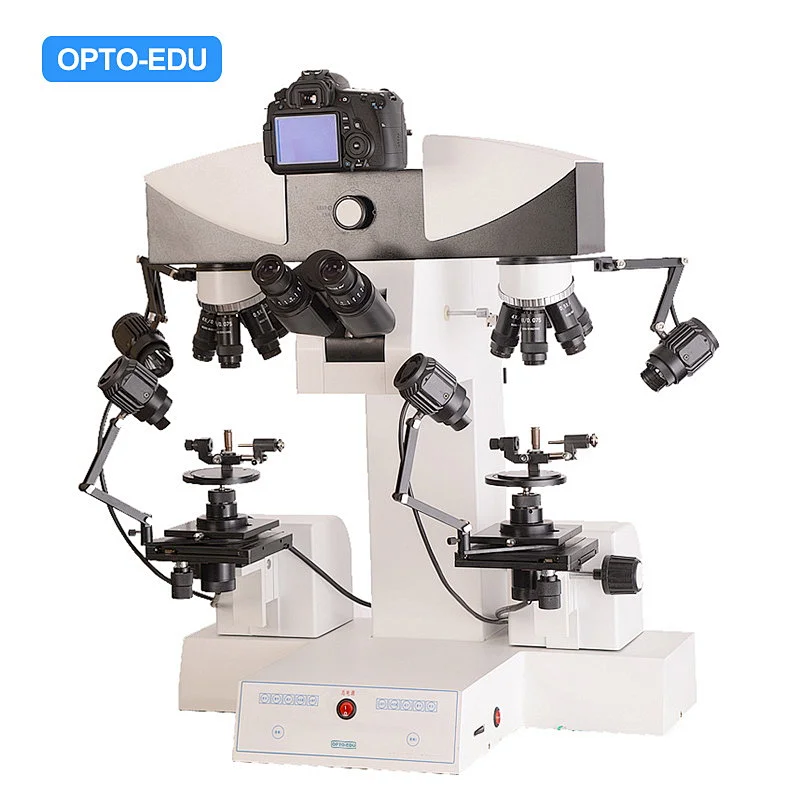

Motorized Digital Forensic Comparison Microscope


  • Total Magnification 2x~240x With 6 Holes Nosepiece
  • Left/Right, Split, Overlapping Image For Forensic Comparison View
  • Halogen 50W, LED 5W, Polarizing, Coaxial, UV Light Source
  • Separation Line Adjust & Magnification Correcting System
  • Motorized Square & Round Working Stage Joint Moving Up/Down
Quantity:



















A18.1829 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table
Magnification2x~240x
Head0-45° Tiltable Binocular Head, Interpupillary Distance 48~75mm, Diopter +/-5 Adjustable
EyepieceWF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Nosepiece6 Hole Click Stop Nosepiece
ObjectiveLWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x
Auxiliary Lens 0.4x, 2.0x
Working Distance101mm
View FieldDia. 2.3~62mm
Magnification CorrectingMagnification Correction System, With Correcting Lens
Separation Line AdjustingSeparation Line Adjust System In Back, With Special Designed Adjust Driver
Working StageSquare Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Tiltable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Light Source12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable2pcs
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface2pcs
Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights2pcs
Transmit Bottom Light (Built-in Working Stage)
Ultraviolet Light Lens2pcs
Filters: Red, Blue, Yellow, Green2pcs Each Color
Adapter0.5x CCD Adapter For Digital Camera,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
CCD CameraBuilt-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,2048*1536 Pixels, Pixel Size 3.2*3.2μm
SoftwareProfessional Forensic Image Analysis Software
Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image
Motorized/Manual Control Working Stage X/Y/Z 3D Movement
Motorized/Manual Control Round Working Stage Rotation +/- Direction
Motorized/Manual Control To Change Objective Magnification
Power80~240V Wide Range Voltage
Bullet HolderStandard Bullet Holder 2 Sets, Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
DimensionInstrument Size 40*60*72cm

Optional Accessories
Light Source150W Cold Light Source, With Optical Fiber & Light CollectorA56.1821
Bullet HolderMotorized Bullet Holder 1 SetA54.1813
Pictures
Model No. A18.1829
Function
BF+DF+PL
Features
Infinity
Information LCD
Optical System
Infinity Plan
Standard Magnification
2x~240x
Head Type
Seidentopf Binocular
Head Inclination
45°+45°
Head Rotation
Eyetube Rotate 360°
Head Specification
Photo Port +Built-in Digital Camera
Eyepiece Features
Wide Field
High Eyepoint
Eyepiece Diameter
30.0mm
Working Distance
101mm
Eyepiece
WF10x/22mm, 2 pcs

WF20x/12mm, 2 pcs
Nosepiece Holes
6 Holes
Nosepiece Features
Center Adjustable
Objective Type
Plan
Objective Features
Covreless (Metallurgical)
Objective
LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x

Auxiliary Lens 0.4x, 2.0x
Working Stage Size
Square 90x90mm, Round Dia.90mm
Working Stage Moving
54x54x54mm
Focusing Range
60mm
Light Source Feature
Brightness Adjustable
Coaxial Illumination
LED 3W
LED 10W
Light Source Type
Halogen
LED
Reflect Light
12V50W Halogen, 2 pcs

5W LED Cold Light, 2 pcs

Coaxial Light Lens, 2 pcs

Polarizing L
Power Supply Type
AC 90V-240V Wide Voltage
Video Adapter
C-Mount 0.5x
C-Mount 1.5x Focus Adjustable
Polarizing
Polarizing Light Lens 2 pcs
Camera Type
USB2.0 CMOS
Camera Pixel
3.0MP
Camera Output
USB2.0
Other Specification
Dual Optical Bridge For Comparison

Standard Bullet Holder 2 Sets

Motorized Working Stage 2 Sets
