Motorized Digital Forensic Comparison Microscope

  • Total Magnification 2x~240x With 6 Holes Nosepiece With Motorized Working Table
  • Left/Right, Split, Overlapping Image For Forensic Comparison View
  • Halogen 50W, LED 5W, Polarizing, Coaxial, UV Light Source
  • Separation Line Adjust & Magnification Correcting System
  • Motorized Square & Round Working Stage Joint Moving Up/Down
Quantity:

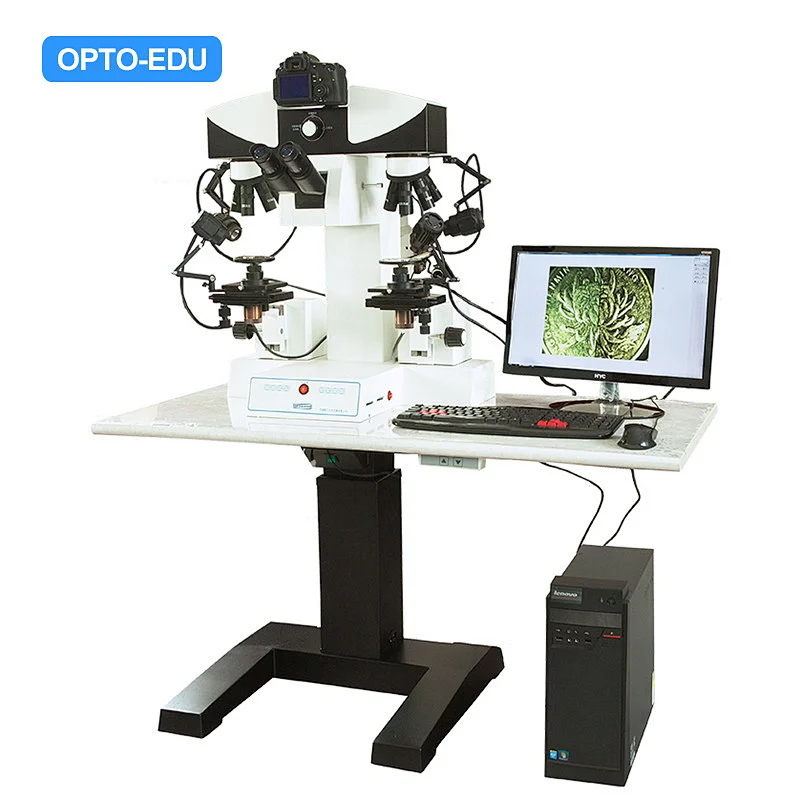

A18.1830 Motorized digital microscope comparison,with Motorized Working Table , newly developed in 2013, is suitable to be used for forensic science laboratory research work, for compare all kinds of bullets, cartidge cases, cutting objects, paper documents and etc. It can be fully controled by manual or computer software. Built-in high resolution digital color camera can output realtime image and video to computer, under professional crime image analysis software, it will be ideal tools for forensic scientists research work. With full comparison system function, and with steady quality at very competitive price, digital microscope comparison is your best choice, wholesale digital microscope comparison at factory price now!

  ★ Total Magnification 2x~240x
★ Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint
★ 6 Holes Click Stop Nosepiece
★ LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x,  2x, 4x, 6x
★ Auxiliary Lens 0.4x and 2.0x Included
★ Motorized/Manual Control to switch in full left/right, split-image or overlapping image comparision
★ Motorized/Manual Control working stage X/Y/Z 3D movement
★ Motorized/Manual Control  round stage rotating in clockwise/counterclockwise direction
  ★ Magnification Correcting System, with Correcting Lens
  ★ Separation Line Adjusting System, with Special Designed Metal Adjust Driver
  ★ 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
  ★ 5W LED Cold Light, High Brightness, Brightness Adjustable
  ★ Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
  ★ All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
  ★ Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
  ★ Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,
★ Professional forensic image analysis   software
★ Motorized Working Table included
★ 80~240V Wide Range Voltage






















A18.1830 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table
Magnification2x~240x
Head0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
EyepieceWF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Nosepiece6 Hole Click Stop Nosepiece
ObjectiveLWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x
Auxiliary Lens 0.4x, 2.0x
Working Distance101mm
View FieldDia. 2.3~62mm
Magnification CorrectingMagnification Correction System, With Correcting Lens
Separation Line AdjustingSeperation Line Adjust System In Back, With Special Designed Adjust Driver
Working StageSquare Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Light Source12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable2pcs
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface2pcs
Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights2pcs
Transmit Bottom Light (Built-in Working Stage)
Ultraviolet Light Lens2pcs
Filters: Red, Blue, Yellow, Green2pcs Each Color
Adapter0.5x CCD Adapter For Digital Camera,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
CCD CameraBuilt-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm
SoftwareProfessional Forensic Image Analysis Software
Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image
Motorized/Manual Control Working Stage X/Y/Z 3D Movement
Motorized/Manual Control Round Working Stage Rotation +/- Direction
Motorized/Manual Control To Change Objective Magnification
Working TableA18.1830 Include Motorized Working Table,
Size 60*120mm, Height 65mm, Motorized Up/Down 160mm
Power80~240V Wide Range Voltage
Bullet HolderStandard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
DimensionInstrument Size 40*60*72cm

Optional Accessories
Light Source150W Cold Light Source, With Optical Fiber & Light CollectorA56.1821
Bullet HolderMotorized Bullet Holder 1 SetA54.1813
Pictures
Model No. A18.1830
Features
Infinity
Touch Control LCD
Optical System
Infinity Plan
Head Rotation
Eyetube Rotate 360°
Head Interpupillary
50~80mm
Head Specification
Photo Port +Built-in Digital Camera
Eyepiece Diameter
30.0mm
Eyepiece
WF10x/22mm, 2 pcs

WF20x/12mm, 2 pcs
Nosepiece Features
Center Adjustable
Nosepiece Holes
6 Holes
Objective Features
Covreless
Objective Type
Infinity Plan
Objective
LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x

Auxiliary Lens 0.4x, 2.0x
Working Stage Size
Square 90x90mm, Round Dia.90mm
Working Stage Moving
54x54x54mm
Focusing Range
60mm
Light Source Features
Coaxial
LED 10W
Light Source Type
Halogen
LED
Reflect Light
12V50W Halogen, 2 pcs

5W LED Cold Light, 2 pcs

Coaxial Light Lens, 2 pcs

Polarizing L
Power Supply Type
AC 110V-240V
Video Adapter
C-Mount 2.0x Focus Adj.
Polarizing
Polarizing Light Lens 2 pcs
Working Distance
101mm
Camera Pixel
3.0MP
Camera Output
USB
Other Specification
Dual Optical Bridge For Comparison

Standard Bullet Holder 2 Sets

Motorized Working Stage 2 Sets

Motorzied Wokring Table
