Phase Contrast Microscope
Phase Contrast Microscope
Phase Contrast Microscope

A19.0214

Like Favorites

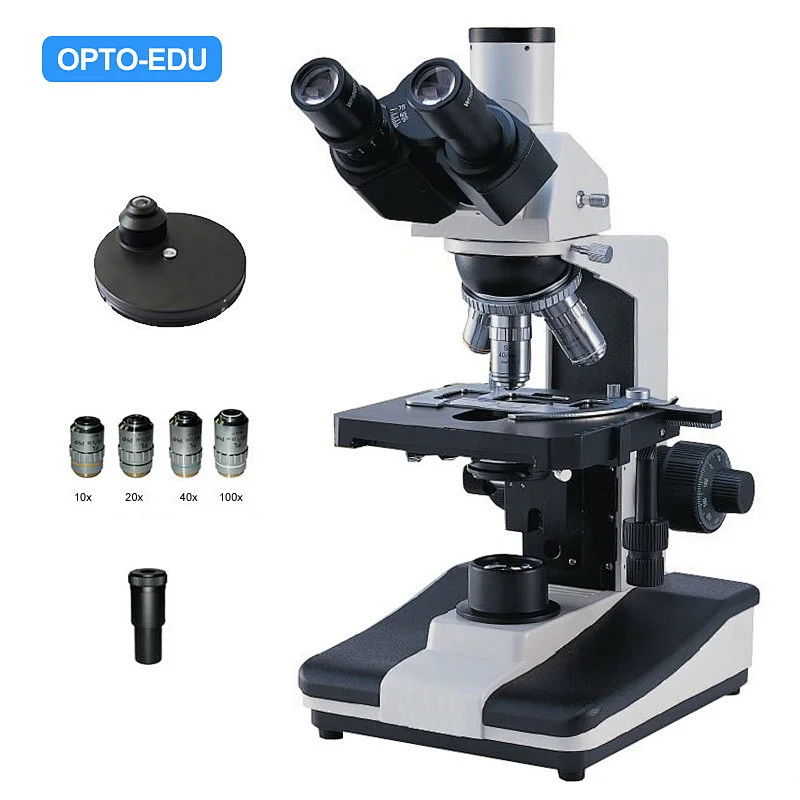

Phase Contrast Microscope

  • Sedentopf Trinocular Head 30° Inclined 360° Rotatable
  • Achromatic Phase Contrast Objective 10x20x40x100x
  • Turret Disc Phase Contrast Condenser, Centering Telescope
  • Large Size Double Layer Mechanical Stage 160x140mm/75x50mm
  • 6V20W Halogen Lamp Kohler Illumination
Quantity:



A19.0214 Phase Contrast Microscope
HeadSeidentopf Trinocular Head, Inclination 30°, Rotatable 360°
EyepieceWF10x/18mm
NosepieceBackward Quadruple Nosepiece, Ball Bearing Inner Locating
Phase Contrast SetPhase Contrast Achromatic Objective:
10x/0.25 PHP
20x/0.40 PHP
40x/0.65 PHP(Spring)
100x/1.25 PHP (Spring,Oil)
Centering Telescope
Turnplate Phase Contrast Condenser
Working StageDouble Layer Mechanical 160x140mm, Moving Range 75x50mm
FocusingCoaxial Coarse & Fine Focus System, Fine Focus Minimum Division 0.002mm, Tension Adjustable, With Up Stop
CondenserAbbe N.A.1.25, Rack & Pinion Height Adjustment
FilterBlue, Green, Yellow Filter
Light SourceKholer Illumination 6V 20W Halogen Lamp, Brightness Adjustable, With Collector For Halogen Lamp
Pictures
Model No. A19.0214
Optical System
Achromatic
Head Type
Seidentopf Trinocular
Head Rotation
Head Rotate 360°
Head Interpupillary
55~75mm
Head Diopter
Left Tube Adjustable
Eyepiece Diameter
23.2mm
Eyepiece
WF10x/18mm, 2 pcs
Nosepiece Features
Inward
Nosepiece Holes
4 Holes
Objective Type
Achromatic
Objective
Phase Contrast Objective 10x20x40x100x
Working Stage Features
Size ≥140x140mm
Working Stage Type
2 Layers Mechanical
Working Stage Size
160x140mm
Working Stage Moving
75x50mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Focusing Scale
0.002mm
Condenser Features
Rack & Pinionↆ↑
Filter Holder
Center Adjustable
Condenser Type
Abbe
Condenser N.A.
1.25
Light Source Features
Kohler
Light Source Type
Halogen
Transmit Light
6V20W Halogen Kohler Illumination
Video Adapter
C-Mount 0.3x
Phase Contrast
Turret Disc Phase Contrast Condenser

Centering Telescope
