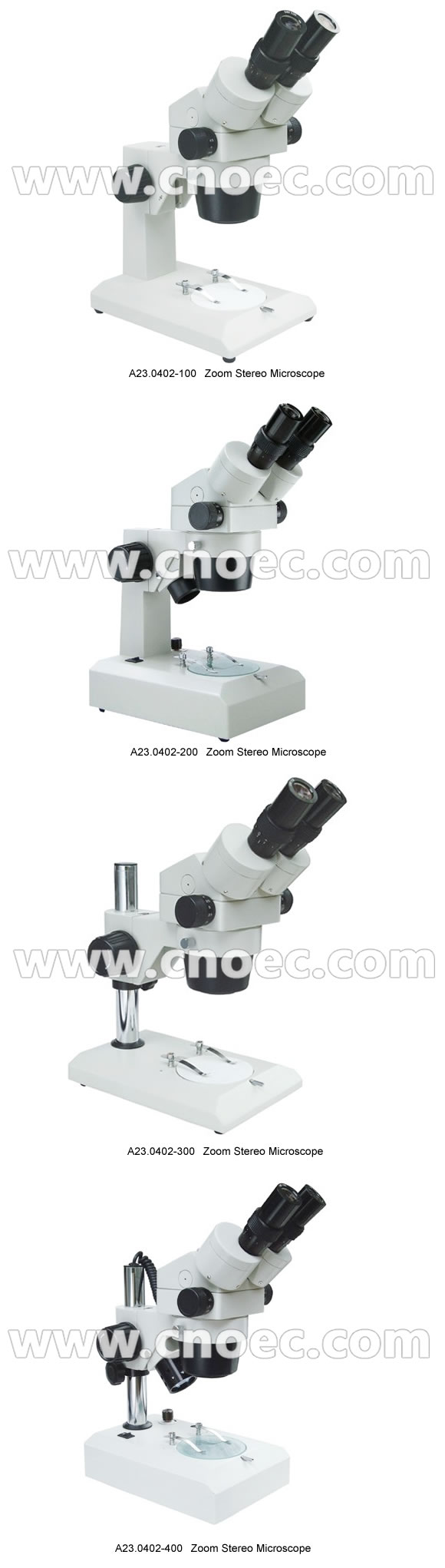

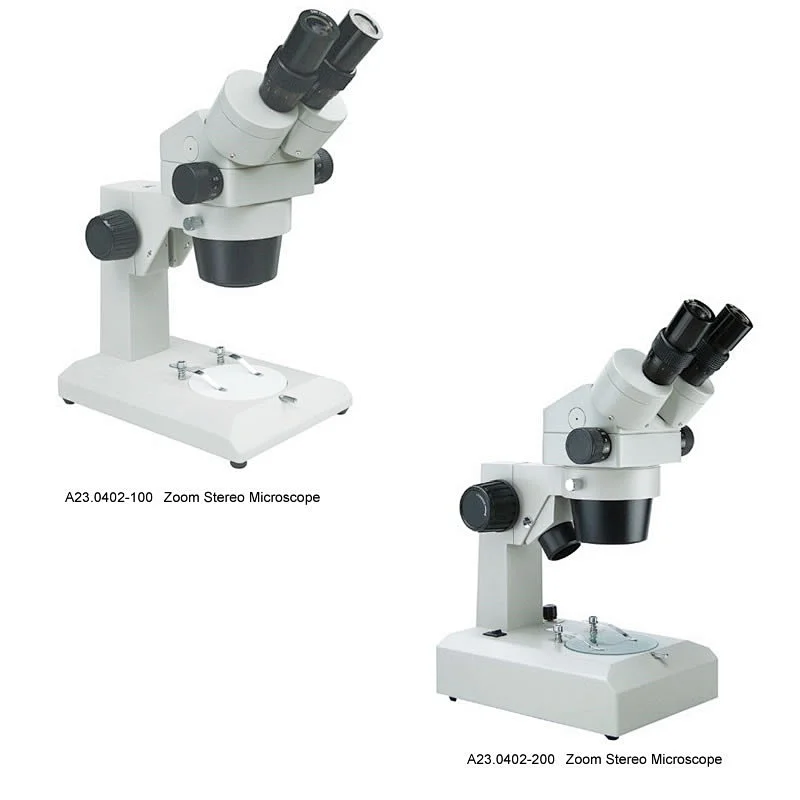

A23.0402Zoom Stereo Microscope | 100 | 200 | 300 | 400 | |
|---|---|---|---|---|---|
Head | Binocular head, 45°inclined interpupillary distance: 55-75mm,diopter adjustment: ±5 diopter | ||||
Eyepiece | WF10x/20mm | ||||
| Zoom Ratio | 1:7 | ||||
| Objective Zoom Range | 0.65x-4.5x | ||||
| Stand | Square stand | o | o | ||
| Pole stand | o | o | |||
| Working Distance | 95mm | ||||
| Illumination | No light | o | o | ||
| Top halogen lamp 6v/12w, adjustable brightness | o | o | |||
| Bottom fluorescent lamp 5w | o | o | |||
| Voltage Inpu | 110V/60HZ or 220V/50HZ | ||||
A23.0402Zoom Stereo Microscope Optional Accessories | |||||
| Eyepiece | 5x | A51.0401-05 | |||
| 10x | A51.0401-10 | ||||
| 15x | A51.0401-15 | ||||
| 20x | A51.0401-20 | ||||
| 25x | A51.0401-25 | ||||
| 30x | A51.0401-30 | ||||
| Auxiliary Objective | 0.5x | A52.0404-05 | |||
| 0.75x | A52.0404-75 | ||||
| 1.5x | A52.0404-15 | ||||
| 2.0x | A52.0404-20 | ||||
| 1.0x | A52.0404-10 | ||||
| Photo Adapter | 6.3x | A55.0403-63 | |||
| 2.5x | A55.0403-25 | ||||
| CCD Adapter | 0.5x | A55.0411-05 | |||
| 1x | A55.0411-10 | ||||
| CCD Eyepiece Adapter | A55.0416 | ||||
| Polarizing Attachment | Polarizer | A5P.0401-1 | |||
