The Key To Micro World!
Zoom Stereo Microscope, Max 0.8~8x
Zoom Stereo Microscope, Max 0.8~8x
Zoom Stereo Microscope, Max 0.8~8x

A23.1001-A

Like Favorites

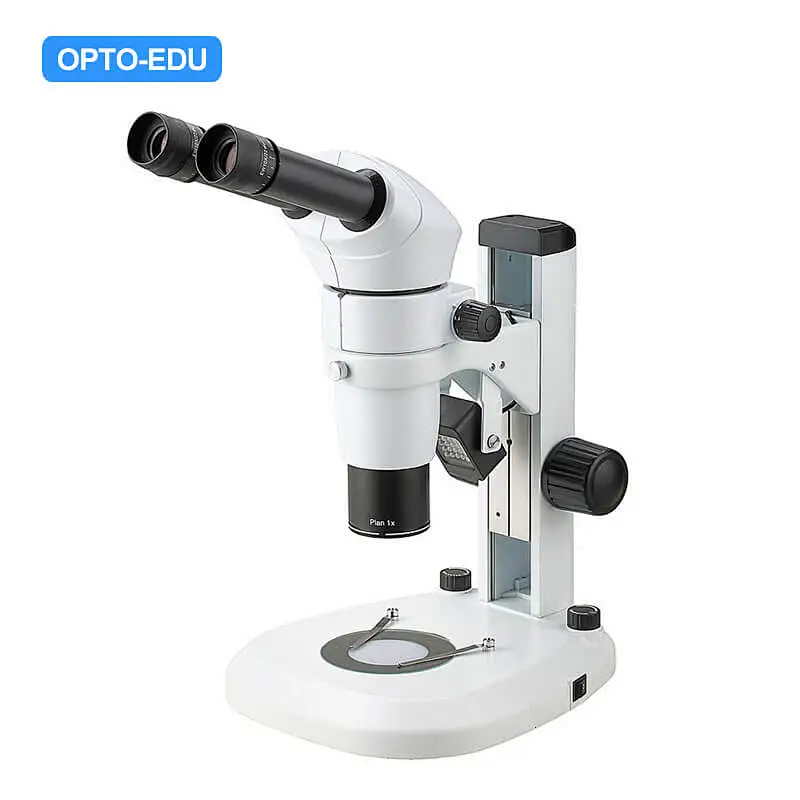

Zoom Stereo Microscope, Max 0.8~8x


  • Parallel Optical System, Module Design to Add Function Easily
  • Large Zoom Ratio Up to 1:10 With Tilting Head 0°-35° Viewing Angle Adjustable for User
  • Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
  • Complete Accessories Include Polarizing, Dark Field, Fluorescent Attachment
  • Plan Apochromatic Objective 0.5x Optional
Quantity:






A23.1001 Zoom Stereo MicroscopeABC
Optical SystemParallel Optical System, Module Design to Add Function Easily
HeadBinocular Head 20° Inclined
EyepieceExtra Wide Field Eyepiece EWF10x/22mm,Diopter Adjustable,Interpupillary 55-75mm
Zoom Body0.8~5.0x, Zoom Ratio 1:6o
0.8~6.4x, Zoom Ratio 1:8 o
0.8~8.0x, Zoom Ratio 1:10  o
Auxiliary LensPlan Achromatic Lens 1.0x
Working Distance78mm
FocusingCoarse Focusing Konb, Range 105mmoo
Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm  o
IlluminationTransmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
A23.1001 Zoom Stereo Microscope AccessoriesCata. No.
HeadTitling Head 0°-35° Viewing Angle Adjustable for UserA53.1014
Change to A23.1005
EyepieceWF15x/16mmA51.1027-1516
WF20x/12mmA51.1027-2012
WF30xA51.1027-30
Auxiliary LensPlan Apochromatic Lens 0.5xA52.1023-05A
Plan Achromatic Lens 1.0xA52.1023-10
Plan Achromatic Lens 2.0xA52.1023-20
Achromatic Lens 0.3xA52.1023-03
Achromatic Lens 0.5xA52.1023-05
IlluminationCoaxial Illumination Set:A56.1021
--Cold Light Power Supplier,
--Dual Light Guide,
--Coaxial Episcopic Illuminator,
--Iris Diaphragm
Iris DiaphragmA56.1021-2
Working StageTemperature Control StageA54.1004
Movable Working StageA54.1007
StandUniversal Table StandA54.1011
 A54.1012
Click to SeeA54.1013
 A54.1014
 Track Stand, Transmit & Reflect Light SourceA54.1019
 With Coarse & Fine Focusing Optional, Model-F,LikeA54.1019-FA54.1020
 A54.1021
FluorescentEPI-Fluorescent Attachment For Stereo MicroscopeA5F.1020
Change to A23.1004
Dark FieldDark Field Attachment For Stereo MicroscopeA5D.1001
PolarizingSimple Polarizing Attachment For Stereo MicroscopeA5P.1003
LCD Monitor8.4"TFT Touch Screen LCD Monitor & ConnectorA59.1006
Change to A36.1001
AdapterPhoto Tube, Beamsplitter 1 PortA55.1003-S1
Photo Tube, Beamsplitter 2 PortA55.1003-S2
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR CameraA55.1020-2X
C-mount 0.5xA55.1021-05
C-mount 1.0xA55.1021-10

Pictures
Model No. A23.1001-A A23.1001-B A23.1001-C
Features
APO
Parellal
APO
Parellal
APO
Parellal
Focusing Range
0.000000 0.000000 0.000000
Focusing Scale
0.000000 0.000000 0.000000
Stereo Zoom Ratio
—— —— >=1:10
