Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light
Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light

A23.2605-B

Like Favorites

Zoom Stereo Microscope, 0.65~5.3x, 1:8.1, Binocular, No Light


  • 0.65~5.3x Zoom Lens, High Zoom Ratio 1:8.1, Outstanding Ergonomic Design
  • Total Magnification Up To 3.25x~212x (View Field 73.85~1.23mm) With Optional Eyepiece & Lens
  • Binocular & Trinocular Head 35° Viewing Angle Large View WF10x/24mm Eyepiece
  • Zoom Knob With Magnifying Stop Pin Enable User To Limit Zoom Range As Need Easily
  • Large Track Stand 330x330x High Stability, Reflect & Transmit 3W LED Light Available
Quantity:

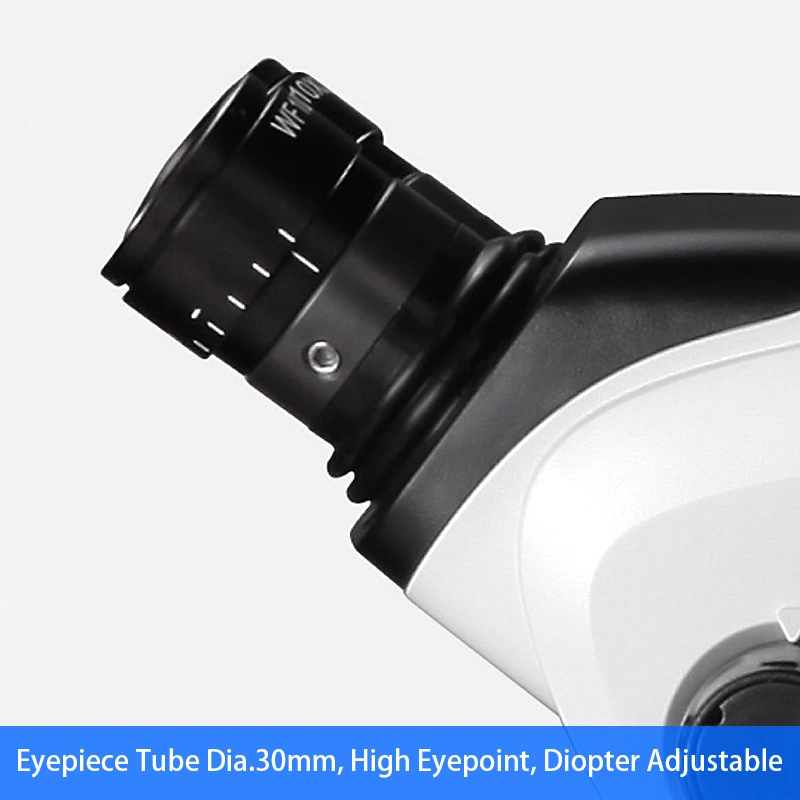

Eyepiece

Eyepiece tube Dia.30mm, High eyepoint, diopter adjustable

Zoom Lens
With auxiliary 0.5x/0.75x/2.0x lens to get higher magnification
A23.2603 Zoom Lens 0.7x~4.5x, Zoom Ratio 1:6.5 Technical Data
Auxiliary Lens0.5x0.75x1x (Standard)2.0x
Working Distance184mm128 mm108mm40mm
Eyepieces 10x/22mmMagnification3.5x~22.5x5.25x~33.75x7x~45x14x~90x
View Field (mm)62.86~9.7841.91~6.5231.43~4.8915.72~2.45
Eyepieces 15x/16mmMagnification5.25x~33.75x7.87x~50.63x10.5x~67.5x21x~135x
View Field (mm)48.57~7.5632.38~5.0424.29~3.7812.14~1.89
Eyepieces 20x/12mmMagnification7x~45x10.5x~67.5x14x~90x28x~180x
View Field (mm)37.14~5.7824.76~3.8518.57~2.899.29~1.44
A23.2604 Zoom Lens 0.68x~4.7x, Zoom Ratio 1:6.8 Technical Data
Auxiliary Lens0.5x0.75x1x (Standard)2.0x
Working Distance184mm128 mm108mm40mm
Eyepieces 10x/23mmMagnification3.4x~23.5x5.1x~35.3x6.8x~47x13.6x~94x
View Field (mm)67.65~9.7545.1~6.5233.82~4.8916.91~2.45
Eyepieces 15x/16mmMagnification5.1x~35.3x7.65x~52.9x10.2x~70.5x20.4x~141x
View Field (mm)50.0~7.2333.33~4.8225.0~3.6212.5~1.81
Eyepieces 20x/12mmMagnification6.8x~47x10.2x~70.5x13.6x~94x27.2x~188x
View Field (mm)38.24~5.5325.49~3.6919.12~2.779.56~1.38
A23.2605 Zoom Lens 0.65x~5.3x, Zoom Ratio 1:8.1 Technical Data
Auxiliary Lens0.5x0.75x1x (Standard)2.0x
Working Distance184mm128 mm108mm40mm
Eyepieces 10x/24mmMagnification3.25x~26.5x4.88x~39.75x6.5x~53x13x~106x
View Field (mm)73.85~9.0649.18~6.0436.92~4.5318.46~2.27
Eyepieces 15x/16mmMagnification4.88x~39.75x7.32x~59.63x9.75x~79.5x19.5x~159x
View Field (mm)52.25~6.4234.84~4.2826.15~3.2113.08~1.6
Eyepieces 20x/12mmMagnification6.5x~53x9.75x~79.5x13x~106x26x~212x
View Field (mm)40~4.9126.67~3.2720~2.4510~1.23

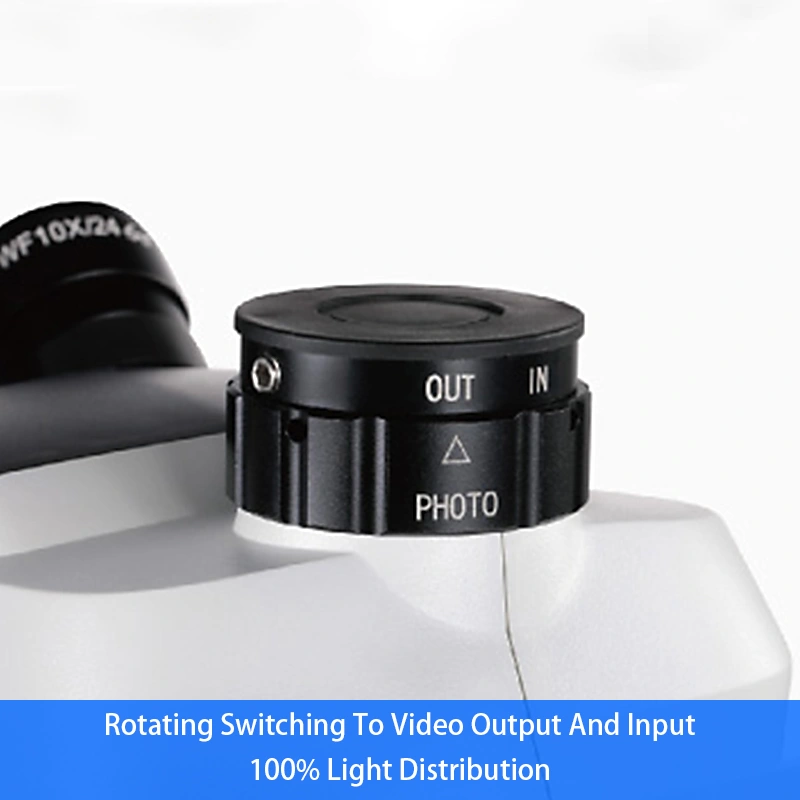

Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Rotating switching to video output and input, 100% light distribution

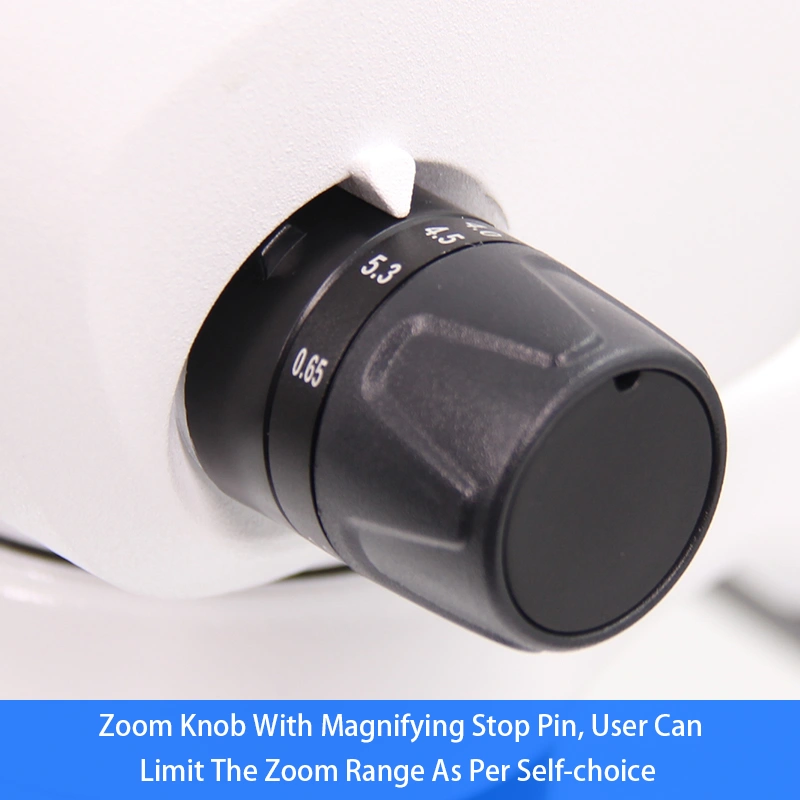

Zoom Knob
Zoom knob with magnifying stop pin, User can limit the zoom range as per self-choice

Up/Bottom 3W LED

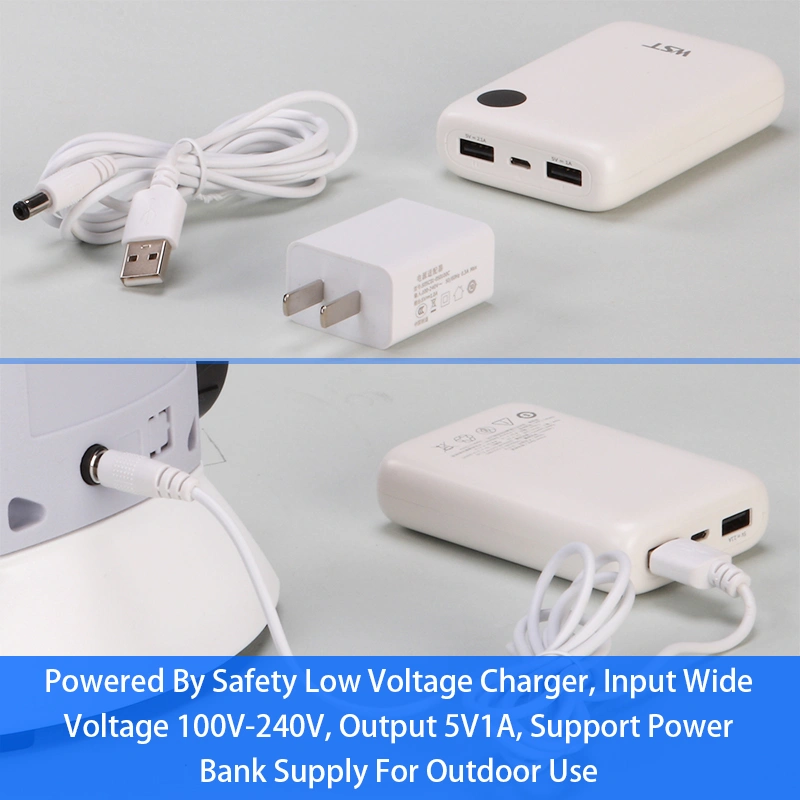

Powered By Safety Low Voltage Charger

Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

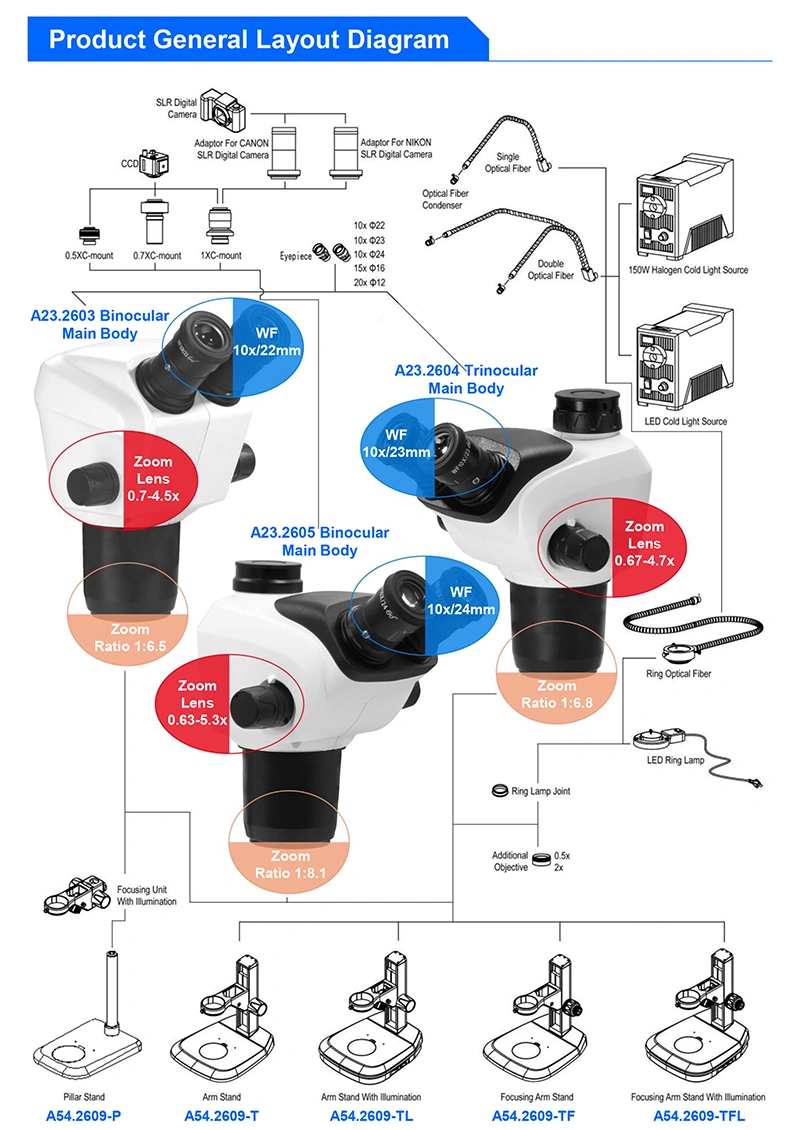

ItemsA23.26 Series Zoom Stereo MicroscopeA23.2603A23.2604A23.2605Cata. No.
BBLBBLTTLBBLTTL
HeadSeidentopf Head, Interpupilary Distance 50-75mm
Binocular Head Inclined 40°
Binocular Head Inclined 35°
Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Trinocular Upgrade To Light Split Fixed E50:P50       A53.2650-E50P50
EyepieceEyepiece Tube Dia.30mm, High Eyepoint, Diopter Adjustable
WF10x/22mm, Pair        A51.2621-1022
WF10x/23mm, Pair      A51.2621-1023
WF10x/24mm, Pair      A51.2621-1024
Zoom Lens0.7x~4.5x, Zoom Ratio 1:6.5
0.68~4.7x, Zoom Ratio 1:6.8
0.65~5.3x, Zoom Ratio 1:8.1
Zoom KnobWith Magnifying Stop Pin
Magnification7.0x~45x, Up to 3.5x~180x By Optional Auxiliary Lens
6.8x~47x, Up to 3.4x~188x By Optional Auxiliary Lens
6.5x~53x, Up to 3.25x~212x By Optional Auxiliary Lens
W.D.Working Distance 108mm, With Standard 1x LensA54.2601-S04

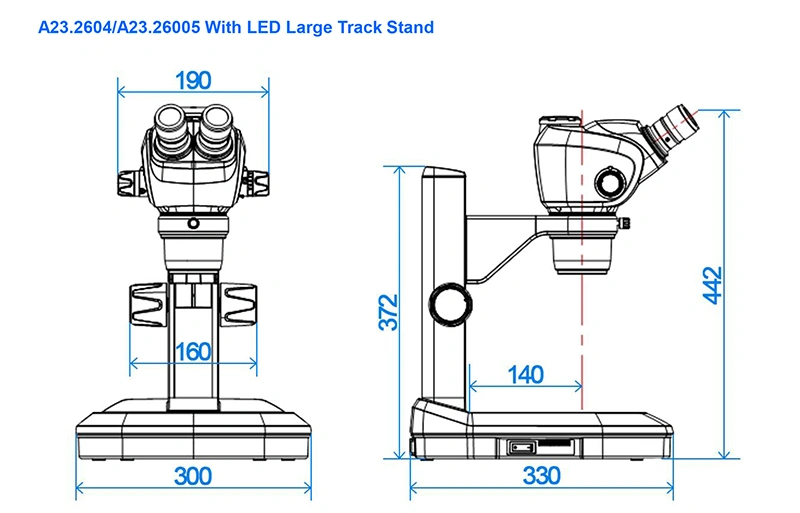

StandLarge Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
No Light Source
     A54.2609-T
Large Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
Up/Bottom 3W LED, Power By Safety Low Voltage Charger
     A54.2609-TL
PackageCarton Size 480×370×475mm, 1 Unit/Ctn
WeightGross Weight: 8 kgs, Net Weight: 6.5 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories

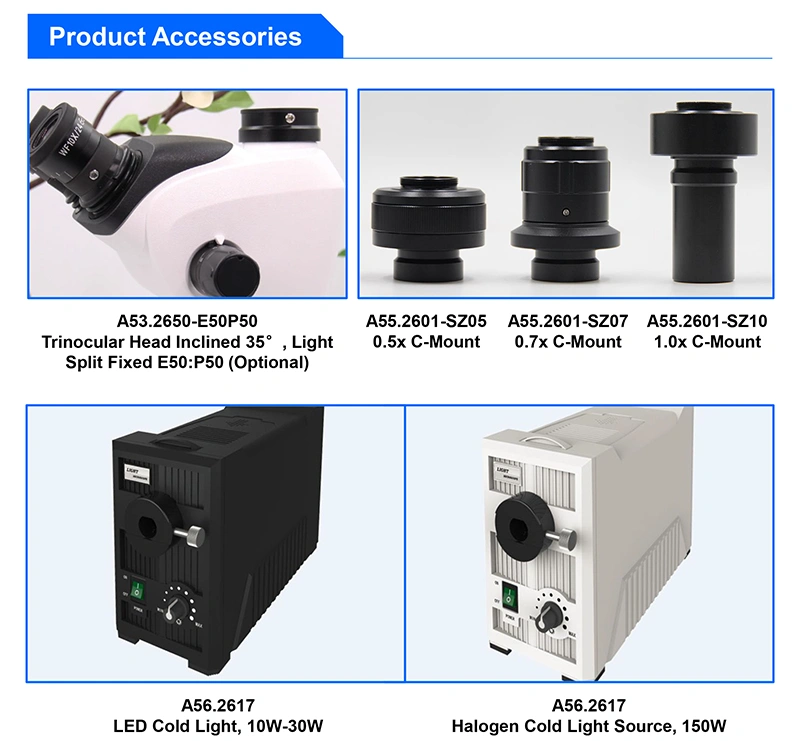

ItemsZoom Stereo Microscope Optional AccessoriesCata. No.

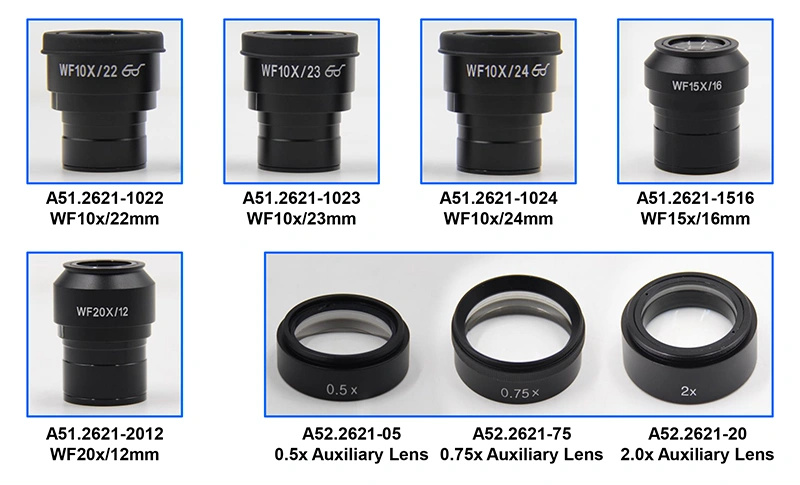

EyepieceWF15X/16mm, Dia.30mm, High Eyepoint, Diopter AdjustableA51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter AdjustableA51.2621-2012
Auxiliary Lens0.5x, W.D.189mmA52.2621-05
0.75x, W.D.128mmA52.2621-75
2.0x, W.D.36mmA52.2621-20
StandSmall Pole Stand, Base Size 300x220cm, No Light, Pole Stand Focusing Range 115mmA54.2609-P
Large Track Stand, Coaxial Coarse/Fine Focus, Base Size 330x300cm, No Light, Track Stand Focusing Range 80mmA54.2609-TF
Large Track Stand, Coaxial Coarse/Fine Focus, Base 330x300cm, 3W LED Up/Bottom Light, Track Stand Focusing Range 80mmA54.2609-TFL
CCD Adapter1.0x, Focus AdjustableA55.2601-SZ10
0.7x, Focus AdjustableA55.2601-SZ07
0.5x, Focus AdjustableA55.2601-SZ05

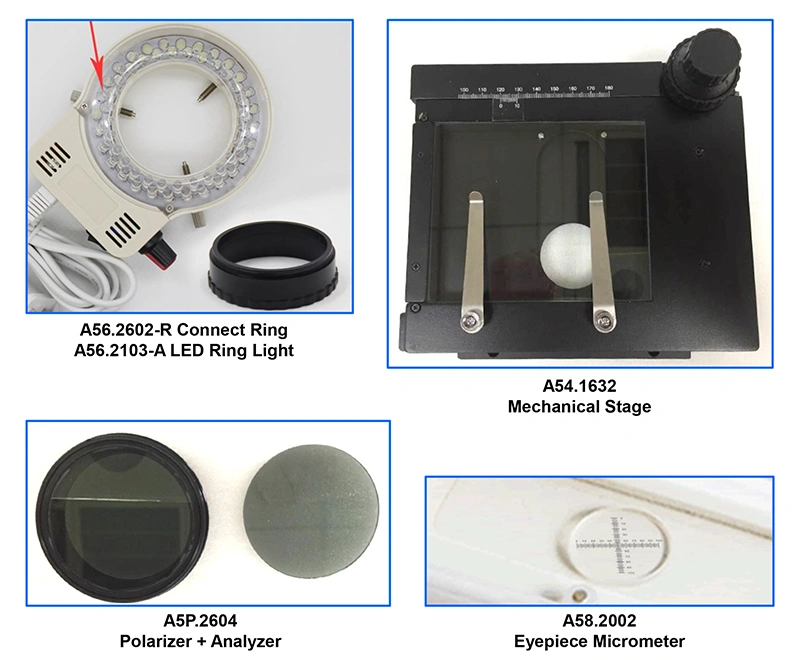

PolarizingPolarizer + Analyzer, For Stereo MicroscopeA5P.2604
Connect RingLED Light Connect RingA56.2602-R
Working StageXY Travel Range 75x56mm, Stage Size 180x155x27mm, Glass Size 116x96mm, Min Scale 0.1mm, Diameter Φ95 for Connecting stand base: 95mm A54.1632
Micrometer10 Kinds Of Regular Eyepiece Micrometer ModelA58.2002
Light SourceLED Ring Light, 56 LEDs, 4.5W, AC 100~240V, Inner Dia. 58mmA56.2103-A
LED Cold Light, 10W-30WA56.2617
Halogen Cold Light Source, 150W A56.2618







Pictures

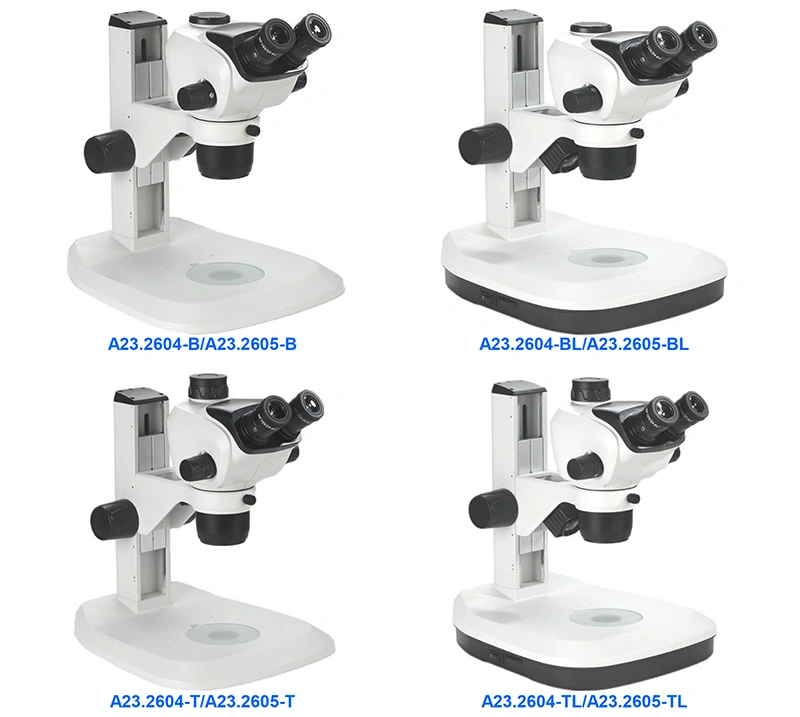

Model No. A23.2605-B A23.2605-T A23.2605-BL A23.2605-TL
Function
BF BF BF BF
Optical System
Greenough Greenough Greenough Greenough
Standard Magnification
6.5x-53x 6.5x-53x 6.5x-53x 6.5x-53x
Optional Magnification
3.25x-212x 3.25x-212x 3.25x-212x 3.25x-212x
Head Type
Seidentopf Binocular Seidentopf Trinocular Seidentopf Binocular Seidentopf Trinocular
Head Inclination
40° 40° 40° 40°
Head Rotation
Fixed Fixed Fixed Fixed
Head Interpupillary
50~75mm 50~75mm 50~75mm 50~75mm
Head Diopter
Left & Right Adjustable Left & Right Adjustable Left & Right Adjustable Left & Right Adjustable
Eyepiece Features
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm 30.0mm 30.0mm 30.0mm
Working Distance
格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0
Eyepiece
WF10x/23mm, 2 pc. WF10x/23mm, 2 pc. WF10x/23mm, 2 pc. WF10x/23mm, 2 pc.
Light Source Feature
—— —— Transmit & Reflect Transmit & Reflect
Light Source Type
—— —— LED LED
Transmit Light
—— —— 3W LED 3W LED
Reflect Light
—— —— 3W LED 3W LED
Power Supply Type
—— —— AC 110V-240V Wide Voltage AC 110V-240V Wide Voltage
Stereo Zoom Ratio
1:8.1 1:8.1 1:8.1 1:8.1
Stereo Stand Type
Table Stand Track Table Stand Track Table Stand Track Table Stand Track
Stereo Stand
Base size 330x300cm,
Track stand focusing range 80mm
Base size 330x300cm,
Track stand focusing range 80mm
Base size 330x300cm,
Track stand focusing range 80mm
Base size 330x300cm,
Track stand focusing range 80mm
