A23.3645

Like Favorites

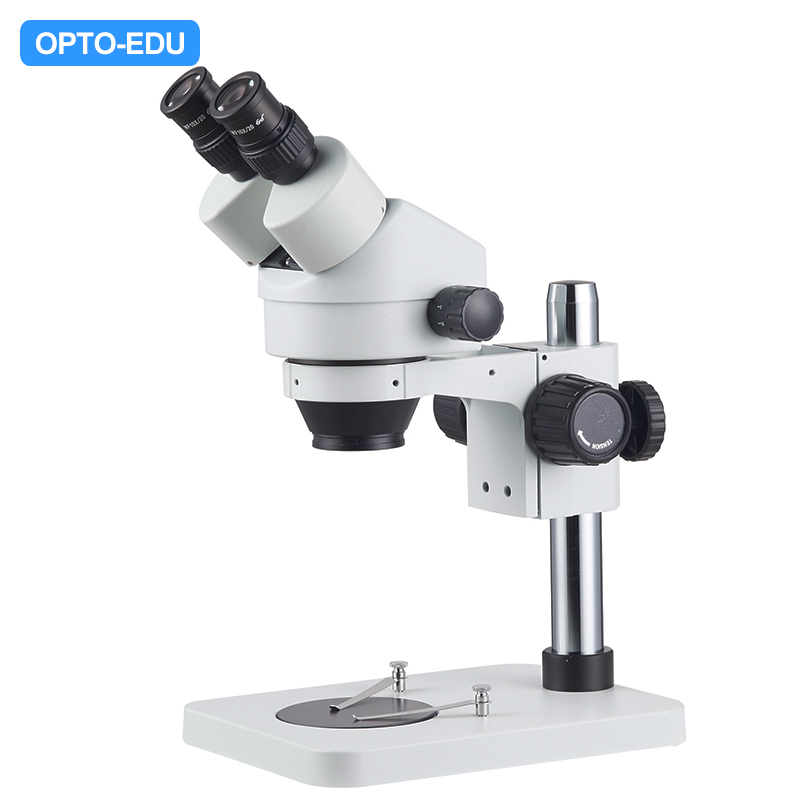

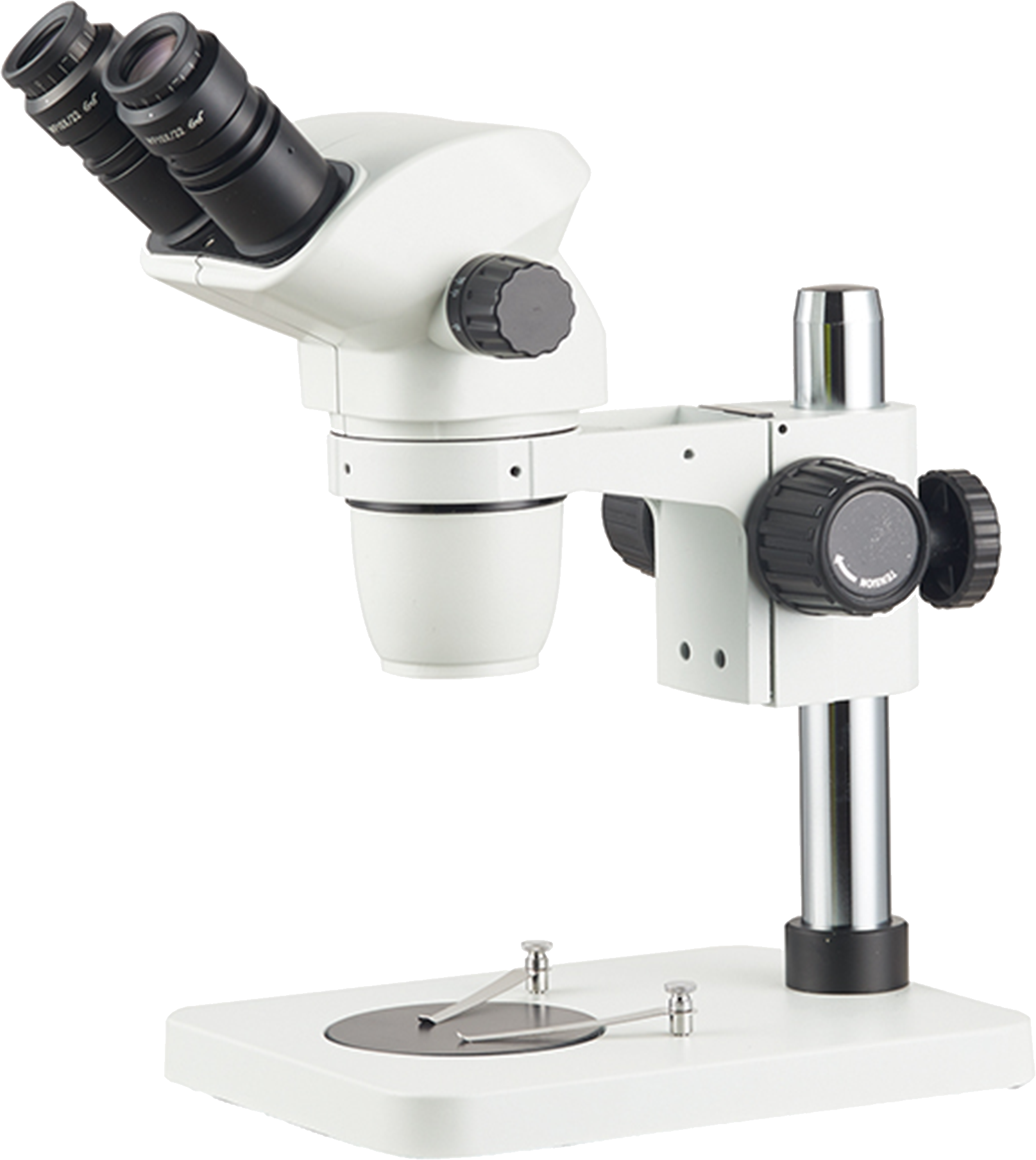

Zoom Stereo Microscope, 0.7~4.5x

Continous Zoom 0.7x-4.5x Binocular & Trinocular Head
7x-45x, Up To 3.5x-270x With Optional Eyepieces & Auxiliary Objectives
High Eyepoint, Dia.30mm WF10x/20mm, WF15x, WF20x, WF25x Optional
Working Distance 100mm, Up To 30~165mm With Auxiliary Objectives

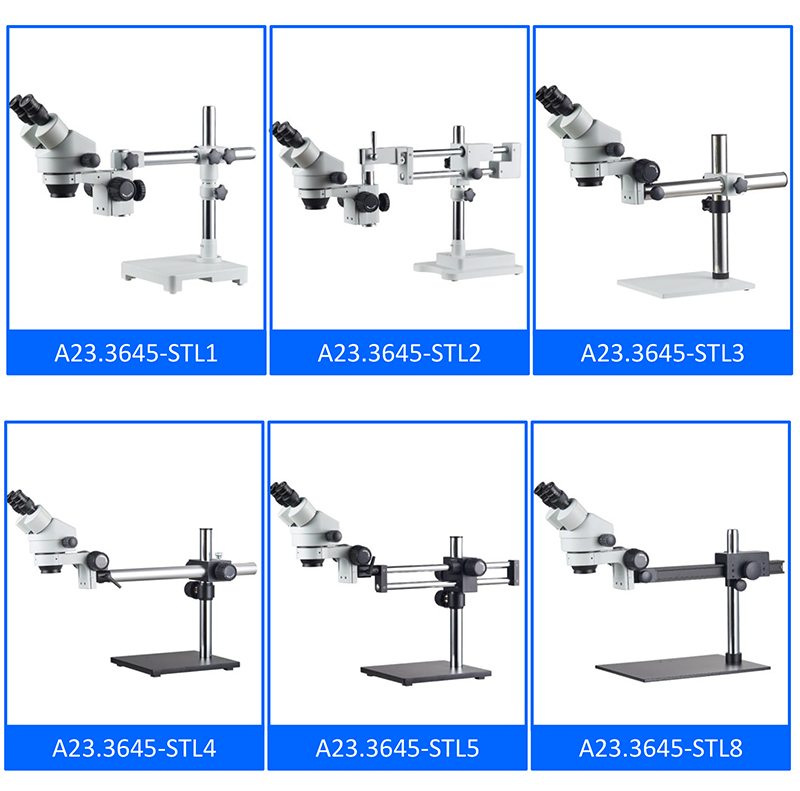

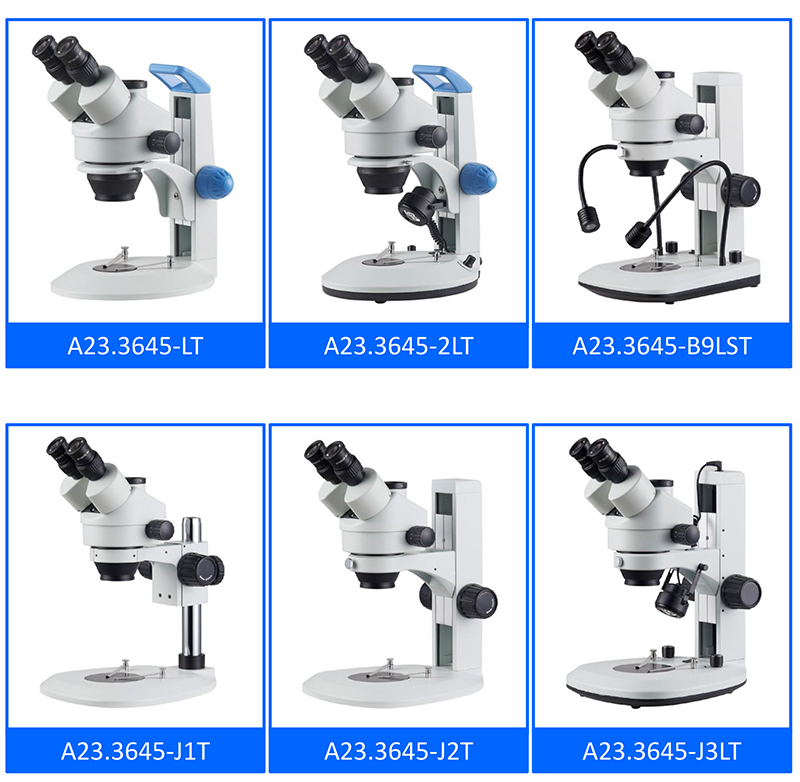

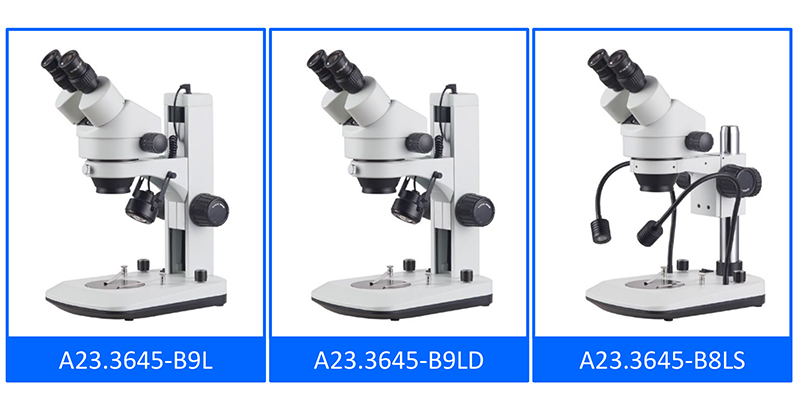

35 Kinds Stand Optional, Details See A54.3630

Specification:

A23.3645

A23.3667L

A23.3667

A23.3645N

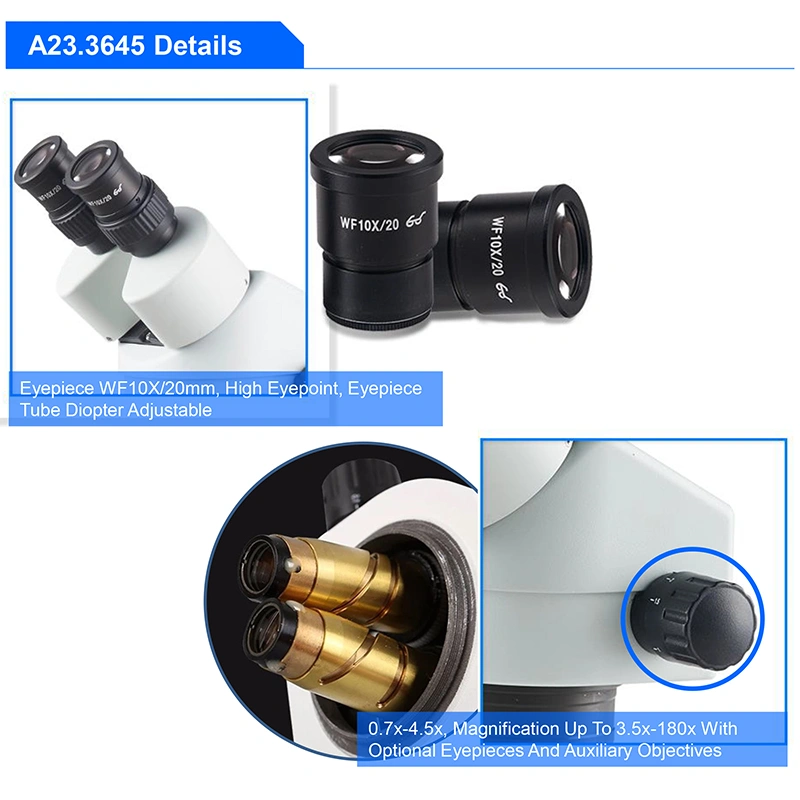

Eyepiece WF10X/20mm, High Eyepoint, Eyepiece Tube Diopter Adjustable
0.7x-4.5x, Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives

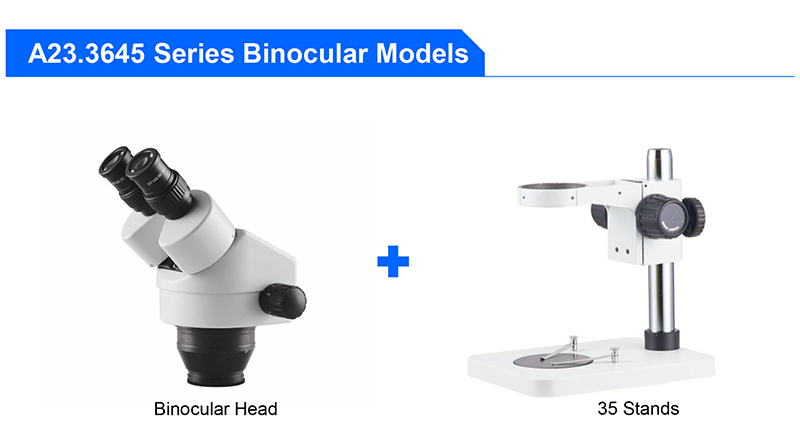

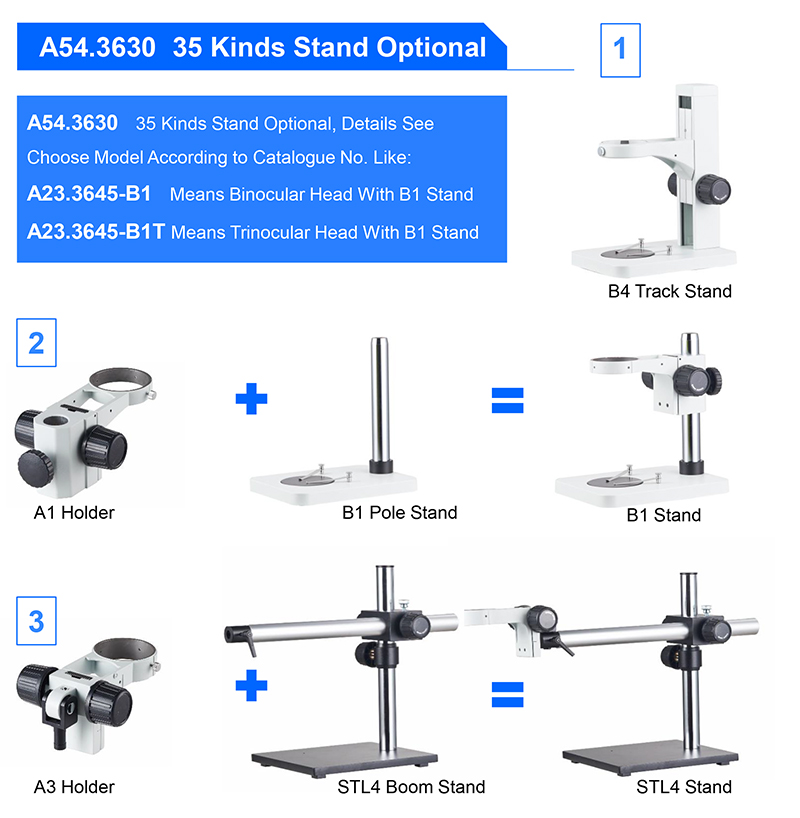

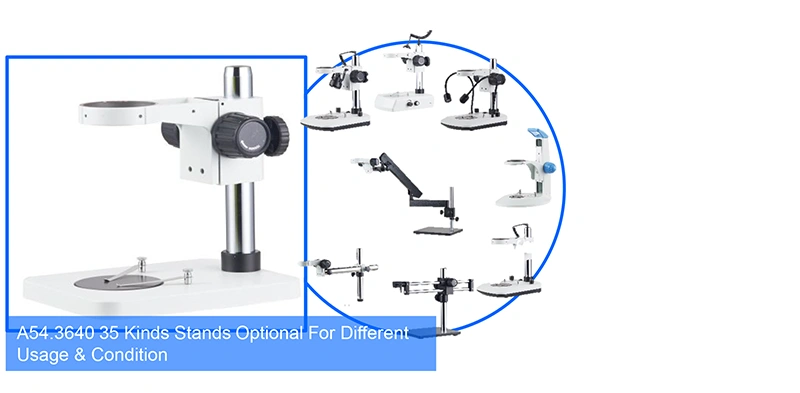

A54.3640 35 Kinds Stands Optional For Different Usage & Condition

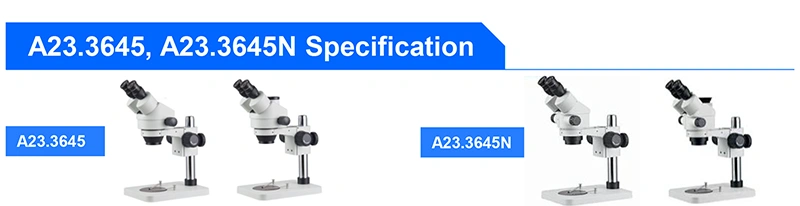

A23.3645, A23.3645N Series Zoom Stereo Microscope Specification		B	T

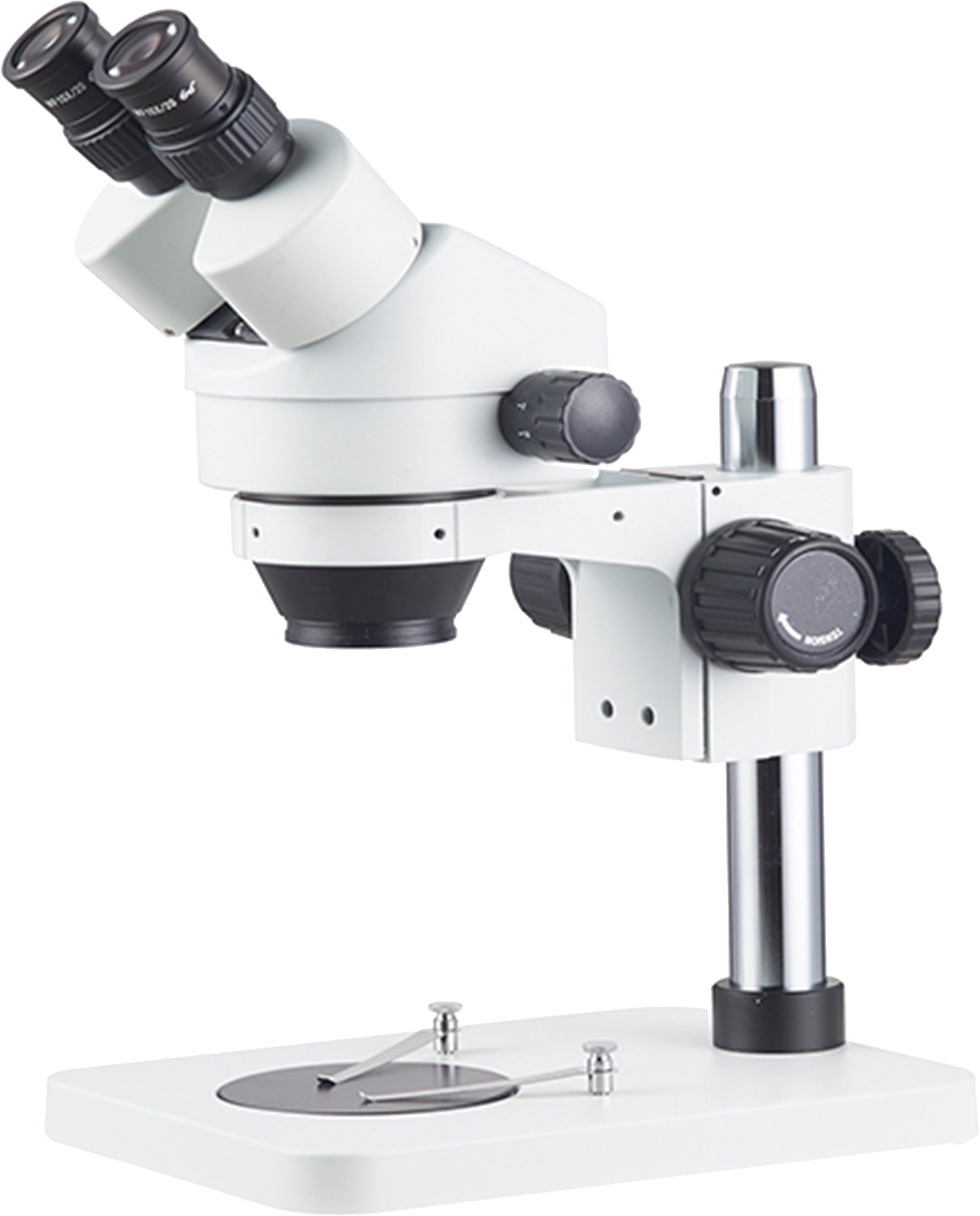

Head	Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable,	●

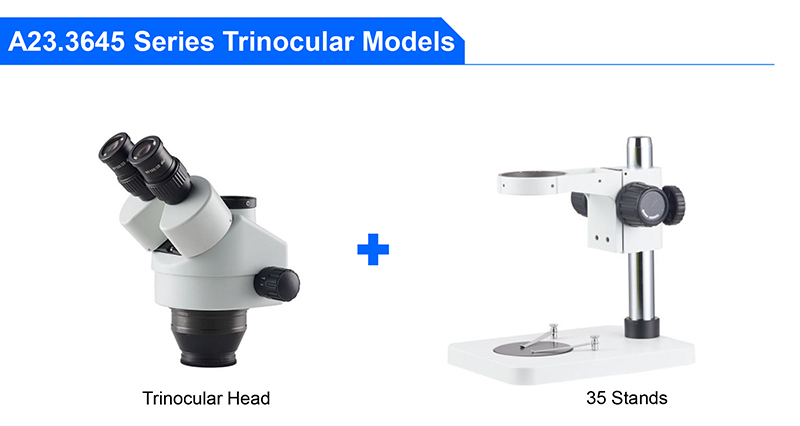

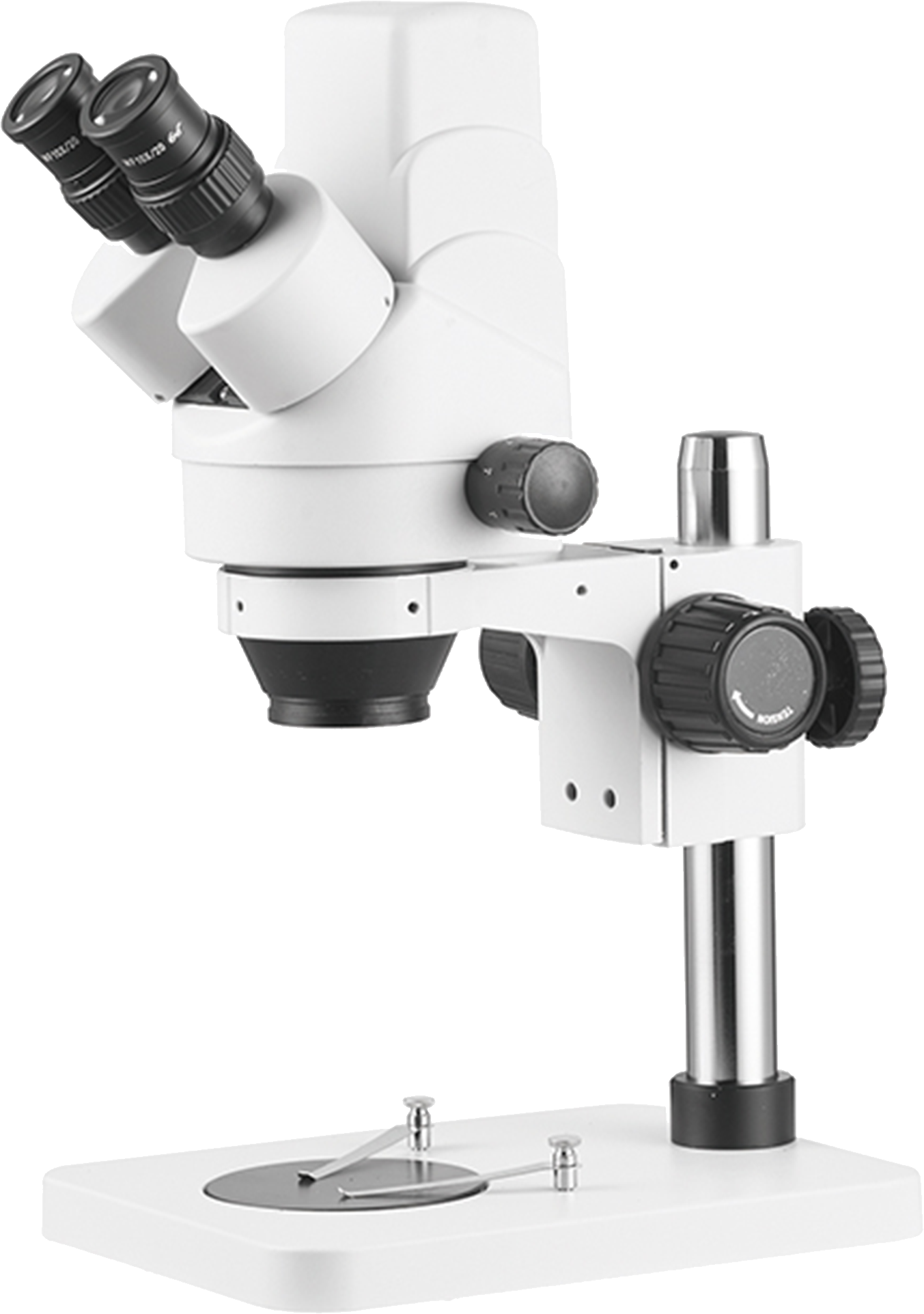

	Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable, With Eyepiece Adapter Focus Adjustable, Light Split Fixed P50:E50, Simul Focal Design To Show Image On Both Eyepiece & Photo Port At Same Time		●
Eyepiece	WF10x/20mm, High Eyepoint, Dia.30mm
Zoom Lens	0.7x~4.5x
Zoom Ratio	1:6.5
Magnification	7x-45x, Up To 3.5x-270x With Optional Eyepieces & Auxiliary Objectives
Working Distance	100mm, Up To 30~165mm With Auxiliary Objectives
Field Of View	0.9-57.1mm (Detail See Optical Data Sheet)
Focusing	Pole Stand Coarse Focusing Range 50mm, Tension Adjustable Track Stand Coarse Focusing Range 74mm, Tension Adjustable

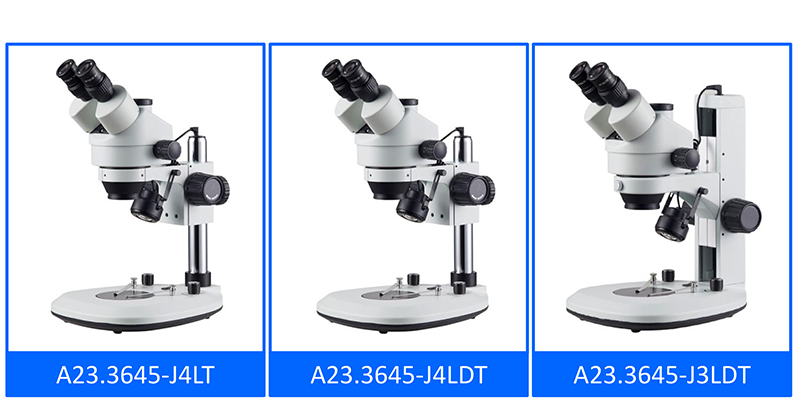

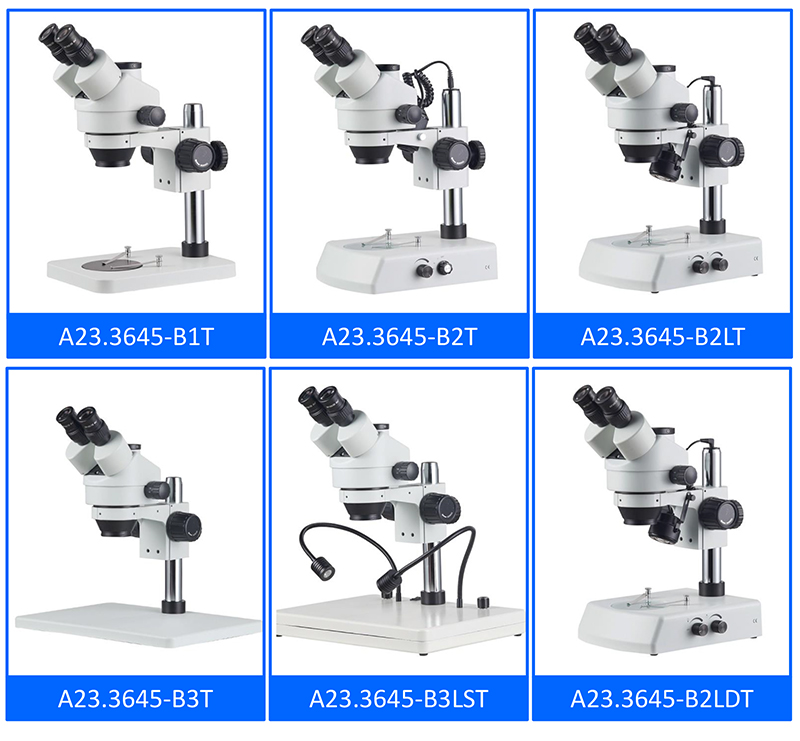

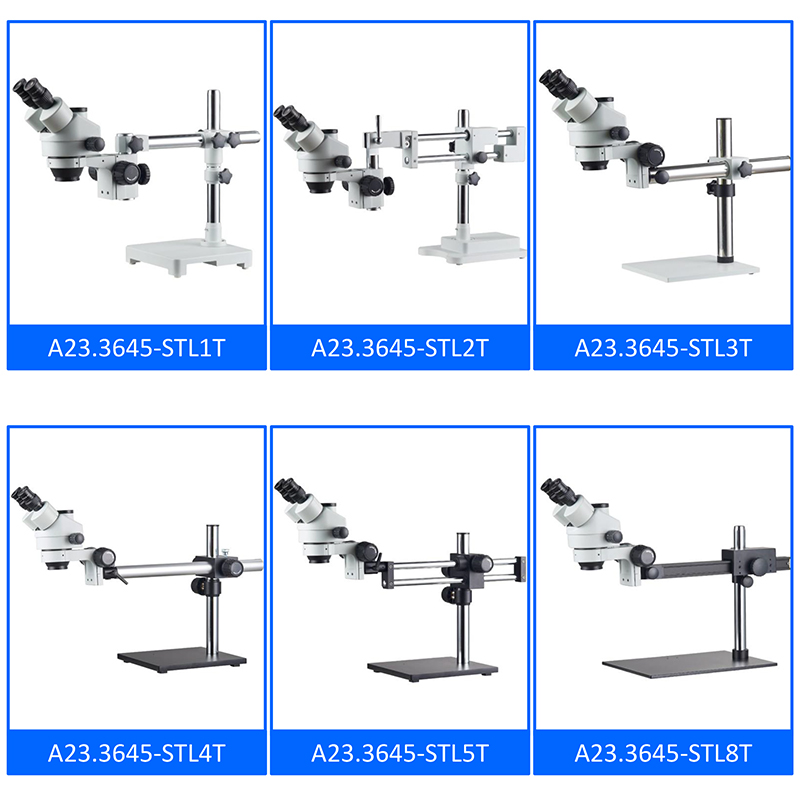

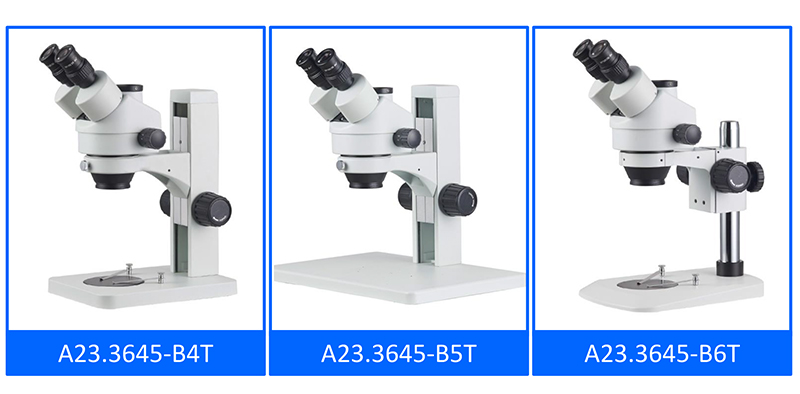

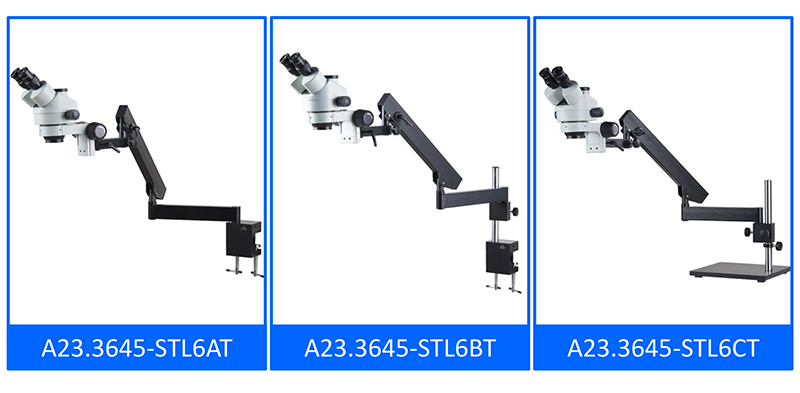

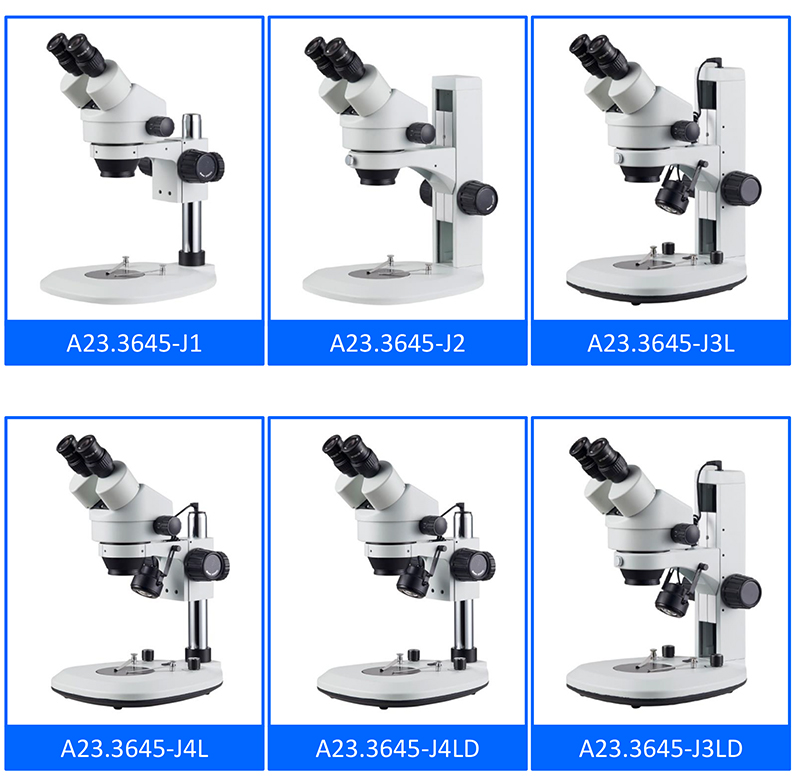

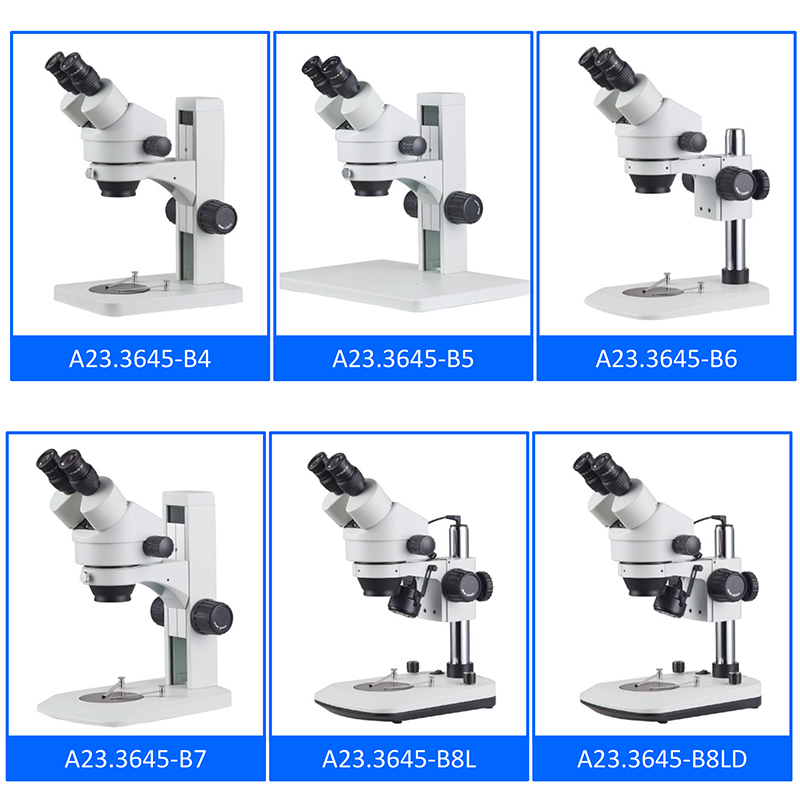

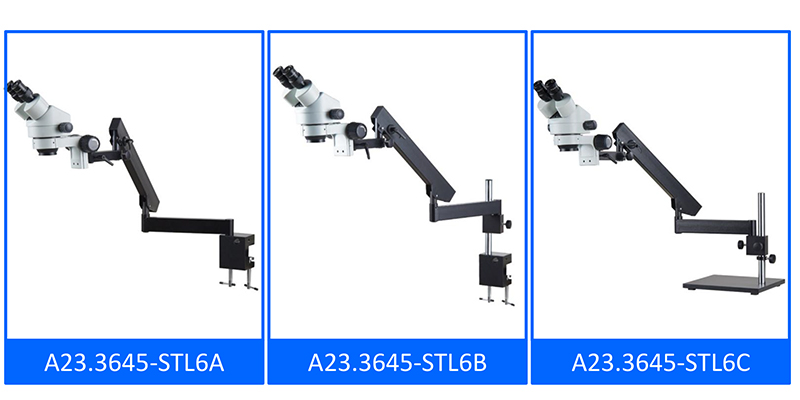

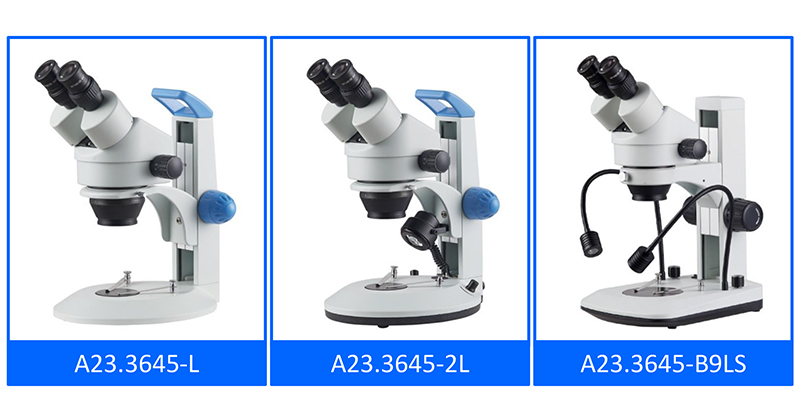

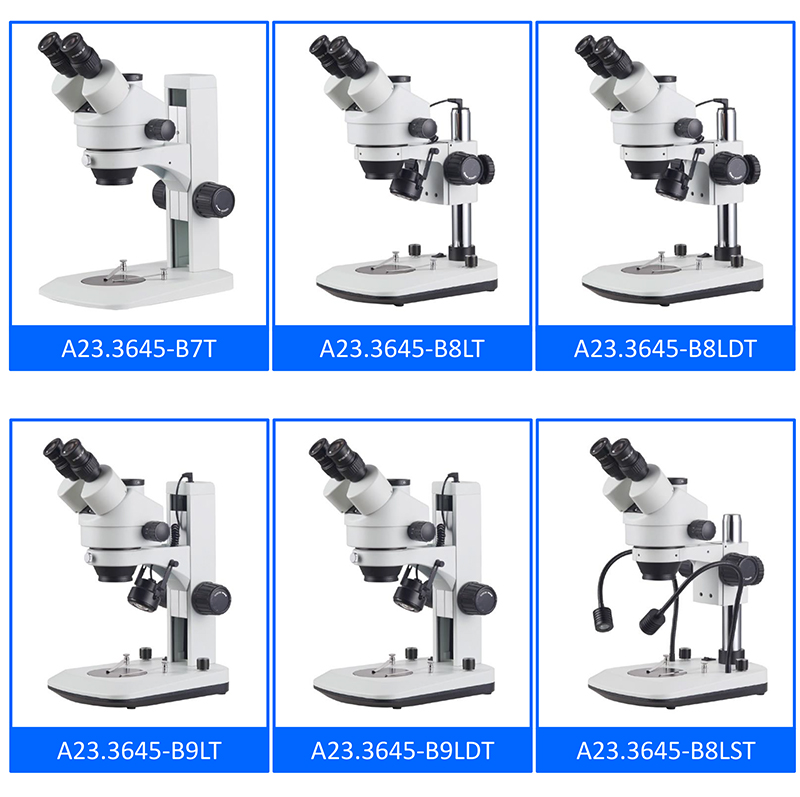

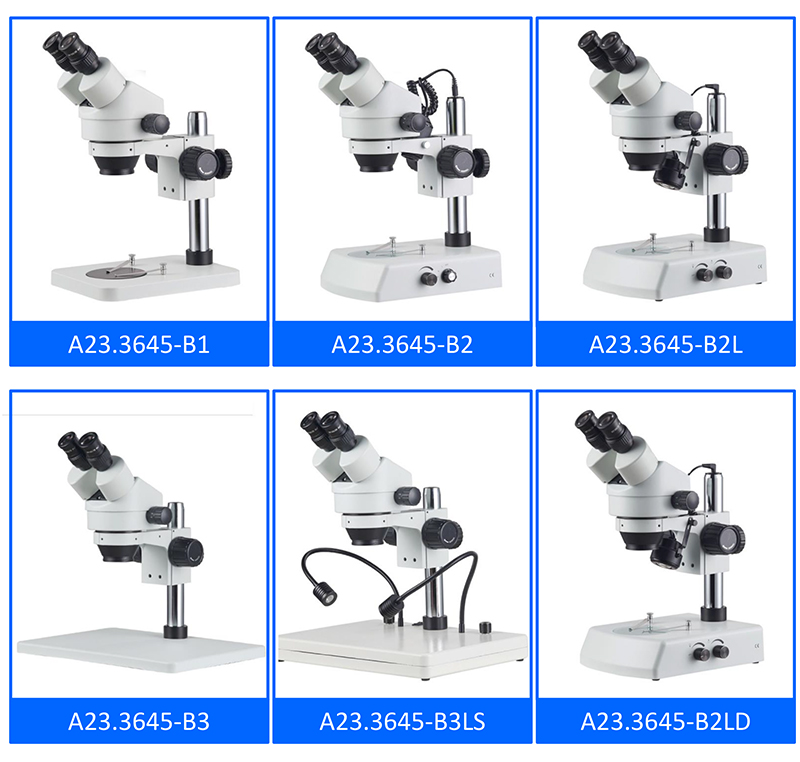

Stand	35 Kinds Stand Optional, Details See A54.3630 Choose Model According To Cata. No. Like: A23.3645-B1 Means Binocular Head With B1 Stand A23.3645-B1TMeans Trinocular Head With B1 Stand

A23.3645, A23.3645N Series Zoom Stereo Microscope Optical Data Sheet
Zoom Lens		0.7x~4.5x
Auxiliary Lens		0.5x	1.0x (Standard )	1.5x	2.0x
Working Distance		165mm	100mm	45mm	30mm
WF10x/20mm	Magnification	3.5x-22.5x	7.0x-45x	10.5x-67.5x	14x-90x
WF10x/20mm	View Field(mm)	57.1-8.9	28.6-4.4	19-3	14.3-2.2
WF15x/15mm	Magnification	5.25x-33.75x	10.5x-67.5x	15.75x-101.25x	21x-135x
WF15x/15mm	View Field(mm)	42.8-6.7	21.1-3.3	14.3-2.2	10.7-1.7
WF20x/10mm	Magnification	7.0x-45x	14.0x-90x	21.0x-135x	28x-180x
WF20x/10mm	View Field(mm)	28.6-4.4	14.3-2.2	9.5-1.5	7.1-1.1
WF25x/9mm	Magnification	8.85x-56.3x	17.5x-112.5x	26.2x-168.8x	35x-225x
WF25x/9mm	View Field(mm)	25.4-4.0	12.9-2.0	8.6-1.3	6.4-1.0
WF30x/8mm	Magnification	10.5x-67.5x	21x-135x	31.5x-202.5x	42x-270x
WF30x/8mm	View Field(mm)	22.9-3.6	11.4-1.8	7.6-1.2	5.7-0.9

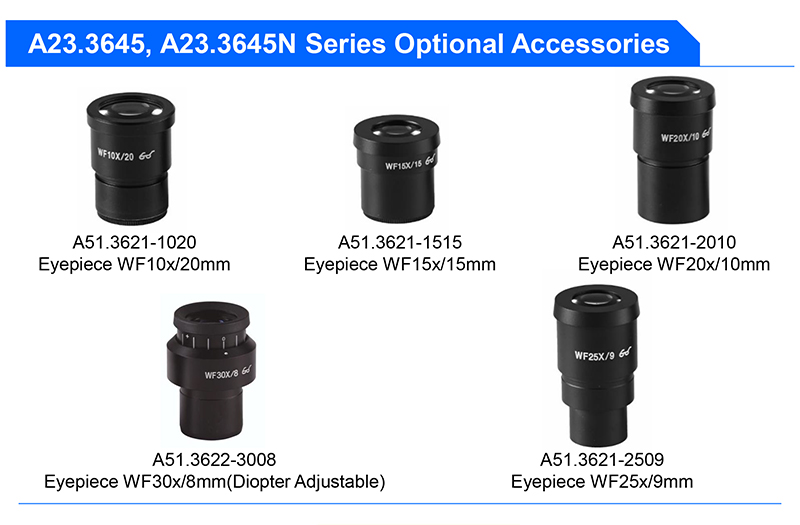

Optional Accessories		Cata.No.

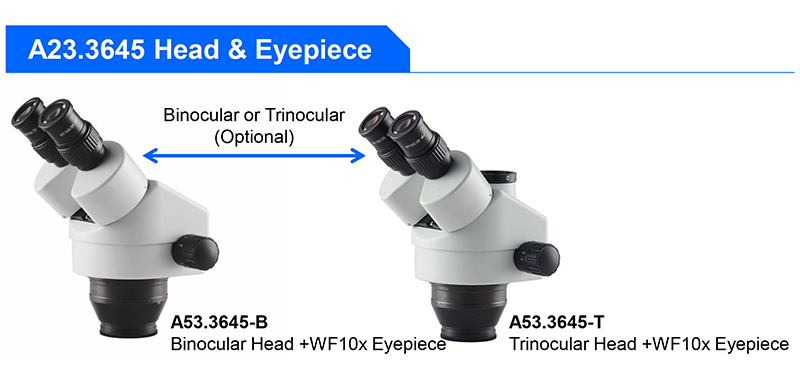

Head	Binocular Head + WF10x/20mm	A53.3645-B
	Trinocular Head + WF10x/20mm	A53.3645-T
Eyepiece	WF10x/20mm, High Eyepoint, Dia.30mm	A51.3621-1020
	WF15x/15mm, High Eyepoint, Dia.30mm	A51.3621-1515
	WF20x/10mm, High Eyepoint, Dia.30mm	A51.3621-2010
	WF25x/9mm, High Eyepoint, Dia.30mm	A51.3621-2509
	WF30x/8mm, High Eyepoint, Dia.30mm, Diopter Adjustable	A51.3622-3008
Auxiliary Lens	0.5x, W.D. 165mm	A52.3621-05
	1.5x, W.D. 45mm	A52.3621-15
	2.0x, W.D. 30mm	A52.3621-20
CCD Adapter	Eyepiece Adapter Focus Adjustable	A55.3623-E
	1.0x, Focus Adjustable	A55.3623-10
	0.50x, Focus Adjustable, For 1/2"CCD	A55.3623-05
	0.35x, Focus Adjustable, For 1/3"CCD	A55.3623-35

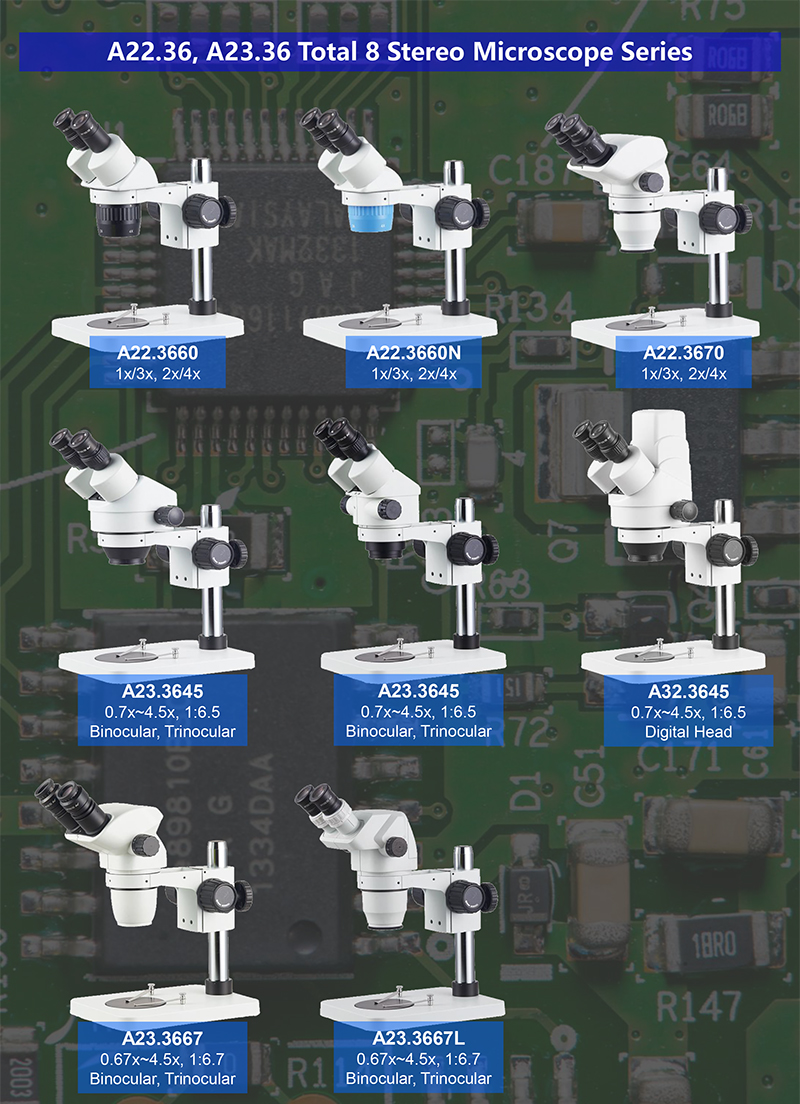

A22.3660	A22.3660N	A22.3670	A32.3645

A23.3645	A23.3645N	A23.3667	A23.3667L

Pictures Hide Same Show Difference
Model No.	A23.3645	A23.3667L	A23.3667	A23.3645N
Stereo Stand Type	Pole Stand	Pole Stand	Pole Stand	Pole Stand
Working Distance	100mm	——	100mm, Up To 30~165m	——
Stereo Zoom Ratio	1:6.5	1:6.7	1:6.7	1:6.5
Focusing Scale	——	0.000000	0.000000	0.000000
Focusing Range	Pole Stand 50mm Track Stand 74mm	Pole Stand Coarse Focusing Range 50mm Track Stand	0.000000	0.000000
Focusing Type	Coarse Only	Coarse Only	Coarse Only	Coarse Only
Focusing Features	Tension Adjustable	Tension Adjustable	Tension Adjustable	——
Eyepiece	WF10x/22mm, 2 pcs	——	——	——
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm
Head Diopter	Both Tube Adjustable	Both Tube Adjustable	Both Tube Adjustable	Both Tube Adjustable
Head Interpupillary	54~75mm	54~75mm	54~75mm	54~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	45°	45°	45°	45°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	7x-45x	6.7~45x, Up To 2x-270x	6.7~45x, Up To 2x-270x	7x-45x, Up To 3.5x-270x
Optical System	Greenough	Greenough	Greenough	Greenough
Standard Function	BF	BF+DF+PH+DIC	BF+DF+PH+DIC	BF
Features	——	——	Simul Focal	——
