A24.0901-B

Like Favorites

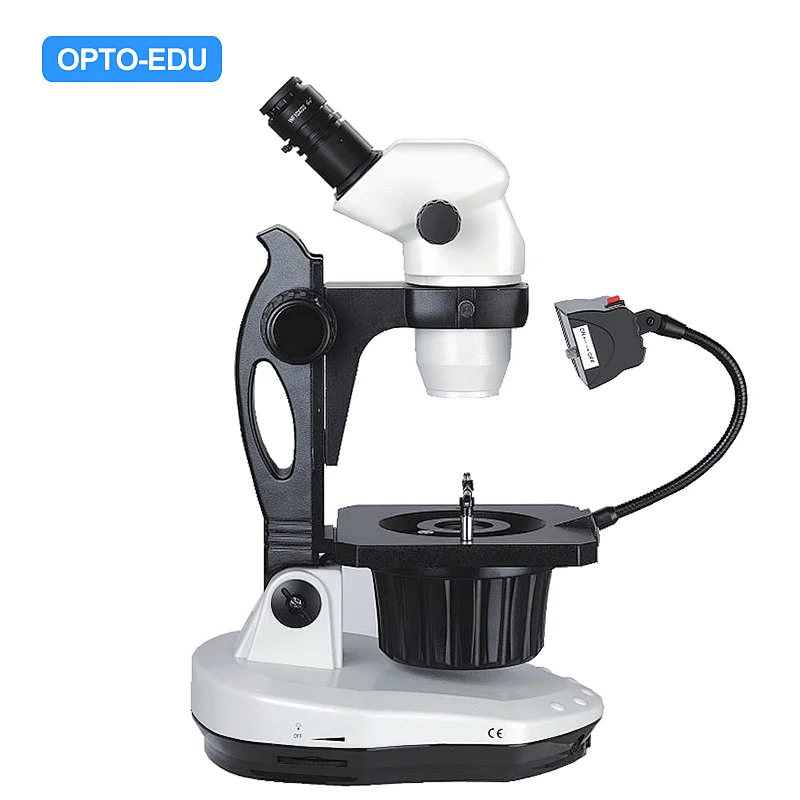

Gem Microscope, 0.67x-4.5x, Binocular

0.67x~4.5x Zoom Lens Total Magnifiction Up To 2x~225x
Professional Jewelry Microscope Stand, With Base Rotating & Inclination Adjustable
Built-in Dark Field, Bright Field Both For Jewelry
Upper Illumniation 7W Fluorescent or 1W LED
Transmit Illumination 6V30W Halogen Lamp

Specification:

A24.0901-T

A24.0901 Jewelry Microscope, 0.67x-4.5x Specification
Observation Ways	Bright Field Transmit, Reflect and Dark Field Observation
Head	Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm
Zoom Range	0.67~4.5x
Zoom Ratio	1:6.7
Eyepiece	WF10x/22mm, Diopter Adjustable, Both with Eye-cup
Magnification	6.7~45x, Up to 2~225x with Auxiliary Lens
Working Distance	100mm, With Standard 1x Lens. Up to 26~287mm With Auxiliary Lens
Gem Clamp	Wire Clamp For Bigger Objects, Flat Clamp For Smaller Objects
Stand	Professional Jewelry Microscope Stand, With Base Rotating and Inclination Adjustable, with Built-in Dark Field
Illumination	Upper Illumniation 7W Fluorescent or 1W LED Transmit Illumination 6V30W Halogen Lam
A24.0901 Jewelry Microscope, 0.67x-4.5x Optional Accessories
Eyepiece	WF15x/16mm, Diopter Adjustable	A51.0955-15
	WF20x/12mm, Diopter Adjustable	A51.0955-20
	WF25x/9mm	A51.0923-25
Auxiliary Lens	0.3x, W.D. 287mm	A52.0928-03
	0.4x, W.D. 217mm	A52.0928-04
	0.5x, W.D. 177mm	A52.0928-05
	0.75x, W.D. 117mm	A52.0928-75
	1.5x, W.D. 47mm	A52.0928-15
	2.0x, W.D. 26mm	A52.0928-20

Pictures Hide Same Show Difference
Model No.	A24.0901-B	A24.0901-T
Stereo Stand	Jewelry Microscope Stand, With Base Rotating and Inclination Adjustable, with Built-in Dark Field	Jewelry Microscope Stand, With Base Rotating and Inclination Adjustable, with Built-in Dark Field
Working Distance	100mm, Up To 26~287	100mm, Up To 26~287
Stereo Zoom Ratio	1:6.7	1:6.7
Dark Field	Built-in Dark Field	Built-in Dark Field
Reflect Light	7W Fluorescent or 1W LED	7W Fluorescent or 1W LED
Transmit Light	6V30W Halogen	6V30W Halogen
Light Source Type	Flourescent LED Halogen	Flourescent LED Halogen
Light Source Features	Transmit & Reflect Brightness Adjustable	Transmit & Reflect Brightness Adjustable
Objective	0.67x~4.5x	0.67x~4.5x
Eyepiece	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Interpupillary	54~75mm	54~75mm
Head Inclination	45°	45°
Head Type	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	6.7x-45x	6.7x-45x
Optical System	Greenough	Greenough
Standard Function	BF+DF	BF+DF
