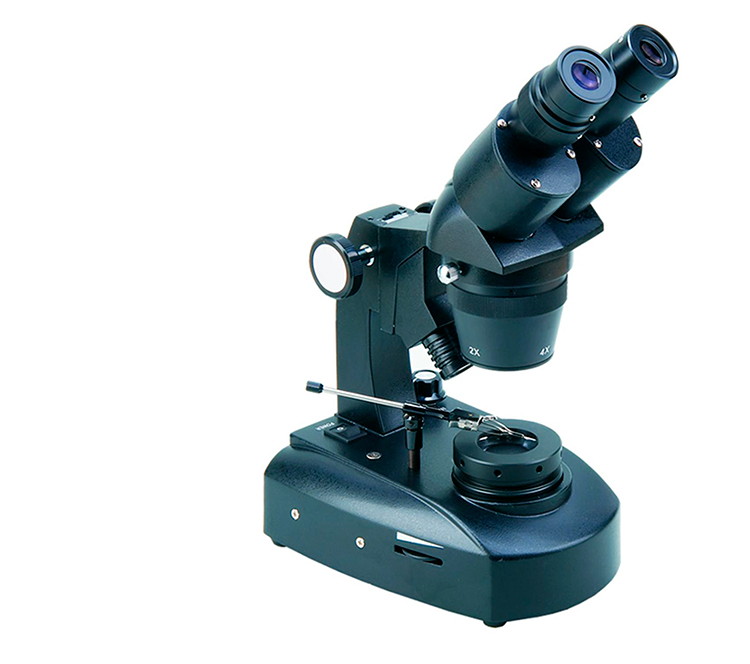

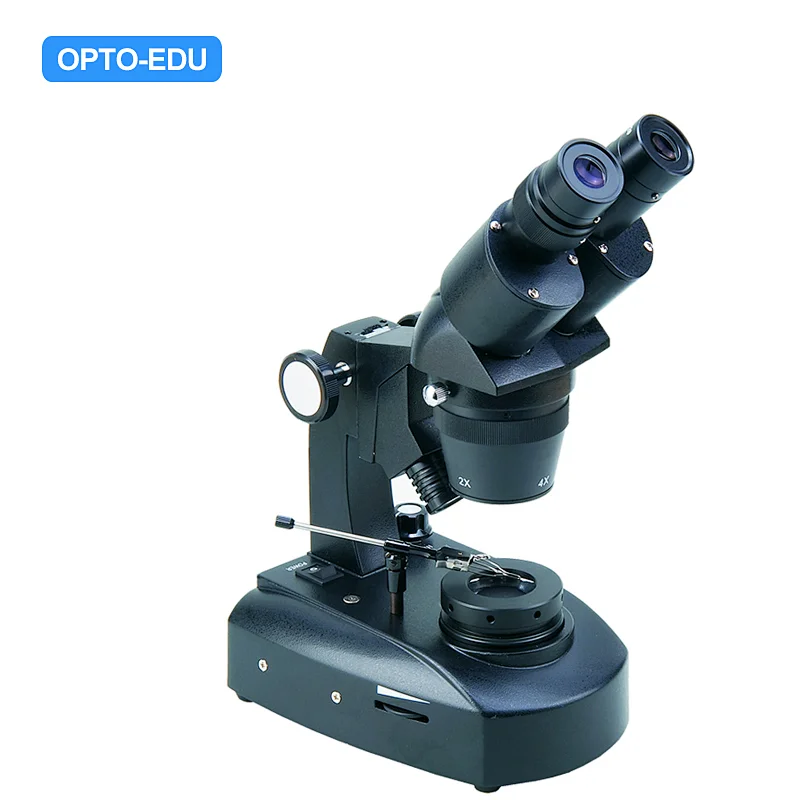

A24.1201 Jewery Microscope | ||
Head | Inclined Binocular Head,360° Rotatable | |
Eyepiece | WF10x/20mm | |
Objective | 2x/4x Standard, 1x/3x. 1x/2x Optional | |
Incident Light | Halogen Lamp 12V/10W, Brightness Adjustable | |
Transmit Light | Halogen Lamp 12V/10W, Brightness Adjustable | |
Working Distance | 90mm | |
Working Stage | Jewellery Tweezer | |
Dark Field Working Stage, With Iris Diaphram | ||
Optional Accessories | ||
Eyepiece | WF5x/18mm | E51.1221-05 |
WF15x/15mm | E51.1221-15 | |
WF20x/10mm | E51.1221-20 | |
Optical Data Sheet | ||
Objetive | Working Distance | View Field |
1x | 75mm | 20mm |
2x | 90mm | 10mm |
3x | 69mm | 7.5mm |
4x | 70mm | 5mm |

Pictures | ||||
---|---|---|---|---|
Model No. | A24.1201 | |||
Optical System
|
Greenough | |||
Standard Magnification
|
20x40x | |||
Head Type
|
Seidentopf Binocular | |||
Head Rotation
|
Head Rotate 360° | |||
Head Diopter
|
Left Tube Adjustable | |||
Eyepiece Diameter
|
30.0mm | |||
Focusing Type
|
Coarse Only | |||
Light Source Features
|
Transmit & Reflect | |||
Light Source Type
|
Halogen | |||
Power Supply Type
|
AC 110V/220V | |||
Video Adapter
|
C-Mount 0.3x | |||
Stereo Stand Type
|
Track Stand |
