Jewery Microscope, 1x-4x
Jewery Microscope, 1x-4x

A24.1202-A

Like Favorites

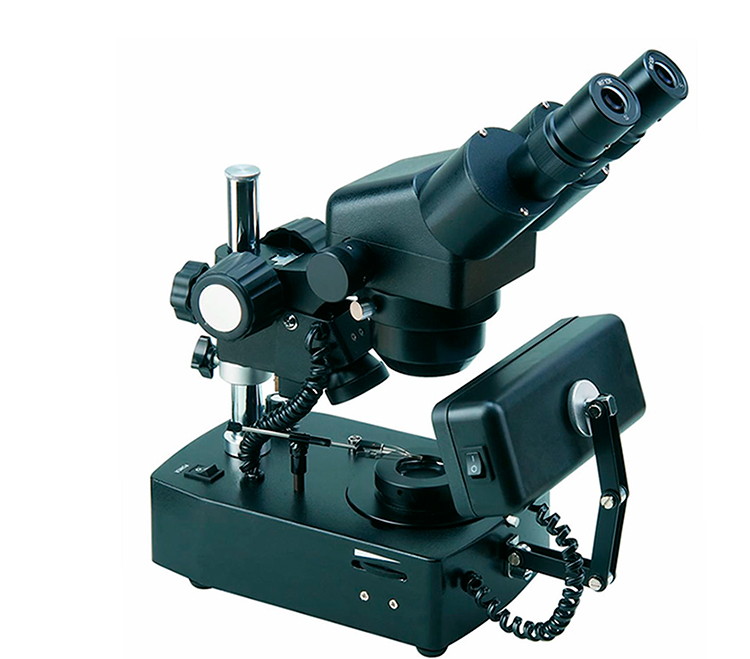

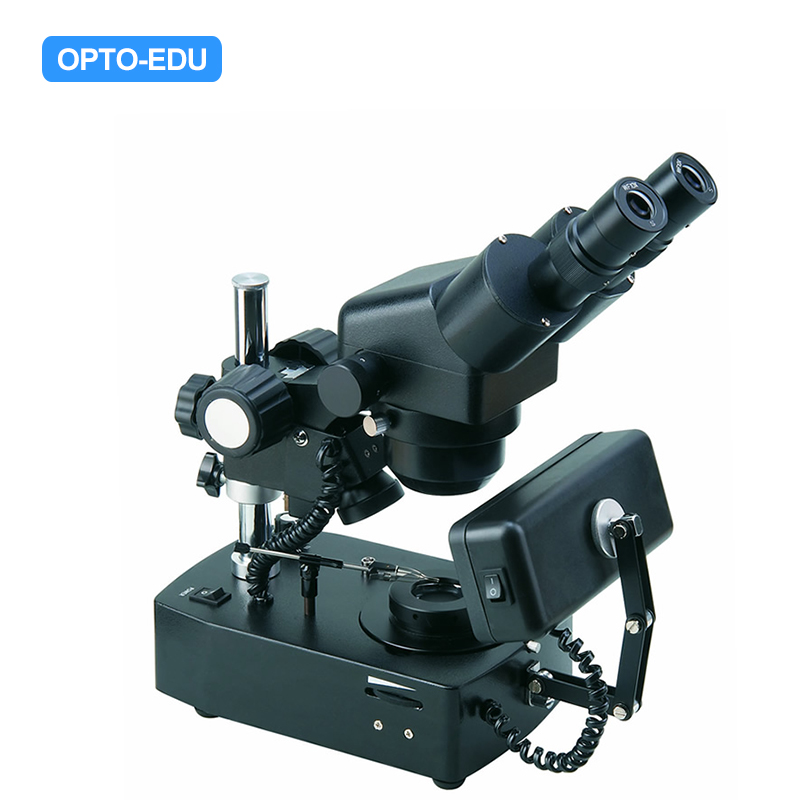

Jewery Microscope, 1x-4x

  • 1x-4x Or 0.7~3.6x Zoom Stereo Microscope
  • Total Magnification 10x-40x Or 7x-36x, With Eyepiece SWF10x/22mm
  • Reflect 12V10W Halogen + 10W Sunshine Fluorescent Light, Transmit 12V10W Halogen
  • High Quality Jewellery Tweezer Tweezer To Hold Gem Steady & Flexible

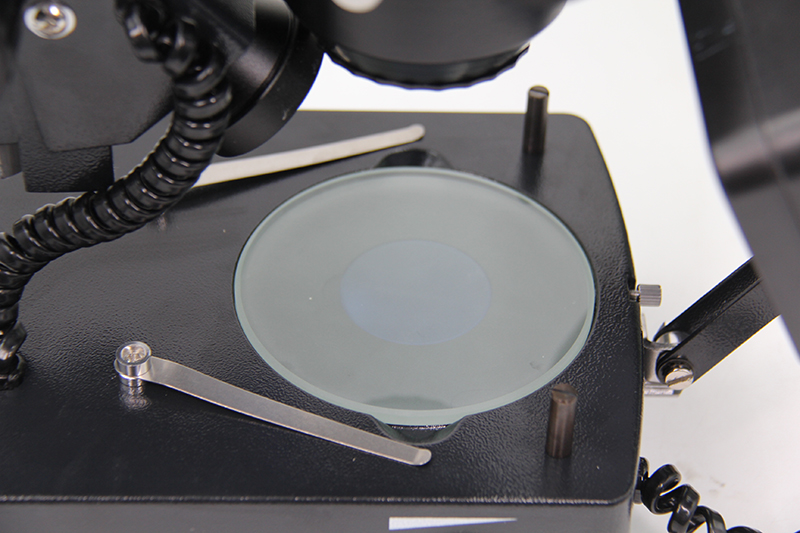

  • Dark Field Working Stage With Iris Diaphargm To Switch Bright/Dark Field
Quantity:



ItemsA24.1202 Jewery MicroscopeAB
HeadInclined Binocular Head,360° Rotatable
EyepieceSWF10x/22mm
Objective1x-4x
0.75x-3.6x
Working Distance90mm
86mm
View Field22mm-5.5mm
26mm-5.8mm
Incident LightHalogen Lamp 12V/10W, With Single Fiber
Fluorescent 10W Square
Transmit LightHalogen Lamp 12V/10W
Working StageJewel Tweezer
Dark Field Working Stage, With Diaphram
A24.1202 Jewery Microscope , Optional Accessories
EyepieceWF5x/18mmE51.1221-05
WF10x/20mmE51.1221-10
WF15x/15mmE51.1221-15
WF20x/10mmE51.1221-20

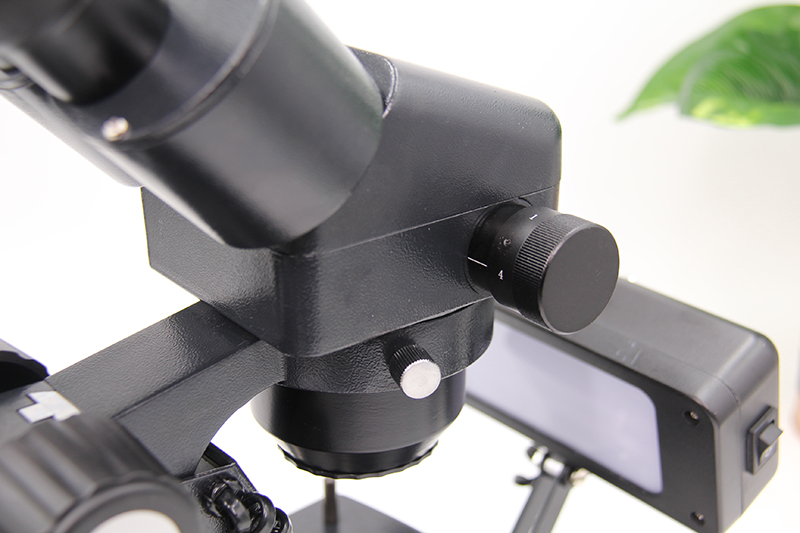

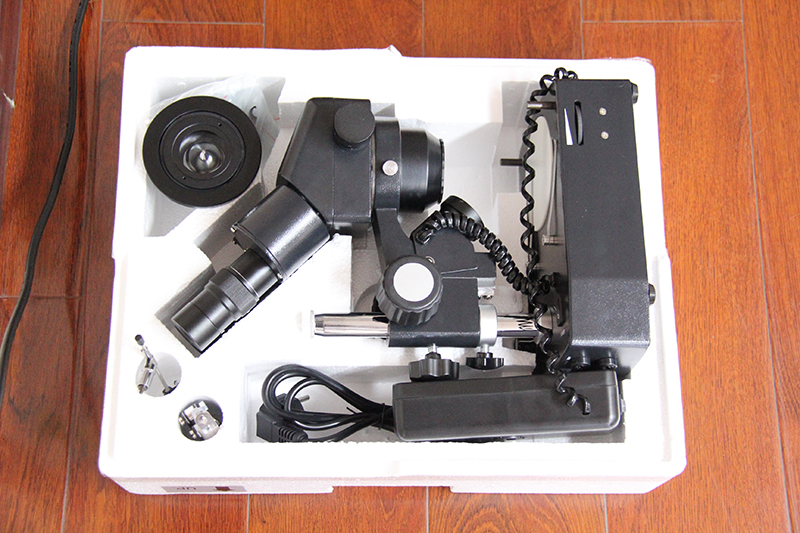

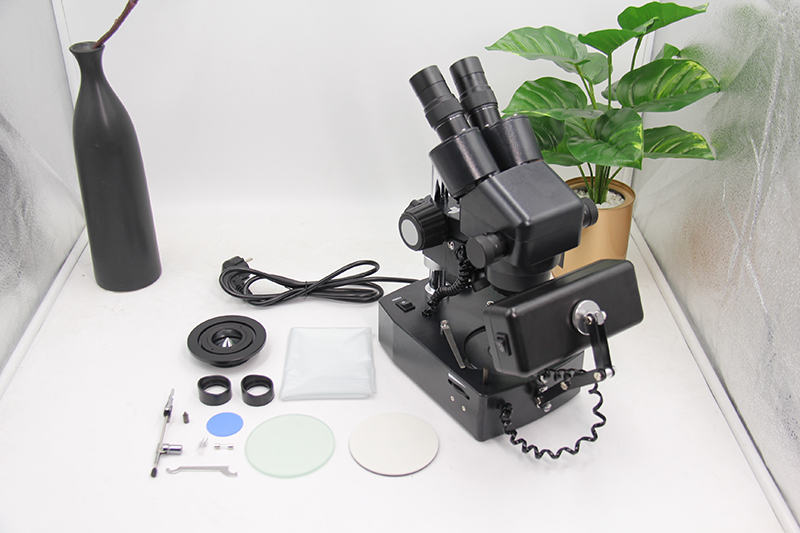

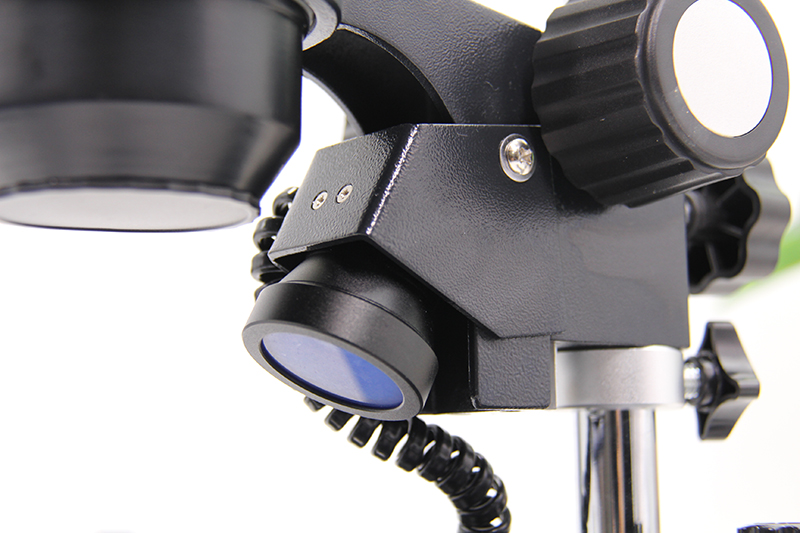

Pictures
Model No. A24.1202-A A24.1202-B
Stereo Stand Type
Pole Stand Pole Stand
Working Distance
90mm 86mm
Stereo Zoom Ratio
1:4 1:5
Power Supply Type
AC 110V/220V AC 110V/220V
Reflect Light
Halogen Lamp 12V/10W, With Single Fiber+Fluorescent 10W Square Halogen Lamp 12V/10W, With Single Fiber+Fluorescent 10W Square
Transmit Light
12V10W Halogen 12V10W Halogen
Light Source Type
Halogen
Fluorescent
Halogen
Fluorescent
Light Source Features
Transmit & Reflect Transmit & Reflect
Focusing Type
Coarse Only Coarse Only
Working Stage
Dark Field Working Stage With Iris Diaphragm, With Jewellery Tweezer Dark Field Working Stage With Iris Diaphragm, With Jewellery Tweezer
Objective
1x-4x 0.75x-3.6x
Eyepiece
SWF10x/22mm, 2 pcs SWF10x/22mm, 2 pcs
Eyepiece Diameter
30.0mm 30.0mm
Head Rotation
Head Rotate 360° Head Rotate 360°
Head Inclination
45° 45°
Head Type
Seidentopf Binocular Seidentopf Binocular
Standard Magnification
10x-40x 7.5x-36x
Standard Function
BF+DF BF+DF
