The Key To Micro World!
Digital Biological Microscope, 4.0M, HDMI+USB
Digital Biological Microscope, 4.0M, HDMI+USB
Digital Biological Microscope, 4.0M, HDMI+USB

A31.0911

Like Favorites

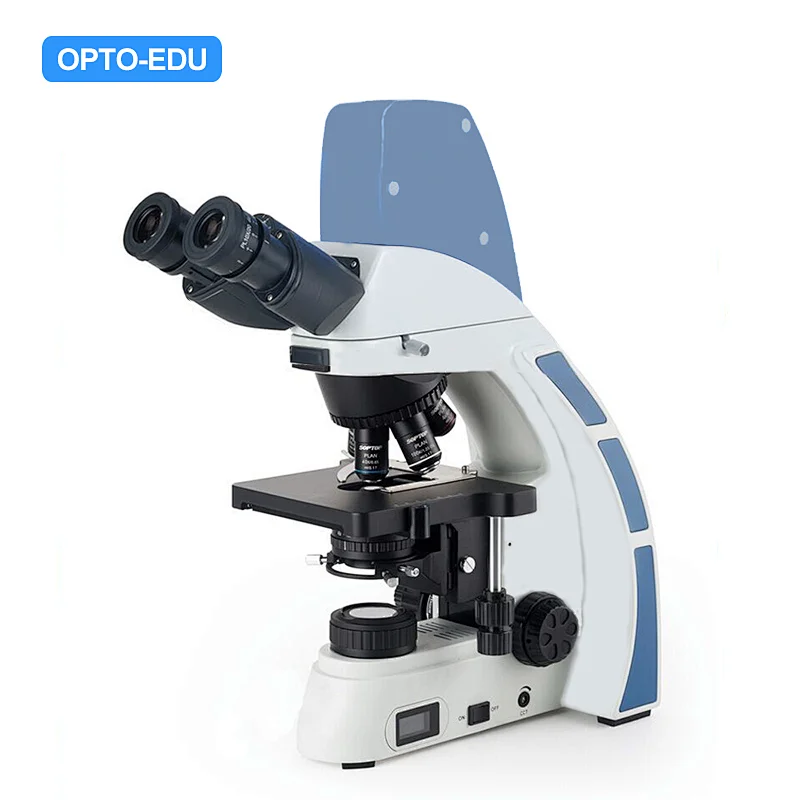

Digital Biological Microscope, 4.0M, HDMI+USB

  • Digital Binocular Head, Built-in 4.0M 1/3" CMOS Camera, Output HDMI++MiniUSB+SD Card
  • Infinity Plan Achromatic Objective 4x.10x.20.40x.100x On 5 Holes Nosepiece
  • N.A.1.25 Kohler Illumination Condenser, With Iris Diagram, Center Adjustable
  • LCD Screen On Stand Showing Color Temperature & Brightness Memory Function
  • Dark Field, Polarizing, Phase Contrast Fluorescent Funcion Upgradable
Quantity:




A31.0911 Digital Biological Microscope
Optical SystemInfinity Chromatic Aberration Correction System
HeadDigital Binocular Head, Built-in 4.0M 1/3"CMOS Camera, Output HDMI+MiniUSB+SD Card, Built-in 16G Memeory, Interpupillary Distance 50-75mm, ±5 Diopter Adjustable, Light Split 8:2
EyepieceWF10x/20mm Wide Field Eyepiece
Nosepiece5 Holes Nosepiece
ObjectiveInfinity Plan Achromatic 4x10x20x40x100x
Working StageDouble Layer Mechanical Stage 150mm×162mm
CondenserN.A.1.25
Light Source3W LED, With LCD Screen, Adjustable Color Temperature (3000K-5600K), Brightness Memory Function
PowerWide Range 100V -240V
Pictures
Model No. A31.0911
Features
Touch Control LCD
Optical System
Infinity Plan
Standard Magnification
40x-1000x
Head Type
Seidentopf Binocular
Head Interpupillary
50~75mm
Head Light Path
E80:P20
Eyepiece Features
Super WF ≥23mm
Diopter Adjustable
Eyepiece Diameter
30.0mm
Eyepiece
PL10x/20mm, 2 pcs
Nosepiece Features
Inward
Nosepiece Holes
5 Holes
Objective Type
Infinity Plan
Objective
Infinity Plan Achromatic 4x10x20x40x100x
Working Stage Features
Double Slide Holder
Size ≥140x140mm
Working Stage Type
2 Layers Mechanical
Working Stage Size
150×162mm
Working Stage Moving
76×50mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Condenser Features
Rack & Pinionↆ↑
Filter Holder
Center Adjustable
Slot For DF Slide
Slot For PH Slide
Condenser Type
Abbe
Condenser N.A.
1.25
Light Source Type
LED
Transmit Light
3W LED
Video Adapter
C-Mount 0.3x
Camera Sensor Size
1/3"
Camera Output
USB
HDMI
SD/TF Card
System Support
Win10
