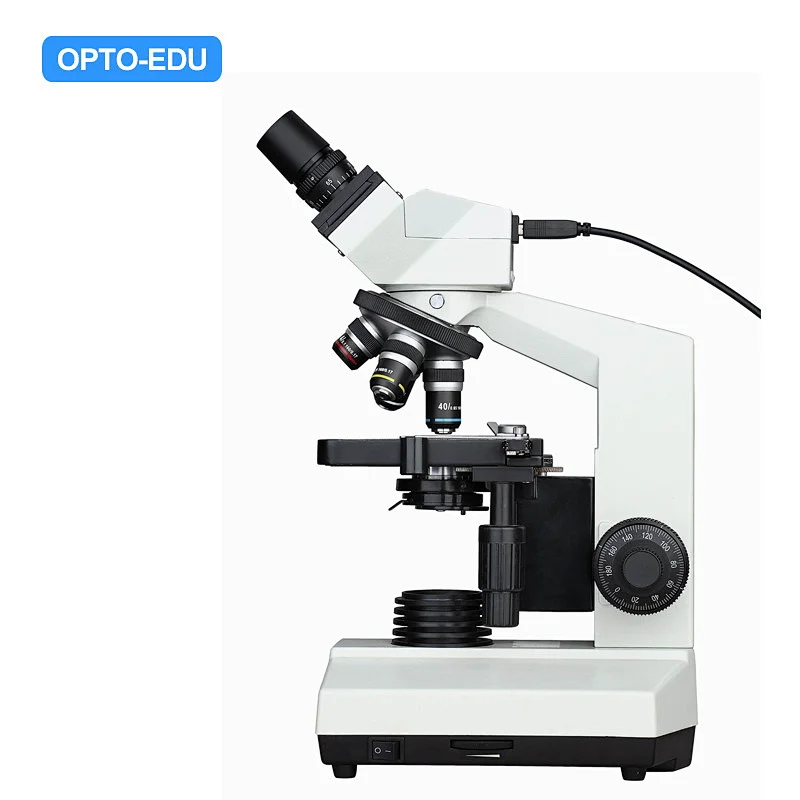

Digital Microscope, Binocular, 3.0M


  • 1.3M/2.0M USB2.0 Built-in Digital Camera Binocular Head
  • Total Magnification 40x-1000x With Achromatic Optical System
  • Double Layers Mechanical Stage140×140mm/75×50mm
  • With Software For Measurment, Support Win7, Win10
  • 1W Powerful LED Illumination, Brightness Adjustable
Quantity:



ItemsA31.1007 Digital Biologcial Microscope1.3M3.0M
HeadSliding Binocular Head, Inclined at 45° inclined, Interpupilary 55-75mm
Digital Camera 1.3M Pixlels, 1280x1024
Digital Camera 3.0M Pixlels, 2048x1536
USB 2.0 Output
Operation System: Windows 2000/XP/Vista
Software : ScopeImage Plus
Range of Viewing Field >75%
EyepieceWF10x/18
NosepieceForward Quadruple Nosepiece
ObjectiveAchromatic 4x,
Achromatic 10x
Achromatic 40x
Achromatic 100x
StageDouble Layers Mechanical Stage 140X140mm/75X50mm
CondenserAbbe N.A.=1.20 with Iris Diaphragm & Filter
FocusingCoaxial Coarse & Fine Focus Adjustment, Moving Range:28mm, Fine Division 0.002mm
Light SourceHalogen Lamp 6V/20W , with brightness adjustable, 110V/220V
Optional AccessoriesItems NO.
Eyepiece P16x/11A51.1002-16
Phase Contrast KitA5C.1009
Dark FieldA5D.1014
PolarizationA5P.1007
Pictures
Model No. A31.1007-3.0M A31.1007-1.3M
Function
BF BF
Optical System
Achromatic Achromatic
Standard Magnification
40x-1000x 40x-1000x
Head Type
Sliding Binocular Sliding Binocular
Head Inclination
45° 45°
Head Rotation
Head Rotate 360° Head Rotate 360°
Head Interpupillary
55~75mm 55~75mm
Head Diopter
Both Tube Adjustable Both Tube Adjustable
Eyepiece Features
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Eyepiece Diameter
23.2mm 23.2mm
Eyepiece
WF10x/18mm, 2 pcs WF10x/18mm, 2 pcs
Nosepiece Holes
4 Holes 4 Holes
Nosepiece Features
Outward Outward
Objective Type
Achromatic Achromatic
Objective
Achromatic 4x10x40x100x Achromatic 4x10x40x100x
Working Stage Type
Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Working Stage Size
140x140mm 140x140mm
Working Stage Moving
75x50mm 75x50mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine
Focusing Range
28mm 28mm
Focusing Scale
0.002mm 0.002mm
Condenser Type
Abbe + Iris Diaphragm Abbe + Iris Diaphragm
Condenser N.A.
1.20 1.20
Light Source Feature
Brightness Adjustable Brightness Adjustable
Light Source Type
Halogen Halogen
Transmit Light
6V20W Halogen 6V20W Halogen
Power Supply Type
AC 110V/220V Optional AC 110V/220V Optional
Camera Type
USB2.0 CMOS USB2.0 CMOS
Camera Pixel
3.0MP 1.3MP
Camera Output
USB2.0 USB2.0
System Support
Win2000/XP
Win7, 64 Bits
Win10, 64 Bits
Win2000/XP
Win7, 64 Bits
Win10, 64 Bits
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Dark Field
Polarizing
Phase Contrast
