A31.6603-5.0M

Like Favorites

Digital Biological Microscope, 5.0M


  • Buitl-in 5.0M Digital Camera 1/2" CMOS, Resolution 2952x1944, 15-30fps
  • Light Split E20:P80 Binocular Head With Dustproof Moisture-Proof Design
  • Supplied With Professional Analysis Software, Pad Holder Optional
  • Binocular, WF10x/20, Quadruple, Infinity E-Plan 4x10x40x100x Objectives
  • 3W LED Light Source With Safety Low Voltage Charger
Quantity:



Digital Camera

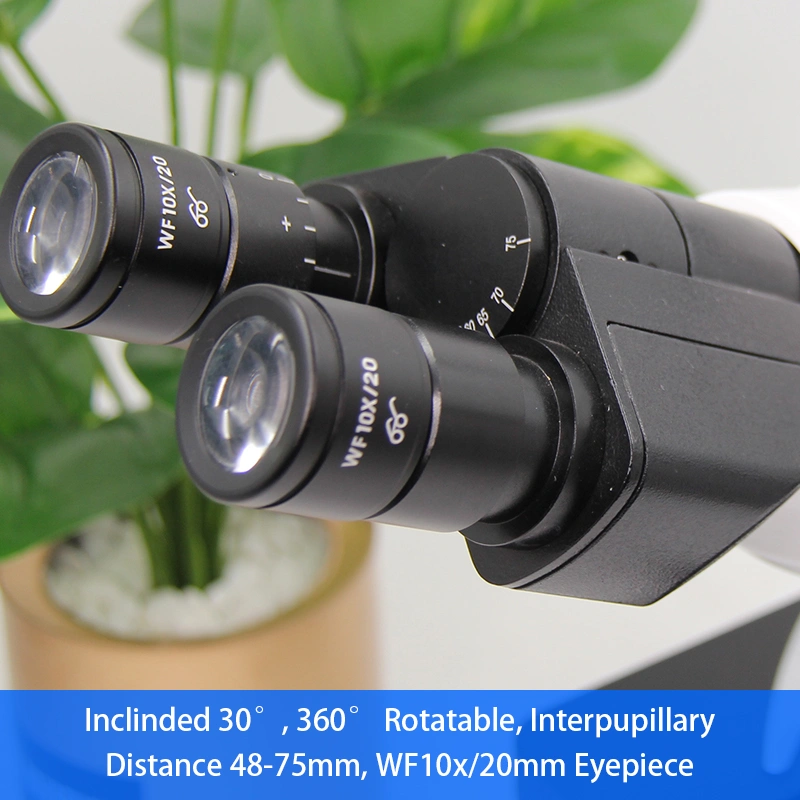

Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Light Split Fixed P20/E80
5.0M 1/2"CMOS USB2.0 Digital Camera Built-in


Eyepiece
Interpupillary Distance: 48-75mm
WF10X/20mm (High Eyepoint)

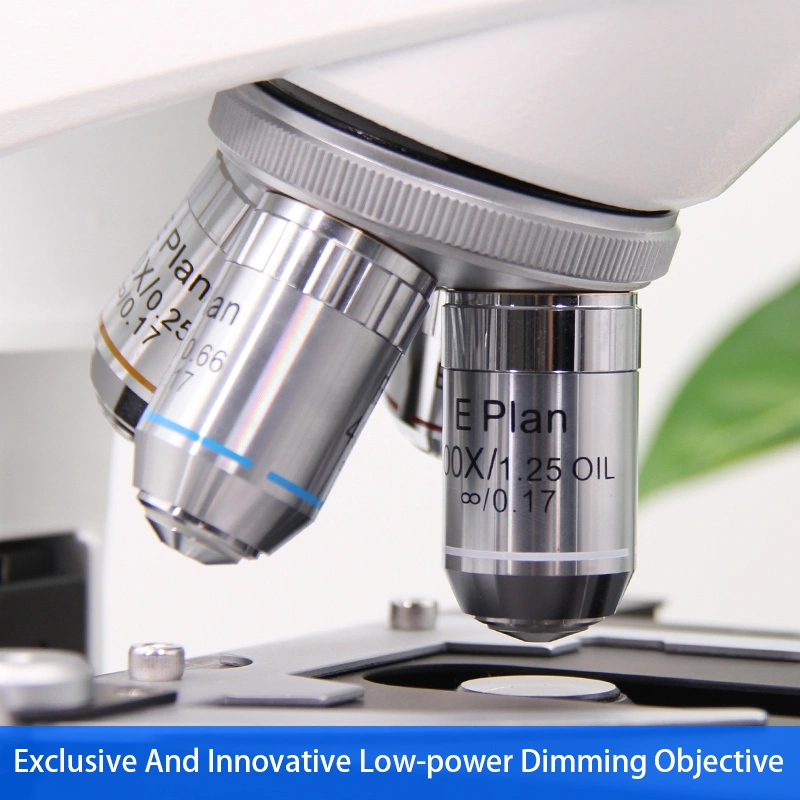

Exclusive And Innovative Low-power Dimming Objective & Mechanical Stage
No Need To Adjust The Brightness Between High And Low Power Objectives
Mechanical Stage Size 145×140mm, Travel Range 76×52mm

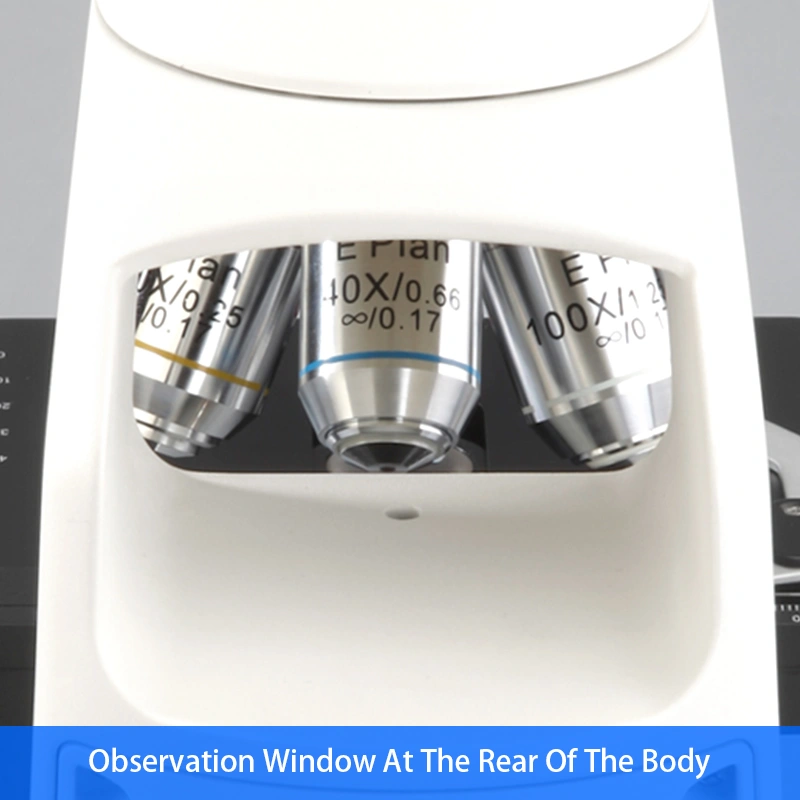

Wire Winding Device & Observation Window At The Rear Of The Body
For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back

Condenser & Light Source

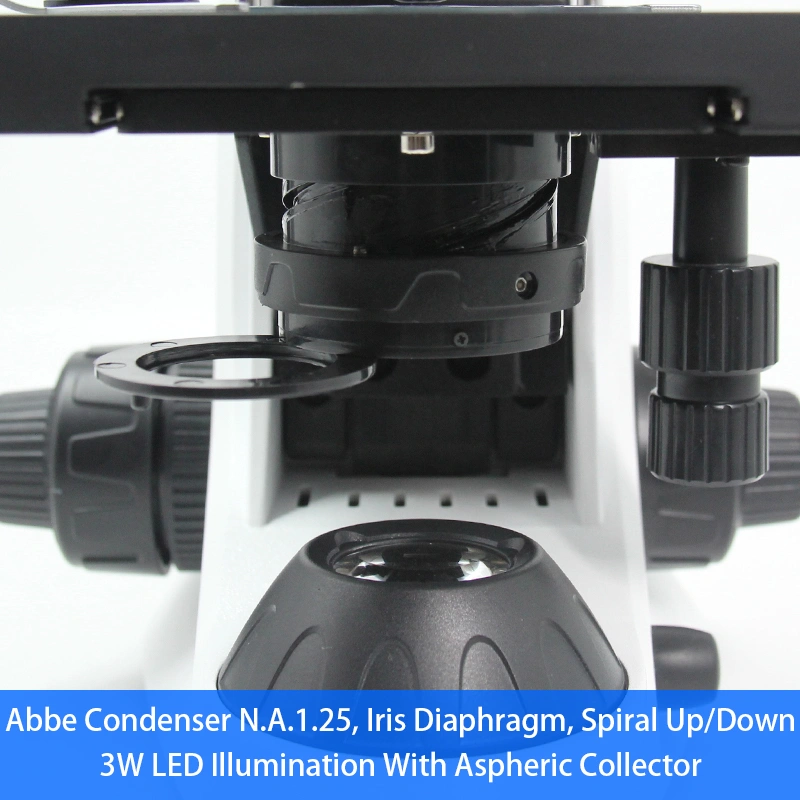

Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder
3W LED Illumination With Aspheric Collector


ItemsA31.6603 Digital Biological Microscope, 5.0M5.0M5.0MHCata. No.
Digital Camera System5.0M 1/2"CMOS USB2.0 Digital Camera Built-in A53.2602-5.0M
5.0M 1/2"CMOS USB2.0 Digital Camera Built-in, With Holder For Pad A53.2602-5.0MH
HeadSeidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm, Light Split Fixed P20/E80A53.2602-B
EyepieceWF10x/18mmA51.2602-1018
WF10X/20mm (High Eyepoint)A51.2602-1020
WF16x/13mmA51.2602-1613
WF10x/18mm With PointerA51.2604-1018
WF10x/18mm With Micrometer 0.1mm*180 DivA51.2605-1018
WF10x/18mm With Micrometer 0.1mm*180 Div, Diopter AdjustableA51.2605-1018D
NosepieceQuadruple, BackwardA54.2610-N03
Infinity Eplan ObjectiveEPLAN 4x/0.10,W.D.=12.1mmA52.2605-4
EPLAN 10x/0.25,W.D.=4.14mmA52.2605-10
EPLAN 40x/0.65(S),W.D.=0.58mmA52.2605-40
EPLAN 100x/1.25(S, Oil),W.D.=0.19mmA52.2605-100
Infinity Plan ObjectivePLAN 2.5x/0.07,W.D.=8.47mmA52.2606-2.5
PLAN 4x/0.10.W.D.=12.1mmA52.2606-4
PLAN 10x/0.25.W.D.=4.64mmA52.2606-10
PLAN 20x/0.40(S).W.D.=2.41mmA52.2606-20
PLAN 40x/0.66(S).W.D.=0.65mmA52.2606-40
PLAN 60x/0.80(S).W.D.=0.33mmA52.2606-60
PLAN 100x/1.25(S,Oil).W.D.=0.12mmA52.2606-100
PLAN 100x/1.15(S,Water).W.D.=0.19mmA52.2606-100W
Working StageMechanical Stage Size 145×140mm, Travel Range 76×52mm, Scale 0.1mm, Double Slide HolderA54.2601-S04

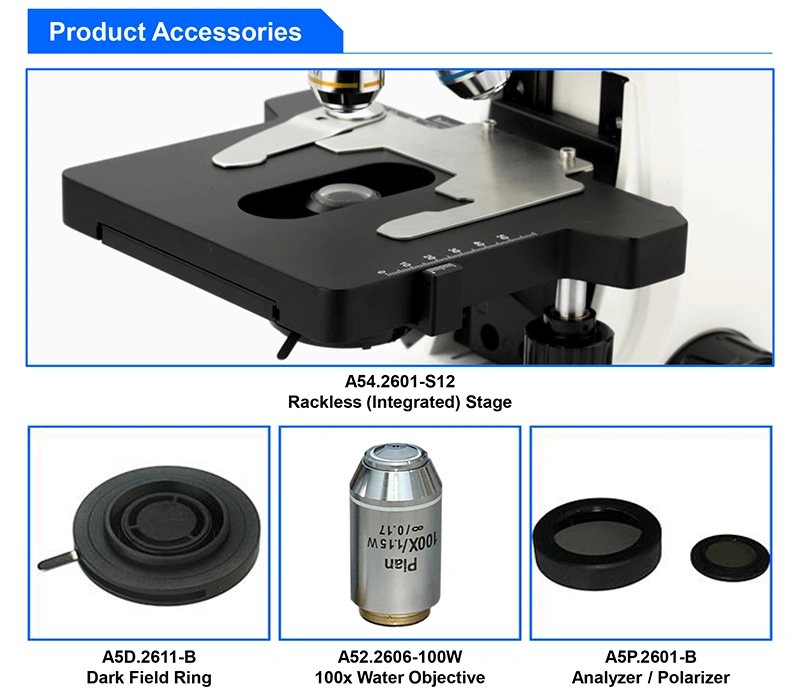

Rackless (Integrated) Stage, Size 140×135mm, Travel Range 75x35mm, Double Slide HolderA54.2601-S12
CondenserAbbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter HolderA56.2614-09

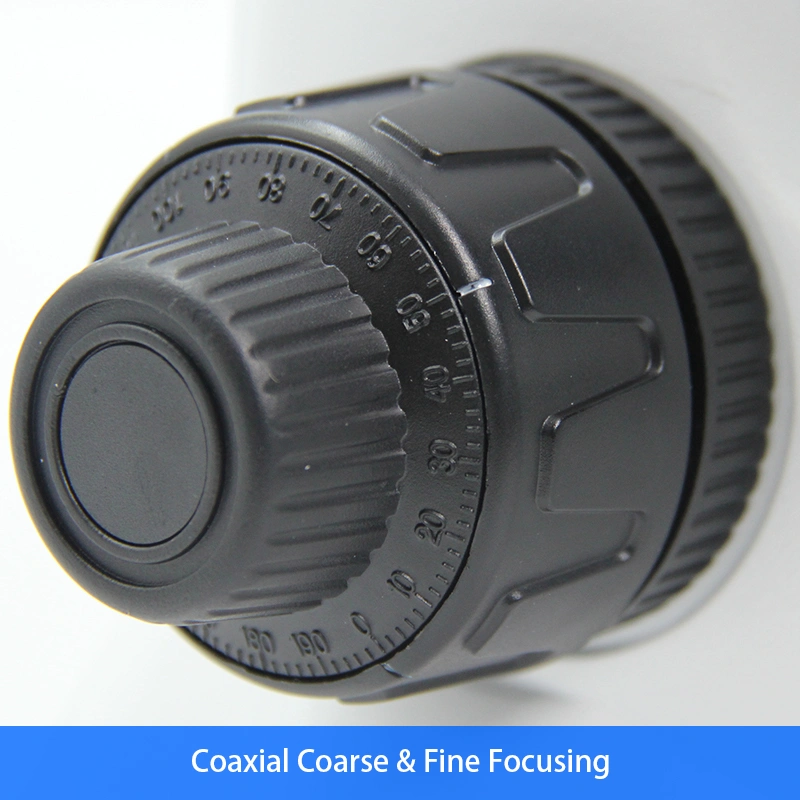

FocusingCoaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 25mm, Fine Focusing Scale 2µm/Division
Light Source3W LED Illumination With Aspheric Collector

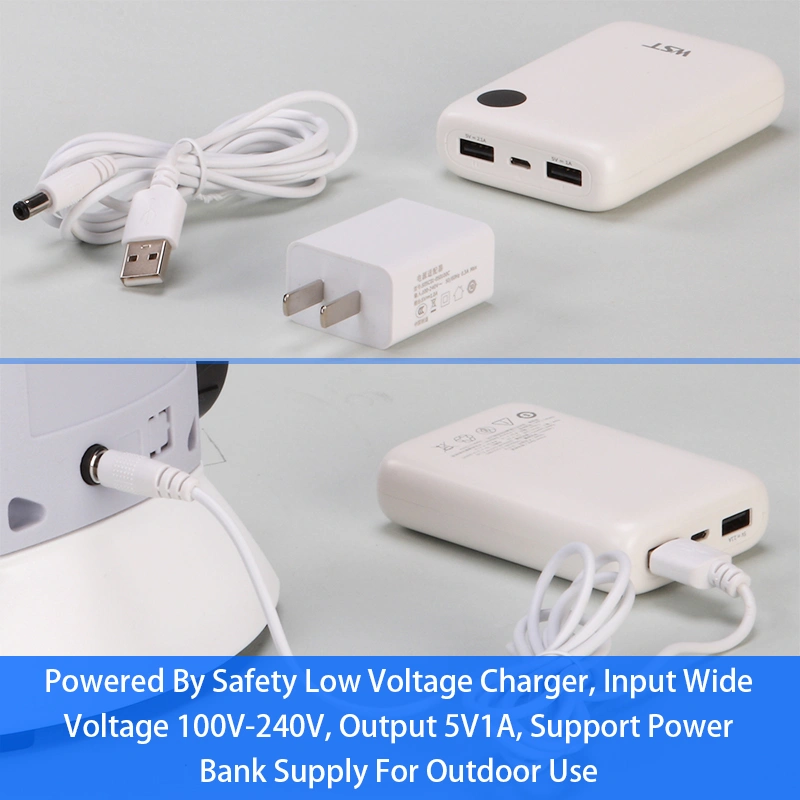

Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2612-3W
Dark FieldDark Field Ring, For 4x~40x ObjectiveA5D.2611-B
PolarizingAnalyzer + Polarizer SetA5P.2601-B3

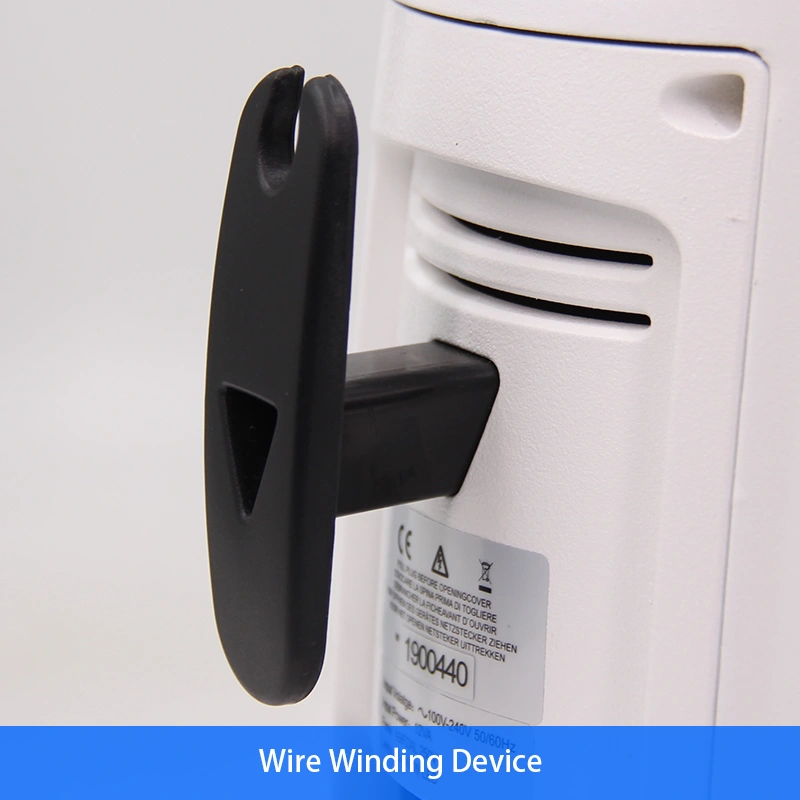

AttachmentWire Winding DeviceA50.2602
SoftwareDigital Image Analysis Software, for Windows2000 / XP / Vista
PackageCarton Size 345×260×455mm, 1 Unit/Ctn
WeightGross Weight 7.0kgs, Net Weigth 5.5kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.
Pictures
Model No. A31.6603-5.0M A31.6603-5.0MH
Function
BF —— BF
Features
Infinity —— Infinity
Optical System
Infinity Semi-Plan Infinity Semi-Plan Infinity Semi-Plan
Standard Magnification
40x-1000x 10x 40x-1000x
Optional Magnification
40x-1600x 100x 40x-1600x
Head Type
Seidentopf Trinocular —— Seidentopf Trinocular
Head Inclination
30° —— 30°
Head Rotation
Eyetube Rotate 360° —— Eyetube Rotate 360°
Head Interpupillary
48~75mm —— 48~75mm
Head Diopter
Left Tube Adjustable —— Left Tube Adjustable
Head Light Path
Fixed E80:P20 100x Fixed E80:P20
Eyepiece Features
Wide Field
High Eyepoint
Diopter Adjustable
—— Wide Field
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
23.2mm —— 23.2mm
Working Distance
—— 格式:1.0,或1.0~2.0 ——
Eyepiece
WF10x/20mm, 2 pcs —— WF10x/20mm, 2 pcs
Nosepiece Holes
4 Holes —— 4 Holes
Nosepiece Features
Backward —— Backward
Objective Type
Infinity E-Plan —— Infinity E-Plan
Objective Features
With Iris Diaphragm —— With Iris Diaphragm
Working Stage Type
Double Layers Mechanical —— Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
—— Double Slide Holder
Large Size >140x140mm
Working Stage Size
145x140mm 格式:100x100mm,或 Dia.100mm 145x140mm
Working Stage Moving
76x52mm —— 76x52mm
Working Stage Spec.
Scale 0.1mm —— Scale 0.1mm
Focusing Features
Safety Stop Screw
Tension Adjustable
—— Safety Stop Screw
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine —— Coaxial Coarse & Fine
Focusing Range
25mm 0.000000 25mm
Focusing Scale
0.002mm 0.000000 0.002mm
Condenser Type
Abbe + Iris Diaphragm —— Abbe + Iris Diaphragm
Condenser N.A.
1.25 —— 1.25
Condenser Features
Sprial Up/Down
With Filter Holder
—— Sprial Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable
LED 3W
—— Brightness Adjustable
LED 3W
Light Source Type
LED —— LED
Transmit Light
3W LED —— 3W LED
Power Supply Type
DC 5V-12V Low Voltage —— DC 5V-12V Low Voltage
Camera Type
USB2.0 CMOS —— USB2.0 CMOS
Camera Pixel
5.0MP —— 5.0MP
Camera Sensor Size
1/2" —— 1/2"
Camera Output
USB2.0 —— USB2.0
System Support
Win7, 64 Bits
Win10, 64 Bits
—— Win7, 64 Bits
Win10, 64 Bits
Other Specification

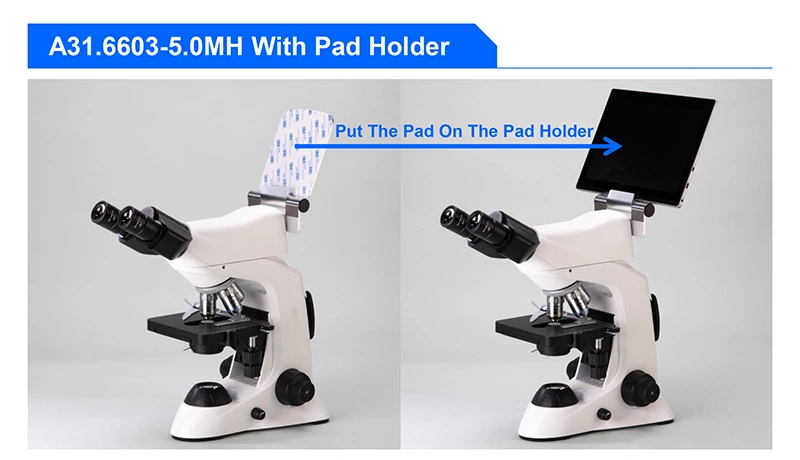

Without Pad Holder —— With Pad Holder
