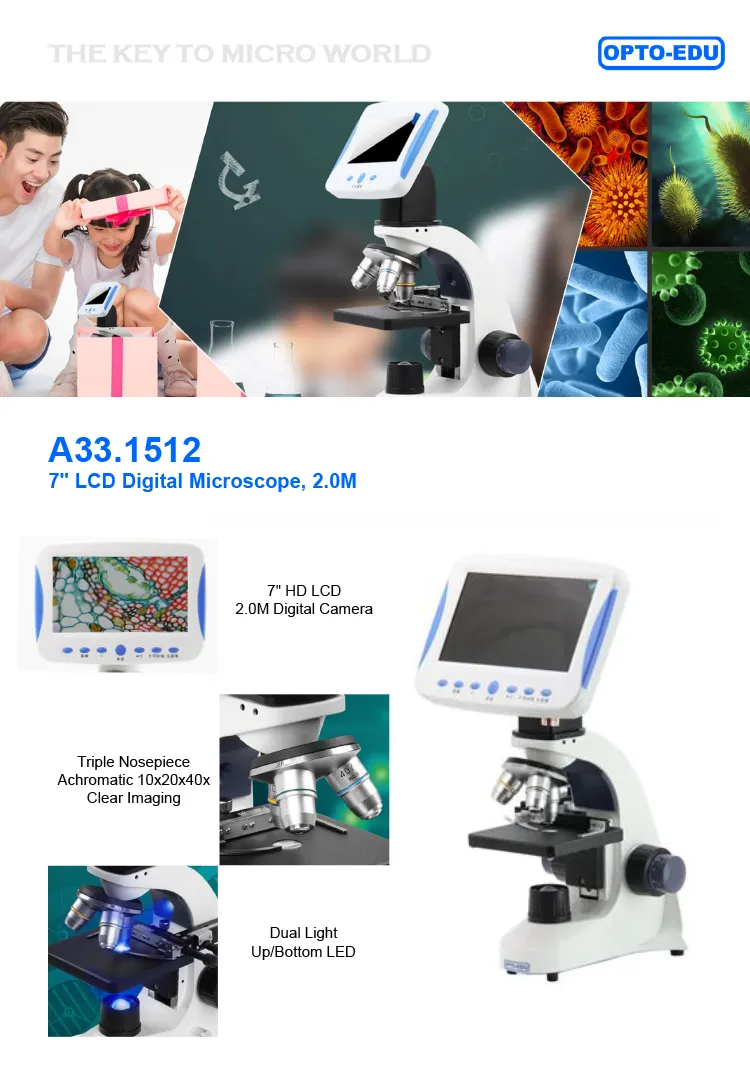

7" LCD Digital Microscope, 2.0M


  • All-in-On 7" LCD Screen With Built-in HD Digital Camera 2.0M
  • High Quality Achromatic Objective 10x, 20x, 40x On Triple Nosepiece
  • Double Layers Mechanical Stage With Abbe Condenser And Iris Diaphragm
  • Dual Light Up/Bottom LED, Brightness Adjustable For Watching Prepared Slide Or Small Object
  • Powered By USB Adapter or By USB Port of Computer, USB Bank For Outdoor Work
Quantity:



A33.1511, A33.1512, A33.1513 LCD Digital Microscope, 2.0MA33.1511A33.1512A33.1513
MagnificationTotal Magnification 70x~280x on 4.3"LCD Screen
Total Magnification 130x~520x on 7"LCD Screen
LCD4.3"LCD Screen, 3 Buttons, LCD Menu Support Brightness/Contrast/Color Adjust, Switch Between 16:9/4:3 Modes, Viewing Area 95*55mm, Support 10 Languages.
7.0"LCD Screen, 7 Buttons LCD, Menu Support Brightness/Contrast/Color Adjust, Switch Between 16:9/4:3 Modes, Viewing Area 155*85mm, Support 10 Languages.
Simple Measure Function, By Cross Scale Line With Setted Scale For 4x,10x,40x.

CameraHD Digital Camera 2.0M All-in-One Design
ObjectiveAchromatic 10x/0.25, 20x/0.4x, 40x/0.65(Spring)
NosepieceOutward Triple With Clip Stop
Working StageSingle Layer Working Stage 105x105mm, With Vernial Scale Ruler Moving Range 50x30mm
Double Layers Mechanical Stage 105x105mm, Moving Range 50x30mm
Single Layer Heating Stage 105x105mm, With Vernial Scale Ruler Moving Range 50x30mm

1. The Heating Stage Will Auto Heated to 38° When Power Switch On.
2. Push +/- To Set The Temperature From 15°to 50°, It will Reach Set Temperature Slowly.
3. Real Time Temperature Is Shown On the Window

CondenserSingle Lens Condenser
Abbe Condenser With Iris Diaphragm
FocusingCoaxial Coarse & Fine Focusing Knob, Focusing Range 16mm
IlluminationDual Light Up/Bottom LED, Brightness Adjustable
PowerPowered By USB 5V Charger, Input AC100V-240V 50/60HZ, or By USB Port of Computer, USB Bank For Outdoor Work
Powered By USB 12V5A Charger

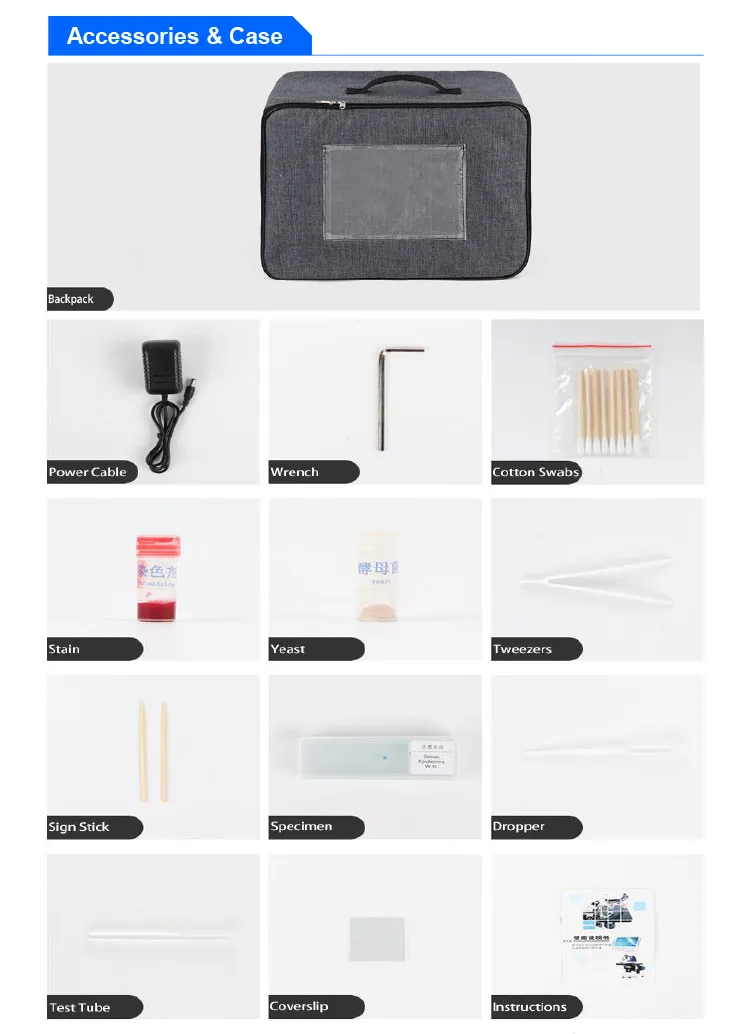

AccessoryFull Set Accessory Kit,
PackingWith Carry Box, Packed In Master Carton, 25*31*43cm/3Kgs







Pictures
Model No. A33.1512
Function
BF
New Product Year
2020
Optical System
Achromatic
Standard Magnification
40x-400x
Head Inclination
0-90° Tiltable
Head Specification
7" LCD + Digital Camera 2.0M All-in-One Head
Nosepiece Holes
3 Holes
Objective Type
Achromatic
Objective
Achromatic 10x/0.25, 20x/0.4x, 40x/0.65(Spring)
Working Stage Type
Double Layers Mechanical
Working Stage Size
105x105mm
Working Stage Moving
30x50mm
Focusing Type
Coaxial Coarse & Fine
Focusing Range
16mm
Condenser Type
Abbe + Iris Diaphragm
Condenser N.A.
1.25
Light Source Feature
Brightness Adjustable
Transmit & Reflect
Light Source Type
LED
Transmit Light
LED, Brightness Adjustable
Reflect Light
LED, Brightness Adjustable
Power Supply Type
DC 5V-12V Low Voltage
Camera Type
USB2.0 CMOS
Camera Pixel
2.0MP
Camera Screen Size
7"
Other Specification
With Accessory Kit, With Carring Case
