A36.4932 12.5"LCD Digital Microscope
Aptina AR0330 CMOS Sensor
3.5M2304*1536 (3,538,944 Pixels)
Sensor Optical Format
1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
SNR(Signal Noise Ratio)
Real-time auto, Single auto, Manual Adjustment
Real-time Auto, Single Auto, Manual Adjust R G B separately
Display (preview )Resolution
HD:1920*1080i60, 1920*1080P30, 1280*720P60, 640*480P60(Auto fit by the monitor )
Picture Format: JPG
HD: 2304*1536, 2304*1296, 1920*1080, 1280*720, 800*480
HD: 1280*720@30FPS, 800*480@30FPS
HD: TF card (Maximum support 64G)
Power adapter: Input:AC 100~240V/50~60Hz;Output DC 12V/5A/60W
Depth Of Field
4.8x~55x, with 12.5” LCD, including digital magnification
5mmx2.8mm( on the highest magnification)~57mmx32mm( on the lowest magnification 55x)

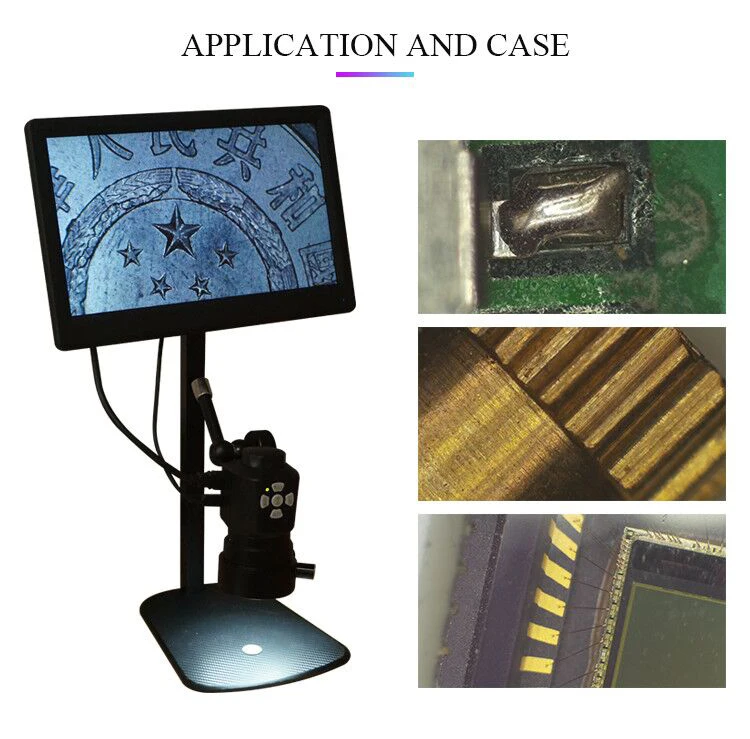

|A36.4932 HD microscope is compact in size, is comprised of a video microscope, HD camera, LED lighting and monitor. Offering truly imaging plus the flexibility and convenience of digital image capture. Combining the ergonomic benefits of this unique integration, it eliminates the vision limitations of traditional microscope, allowing operators freedom of head movement, providing superb ergonomics and hand-eye co-ordination.|
|1. It has unique manual focus knob on top of camera helps you to product the sharpest image within the working distance (33mm~320mm) when the observation object size changed from small to large. Avoid tedious adjustment work and directly change the working distance through eye-height adjustment ring and expand the original magnification ratio of the microscope.|
2.4.8x~55x overall magnification (Based on actual measurement on 12.5” monitor ).It is ideal complete solution for low magnification inspection, operation, repairing and reporting .
3. With a factory integrated 3.5MP 1080i 60pfs digital camera and 8.0MP HD lens.
4. Fatigue-free optical observation under excellent diffuse light & external coaxial light.
5.Outstanding ergonomics design with 360° universal shaft bracket, to hover randomly. It is flexible and easy to use, convenient for operator to view from different angles. Free up the operator’s head and body , the work efficiency can be improved and fatigue can be reduced effectively .
6.Integrated solution -one device can achieve multiple function of low magnification tasks; Equipped with all-in-one 12.5’ monitor, when needed, operator can fine-tune screen angle to look up ( max 90 °) or look down (max 24°)
7.Simple ,easy to use image and video capture software is included as standard to allow you to use it instantly .
