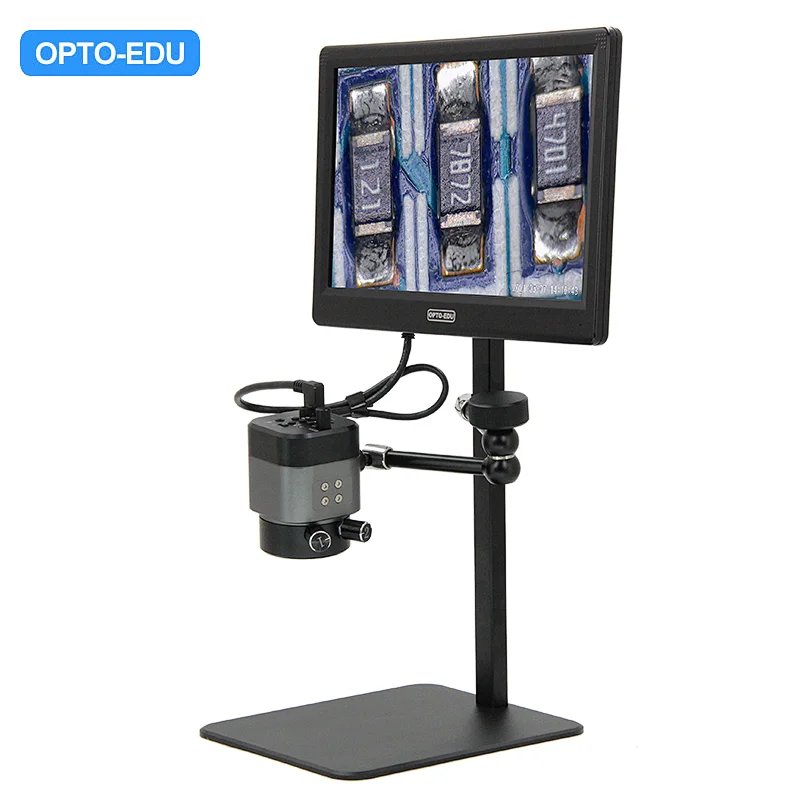

12.5" LCD HDMI+USB Digital Microscope, 3.6x-39.4x, 2.0M


  • 12.5" Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
  • Professional Multi-Function Image Processing Software Support Measure Function On Computer
  • Unique Design Back Focus Knob On Camera Extends Working Distance To 44~230mm
  • Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
  • Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
Quantity:



















FeaturesA34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work.

A34.4970
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design
Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5"LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting


A36.4970
--12.5"Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5"LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting


A36.4971
--12.5"Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
--Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5"LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting
A34.4970, A36.4970 HDMI +USB LCD Digital MicroscopeA34.4970A36.4970A36.4971
Data Outpu5G WIFI Output---
HDMI Output
USB Output
Manification5.3x-39.4x, On 12.5"LCD Monitor
3.6x-39.4x, On 12.5"LCD Monitor
6.0x-39.4x, On 12.5"LCD Monitor
Resolution2.0M
SensorSONY CMOS IMX291
Max Pixels1920x1080 (2,073,600 Pixels)
Sensor Size1/2.8'' (6.058mm(H) x 4.415mm(V))
Pixel Size2.9μm x 2.9μm
Dynamic Range128dB
SNR30dB
Spectral Response380~650nm
ExposureReal-time Auto, Single Auto, Manual Adjustment
White BalanceReal-time Automatic, Single Automatic, Manual R/G/B Adjustment
HDM PortOutput Image Max 1920x1080P, 60fps, Auto-adaptive Display
USB Type C PortSupport 2 Modes: Power In, Or USB Image Output To Computer
StorageTF Card, Max Support 128G
Remote ControlSupport Photo, Record, Digital Zoom In/Out, Menu Setting
Record FormatPhoto
1920x1080
Format JPG

Video:
1920X1080P, 60fps1920X1080P30,1280x720P120,1280x720P60
Format MOV
Power ByDC 5V 900mA, By USB Port
DC 12V 3A, By Adapter Connected To LCD Screen
Working Distance44mm~230mm
Depth of View 0.8mm~6.5mm
Field of View7mmx4mm (At The Highest Magnification 39.4x) to
45.7mmx25.8mm (At The Lowest Magnification 6x)
FocusExtra Back Focus Knob, Focus To Clear Image Quickly And Easily In Large Range, Extend Working Distance To 44mm~230mm
Light SourceDual LED Ring Light Built-in, Vertical Illumination And Diffuse Illumination Independent Switch, Both Brightness Adjustable
LCD ScreenSize: 12.5"Full HD 1080p Display
Type: a-Si TFT-LCD/IPS/Fog Screen
Number of Pixels: 1920x1080
Display Color: 16.7M
Panel Brightness: 300 nits
Contrast: 800:1
Viewing Angle: Horzontal/Vertical 170° Adjustable
-
Stand360° Universal Hinge Bracket Design, Supports Arbitrary Hovering, Flexible And Easy To View Object From Any Angle
Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
Metal Plate Size 180x215mm, Large Size For Mobile Repair Work
Note:""In Table Is Standard Outfits,""Is Optional Accessories"-"Is Unavailable
Pictures
Model No. A36.4970
Function
BF
Features
USB Power Supply
New Product Year
2021
Standard Magnification
3.6x-39.4x
Working Stage Size
180x215mm
Light Source Feature
Coaxial Illumination
Oblique Illumination
Light Source Type
LED
Ring Light
Reflect Light
Dual LED Ring Light
Power Supply Type
AC 90V-240V Wide Voltage
USB Power Supply
Camera Type
HDMI+USB
Camera Features
Manual Focus
Camera Pixel
2.0MP
Camera Sensor Size
1/2.8"
Camera Screen Size
12.5"
Camera Output
USB2.0
HDMI
TF Card
System Support
Win7, 64 Bits
Win10, 64 Bits
