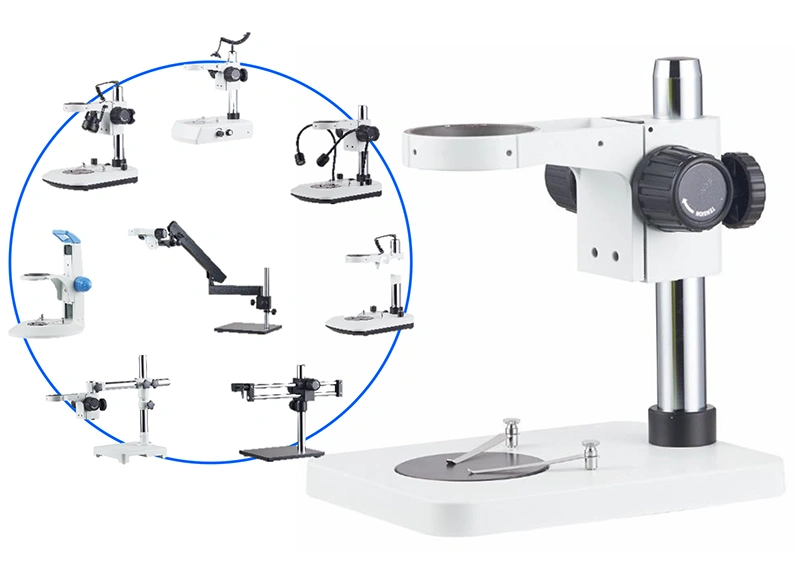

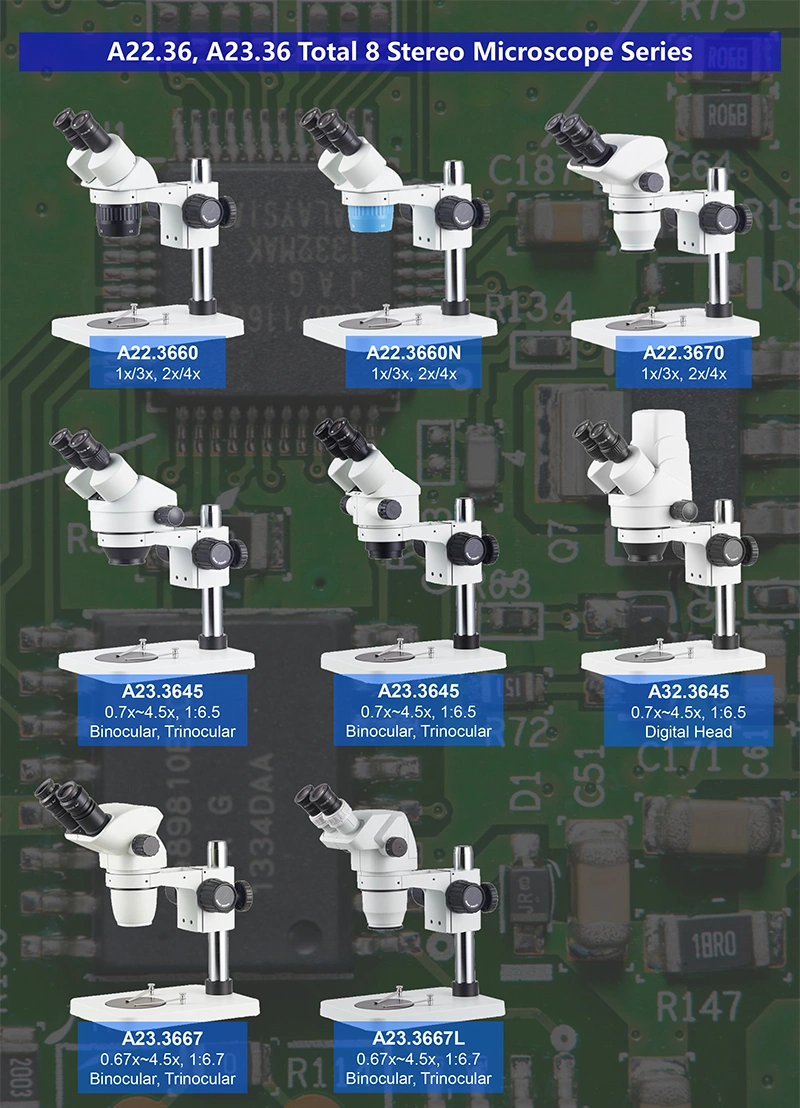

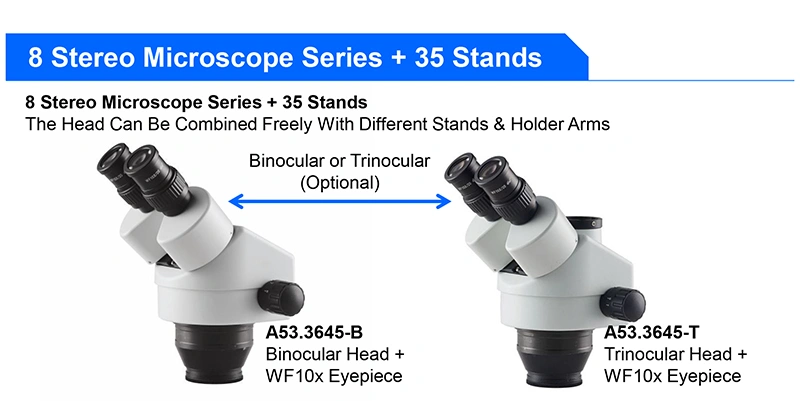

8 Stereo Microscope Series + 35 Stands The Head Can Be Combined Freely With Different Stands & Holder Arms |

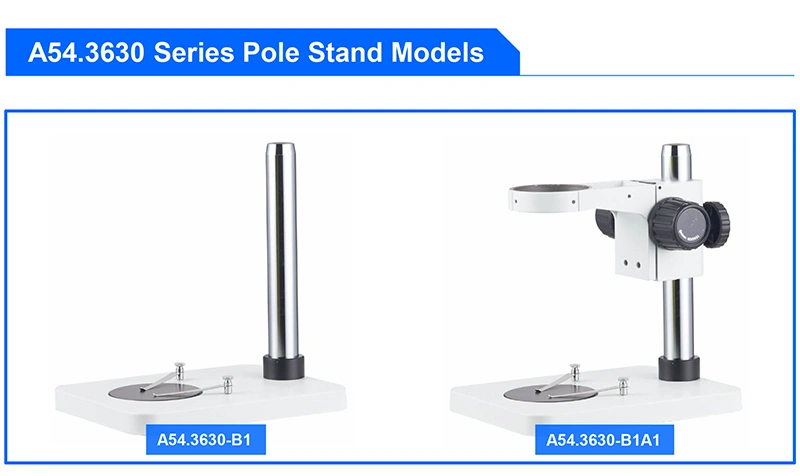

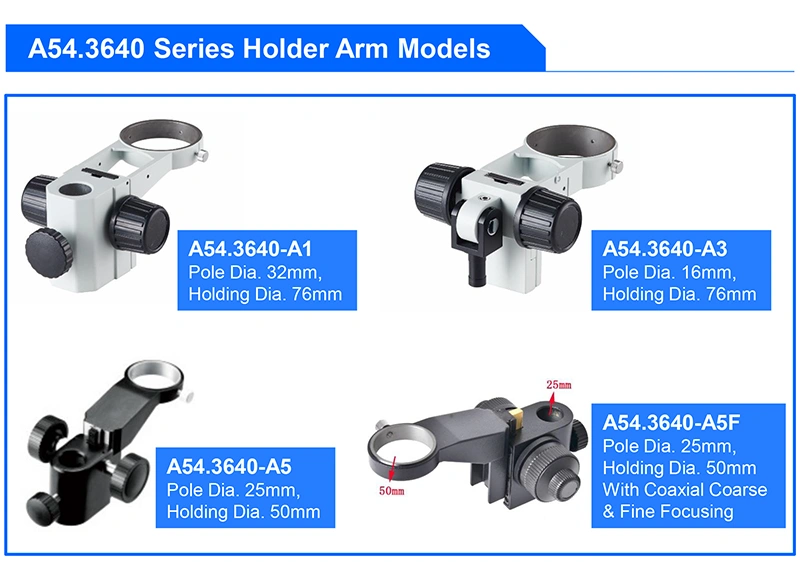

A54.3630-B1/B1A1 A54.3630-B1 Stand 200*255*22mm, Pole Height 240mm, Dia.32mm, No Light Source. A54.3630-B1A1 Stand 200*255*22mm, Pole Height 240mm, Dia.32mm, No Light Source. With A54.3640-A1 Holder Inner Dia.76mm. |

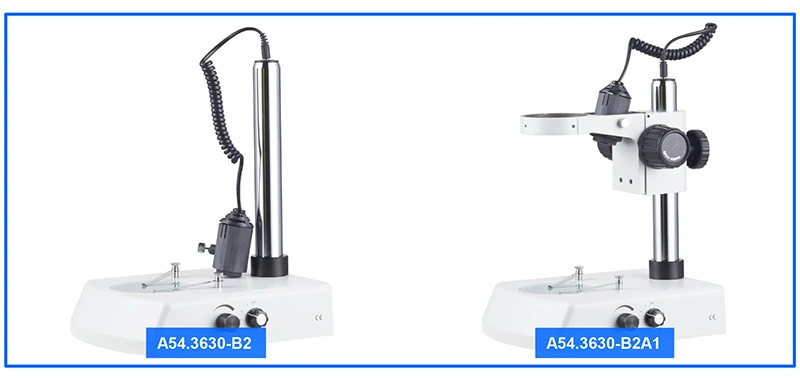

A54.3630-B2/B2A1 A54.3630-B2Stand 200*255*60mm, Pole Height 240mm, Dia.32mm, Up/Bottom 12V15W Halogen Lamp. A54.3630-B2A1Stand 200*255*60mm, Pole Height 240mm, Dia.32mm, Up/Bottom 12V15W Halogen Lamp. With A54.3640-A1 Holder Inner Dia.76mm. |

A54.3630-B2L/B2LA1 A54.3630-B2L Stand 200*255*60mm, Pole Height 240mm, Dia.32mm, Up/Bottom 3W LED. A54.3630-B2LA1 Stand 200*255*60mm, Pole Height 240mm, Dia.32mm, Up/Bottom 3W LED. With A54.3640-A1 Holder Inner Dia.76mm. |

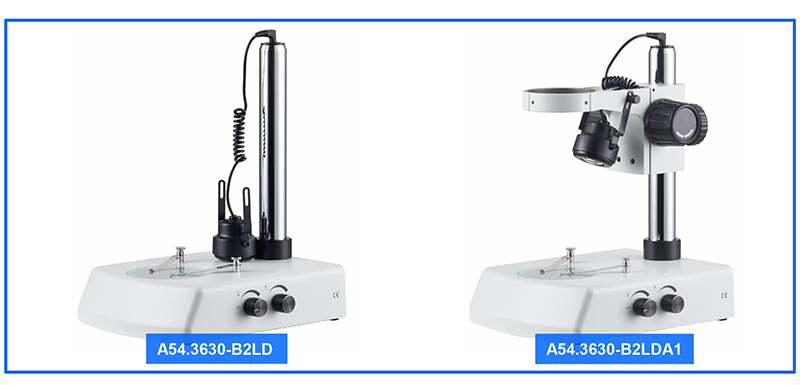

A54.3630-B2LD/B2LDA1 A54.3630-B2LD Stand 200*255*60mm, Pole Height 240mm, Dia.32mm, Up 30 LED & Bottom 92 LED. A54.3630-B2LDA1 Stand 200*255*60mm, Pole Height 240mm, Dia.32mm, Up 30 LED & Bottom 92 LED. With A54.3640-A1 Holder Inner Dia.76mm. |

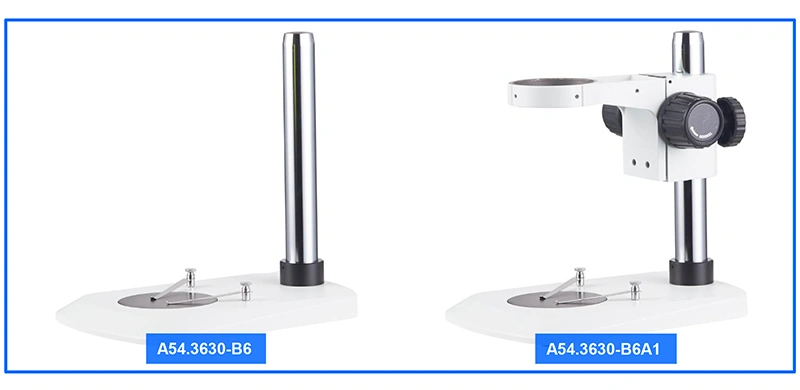

A54.3630-B6/B6A1 A54.3630-B6 Stand 205x275x22mm, Pole Height 240mm, Dia.32mm, No Light Source. A54.3630-B6A1 Stand 205x275x22mm, Pole Height 240mm, Dia.32mm, No Light Source. With A54.3640-A1 Holder Inner Dia.76mm. |

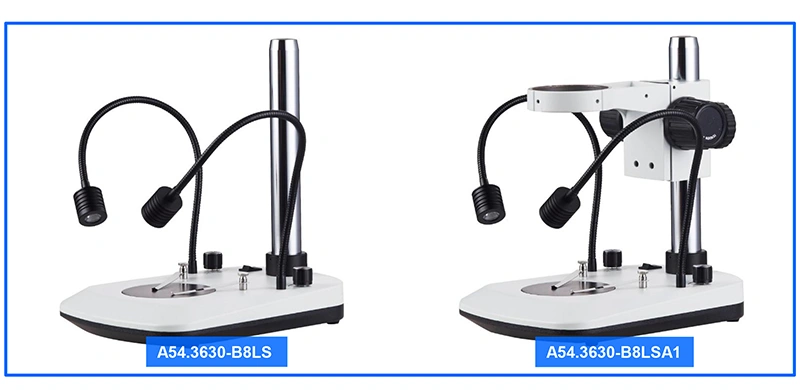

A54.3630-B8LS/B8LSA1 A54.3630-B8LS Stand 205x275x40mm, Pole Height 240mm, Dia.32mm, Double Pipe LED. A54.3630-B8LSA1 Stand 205x275x40mm, Pole Height 240mm, Dia.32mm, Double Pipe LED. With A54.3640-A1 Holder Inner Dia.76mm. |

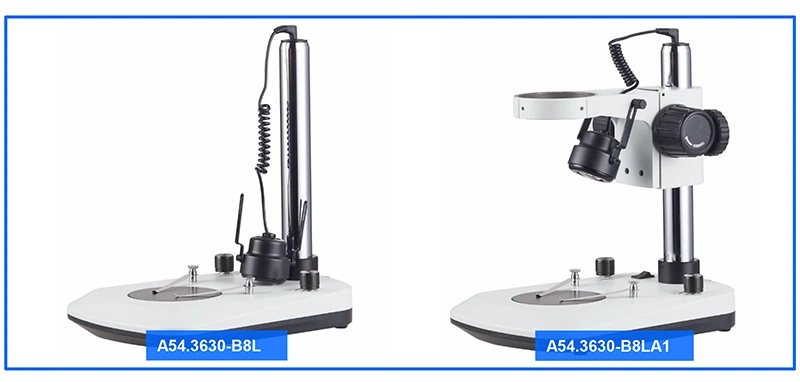

A54.3630-B8L/B8LA1 A54.3630-B8L Stand 205*275*40mm, Pole Height 240mm, Dia.32mm, Up/Bottom 3W LED. A54.3630-B8LA1Stand 205*275*40mm, Pole Height 240mm, Dia.32mm, Up/Bottom 3W LED. With A54.3640-A1 Holder Inner Dia.76mm. |

A54.3630-B8LD/B8LDA1 A54.3630-B8LD Stand 205*275*40mm, Pole Height 240mm, Dia.32mm, Up 30 LED & Bottom 92 LED. A54.3630-B8LDA1 Stand 205*275*40mm, Pole Height 240mm, Dia.32mm, Up 30 LED & Bottom 92 LED. With A54.3640-A1 Holder Inner Dia.76mm. |

A54.3630-J4L/J4LA1 A54.3630-J4L Stand 285*238*40mm, Pole Height 240mm, Dia.32mm, Up/Bottom 3W LED. A54.3630-J4LA1 Stand 285*238*40mm, Pole Height 240mm, Dia.32mm, Up/Bottom 3W LED. With A54.3640-A1 Holder Inner Dia.76mm. |

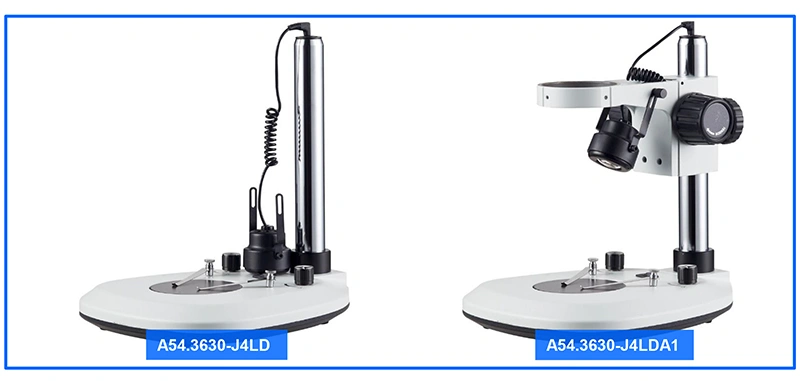

A54.3630-J4LD/J4LDA1 A54.3630-J4LD Stand 285*238*40mm, Pole Height 240mm, Dia.32mm, Up 30 LED & Bottom 92 LED. A54.3630-J4LDA1 Stand 285*238*40mm, Pole Height 240mm, Dia.32mm, Up 30 LED & Bottom 92 LED. With A54.3640-A1 Holder Inner Dia.76mm. |

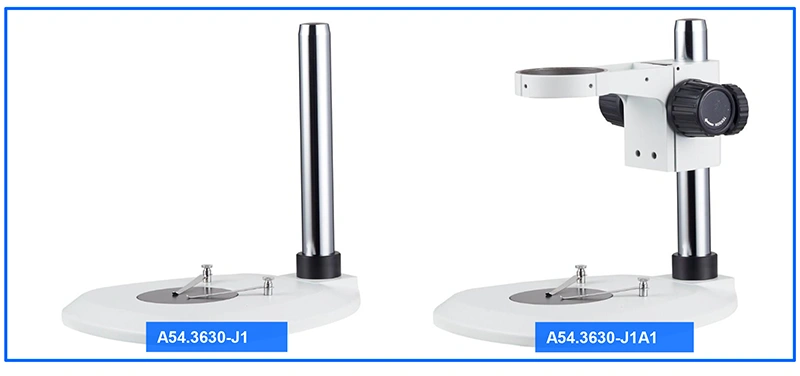

A54.3630-J1/J1A1 A54.3630-J1 Stand 285*238*25mm, Pole Height 240mm, Dia.32mm, No Light Source. A54.3630-J1A1 Stand 285*238*25mm, Pole Height 240mm, Dia.32mm, No Light Source. With A54.3640-A1 Holder Inner Dia.76mm. |

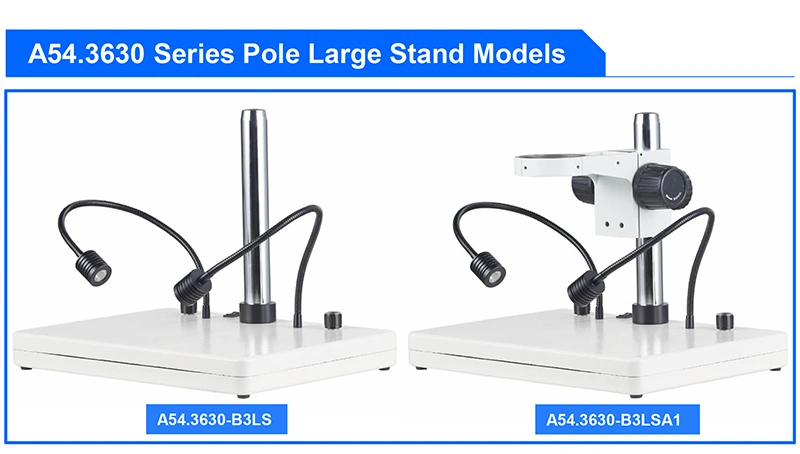

A54.3630-B3LS/B3LSA1 A54.3630-B3LS Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, Double Pipe LED. A54.3630-B3LSA1 Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, Double Pipe LED. With A54.3640-A1 Holder Inner Dia.76mm. |

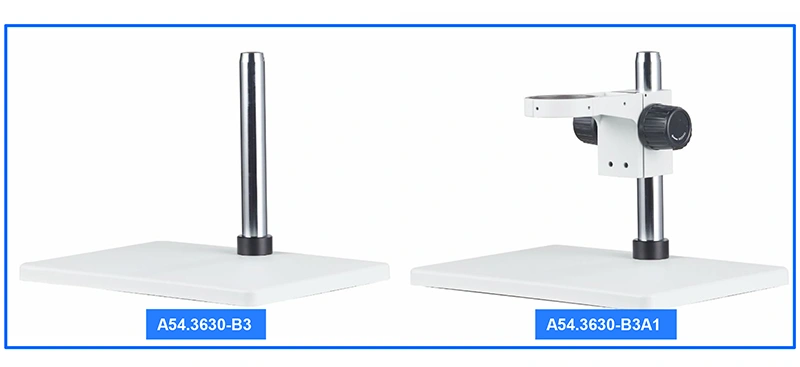

A54.3630-B3/B3A1 A54.3630-B3 Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, No Light Source. A54.3630-B3A1 Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, No Light Source. With A54.3640-A1 Holder Inner Dia.76mm. |

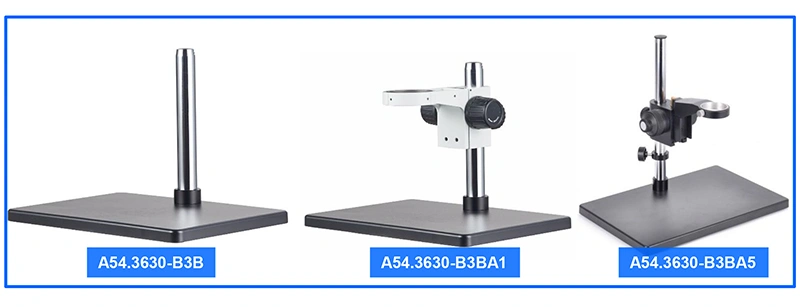

A54.3630-B3B/B3BA1/B3BA5 A54.3630-B3B Black Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, No Light Source. A54.3630-B3BA1 Black Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, No Light Source. With A54.3640-A1 Holder Inner Dia.76mm. A54.3630-B3BA5 Black Stand 380x260x20mm, Pole Height 240mm, Dia.32mm, No Light Source. With A54.3640-A5 Holder Inner Dia.76mm. |

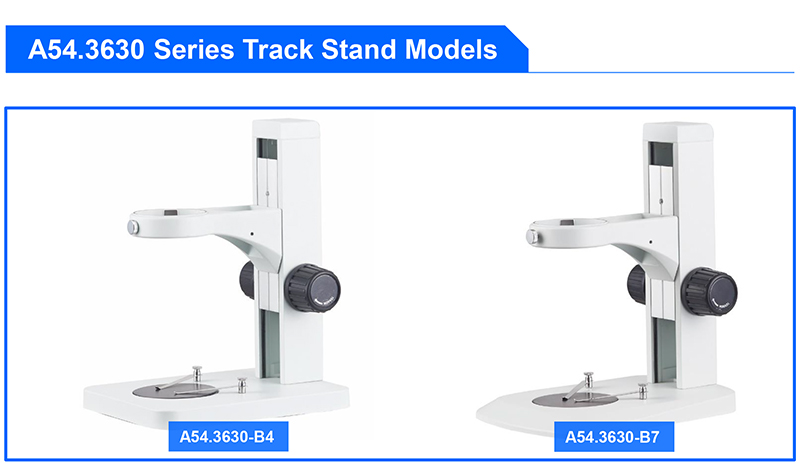

A54.3630-B4/B7 A54.3630-B4Track Stand 200x255x22mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, No Light Source. A54.3630-B7 Track Stand 205x275x22mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, No Light Source. |

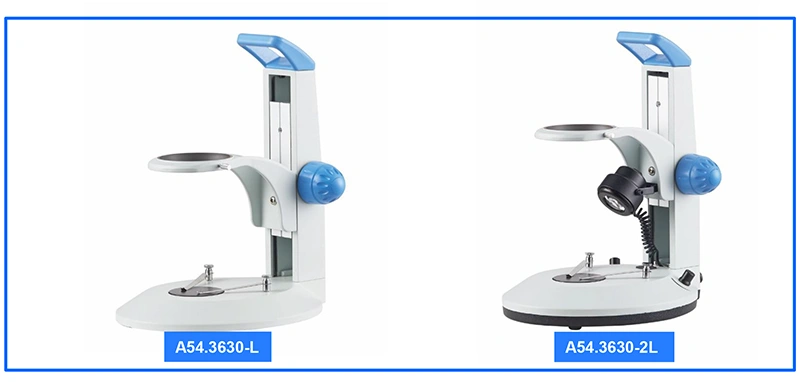

A54.3630-L/2L A54.3630-L Stand 255*200*28mm, Track Height 276mm, Dia.76mm, Focusing Range 78mm, No Light Source. A54.3630-2L Stand 255*200*40mm, Track Height 276mm, Dia.76mm, Focusing Range 74mm. LED Light. |

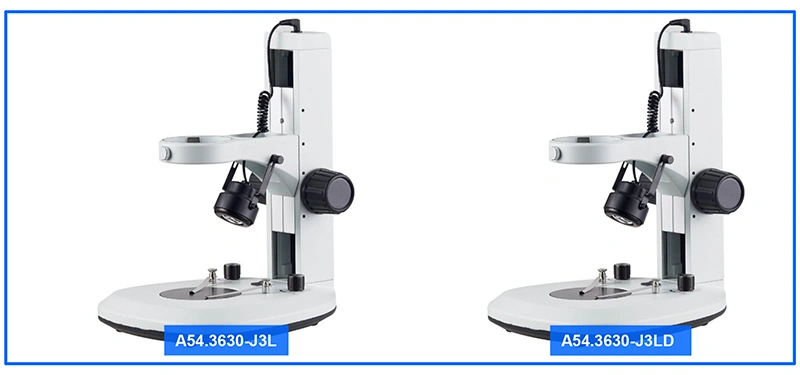

A54.3630-J3L/J3LD A54.3630-J3L Stand 285*238*40mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, Up/Bottom 3W LED. A54.3630-J3LD Stand 285*238*40mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, Up 30 LED & Bottom 92 LED. |

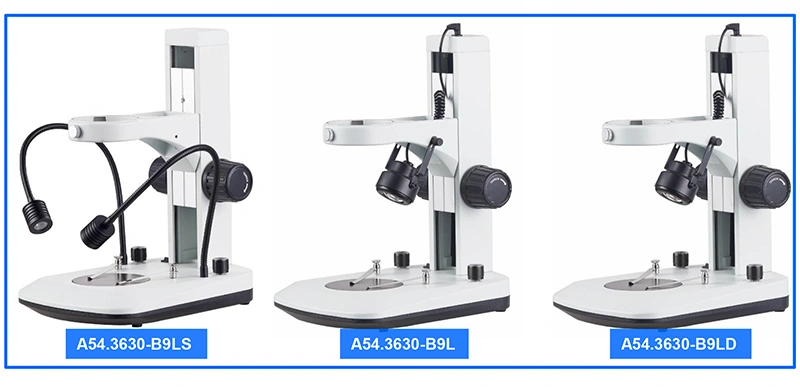

A54.3630-B9LS/B9L/B9LD A54.3630-B9LS Stand 205x275x40mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, Double Pipe LED. A54.3630-B9L Stand 205*275*40mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, Up/Bottom 3W LED. A54.3630-B9LD Stand 205*275*40mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, Up 30 LED & Bottom 92 LED |

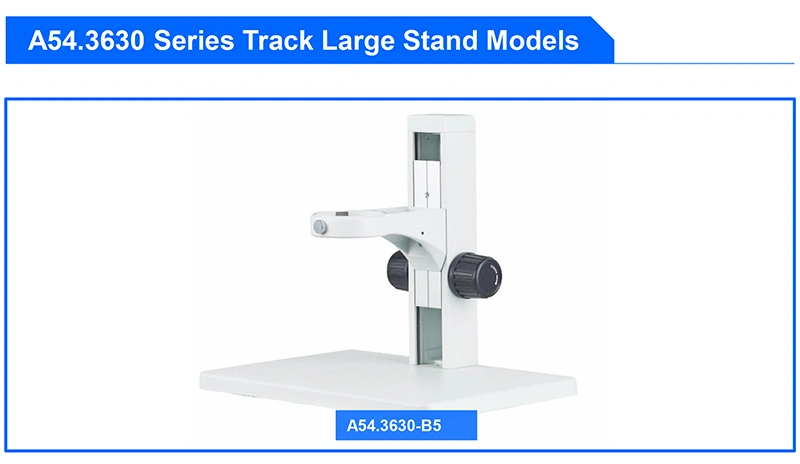

A54.3630-B5 A54.3630-B5 Stand 380x260x20mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, No Light Source. |

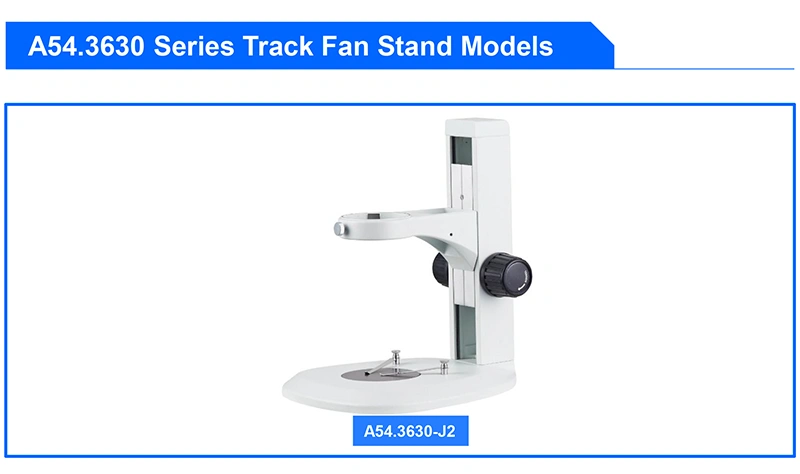

A54.3630-J2 A54.3630-J2 Stand 285*238*25mm, Track Height 300mm, Dia.76mm, Focusing Range 106mm, No Light Source. |

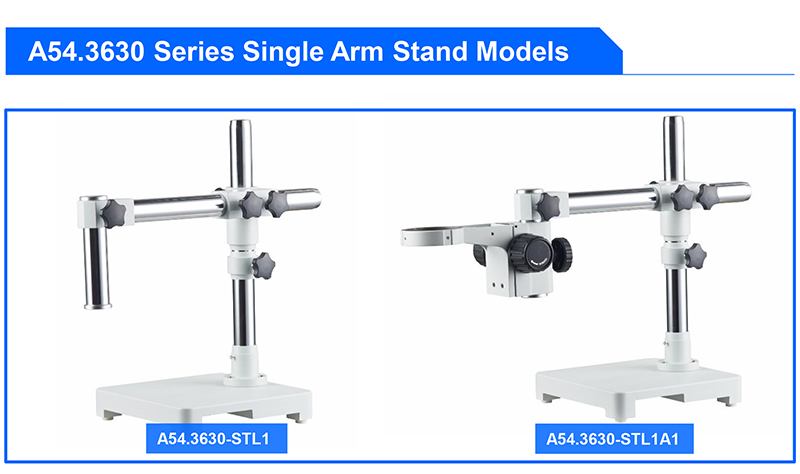

A54.3630-STL1/STL1A1 A54.3630-STL1 Stand 230*230*40mm, Pole Height 380mm, Lateral movement 235mm, Dia.32mm,No Light Source. A54.3630-STL1A1 Stand 230*230*40mm, Pole Height 380mm, Lateral movement 235mm, Dia.32mm,No Light Source. With A54.3640-A1 Holder Inner Dia.76mm |

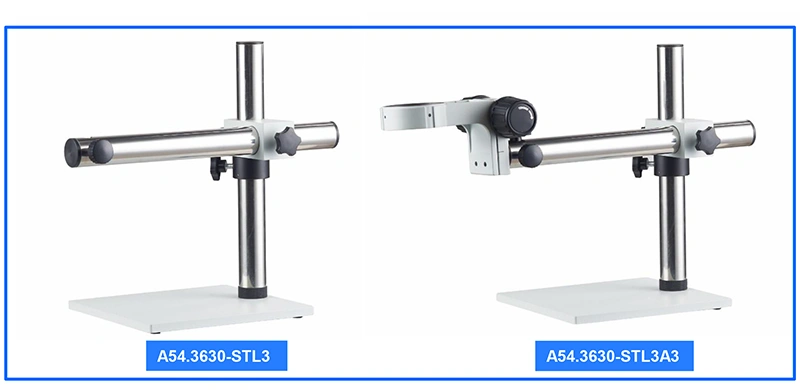

A54.3630-STL3/STL3A3 A54.3630-STL3 Stand 250*240*12mm, Pole Height 350mm, Lateral movement 400mm, Dia.38mm,No Light Source. A54.3630-STL3A3 Stand 250*240*12mm, Pole Height 350mm, Lateral movement 400mm, Dia.38mm,No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

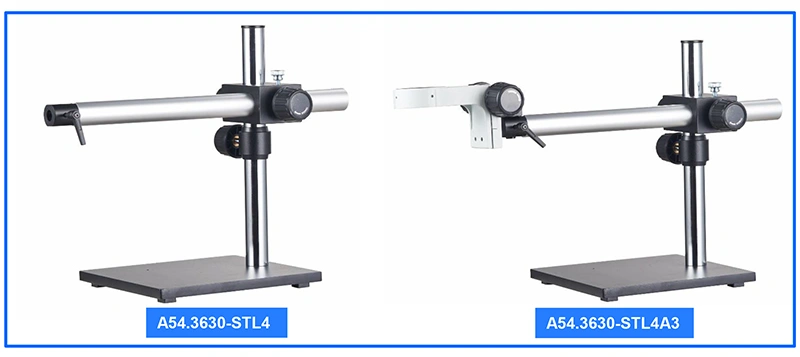

A54.3630-STL4/STL4A3 A54.3630-STL4 Stand 260*280*15mm, Pole Height 380mm, Lateral movement 420mm, Dia.37mm,No Light Source. A54.3630-STL4A3 Stand 260*280*15mm, Pole Height 380mm, Lateral movement 420mm, Dia.37mm,No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

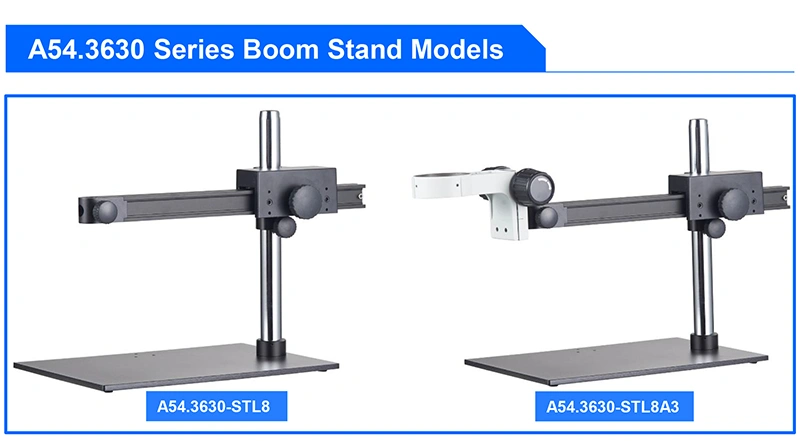

A54.3630-STL8/STL8A3 A54.3630-STL8 Stand 380*280*10mm, Pole Height 355mm, Lateral movement 265mm, Dia.32mm,No Light Source. A54.3630-STL8A3 Stand 380*280*10mm, Pole Height 355mm, Lateral movement 265mm, Dia.32mm,No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

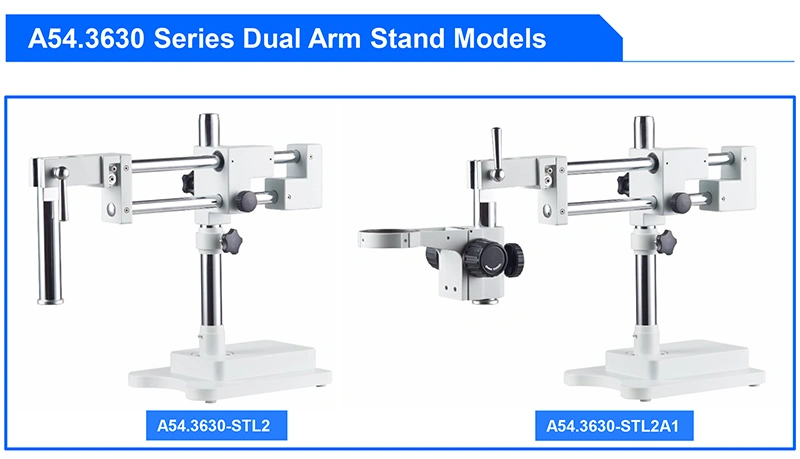

A54.3630-STL2/STL2A1 A54.3630-STL2 Stand 210*260*50mm, Pole Height 380mm, Lateral movement 235mm, Dia.32mm,No Light Source. A54.3630-STL2A1 Stand 210*260*50mm, Pole Height 380mm, Lateral movement 235mm, Dia.32mm,No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

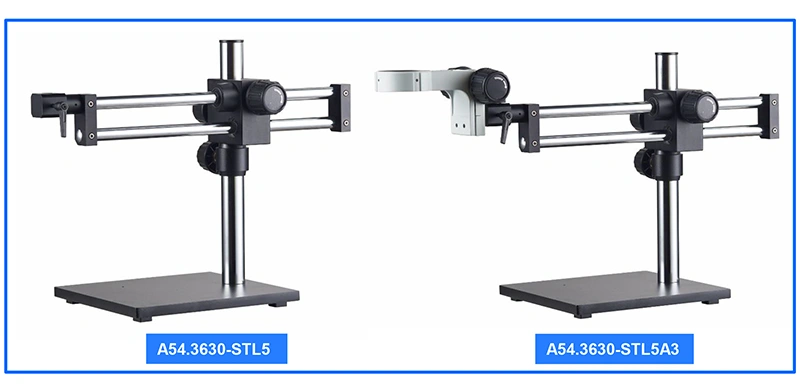

A54.3630-STL5/STL5A3 A54.3630-STL5 Stand 260*280*15mm, Pole Height 380mm, Lateral movement 420mm, Dia.37mm,No Light Source. A54.3630-STL5A3 Stand 260*280*15mm, Pole Height 380mm, Lateral movement 420mm, Dia.37mm,No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

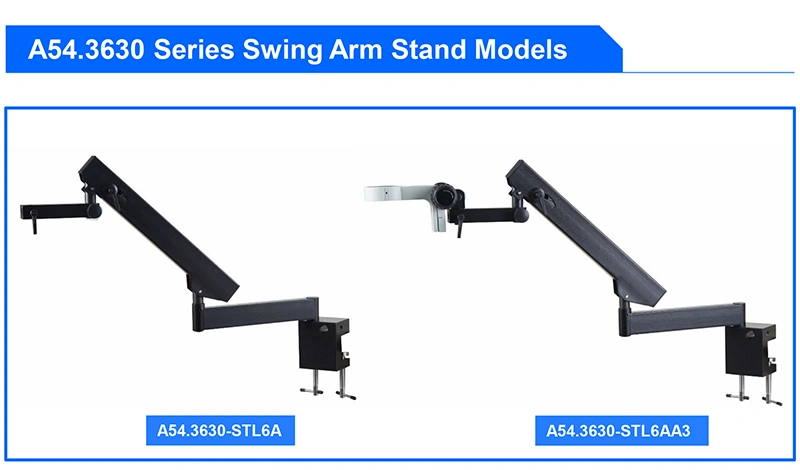

A54.3630-STL6A/STL6AA3 A54.3630-STL6A Stand 98*80*116mm, vertical Height 400mm, Horizontal distance 770mm, Max clamping 50mm, No Light Source. A54.3630-STL6AA3 Stand 98*80*116mm, vertical Height 400mm, Horizontal distance 770mm, Max clamping 50mm, No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

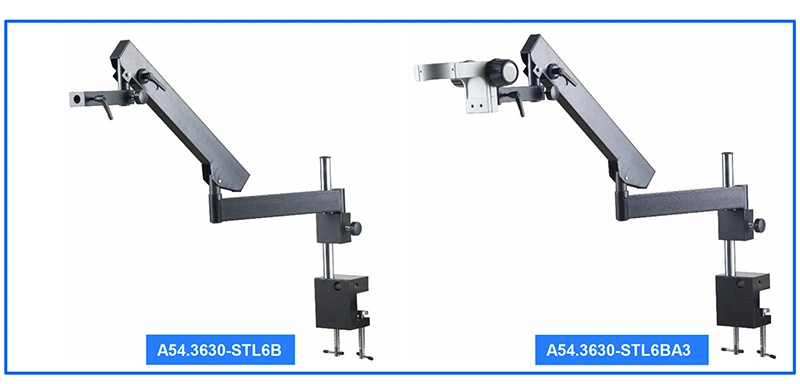

A54.3630-STL6B/STL6BA3 A54.3630-STL6B Stand 98*80*116mm, vertical Height 400mm, Horizontal distance 770mm, Max clamping 50mm, Dia.25mm, Pole Height 275mm, No Light Source. A54.3630-STL6BA3 Stand 98*80*116mm, vertical Height 400mm, Horizontal distance 770mm, Max clamping 50mm, Dia.25mm, Pole Height 275mm, No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |

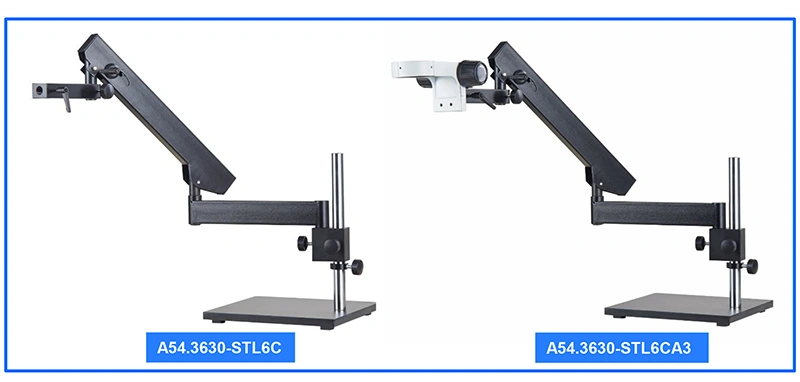

A54.3630-STL6C/STL6CA3 A54.3630-STL6C Stand 260*280*15mm, vertical Height 400mm, Horizontal distance 770mm, Dia.25mm, Pole Height 323mm, No Light Source. A54.3630-STL6CA3 Stand 260*280*15mm, vertical Height 400mm, Horizontal distance 770mm, Dia.25mm, Pole Height 323mm, No Light Source. With A54.3640-A3 Holder Inner Dia.76mm |
