A56.2617

Like Favorites

LED Cold Light, 10W-30W

Specification:

A56.2617

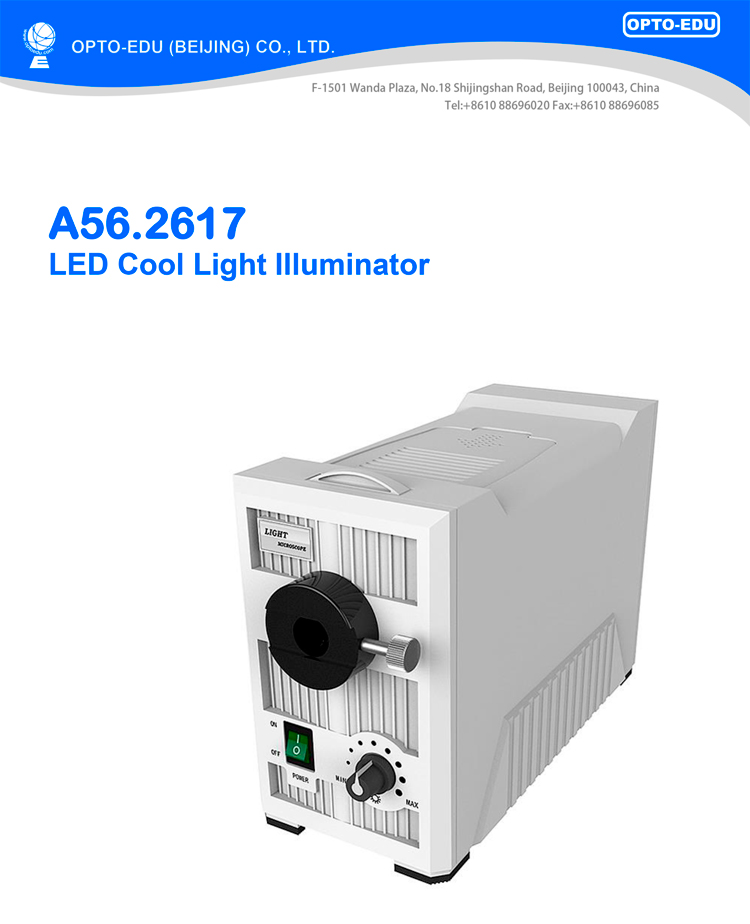

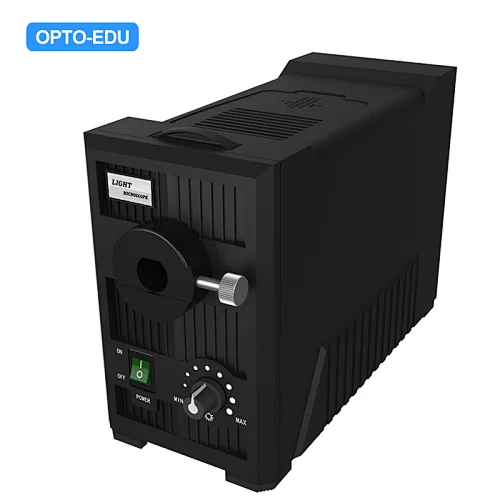

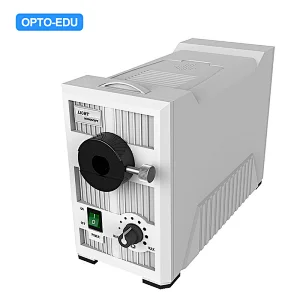

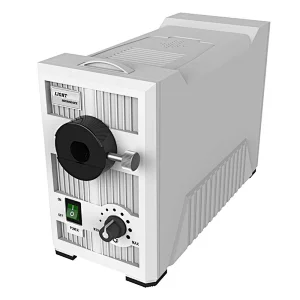

A56.2617 Cool Light Fiber Optic LED Illuminator Specification
Model	A56.2617-10	A56.2617-20	A56.2617-30
Power	10W LED Lamp	20W LED Lamp	30W LED Lamp
Input voltage	AC 85V~265V, 50Hz-60Hz
CT	6000K (3000K, 4500K Optional)
Illuminance	60000Lx, =100W Halogen	90000Lx, =150W Halogen	150000Lx, =250W Halogen
LED Life	30000H
Fiber Interface	16mm (5/8“)
Cooling System		Built In Large-area Radiator and Cooling Fan
	Metal Body	Metal Body + Cooling Fan	Metal Body + Cooling Fan
Size	Main Body Size 245x101x157mm,
Net Weight	2.2kgs	2.4kgs	2.5kgs
Gross Weight	2.9kgs
Packing Size	290x228x255mm
Optional Accessories			Item No.

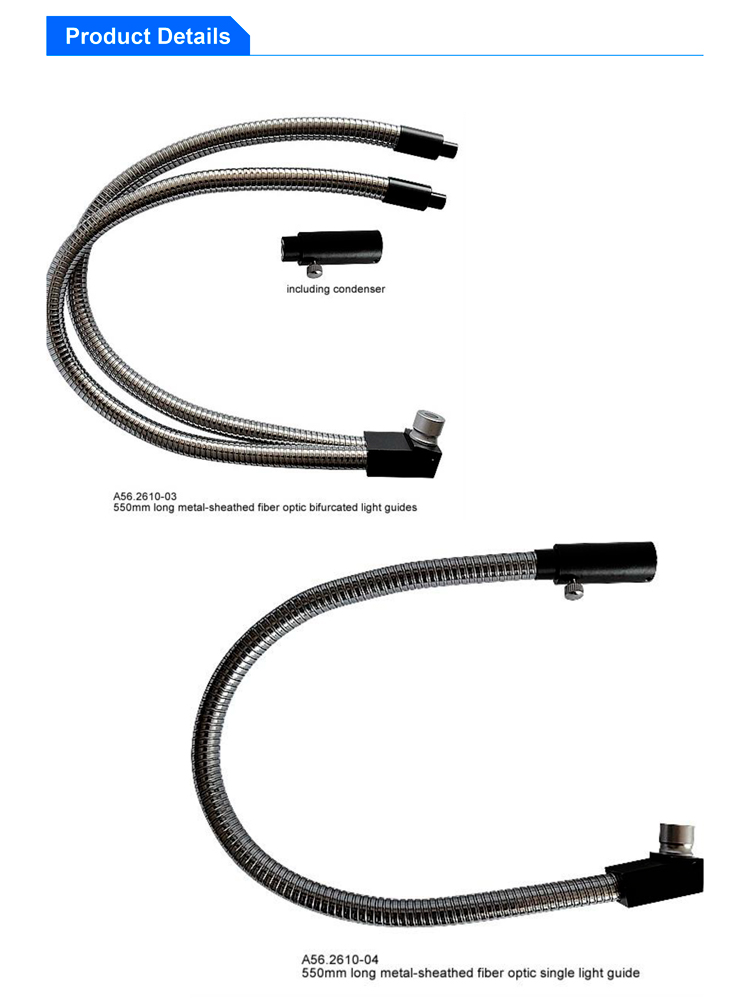

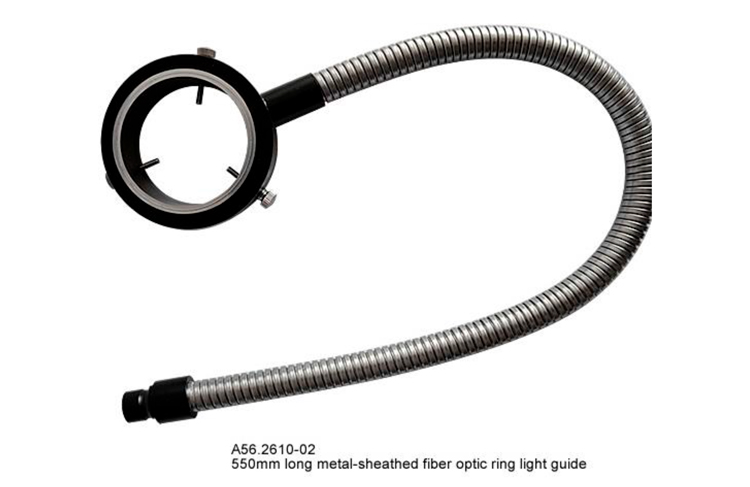

Fiber Optic Light Guide (Gooseneck type)	Ring Optical Fiber, Length 550mm, Beam Dia. 8mm		A56.2618-01
	Dual Hard Optical Fiber, Length 550mm, Beam Dia. 8mm		A56.2618-02
	Single Hard Optical Fiber, Length 550mm, Beam Dia. 8mm		A56.2618-03
	Ring Optical Fiber, Length 800mm, Beam Dia. 8mm		A56.2618-04
	Dual Hard Optical Fiber, Length 800mm, Beam Dia. 8mm		A56.2618-05
	Single Hard Optical Fiber, Length 800mm, Beam Dia. 8mm		A56.2618-06
	Single Hard Optical Fiber, Length 1000mm, Beam Dia. 8mm		A56.2618-07

Pictures Hide Same Show Difference
Model No.	A56.2617	A56.2618
Working Distance	——	格式:1.0,或1.0~2.0
Video Adapter	——	C-Mount 0.3x
Focusing Scale	——	0.000000
Focusing Range	——	0.000000
Working Stage Size	——	格式:100x100mm,或 Dia.100mm
