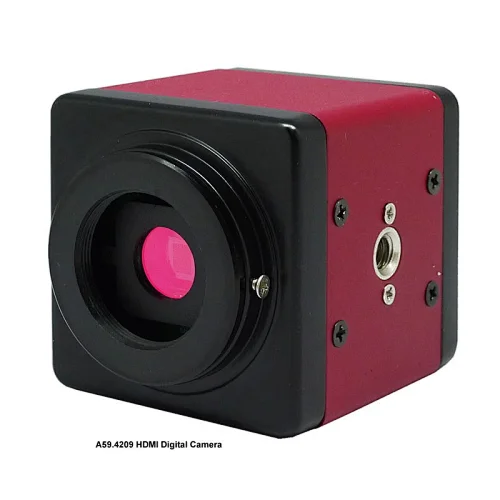

HDMI Digital Camera, 720p, Mouse Control
HDMI Digital Camera, 720p, Mouse Control
HDMI Digital Camera, 720p, Mouse Control
HDMI Digital Camera, 720p, Mouse Control
HDMI Digital Camera, 720p, Mouse Control
HDMI Digital Camera, 720p, Mouse Control
HDMI Digital Camera, 720p, Mouse Control

A59.2221

Like Favorites

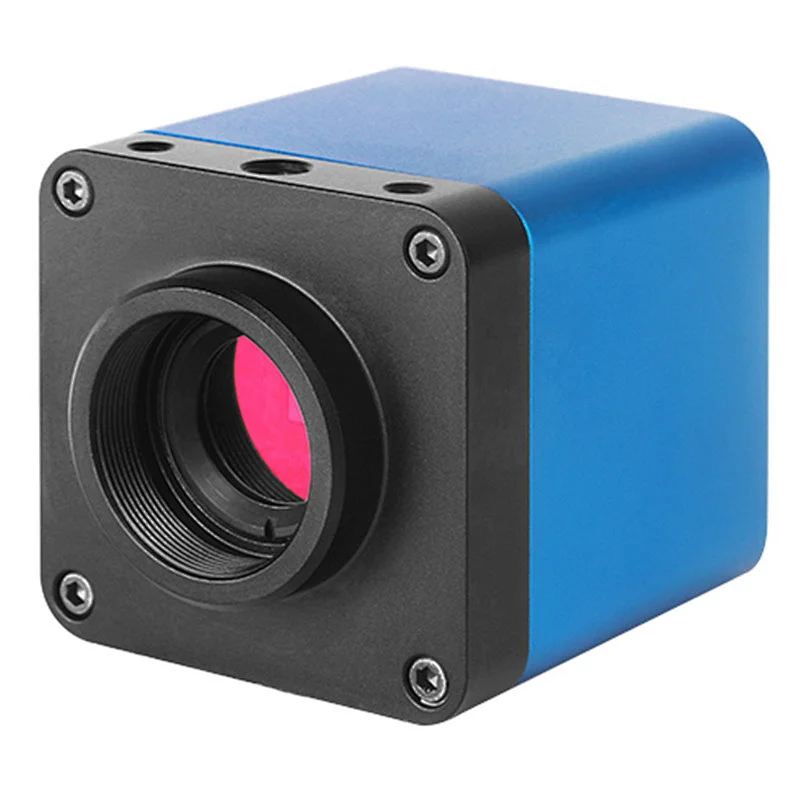

HDMI Digital Camera, 720p, Mouse Control

Quantity:

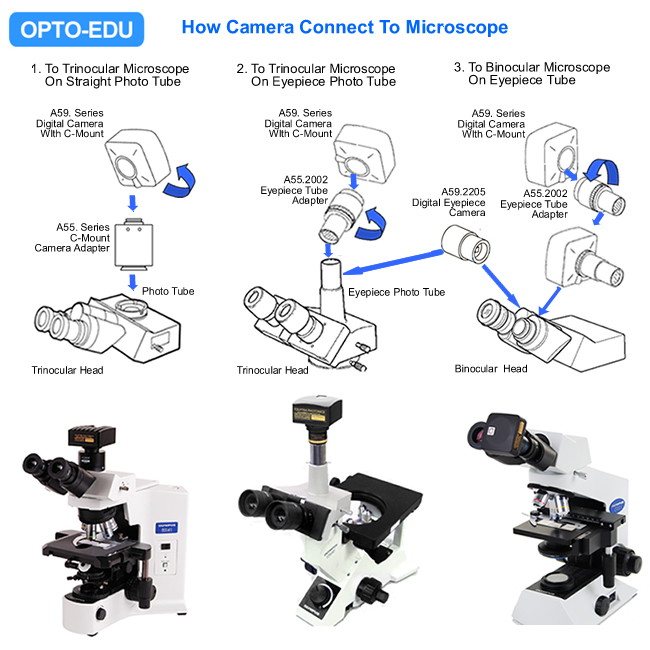

--Through standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
--High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
--1280 × 720 (720P) resolutions to match the current high-definition displayer on the market.
--XCAM720KPB/PHC embedded XCamView based on the Qt platform. The camera characteristic can be controlled by the mouse. The other basic processing and choosing can also be realized by the XCamView.
--For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.


Item No.
A59.2221-1.2M
A59.2221-2M
Sensor & Size
720P/1.2M/AR0130(C)
1/3"(4.80x2.70)
720P/2M/IMX322(C)
1/2.8"(5.78x3.02)
Pixel(μm)
3.75x3.75
2.8x2.8
G Responsivity
Dynamic range
SNRmax
6.5 V/lux-sec
85.3dB
44dB

510mv with 1/30s(G Sensitivity)
0.15mv with 1/30s (Dark Signal)

FPS/Resolution
30@1280x720
30@1280x720
(HDMI)
1920x1080
(Capture)
Binning
1x1
1x1
Exposure
0.21ms~2000ms
0.06ms~1900ms

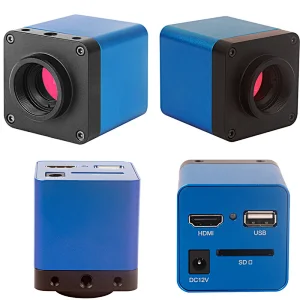

Camera Interface

USBUSB Mouse for XCamView Control
HDMIHDMI Output Port
DC12VPower Input Slot
SDSD Card Slot
Operating Environment

Operating Temperature

-10~50(in Centidegree)
Storage Temperature-20~60(in Centidegree)
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V/1A Adaptor

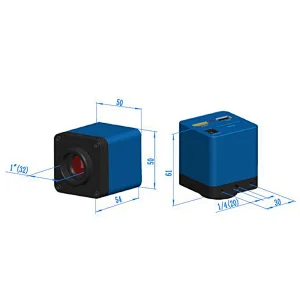

Overall Dimensions
Width x Depth x Height50 mm (1.97”) x 50 mm (1.97”) x 61mm (2.4”)
Shipping Weight0.47kg (0.55 lbs)

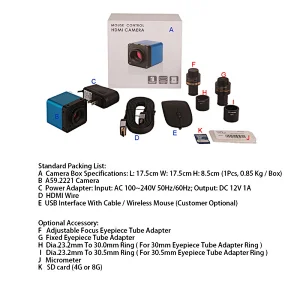

Optional Accessories
LensC-mount Lens
CableHDMI Cable
Memory CardSD Card
MouseUSB mouse/USB Wireless Mouse
