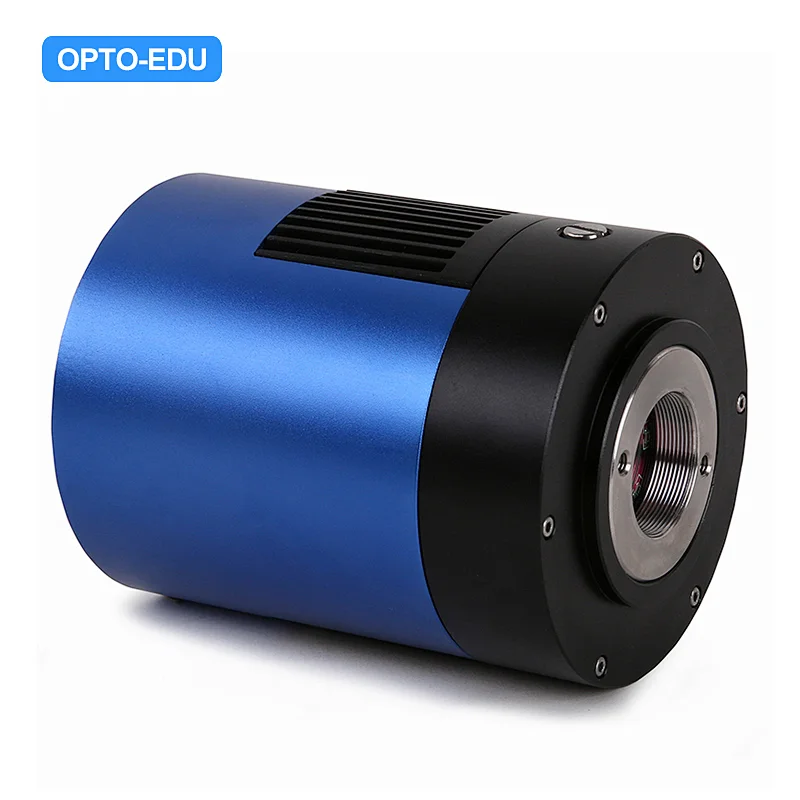

USB3.0 CMOS Cooled Digital Camera, Fluorescent Use
USB3.0 CMOS Cooled Digital Camera, Fluorescent Use
USB3.0 CMOS Cooled Digital Camera, Fluorescent Use
USB3.0 CMOS Cooled Digital Camera, Fluorescent Use

A59.2225

Like Favorites

USB3.0 CMOS Cooled Digital Camera, Fluorescent Use


Quantity:


Item No.
Sensor & Size(mm)
Pixel(μm)
G Sensitivity
Dark Signal
FPS/Resolution
Binning
Exposure
A59.2225-20MPA

20M/IMX183(C)
1"(13.06x8.76)

2.4x2.4
462mv with 1/30s
0.21mv with 1/30s
5@5440x3648
10@4096x2160
15@2736x1824
30@1824 x1216
1x1,
2x2,
3x3
0.1ms~3600s
A59.2225-20MMA
20M/IMX183(M)
1"(13.06x8.76)

2.4x2.4
388mv with 1/30s
0.21mv with 1/30s
17.8@5440x3648
41@4096x2160
51@2736x1824
64@1824 x1216
1x1,
2x2,
3x3
0.1ms~3600s
A59.2225-16MPA
16M/MN34230(C)
4/3“(17.60x13.30)
3.8x3.8
2413LSB
89.1LSB
(Gain=0dB)
6@4648x3506
20@2304x1750
48@1536x1168
1x1,
2x2,
3x3
0.15ms~3600s
A59.2225-16MMA
16M/MN34230(M)
4/3“(17.60x13.30)
3.8x3.85
2560LSB
89.1 LSB
(Gain=0dB)
22.5@4648x3506
43@2304x1750
48@1536x1168
1x1,
2x2,
3x3
0.15ms~3600s
A59.2225-10.3MA
10.3M/IMX294(C)
4/3"(17.47x12.86)

4.63x4.63
419mv with 1/30s
0.12mv with 1/30s
7.5@3704x2778
8.5@4096x2160
30@2048x1080
60@1360x720
1x1,
2x2,
3x3
0.15ms~3600s
OTHER HARDWARE CONFIGURATION
Spectral Range380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White BalanceROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering TechniqueUltra Fine Color Engine
Capture/Control APINative C/C++, C#, Directshow, Twain, Labview
Recording SystemStill Picture and Movie
Cooling System*Two-stage TE-cooling System -45 °C below Camera Body Temperature
OPERATING ENVIRONMENT
Operating Temperature-10℃~ 50℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
External Power Adapter for Cooling System, DC12V,3A
SOFTWARE ENVIRONMENT
Operating SystemSupport Microsoft  Windows  XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17"or Larger
CD-ROM
