A59.3551

Like Favorites

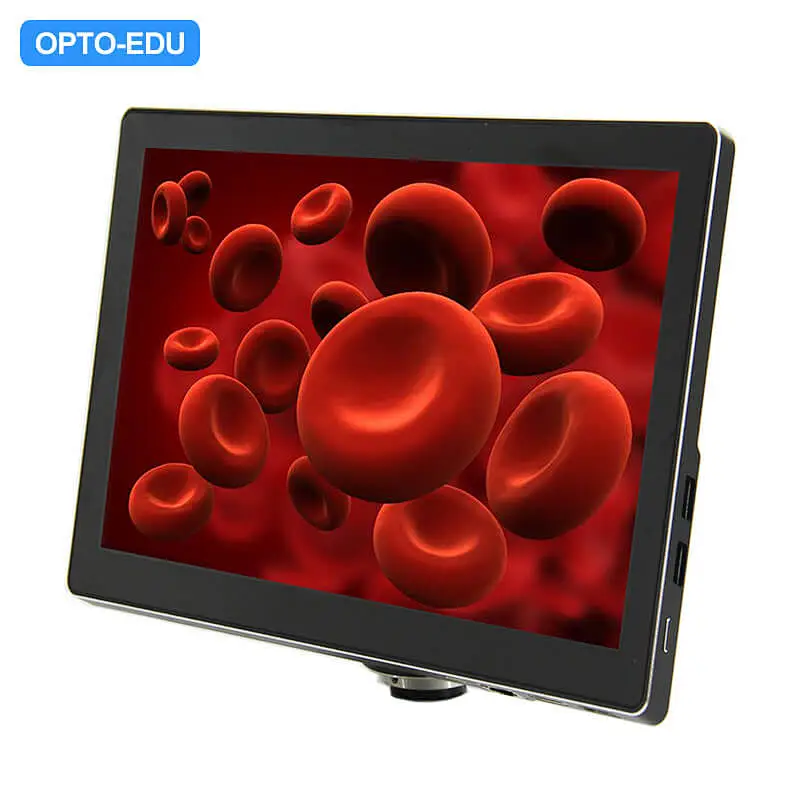

11.6" Win10 Tablet Digital Camera, 16.0M


  • 11.6" LCD Resolution 1920*1080 Win10 Tablet 64 Bits
  • 16M Digital Camera 1/2.3" CMOS Sony Sensor
  • 2.4G/5G WIFI, Bluetooth, USB3.0, HDMI, Ethernet Port
  • S-EYE Measure Software Installed
  • Type C Power Supply DC12V/2A Adapter
Quantity:





ItemsA59.3551  11.6"Win10 Tablet Digital Camera, 16.0M
Sensor1/2.3"Sony CMOS Sensor
Resolution16M CMOS
LCD Screen11.6"LCD, Resolution 1920x1080p IPS Screen
CPUInter J4105
SystemWin10 64Bits
WIFI2.4G/5G WIFI, 802.11a/b/g/n/ac
BluetoothBluetooth 4.2
OutputUSB3.0, HDMI, WIFI, Ethernet, Type-C Power Supply
Pixel Size1.335x1.335um
Power SupplyDC 12V/2A Power Adapter, Input 100-240V AC
FunctionPhoto 16M, Video 1080p Full HD
Adjust: Brightness, Contrast, Saturation, White Balance, Exposure, Flicker Suppression, Sharpness, Gamma, CB/Cr Gain
UI Interface: Mouse Control, Touch Screen
Storage Photo, Video, Preview, SD Card Format
Windows MeasureS-EYE Measure Software:
Length: Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point Line Distance, Line Length
Geometry:Radius Circle, Two-point Circle, Three-point Circle, Concentric Circle, Radius Circle, Two-point Circle, Three-point Circle
Geometric Area:Polygon, Square
Remark: Point Coordinates, Crosshairs, Coordinate Systems, Text Notes     Image View Professional Measure Software
Size / WeightProduct Size 285x177x12.5mm, Net Weight 0.9kg
Standard PackageLCD Camera, DC12V Power Adapter
Quick Manual1. First, connect the product to Type-C DC-12V power supply

2. After connecting the power supply, press the power on button, and the blue light of the product will always be on.

3. Double click the S-EYE Measure Software on the desktop of Window 10

4. Click"Open Video Source"in S-EYE software, and choose camera YW1600

6. Measure and adjust as you need.

Pictures
Model No. A59.3551
Power Supply Type
AC 100V-240V Wide Voltage
Camera Type
Windows Pad +Camera
Camera Pixel
16MP
Camera Sensor Size
1/2.3"
Camera Screen Size
11.6"
Camera Mounting
C-Mount
Camera Output
USB3.0
HDMI
4G WIFI
5G WIFI
Ethernet
USB Hard Disk
System Support
Win10, 64 Bits
