A59.4910

Like Favorites

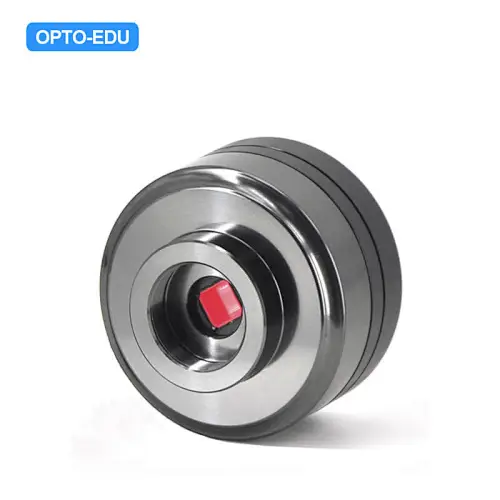

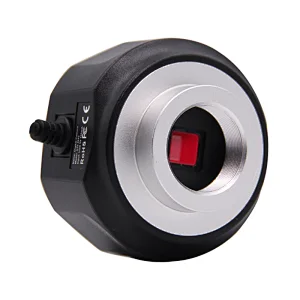

USB2.0 CMOS Digital Camera, 5.0M, Fix USB Cable


Quantity:







● A closed structure with color filter built-in, preventing dust from CMOS sensor.

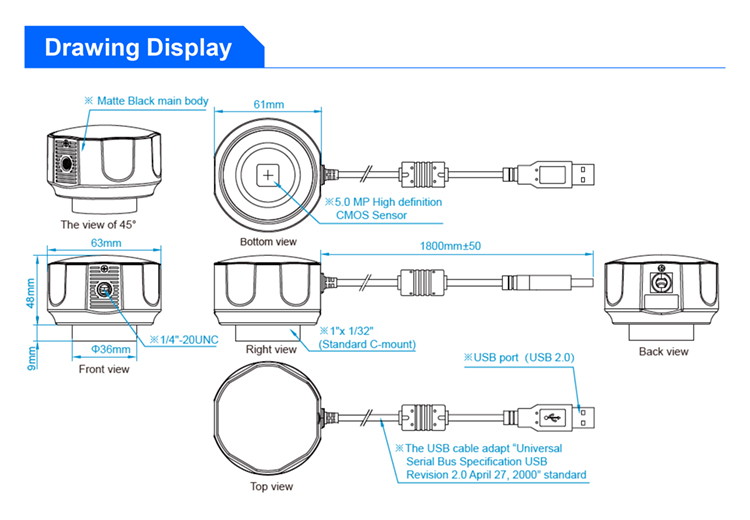

Designedwith commonly used tripod mount 1/4-20A for widely use.

Reliableelectronicdouble plates design to resolve over heat problem after long working time.

5VDC power supply from USB port no need additional power adapter.

3Years Quality Warranty!

Hardware Configuration
Imaging SensorColorful
Scan PatternsScan Line By Line
The Maximum Resolution2592 x 1944(5,038,848 Pixels)
Sensor Optical Format1/2.5“ (5.70mm(H) x 4.28mm(V), Diagona 7.13mm)
Pixel Size2.2μm x 2.2μm
Dynamic Range70.1dB
ADC12-bit, 8-Bit R.G.B to PC
SNRmax38.1dB
Spectral Characteristics380-650nm
Preview Modes22FPS@2592x1944,
30FPS@1920x1080, 1600x1200
40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480
Binning Modes1 x 1, 2 x 2
Exposure Capability3.9ms - 320ms, Automatic And Manual
White BalanceAutomatic And Manual
Software InterfaceDirectShow
Capture ModesPhotos And Videos (MJPG and AVI)
Software Environment
Operation SystemMicrosoft®Windows®XP / 7 / 8 /8.1/10(32 & 64 bit)
Computer ConfigurationCPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory :2G Or More
USB Port:USB2.0 High Speed Port Or Compatible Port
Displayer :Suggest 17 Inches Or Larger
Operating Environment
Operating Temperature-10℃~ 50℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDirect-current , Supply By USB Port

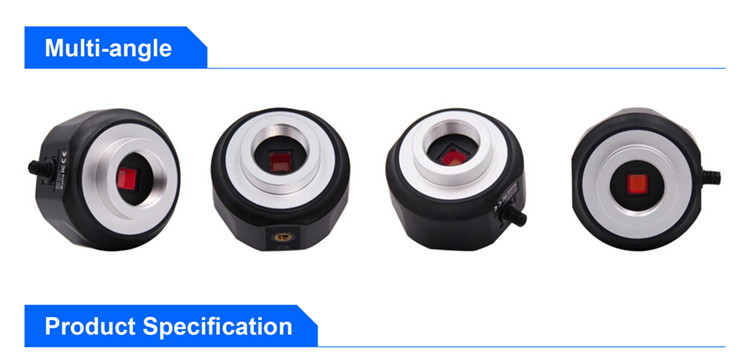

Pictures

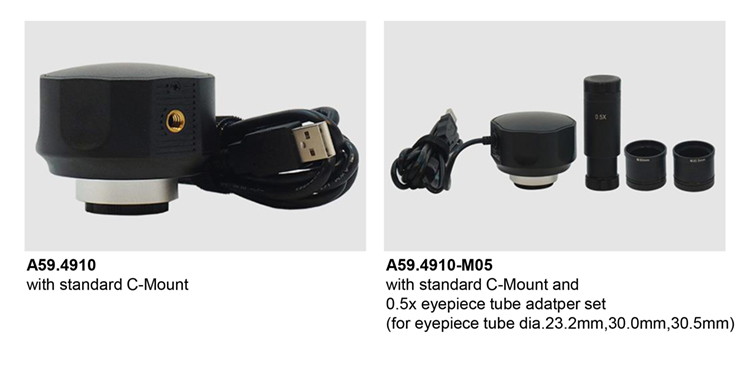

Model No. A59.4910 A59.4910-M05
Function
BF+FL BF+FL
New Product Year
2016 2016
Head Inclination
90° 90°
Head Interpupillary
54~75mm 54~75mm
Camera Type
USB2.0 CMOS USB2.0 CMOS
Camera Sensor Size
1/2.5" 1/2.5"
Other Specification

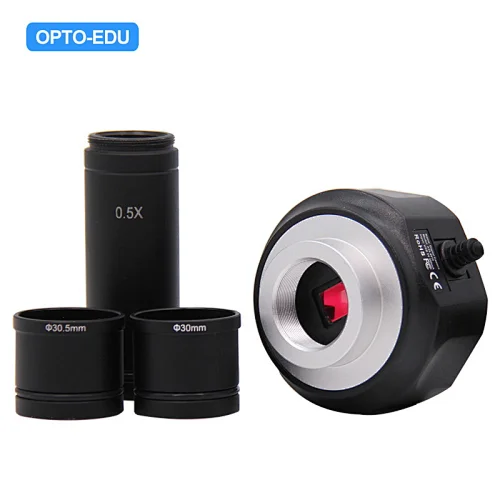

C-Mount, Fixed USB Cable C-Mount, Fixed USB Cable, With 0.5x Eyepiece Tube Adapter Ring Set (23.2mm, 30.0mm, 30.5mm)
